YT-82267

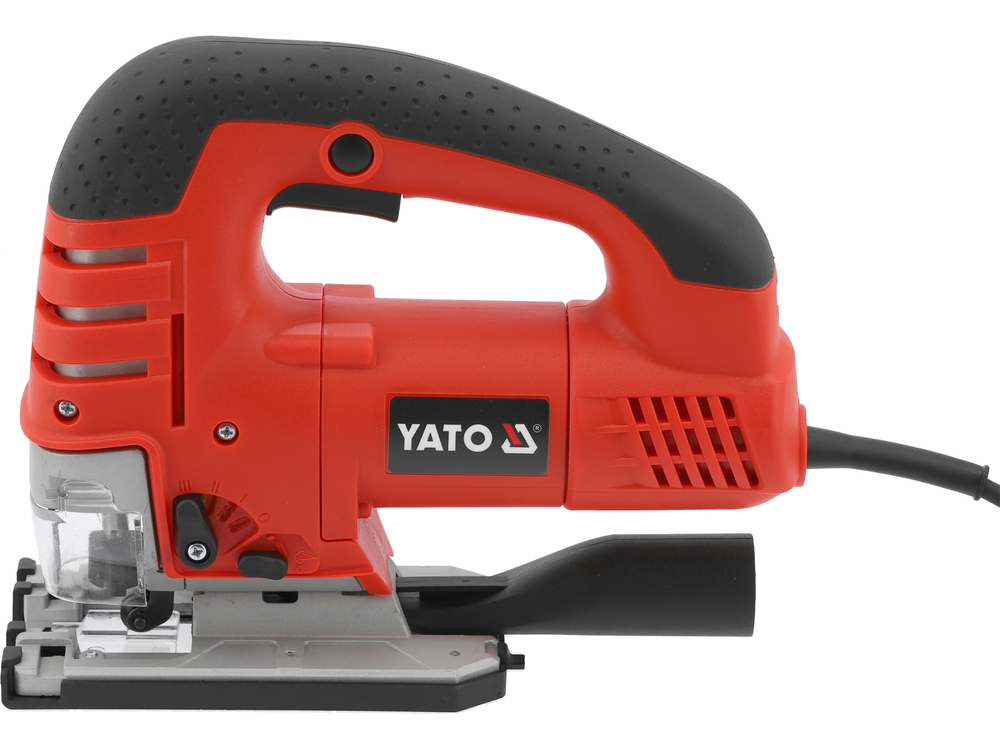

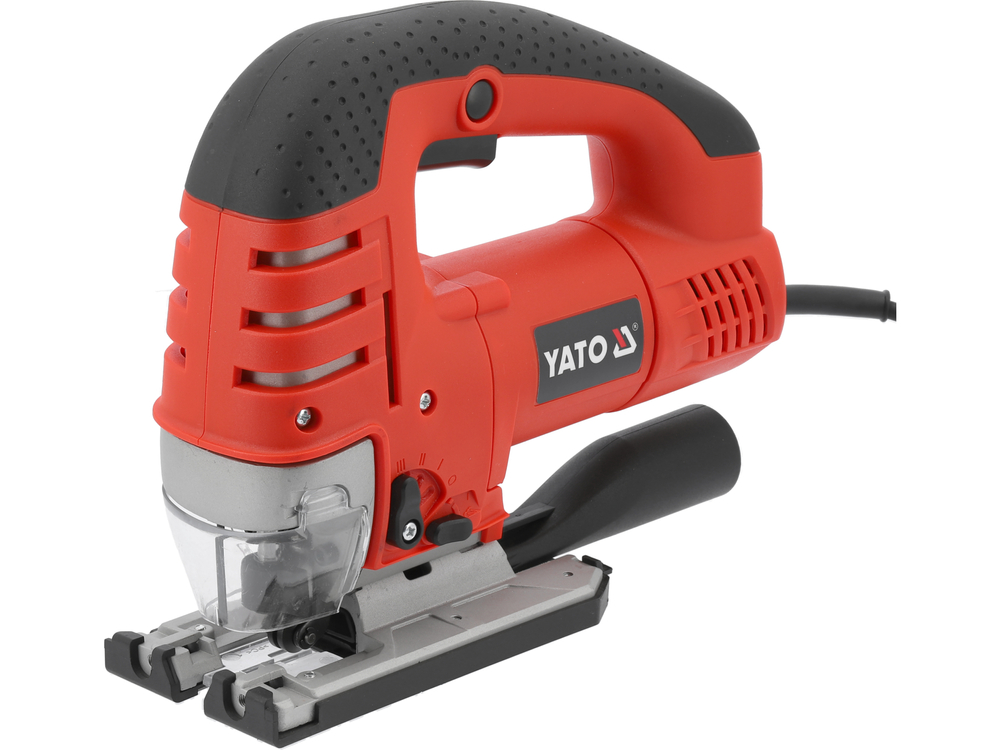

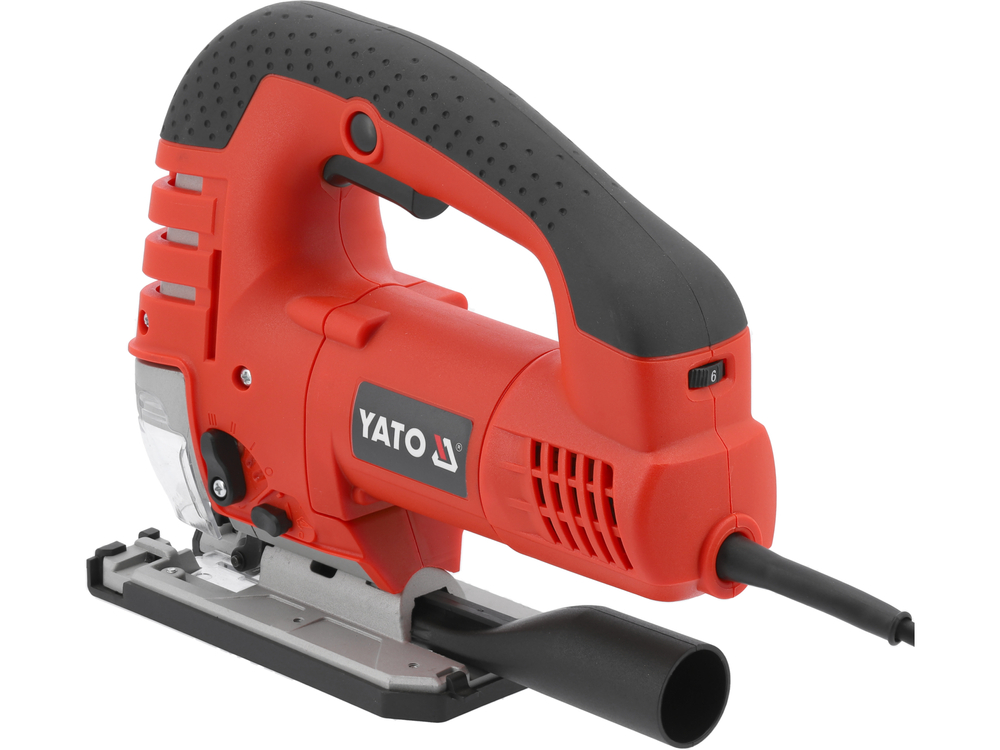

JIG SAW 750W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
750 W
Rotations
600-2800 min⁻¹
Voltage
230-240 V a.c.
Frequency
50 Hz
Saw blade stroke
28 mm
Max. cutting thickness in wood
150 mm
Max. cutting thickness in soft metal
10 mm
Cutting angle regulation
45 ˚
Functions
pendulum, 4-stage
Blade type
type T
Laser
no

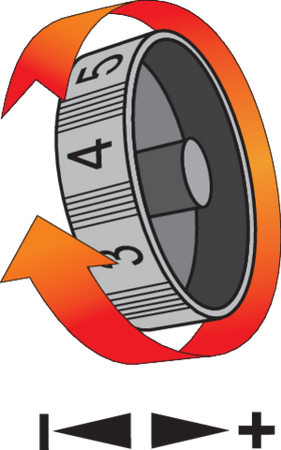

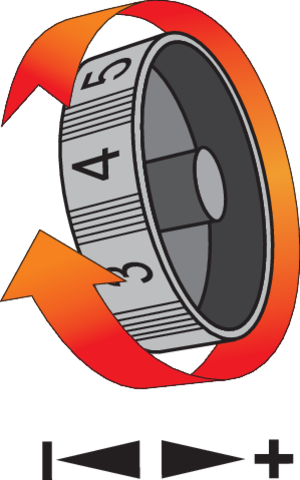

Electronic rotation adjustment
yes
Toolless blades replacement
yes
Rotation switch
no
Wire length
3 m
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
89.0 ± 3.0 dB(A)
Acoustic power
100.0 ± 3.0 dB(A)
Vibrations
8.87 ± 1.5 / 5.51 ± 1.5 m/s²
Weight
3.15 kg
Set includes
jigsaw, runner, saw blade guard, blade, dust extraction connection
Symbol
YT-82267
- powerful engine
- cutting wood up to 150 mm
- easy cutting of aluminum countertops
- duralumin base - flat, no vibrations and cutting precision, PVC overlay does not scratch the countertop or panels
Technical data:
- power: 750 W
- speed: 600-2800 min⁻¹
- stroke length: 28 mm
- max. cutting thickness in wood: 150 mm
- max. cutting thickness in soft metals: 10 mm
- cutting angle adjustment: 45˚
- 4-stage pendulum
- T-type blade

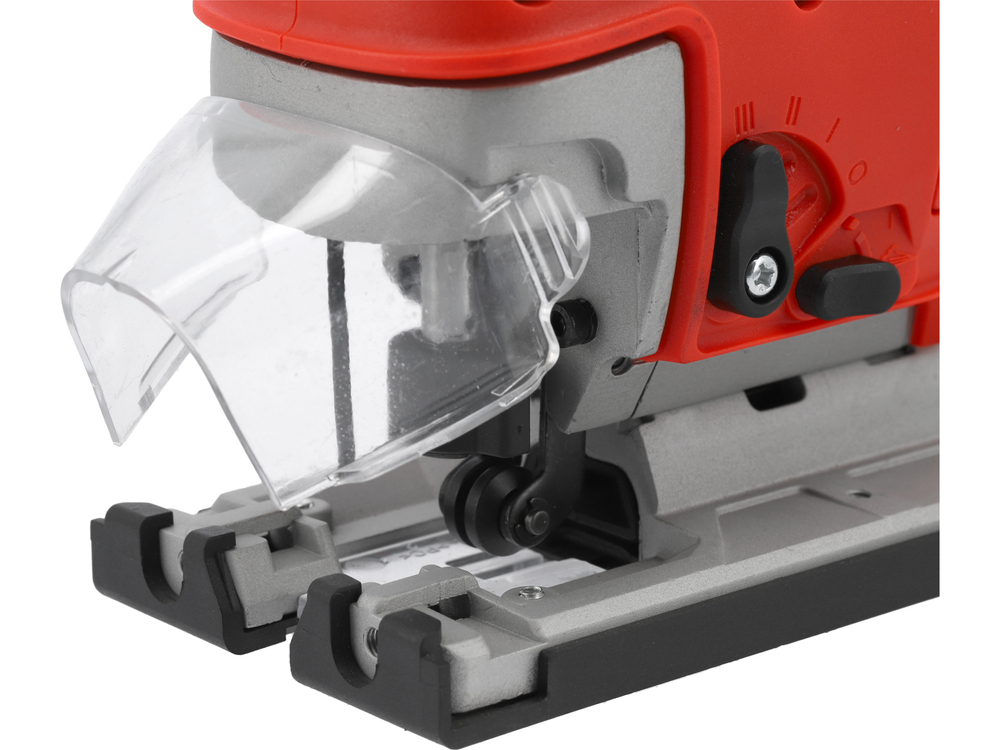

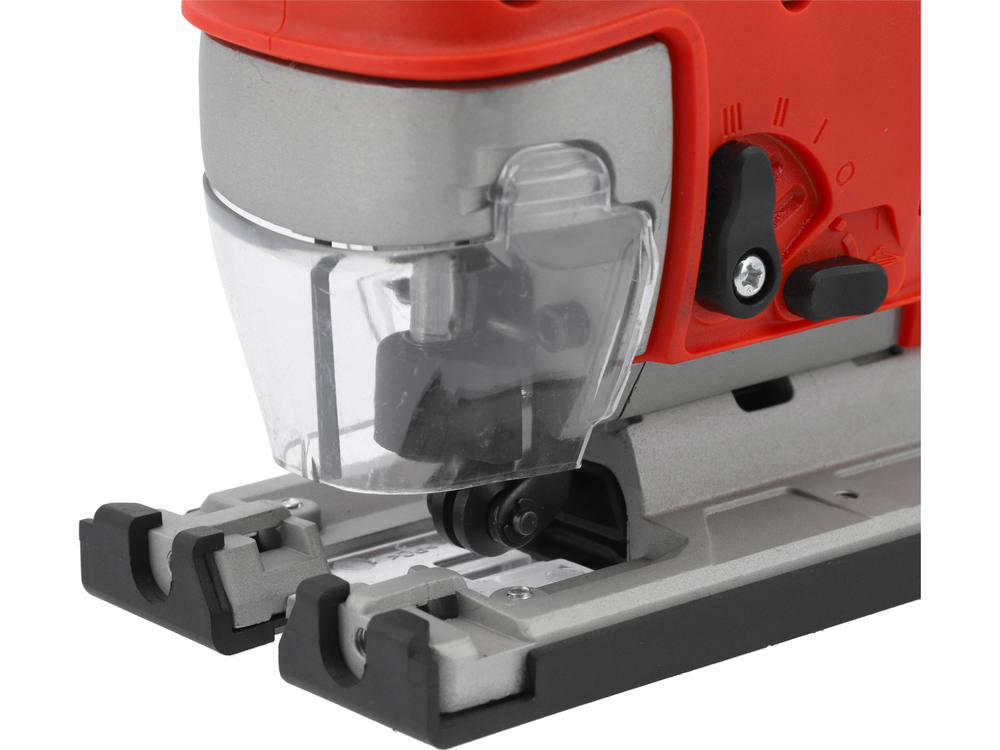

- tool-free blade exchange
- cable length: 3 m
- protection class: IP 20
- weight: 3.15 kg
- set contents: jigsaw, guide, blade guard, blade, dust extraction connector
