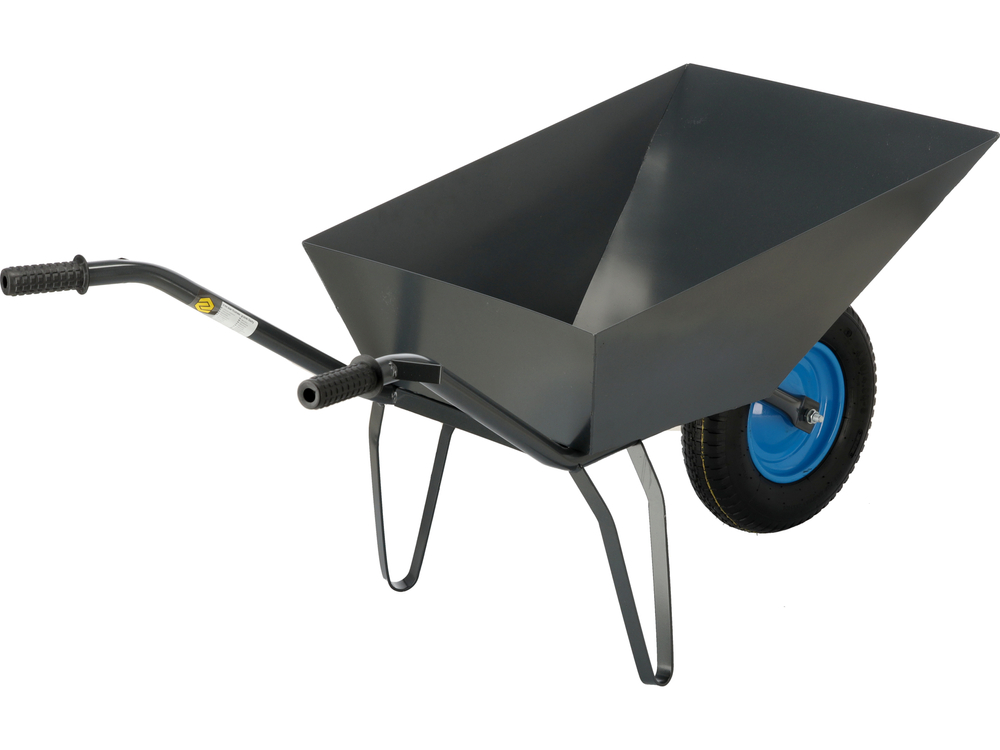

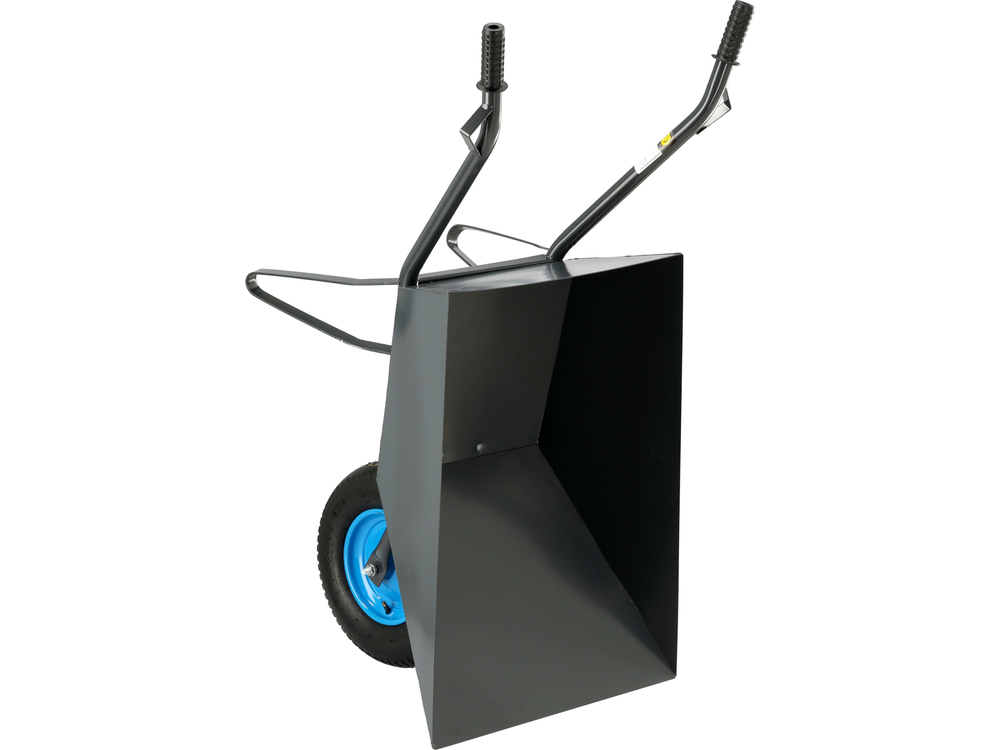

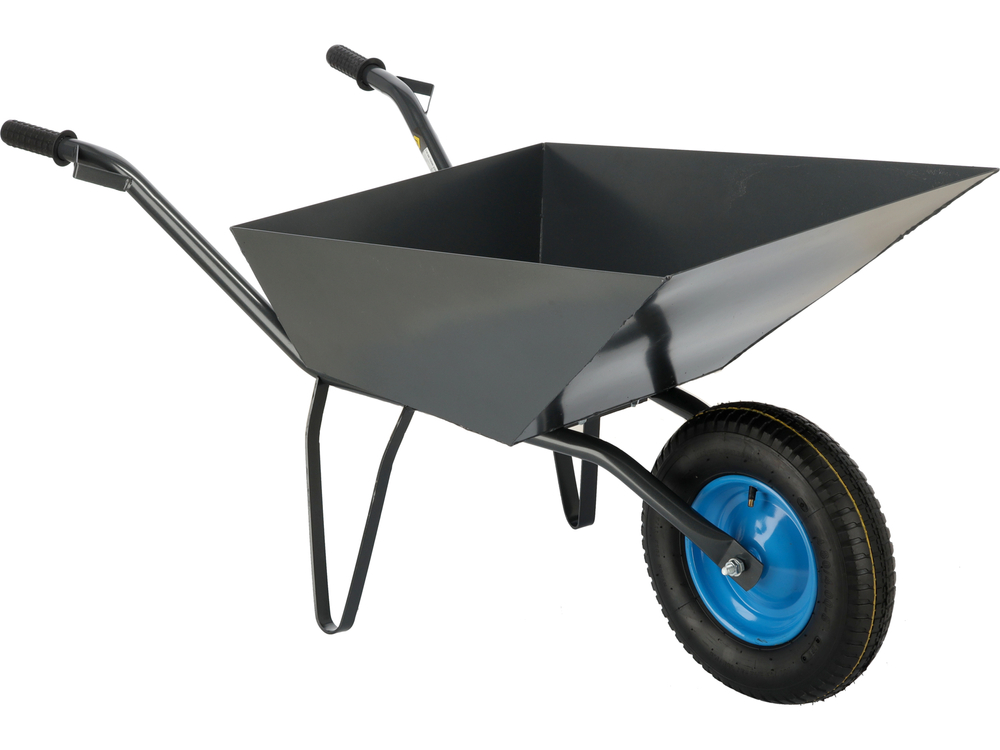

Heavy-duty construction wheelbarrows with welded bowl.

• payload: 230 kg
• capacity: 80 l
• weight: 16.3kg
• overall length: 1240 mm
• Overall width: 650 millimeters
• overall height: 660 mm
• colour: graphite

bowl:

• material: welded and varnished sheet steel
• sheet thickness: 1.8 mm
• bowl length: 800 mm
• bowl width: 600 mm
• depth of bowl: 280 mm
• dimensions of the bottom of the bowl: 390x370 mm
• bowl fixing screws: M8x20 countersunk head, flat PZ4

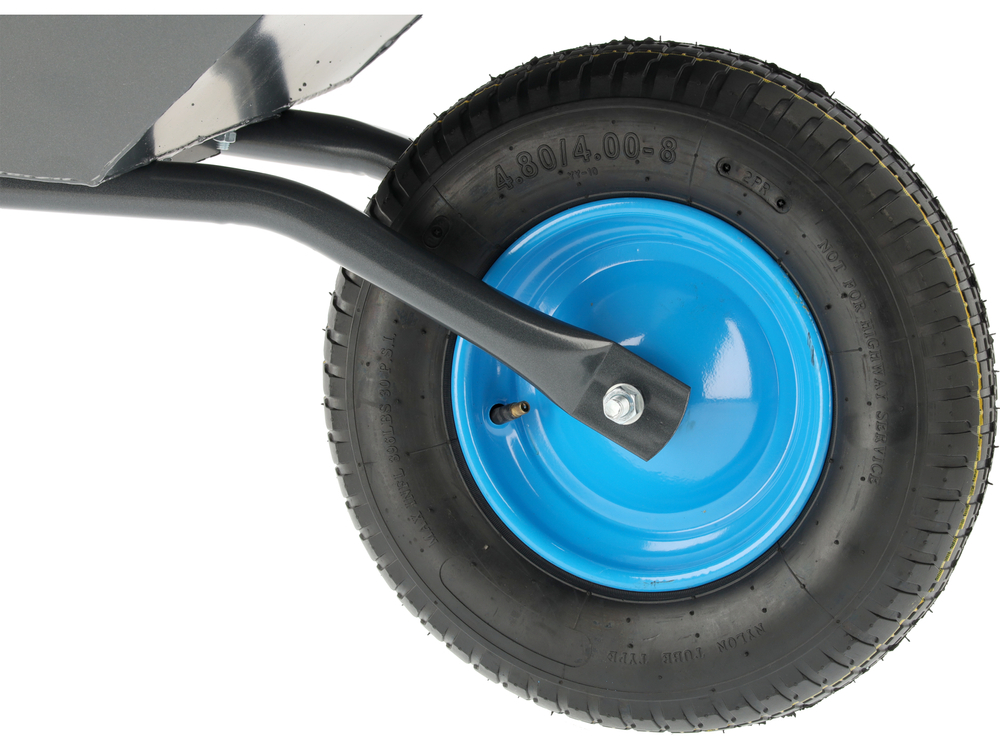

wheel:

• pneumatic, inner tubes 4.00-8
• wheel diameter: 400 mm
• rim diameter: 220 mm
• fixing screw: M12x150 mm
• ball bearing 6001 (12x28x8 mm)

frame:

• material: lacquered steel tube
• tube diameter: 32 mm
• wall thickness: 1.5 mm

feet:

• material: lacquered flat steel bar
• width: 25 mm
• thickness: 4 mm
• wheelbarrow bottom height: 350 mm

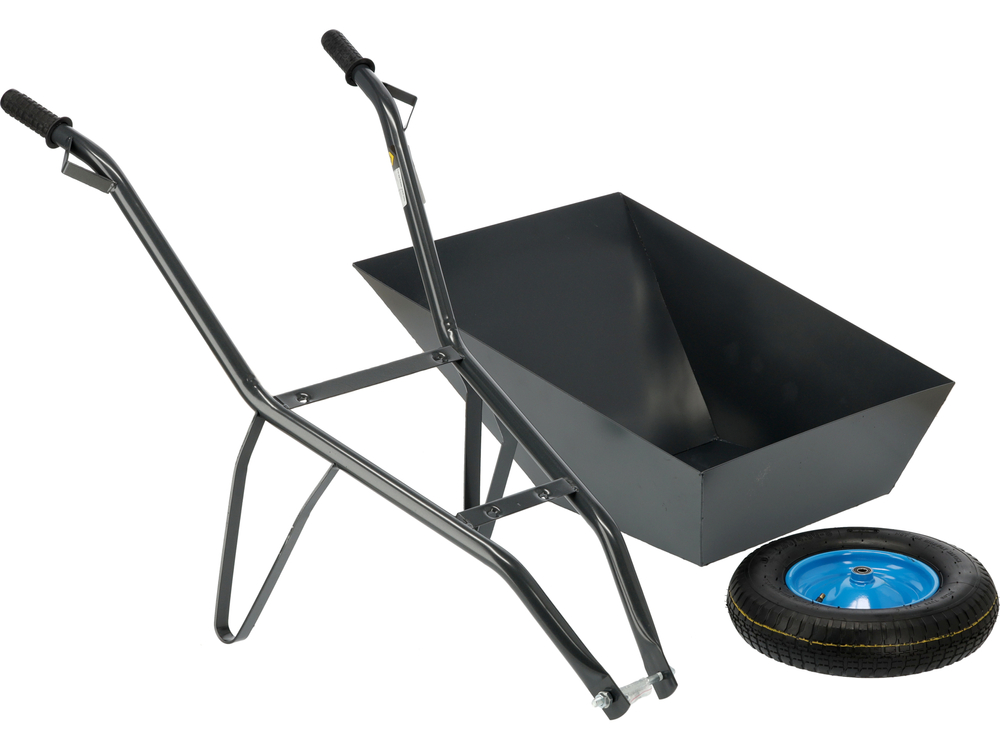

The wheelbarrow is supplied in three parts for self-assembly by the user.
