YT-85286
INOX SUBMERSIBLE PUMP FOR RAINWATER W/FLOAT SWITCH
Brand
Symbol
YT-85286
Producer code
5906083106651
Series

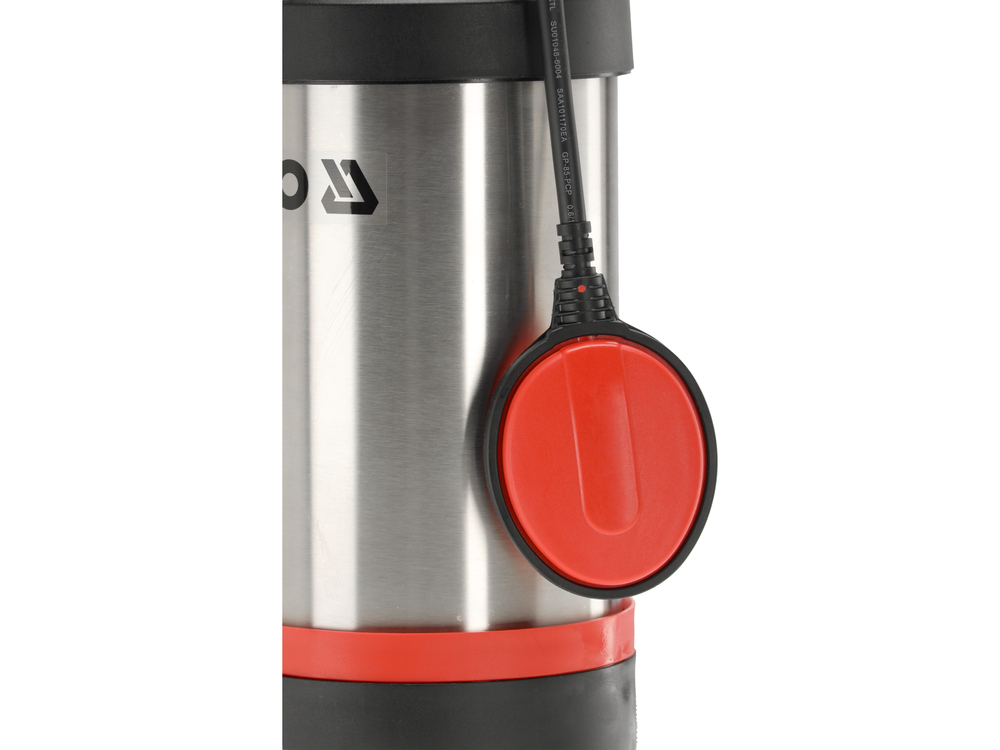

Float switch
Yes
Power
550 W
Max. capacity
5000 l/h
Pump pressure max.
2.5 bar
Voltage
230 V a.c.
Frequency
50 Hz
Water connection diameter
G1

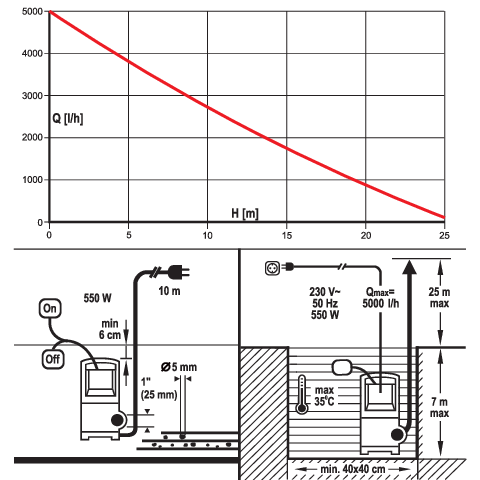

Max. pumping height
25 m
Depth of immersion
7 m
Min. Shape cross -section
40x40 cm
Water temperature
35 ˚C
Thermal switch
Yes
Switching level
0.005 m
Exclusion level
ok. 0.06 m
Housing material
stainless steel
Length of cable
10 m
Electrical insulation class
I
Ingress protection
IPX8
Acoustic pressure
< 70 dB(A)
Weight
7.8 kg
Application
do przepompowywania wody czystej ze zbiorników (np. niewielkich basenów, oczek ogrodowych itp.)

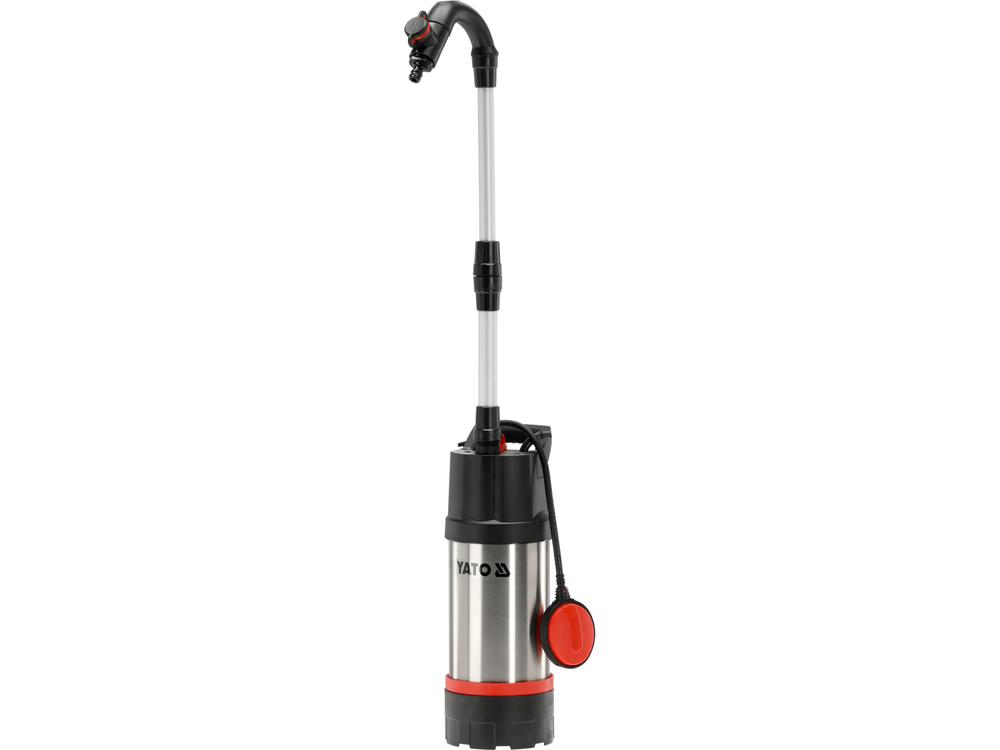

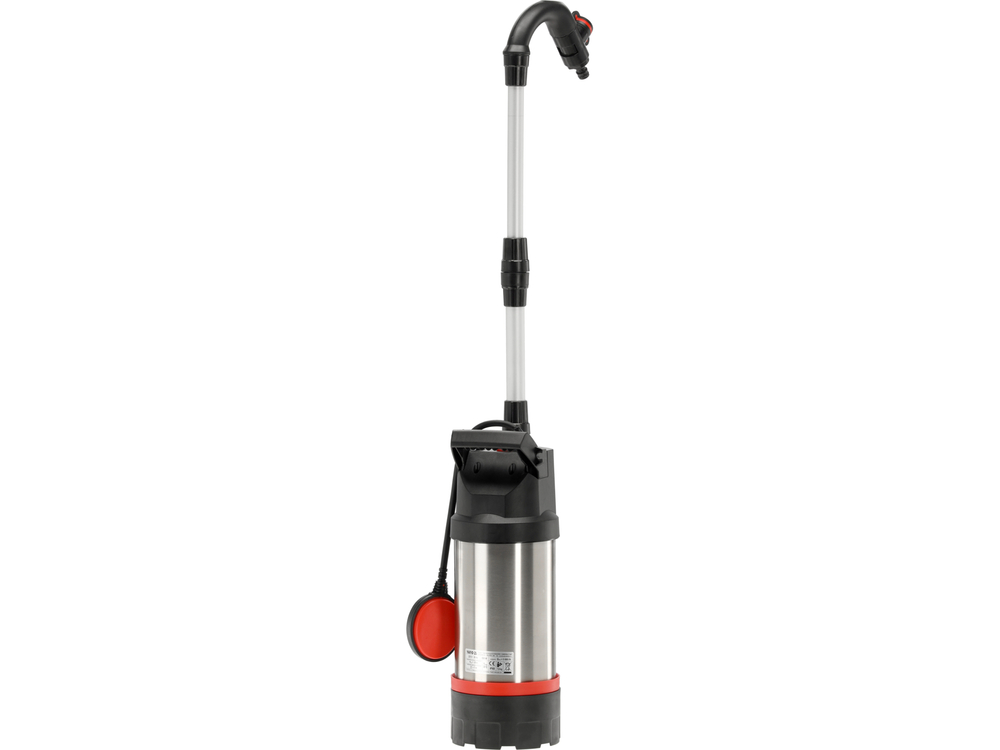

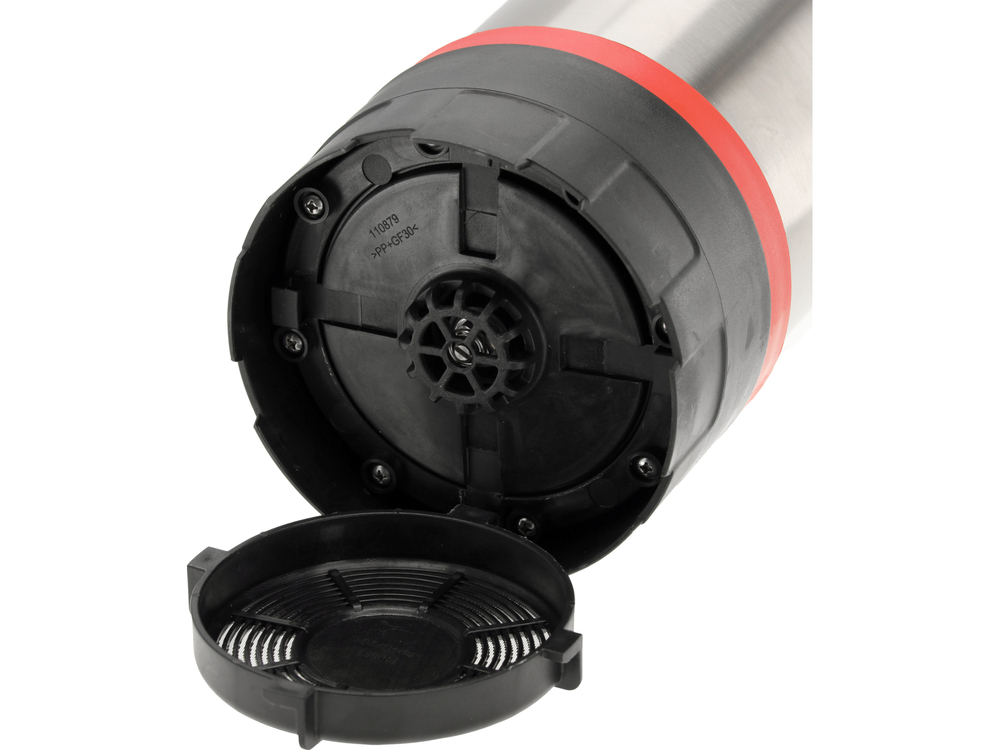

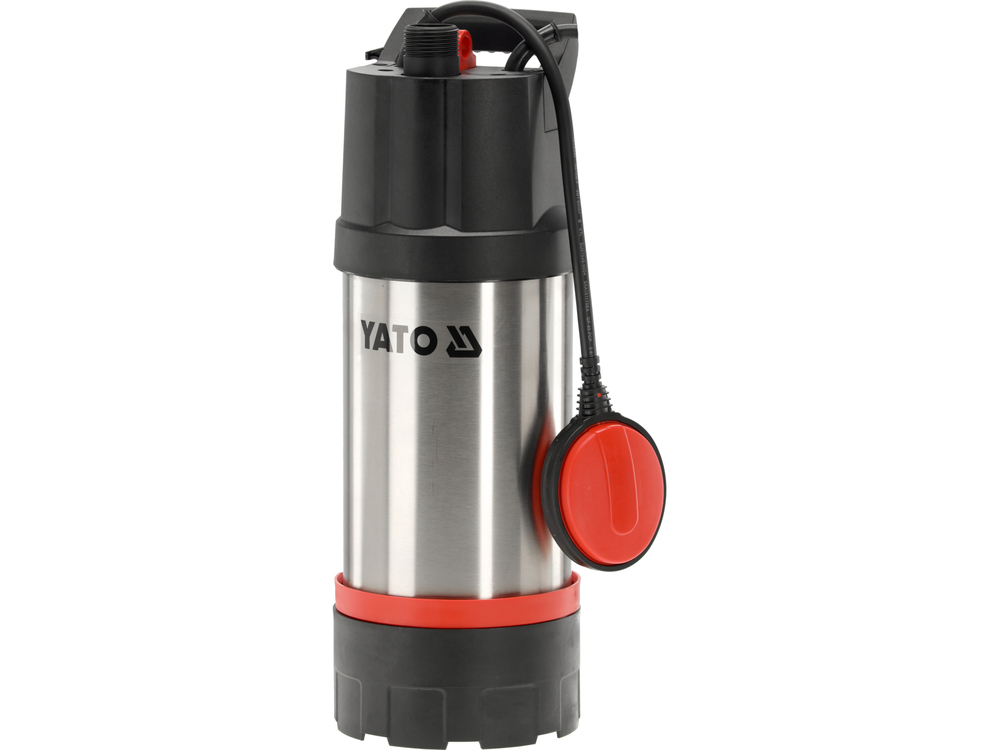

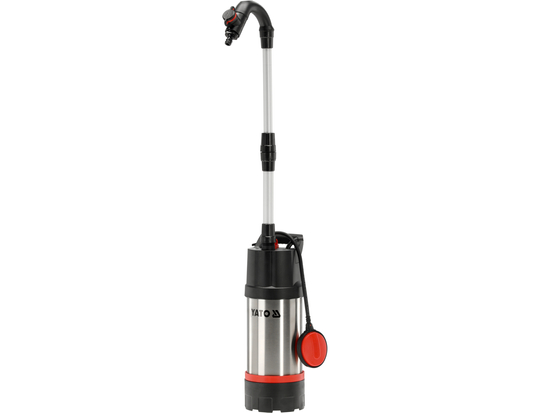

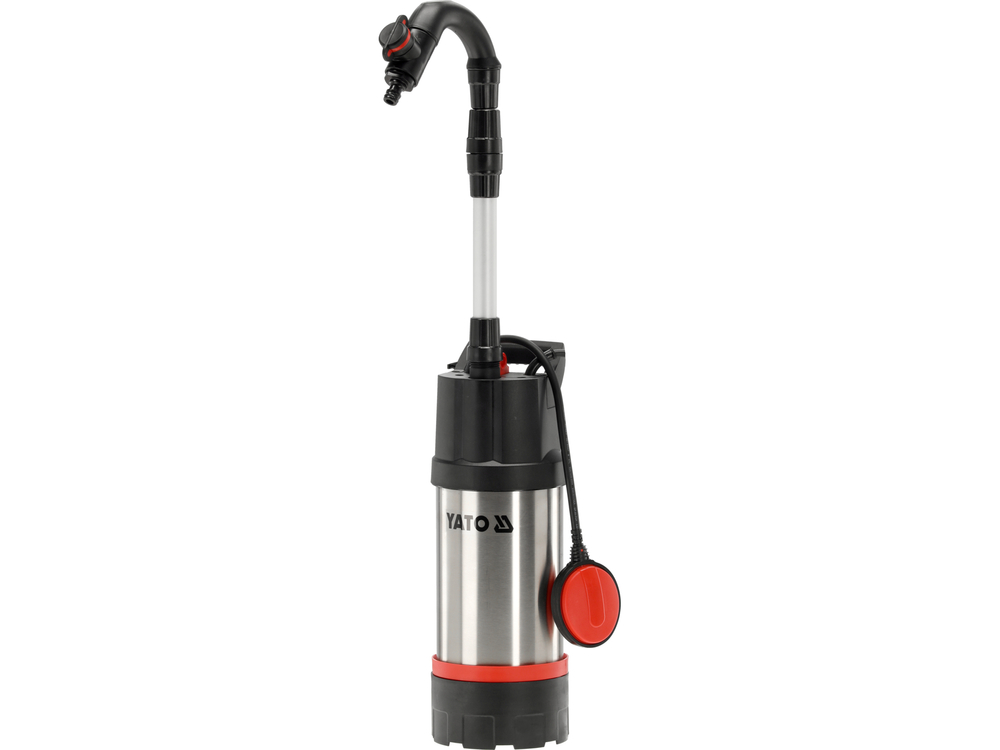

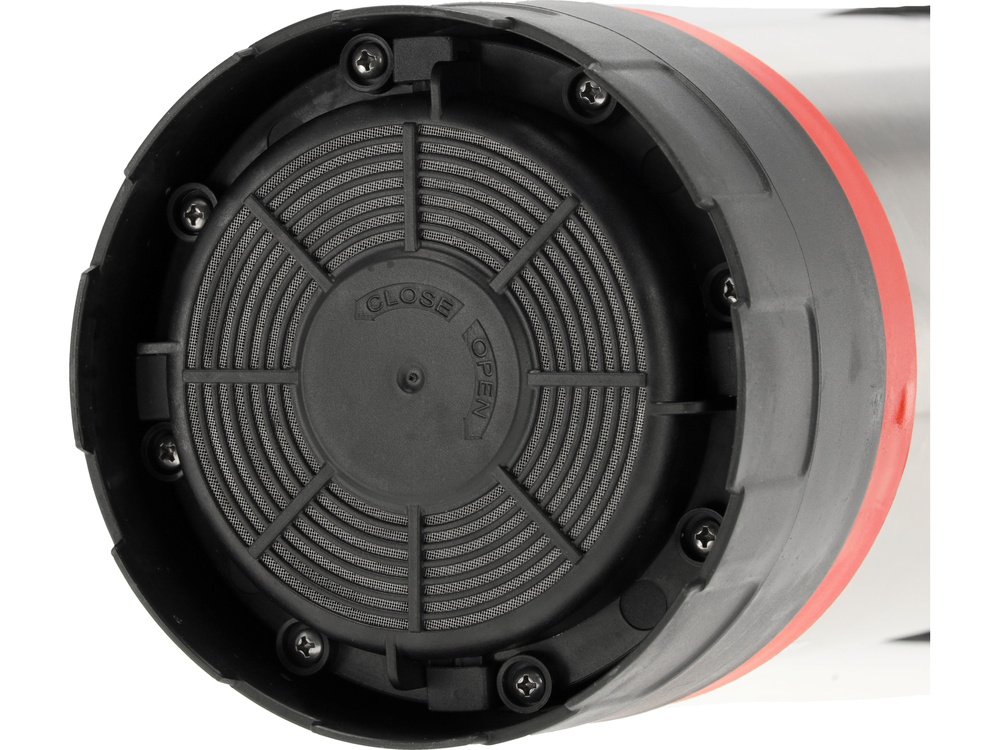

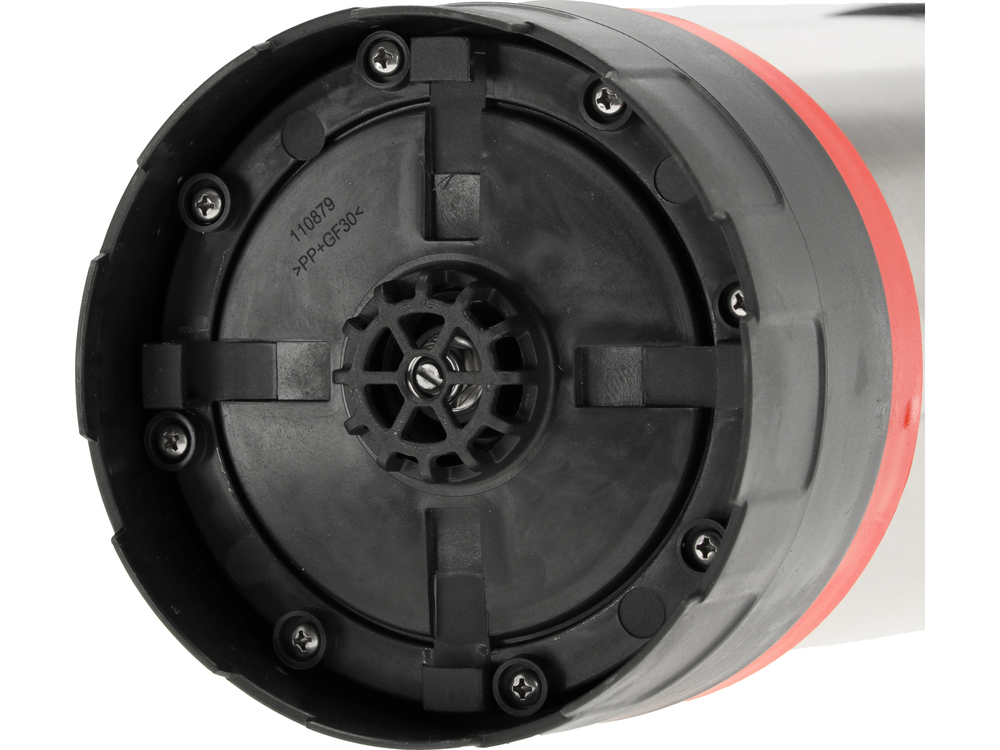

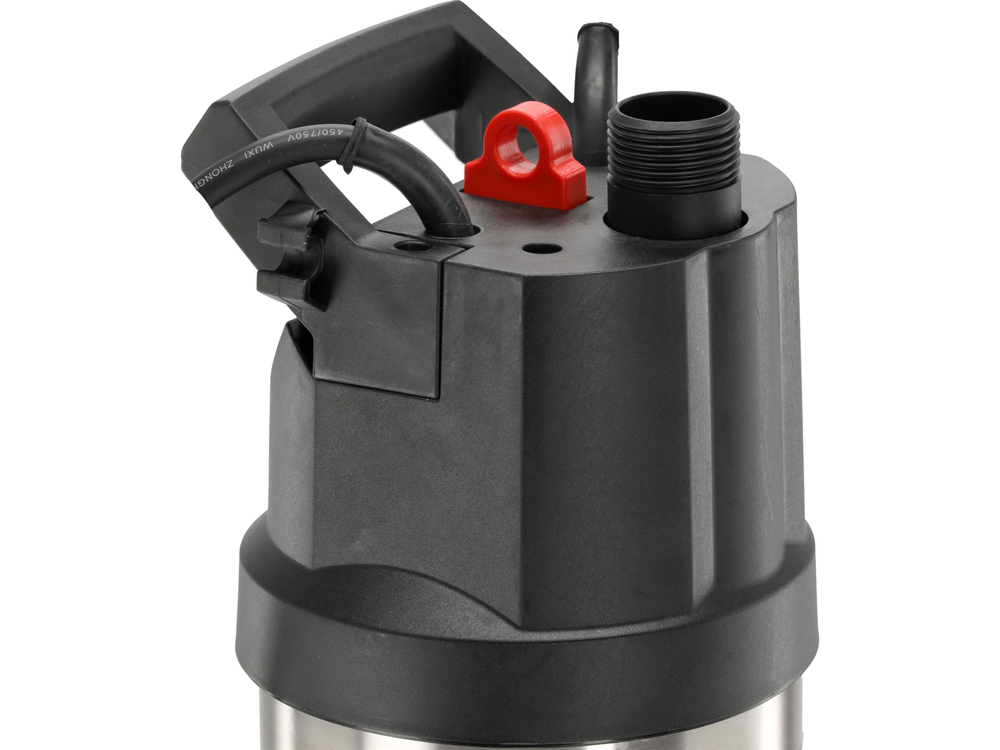

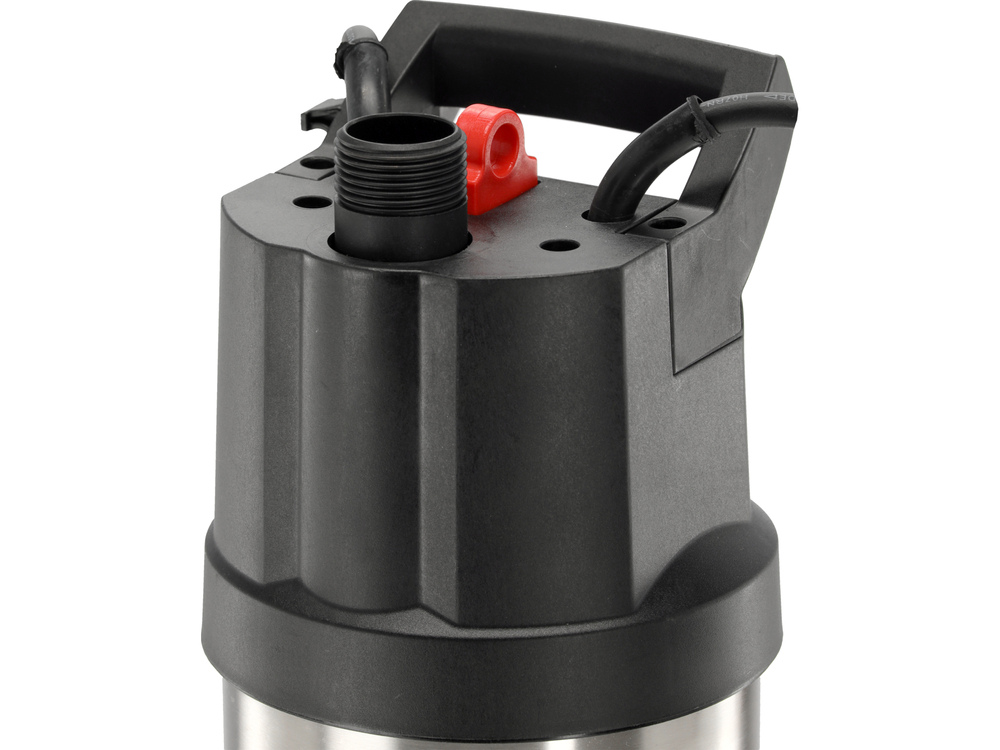

Submersible rainwater pump multi inox with float switch. The device is used to conveniently draw clean and slightly dirty water from rainwater tanks. The pump is ideal for irrigating gardens and large plots of land with a height difference of up to 25 m. The slim housing is made of stainless steel. The aluminium tube ending in a convenient quick-release valve can be easily hung on the rainwater tank. The built-in dirt filter is easy to clean. The pump has a convenient carrying handle and a cord attachment for hanging in the tank.
- Motor power: 550 W
- voltage: 230 V
- maximum capacity: 5000 l/h
- Max pressure 2.5 bar
- maximum height: 25 m
- max. suction height 7 m
- degree of protection: IPX4
- max. water temperature 35°C
- cable length: 10 m
- weight: 7.8kg
