YT-85363

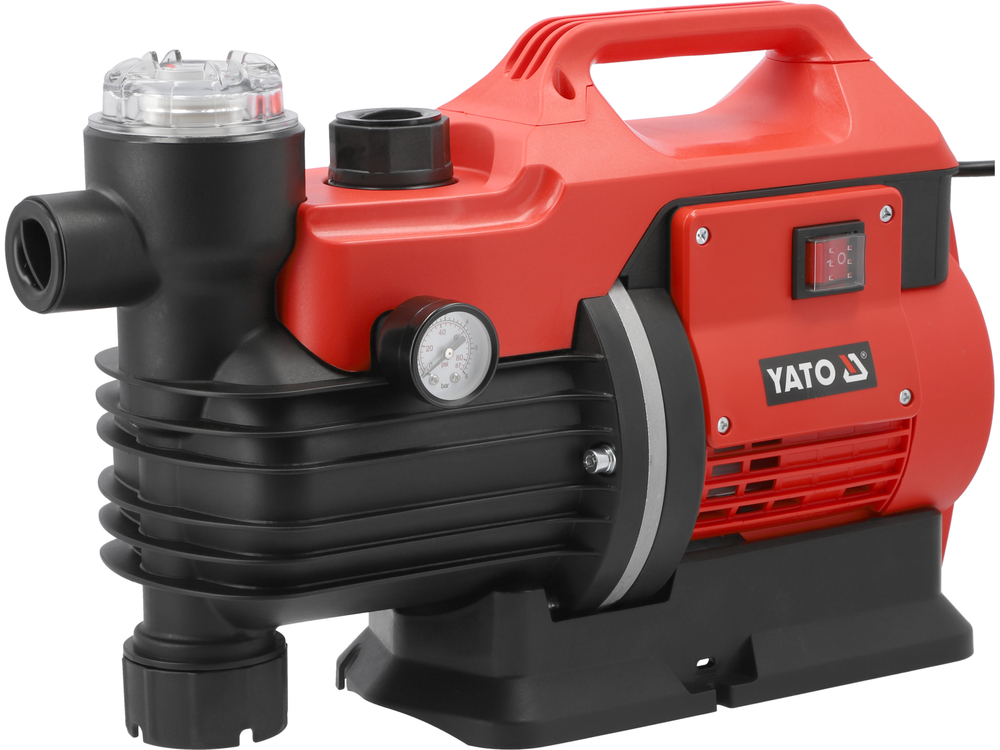

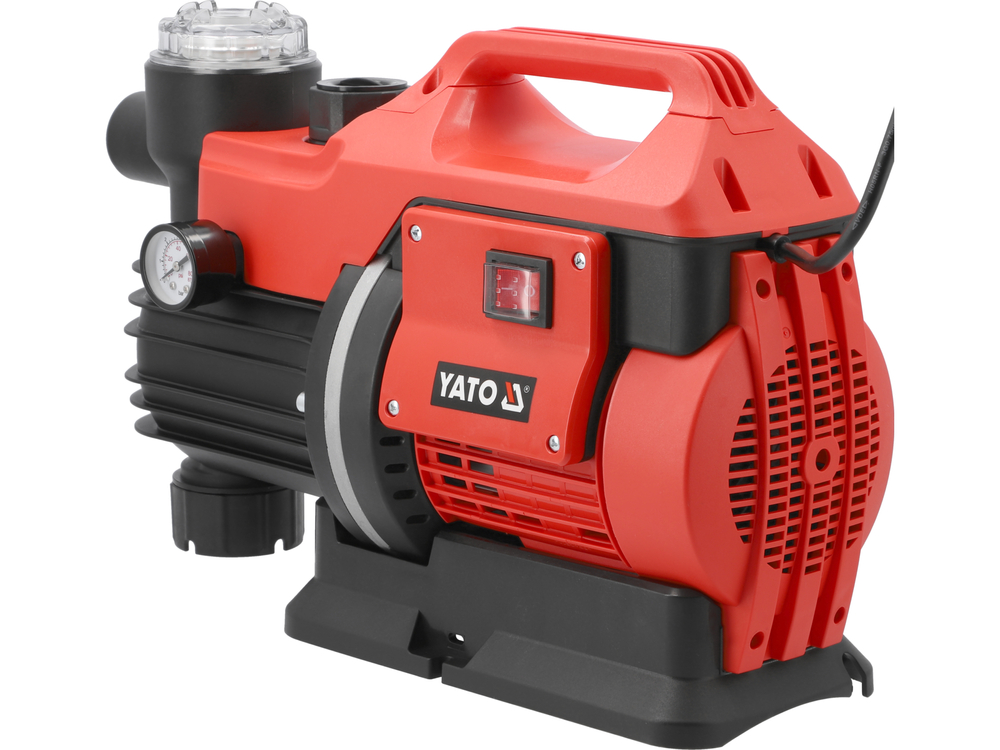

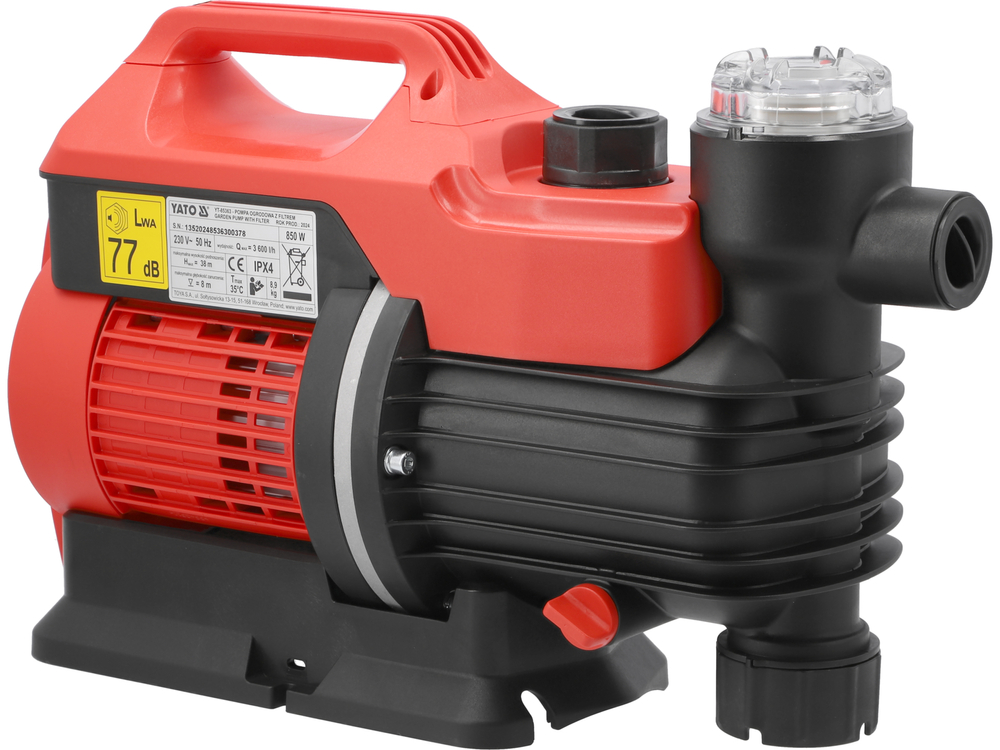

GARDEN PUMP WITH FILTER 850W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
850 W
Max. capacity
3600 l/h
Max. pumping pressure
3.8 bar
Voltage
230 V a.c.
Frequency
50 Hz
Water outlet diameter
G1
Max. head
38 m
Max. submersion depth
8 m
Max. water temperature
35 ˚C

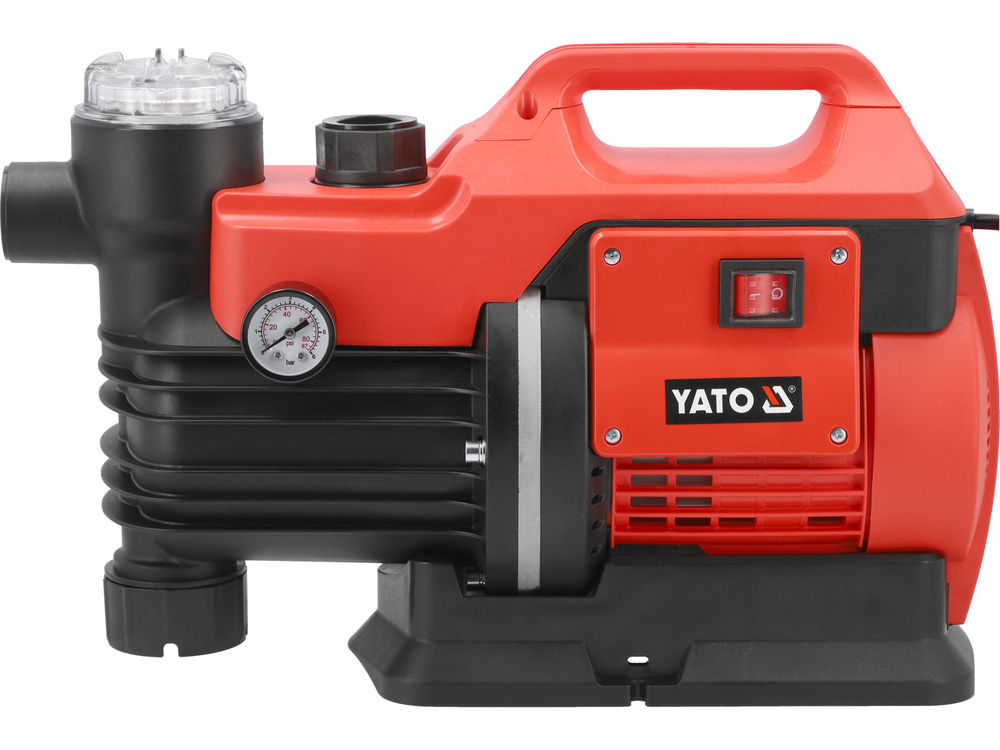

Manometer
yes
LED indicators
no
Casing material
PVC

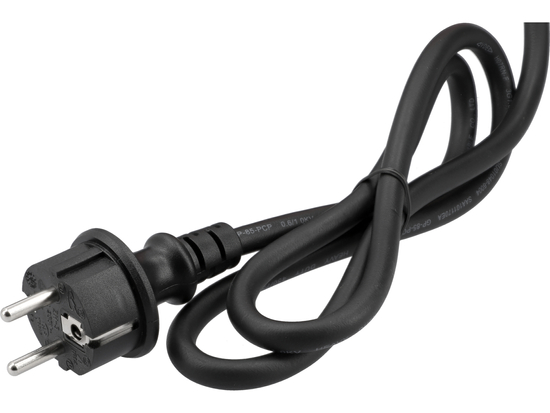

Cable length
1.2 m
Electric insulation class
I
Protection grade
IPX4

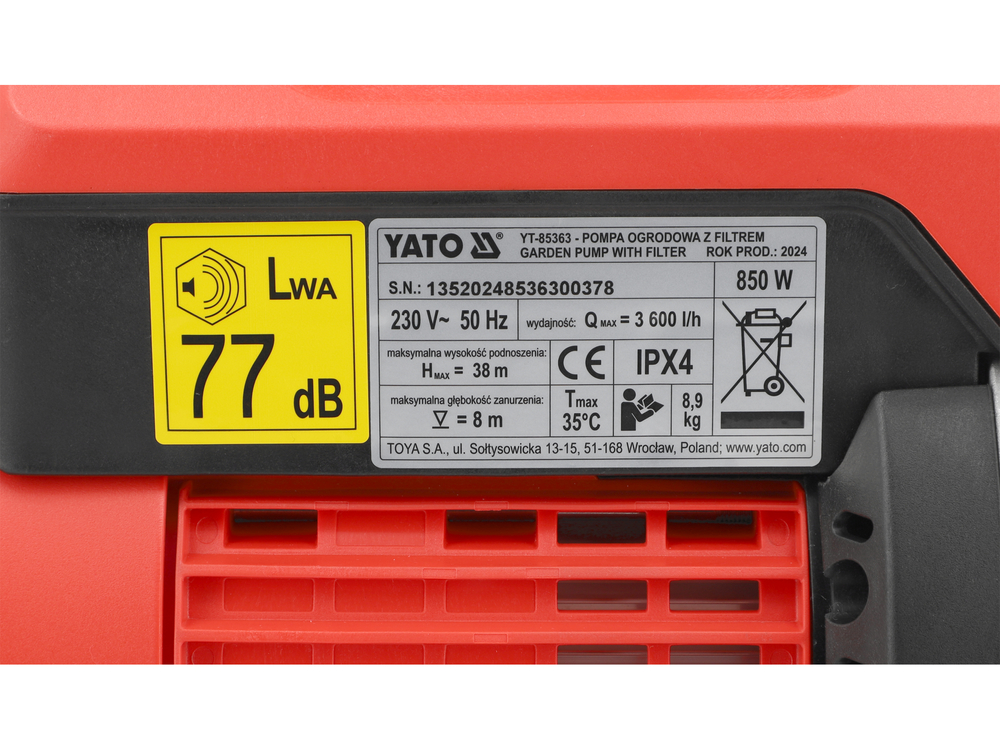

Acoustic pressure
60.89 ± 3.0 dB(A)
Acoustic power
72.01 ± 3.0 dB(A)
Weight
8.9 kg
Application
for pumping clean water for garden applications, e.g. irrigation
Symbol
YT-85363

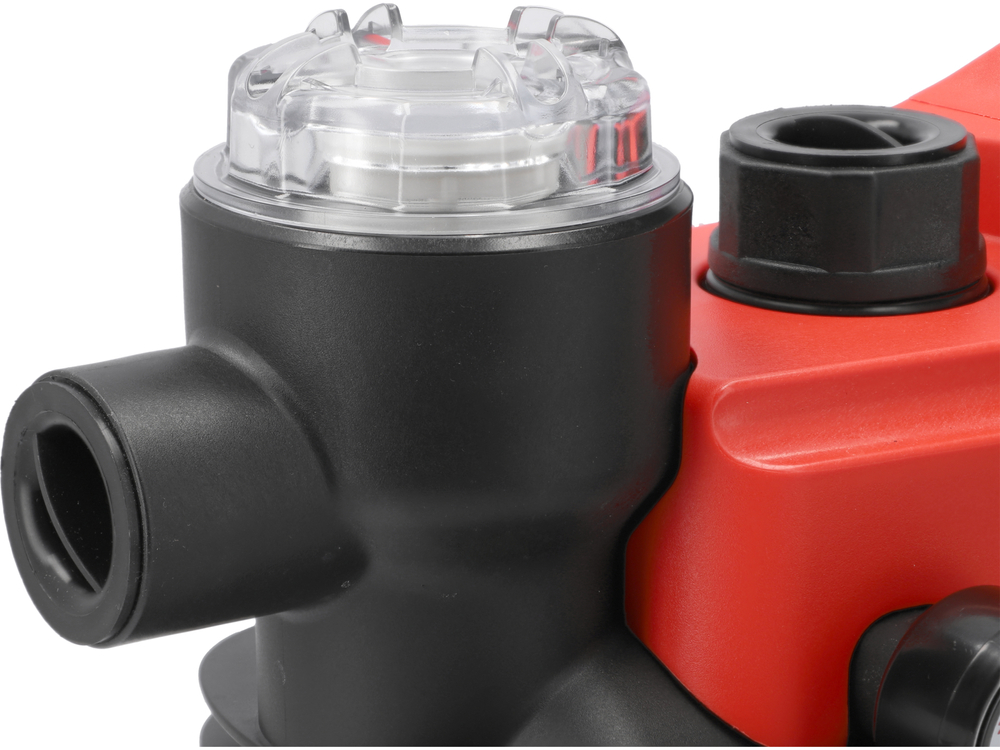

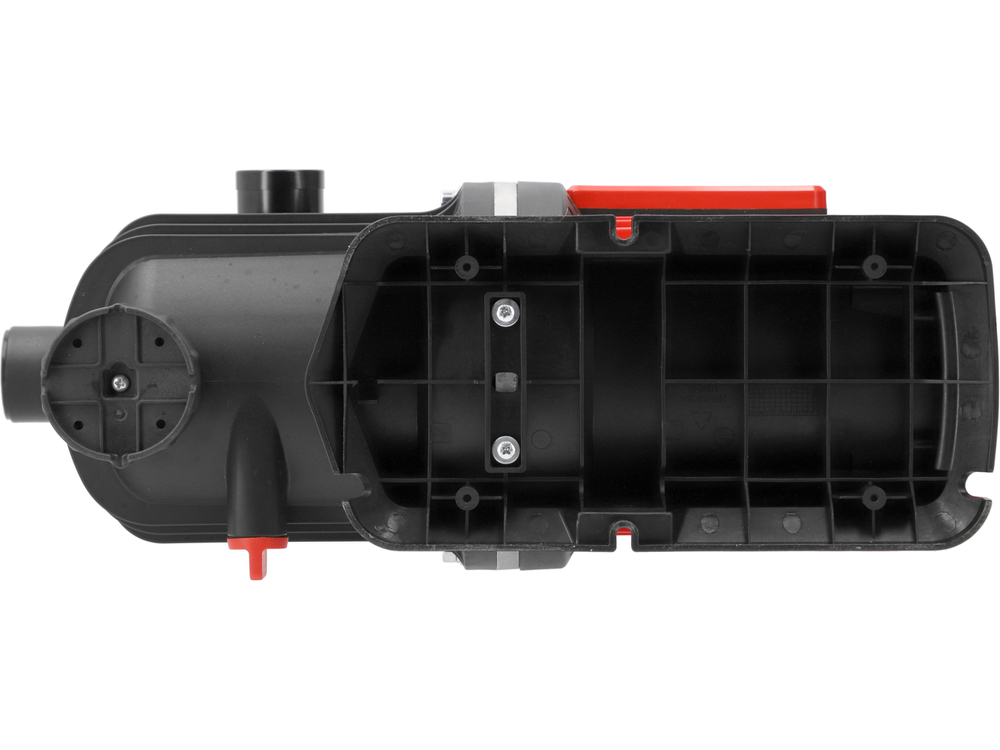

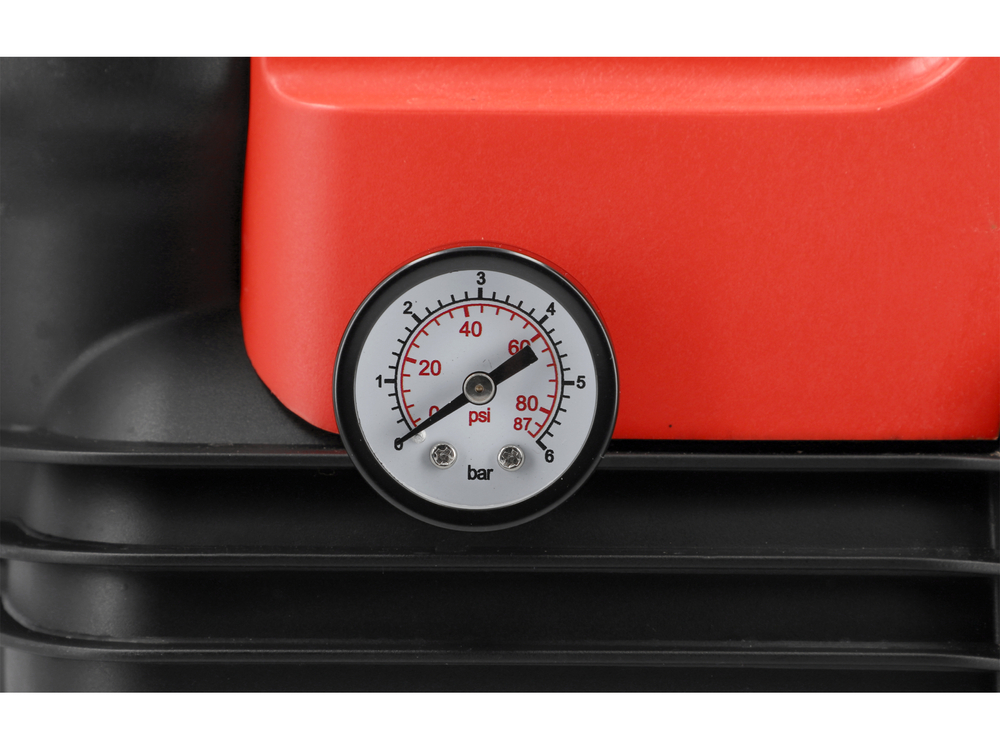

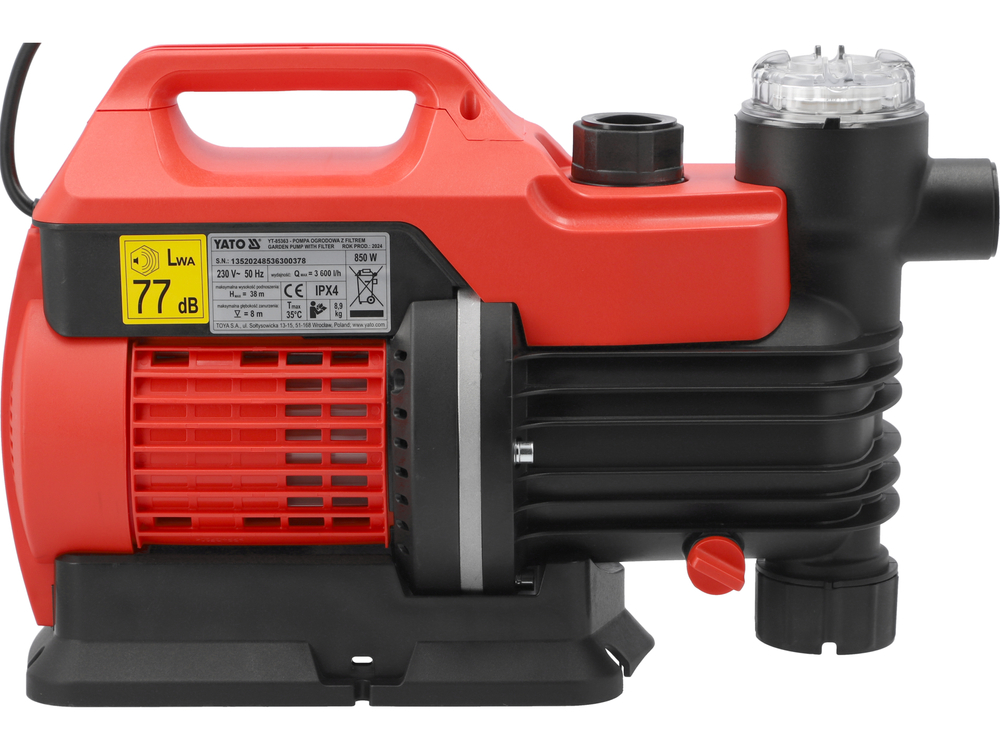

Garden pump for the efficient supply of irrigation systems in gardens and plumbing systems. Used on allotments, campsites, cottages and outbuildings. It is designed for clean water, fed from wells, rainwater tanks and swimming pools. The pre-filter is easily removed for cleaning. Rubber feet provide stability in operation and reduce noise and vibration. The pump housing and switch are waterproof. The convenient handle makes it easy to carry. A pressure gauge allows pressure monitoring.
- Motor power: 850 W
- voltage: 230 V
- maximum capacity: 3600 l/h
- Max pressure 3.8 bar
- maximum head: 38 m
- maximum suction height: 8 m
- degree of protection: IPX4
- connections: 1"
- maximum water temperature: 35°C
- cable length: 1.2 m
