YT-99695

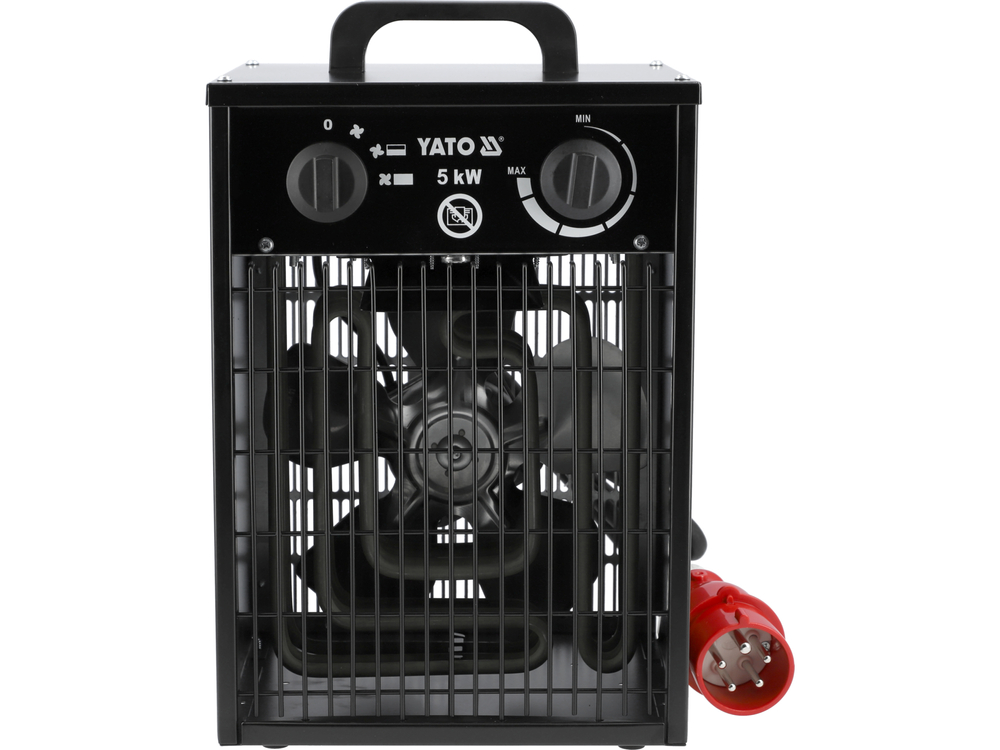

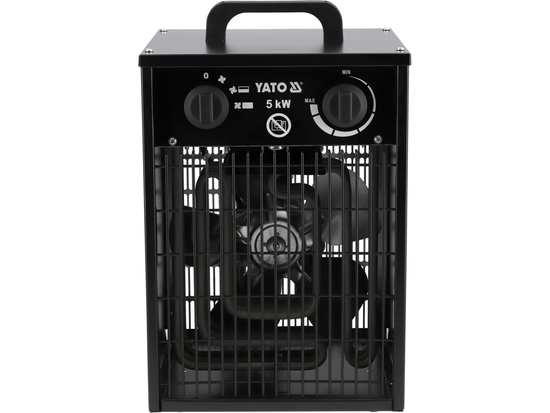

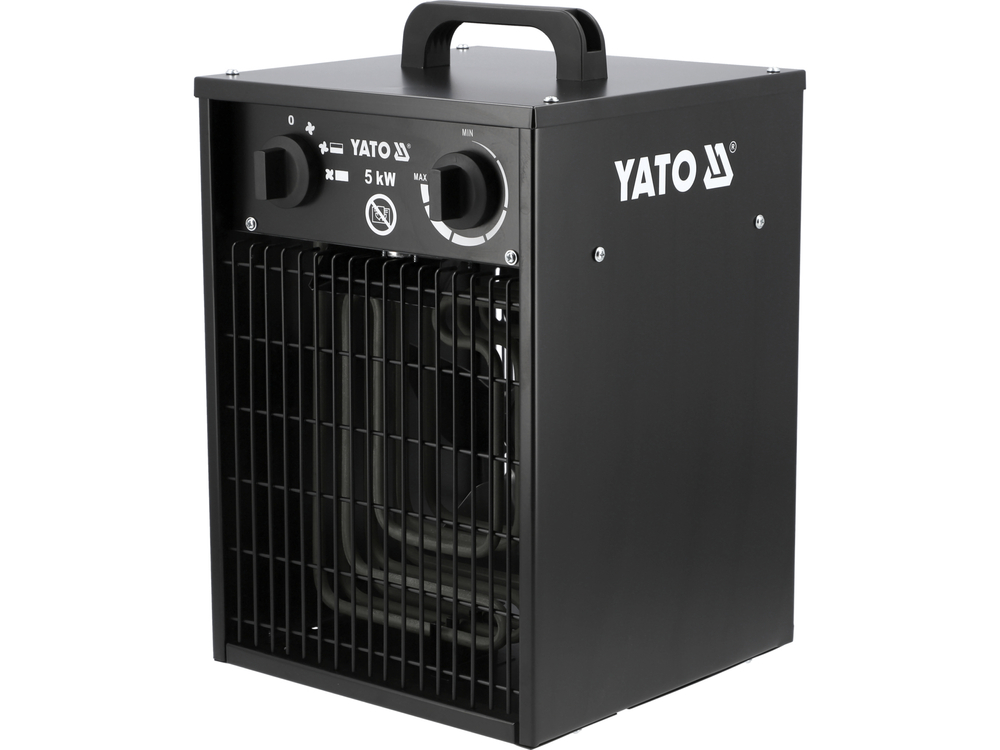

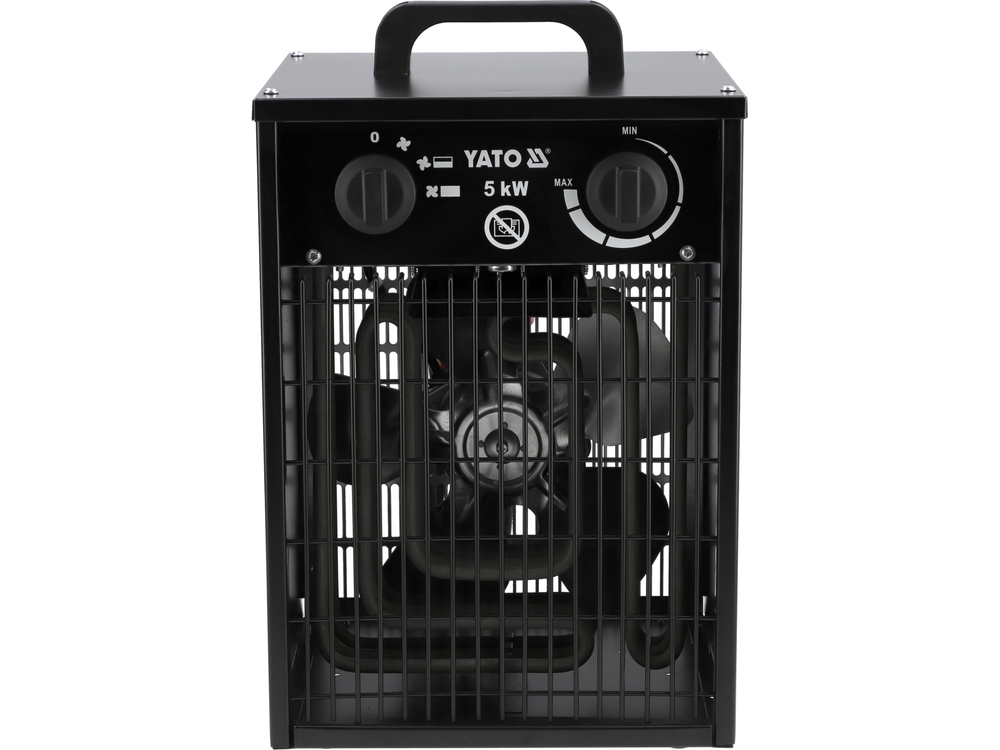

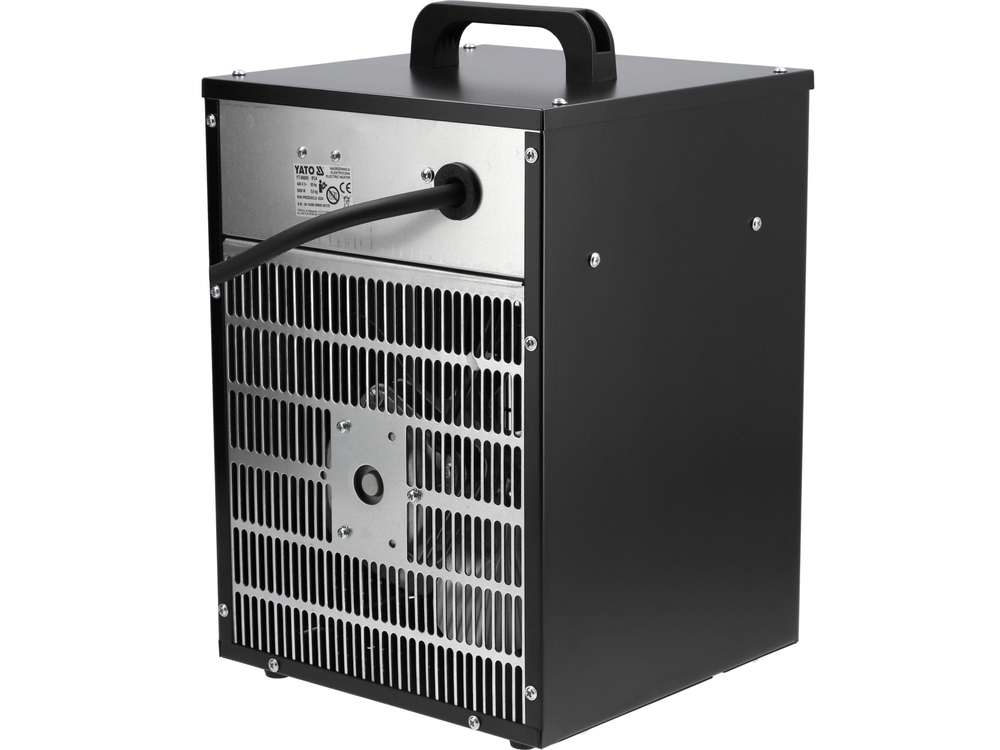

ELECTRIC HEATER 5KW
Brand
Symbol
YT-99695
Producer code
5906083109904
Series
Power
5000 W
Heating surface
48 m²
Voltage
400 / 3~ V a.c.
Frequency
50 Hz
Air flow
795 m³/h
Power adjustment range
40/2500/5000 W
Overheating protection
Yes
Control lamp
Yes
Type of thermostat
with an automatic reset
Dimensions
270x255x400 m
Length of cable
1.3 m
Ingress protection
IP24
Weight
5.6 kg
Application
for heating rooms

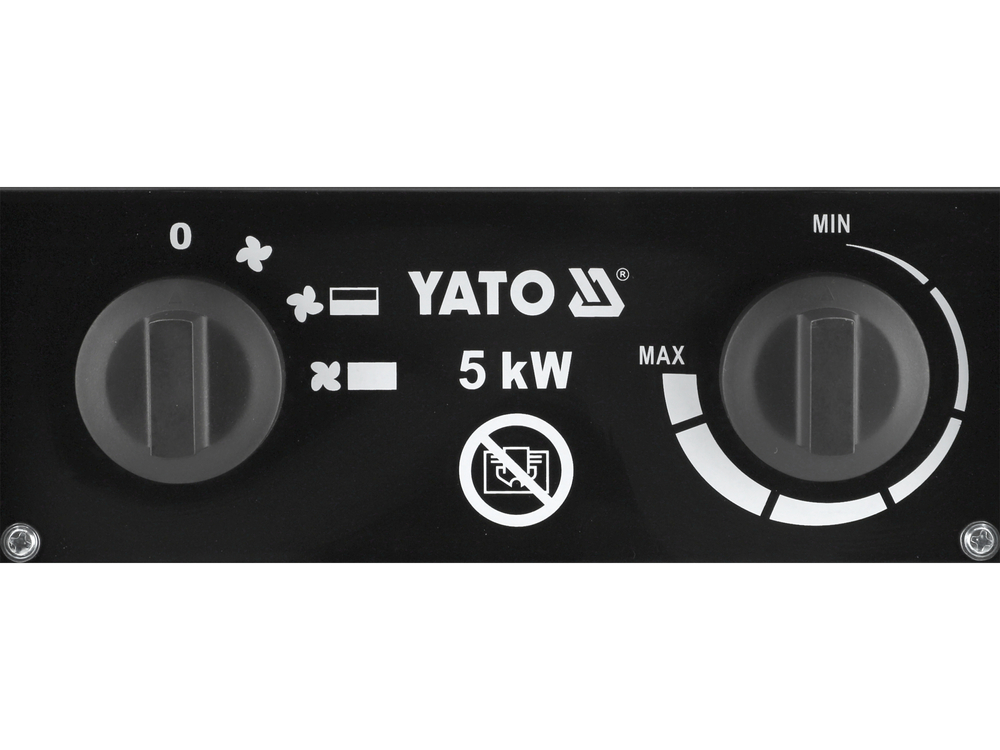

A heater to improve working conditions by heating the air in garages, workshops, warehouses, production halls, etc. It can be used wherever it is necessary to maintain the right temperature for production, storage or processing of products. Effective when drying and ventilating rooms during renovation and construction. The unit operates in three modes: fan alone without heater, heater operation at half power and full power operation. The heater has double overheating protection.
- heat output: 5000 W
- heating area: 48 m²
- airflow: 795 m³/h
- power settings: 40/2500/5000 W
- weight: 5.6kg
- Ingress protection rating: IP24
- thermostat: 70°C
- dimensions: 270 × 255 × 400 mm
- cable length: 1.3 m
- voltage: 400 V/50 Hz
- metal construction
