Novelty
YT-99739
OIL FIRED DIRECT HEATER 30KW
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Heating capacity
30 kW
Airflow
795 m³/h
Max. heating area
300 m²
Voltage
220-240 V a.c.
Frequency
50 Hz
Engine (motor) power
340 W
Fuel tank capacity
50 l
Fuel type
diesel, oil
Fuel consumption
2.4 kg/h
Temperature control
yes
Thermostat type
manual
Display type
LED
Dimensions
1050x515x695 mm
Cable length
1.3 m
Protection grade
IPX4
Weight
26.5 kg
Application
for heating public utilities
Symbol
YT-99739

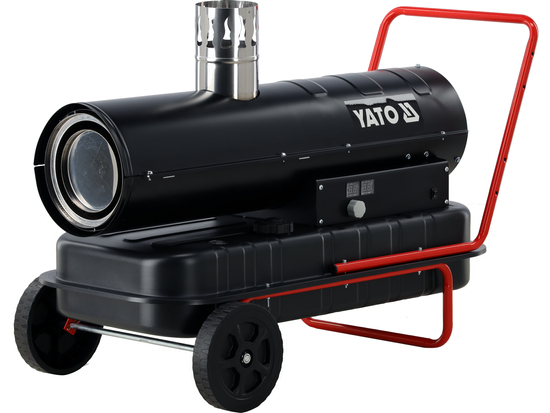

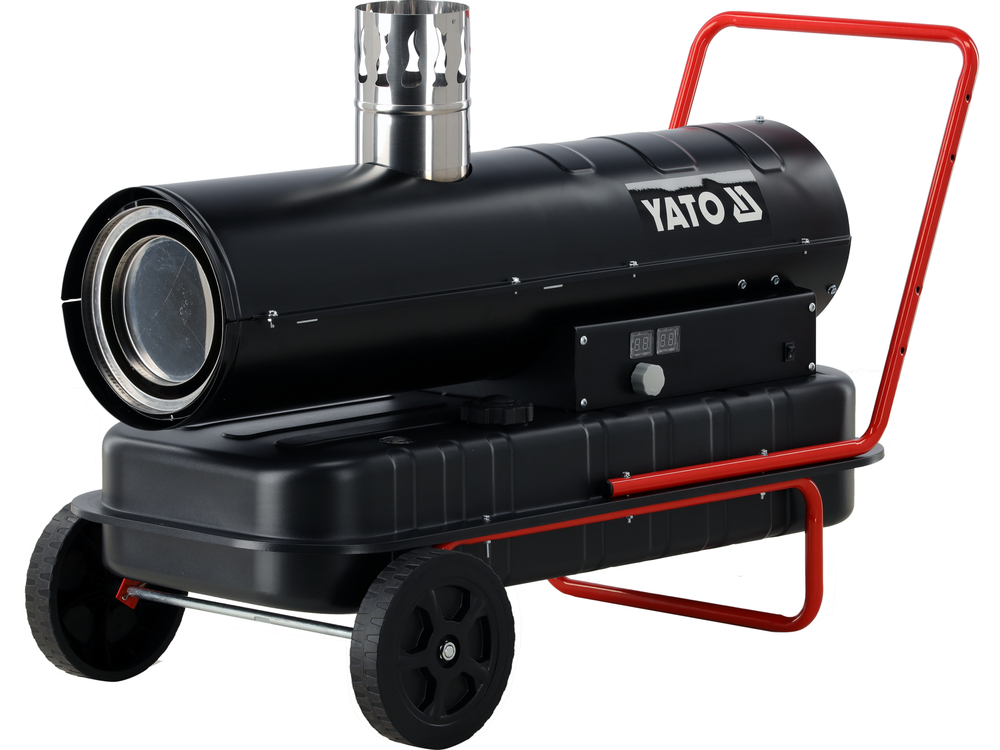

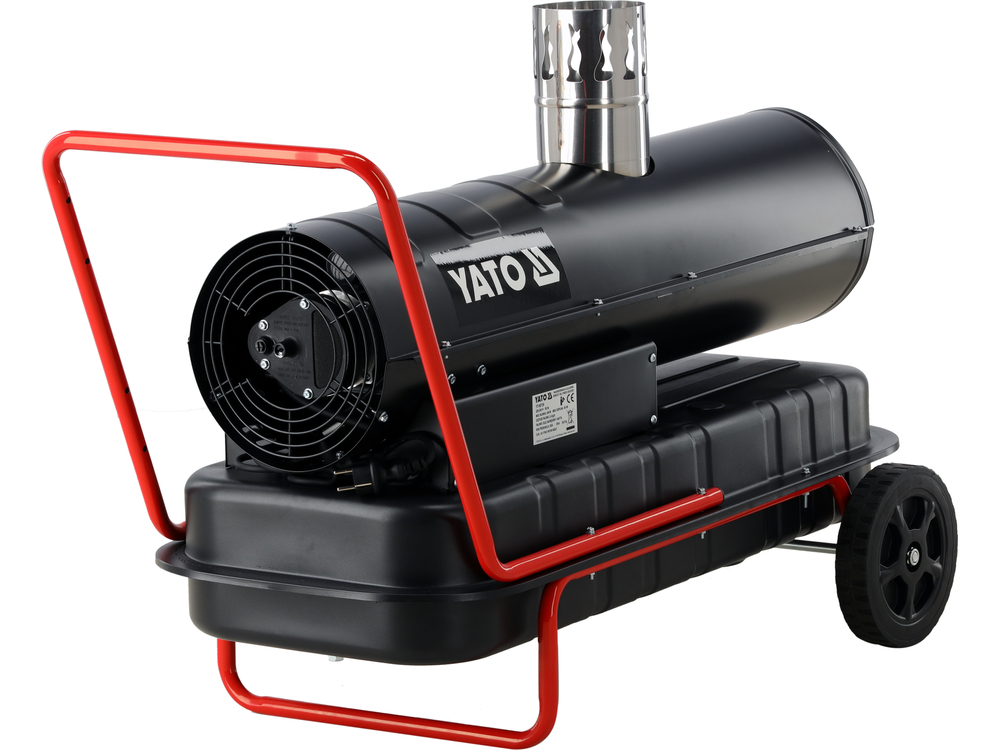

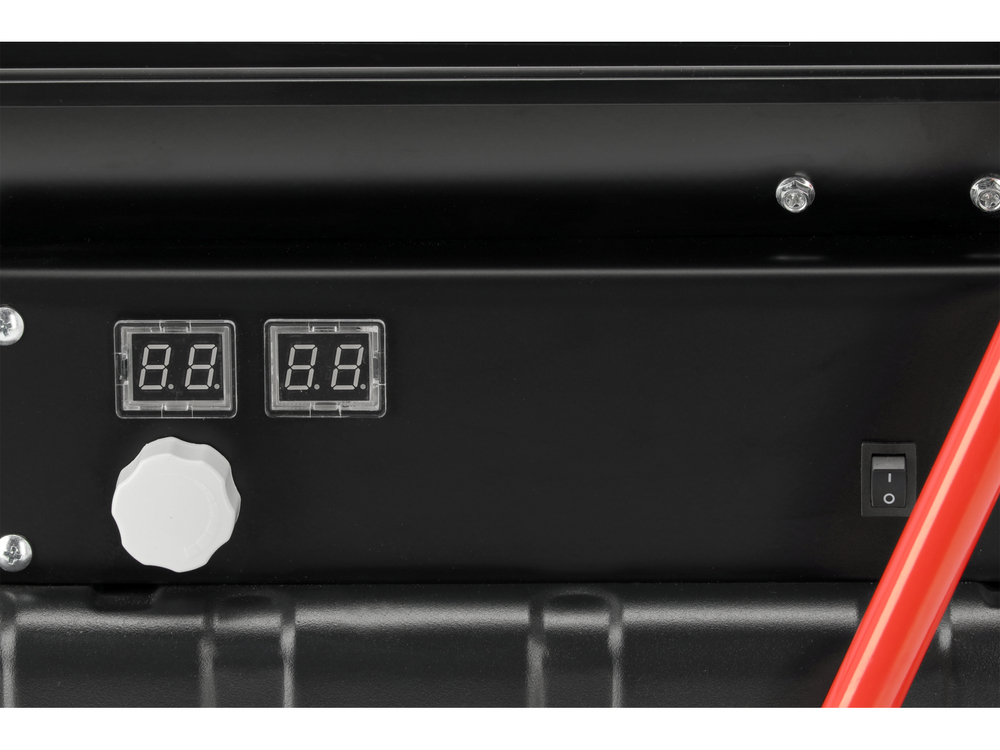

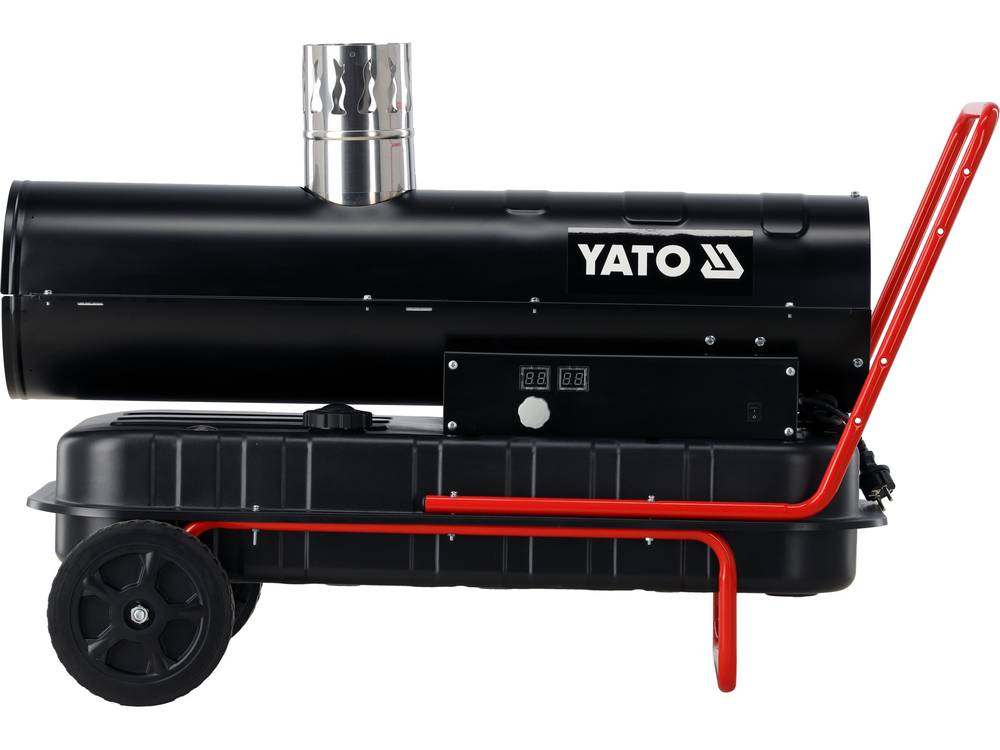

Portable oil heater in a metal casing. It is used for heating public areas. The manual thermostat gives you the ability to set the temperature and displays the current ambient temperature. The heater has a flame failure sensor. It is possible to connect the heater to the ventilation system for flue gas extraction. The flue pipe is not included in the product.
- heat output: 30 kW
- heating area: 300 m²
- fuel: diesel / paraffin
- airflow: 795 m³/h
- fuel consumption: 2.4 l/h
- air pressure: 0.31 bar
- tank: 50 l
- weight: 26.5kg
- Ingress protection rating: IPX4
- Motor power: 340 W
- dimensions: 1050 × 515 × 695 mm
- cable length: 1.25 m
- voltage: 220-240 V
