YT-82077

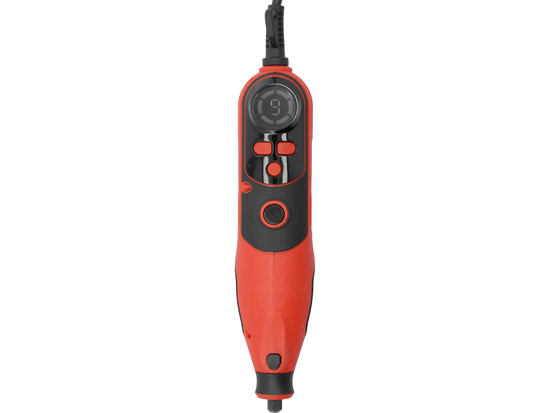

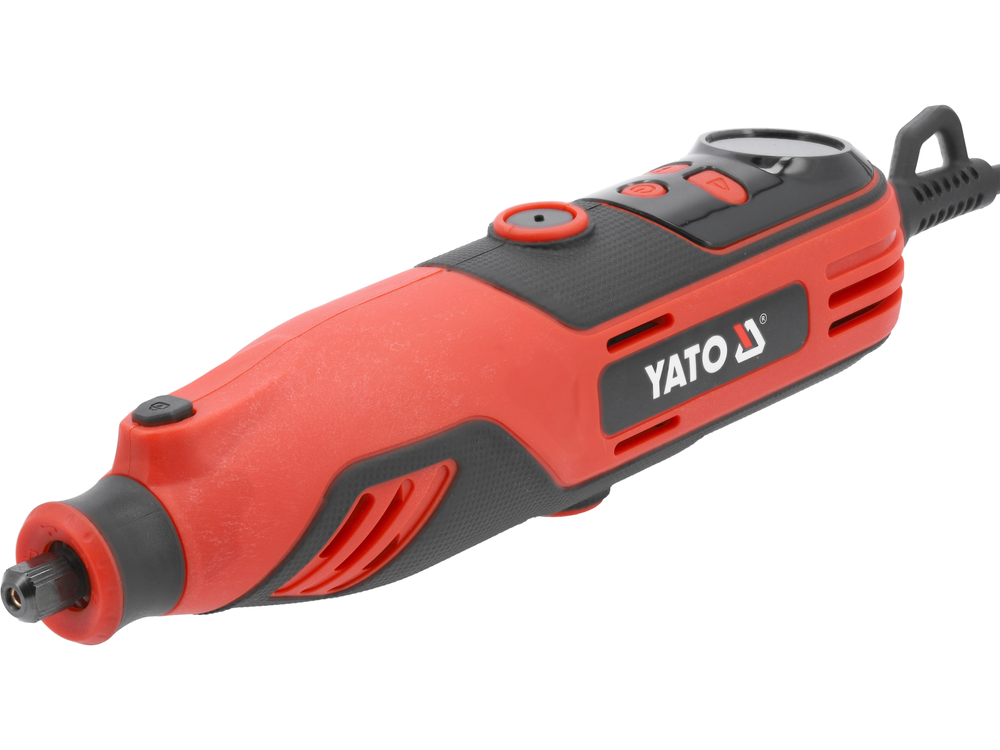

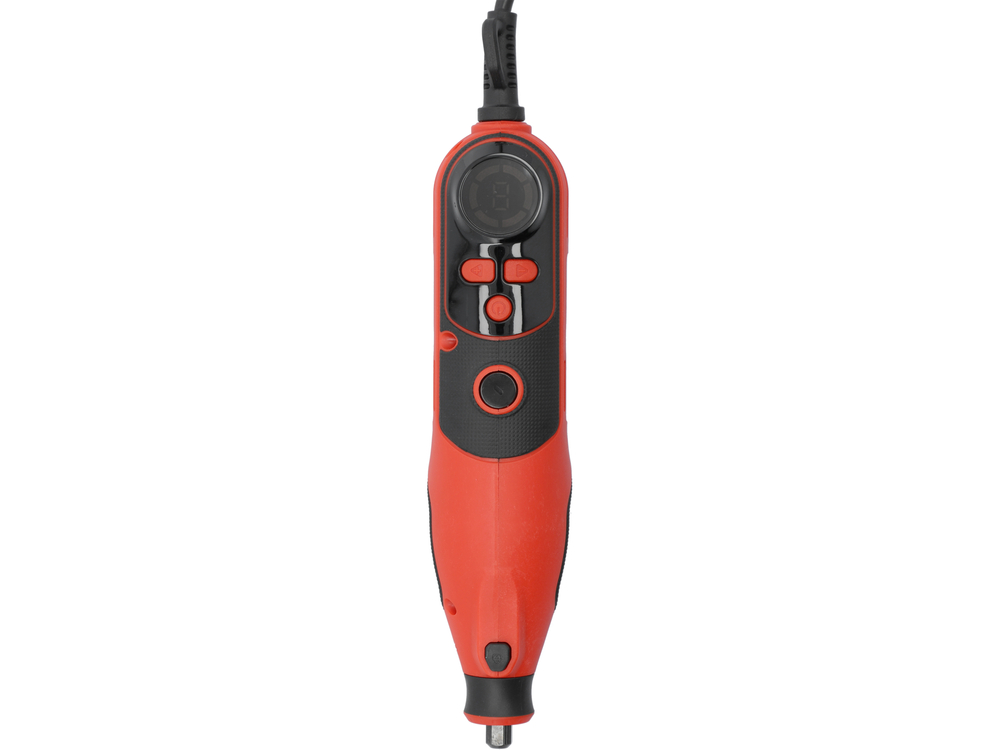

LED ROTARY TOOL 130W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Functions
drilling, grinding, milling, engraving, polishing, cleaning et al.
Power
130 W
Rotations
10 000 (I) / 15 000 (II) / 20 000 (III) / 25 000 (IV) / 30 000 (V) / 35 000 (VI) min⁻¹
Voltage
220-240 V a.c.
Frequency
50 Hz
Max. accessories diameter
35 mm

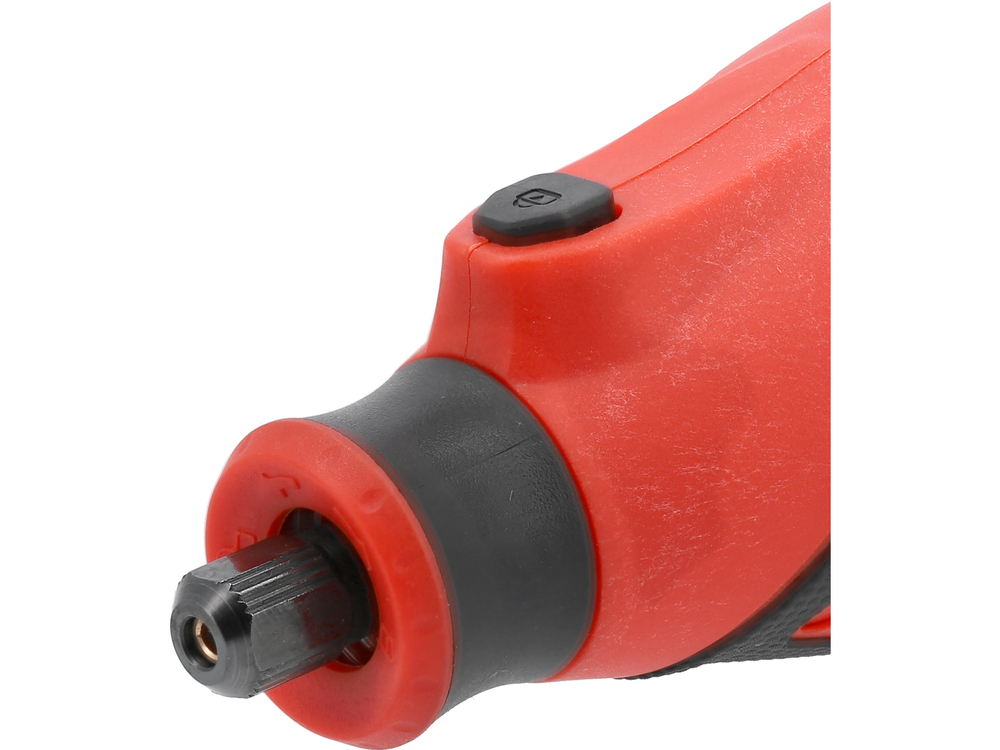

Toolholder type
self-centering
Toolholder size
2.3, 3.2 mm
Dimensions
230x60x55 mm

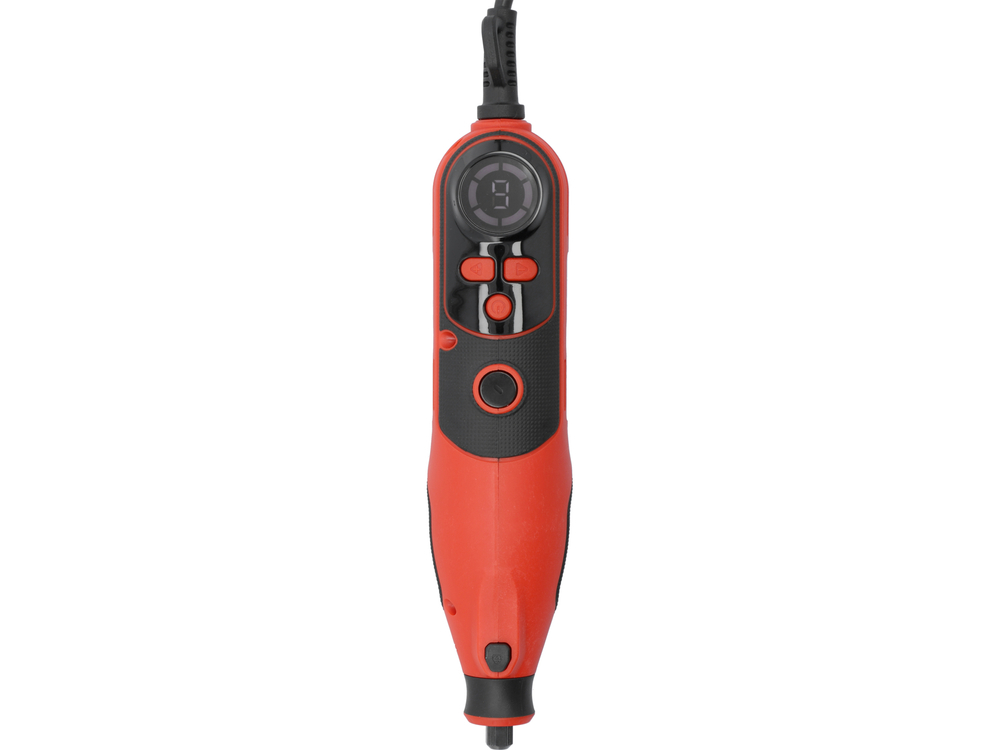

Display type
LED
Electronic rotation adjustment
yes
Rotation switch
no
Cable length
1.8 m
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
80.5 ± 3.0 dB(A)
Acoustic power
91.5 ± 3.0 dB(A)
Vibrations
2.197 ± 1.5 m/s²
Weight
0.69 kg

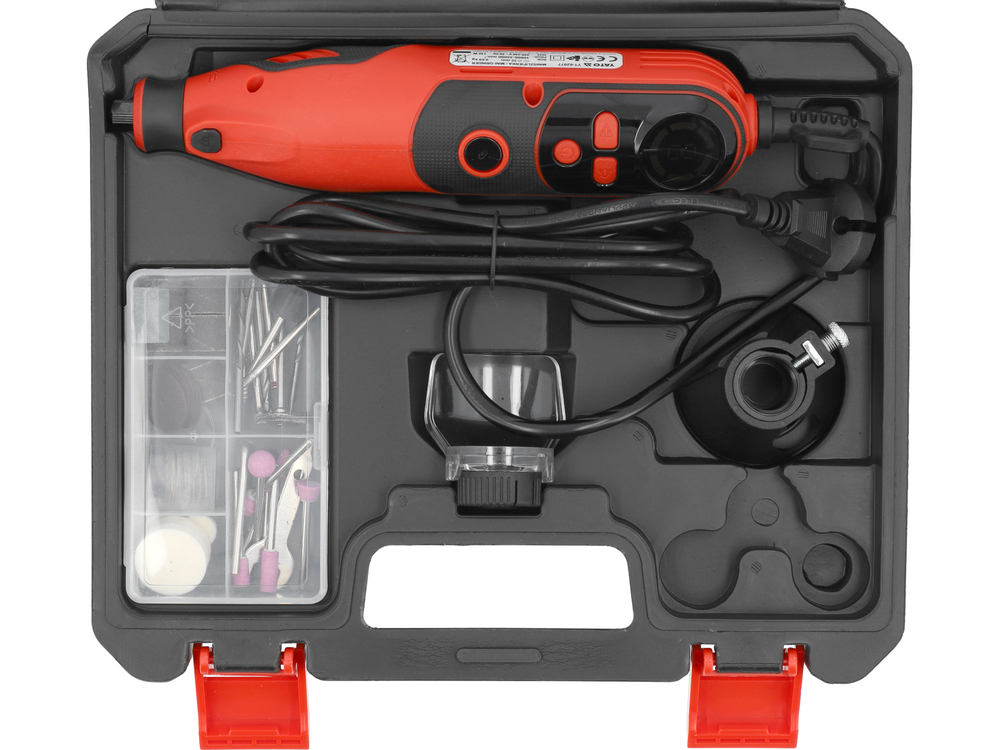

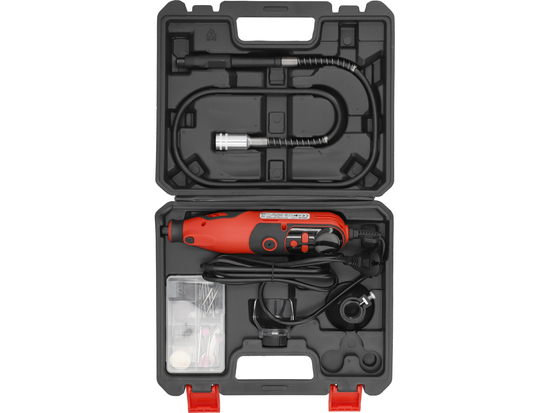

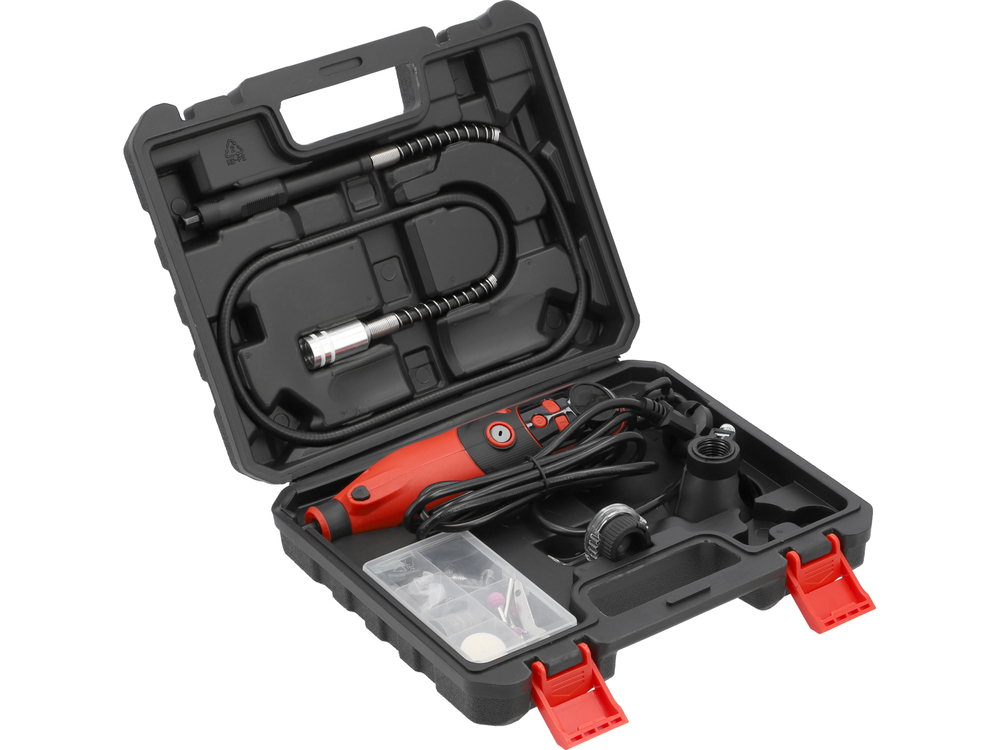

Set includes

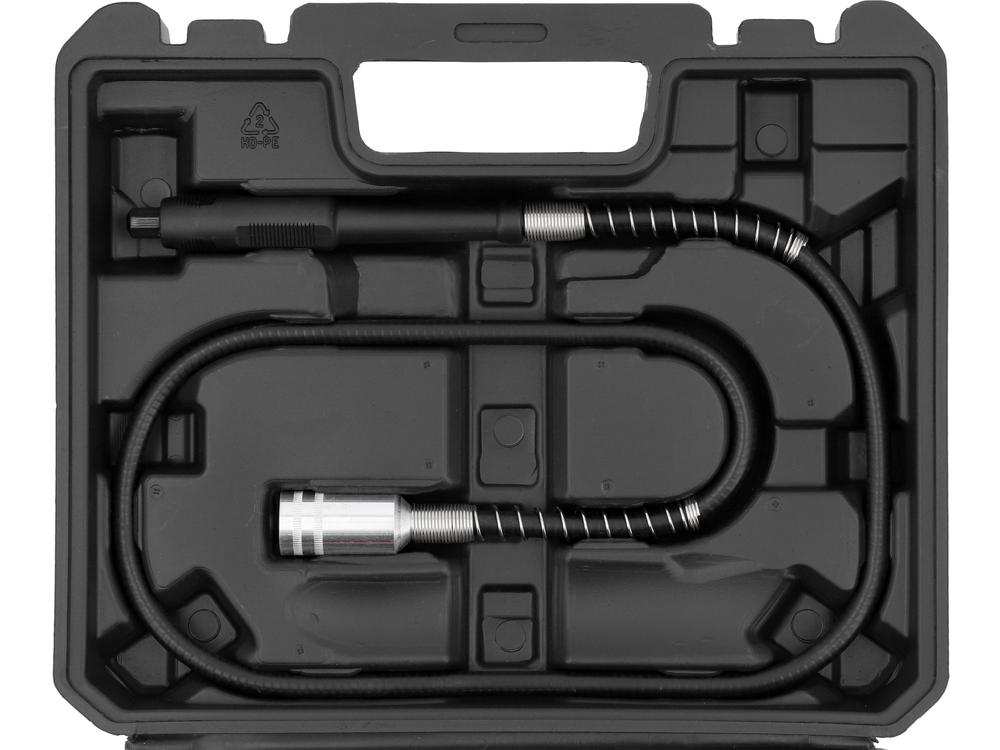

mini grinder, additional tool holder on a flexible boom, mounting key for the tool holder, protective cover, boom spindle lock, milling attachment,
Set includes cont’d
accessories (abrasive accessories) x82 (disc x10, abrasive paper x40, grinding wheel with Ø3.2 mm shank x8, Ø3.2 mm sanding mandrel, sanding band x5, Ø2.3/3.2 mm drill bit x2,
Set includes cont’d 2
diamond drill Ø3.2 mm x2, shank Ø3.2 mm x2, felt x4, whetstone, collet Ø2.3/3.2 mm x2, key, pin, brush Ø3.2 mm, milling cutter Ø3.2 mm, cutting cutter Ø3. 2mm)
Symbol
YT-82077

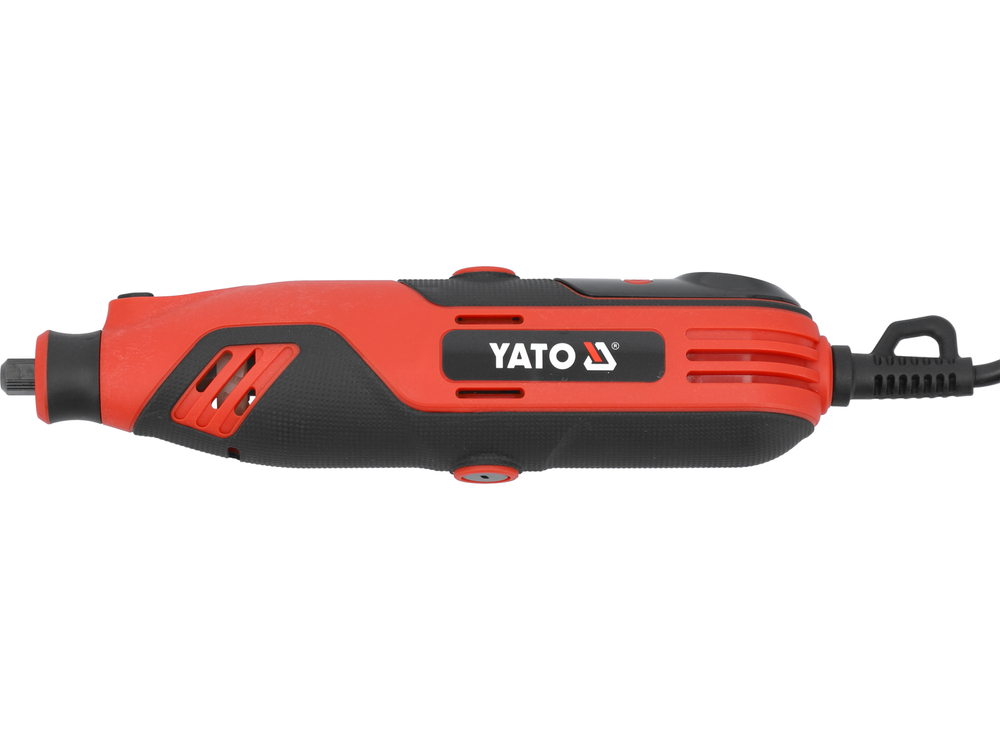

A handy mains-powered tool that allows precise machining of different materials. Used for drilling, grinding, milling, engraving, polishing, cleaning. It has six speed settings, from 10,000 to 35,000 rpm, allowing you to adapt the speed to suit specific tasks. The speed is electronically controlled. The toolholder is self-centring. LED lighting makes it easier to perform precision tasks. 130 Watt power. Included with the mini sander is an additional tool holder on a flexible boom, a spanner for the tool holder, a protective cover, a boom spindle lock, a router attachment and 82 abrasive accessories.
- shield: 10 pcs; Sand paper: 40 pcs.
- grinding wheel with shank: 8 pcs. (ø 3.2 mm)
- grinding arbor: 1 pcs. (ø 3.2 mm)
- grinding belt: 5 pcs.
- drill: 1 pcs. (ø 2,3); 1 pc. (ø 3.2 mm)
- diamond drill bit: 2 pcs. of (ø 3.2 mm)
- mandrel: 2 pcs (ø 3,2 mm)
- felt: 4 pcs; Sharpening stone: 1 pc
- collet: 1 pcs. (ø 2,3); 1 pc. (ø 3.2 mm)
- key: 1 pc; pin: 1 pc
- brush: 1 pcs. (ø 3.2 mm)
- cutter: 1 pcs. (ø 3.2 mm); cutter: 1 pcs. (ø 3.2 mm)
