Novelty
YT-09546
AIR IMPACT WRECH 1/2" 1800NM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
1/2" (12.7 mm)
Toolholder type
Driver
Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
180 l/min
Rotations
7400 min⁻¹
Max. torque
1800 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
195 mm
Casing material
composite, duralumin

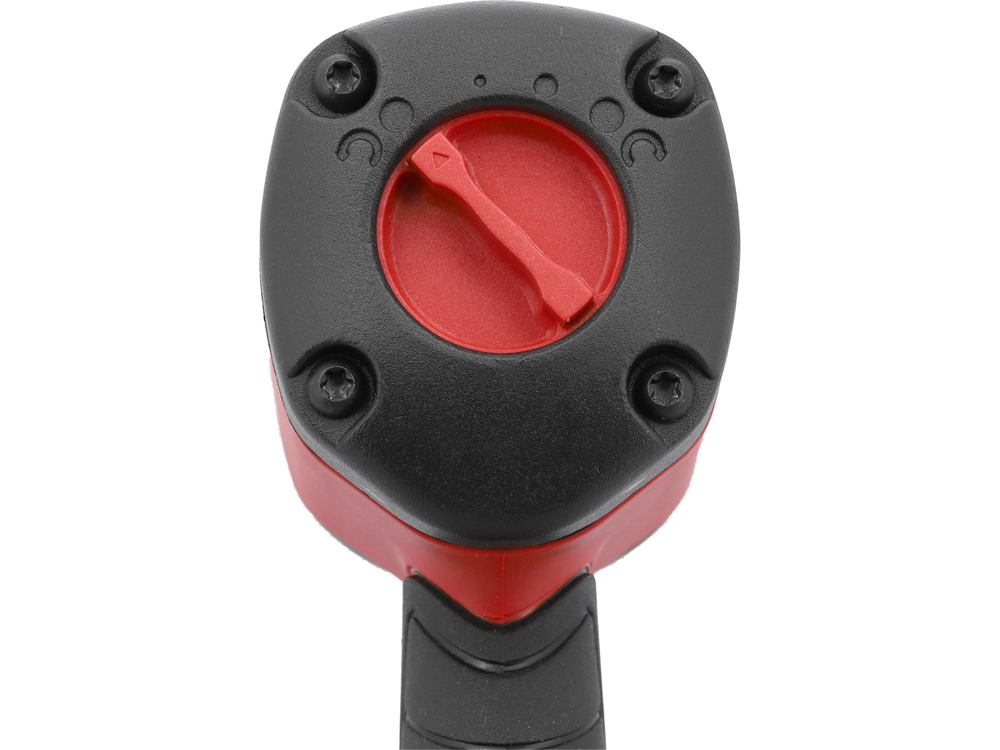

Rotation switch
yes
Acoustic pressure
92.0 ± 3.0 dB(A)
Acoustic power
103.0 ± 3.0 dB(A)
Vibrations
5.47 ± 1.5 m/s²
Weight
2.2 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09546

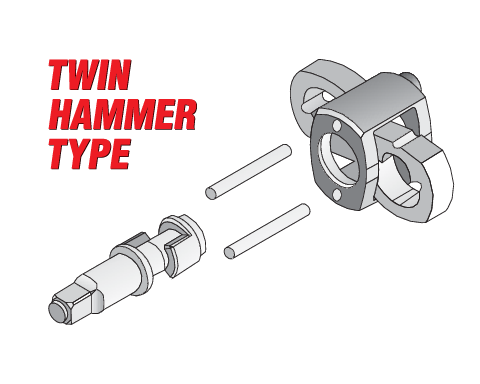

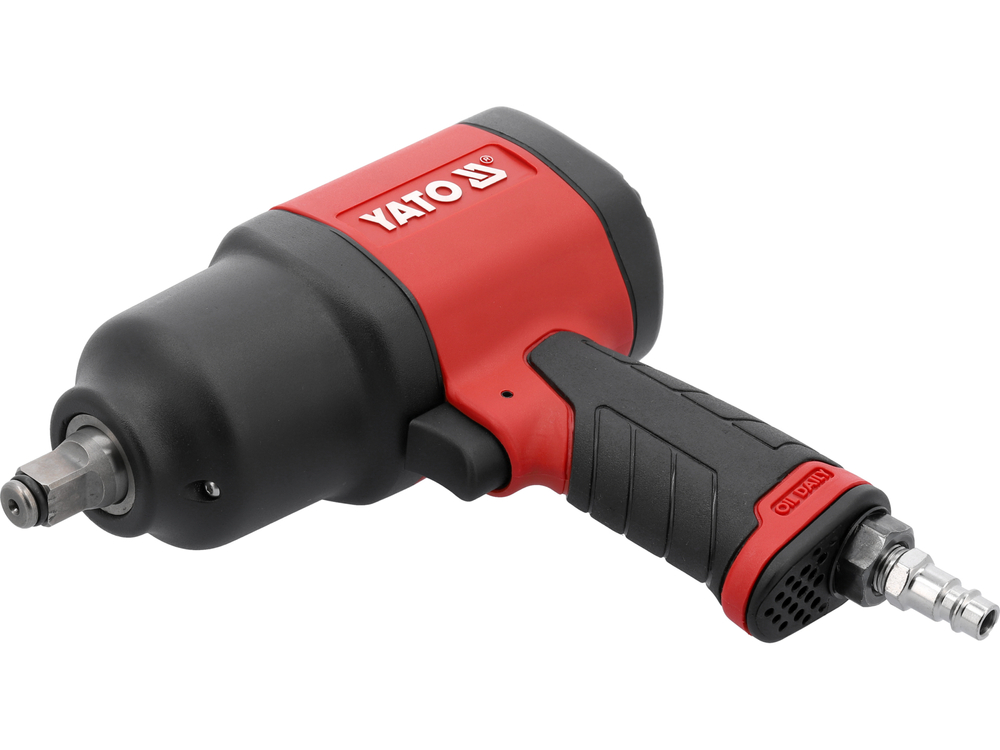

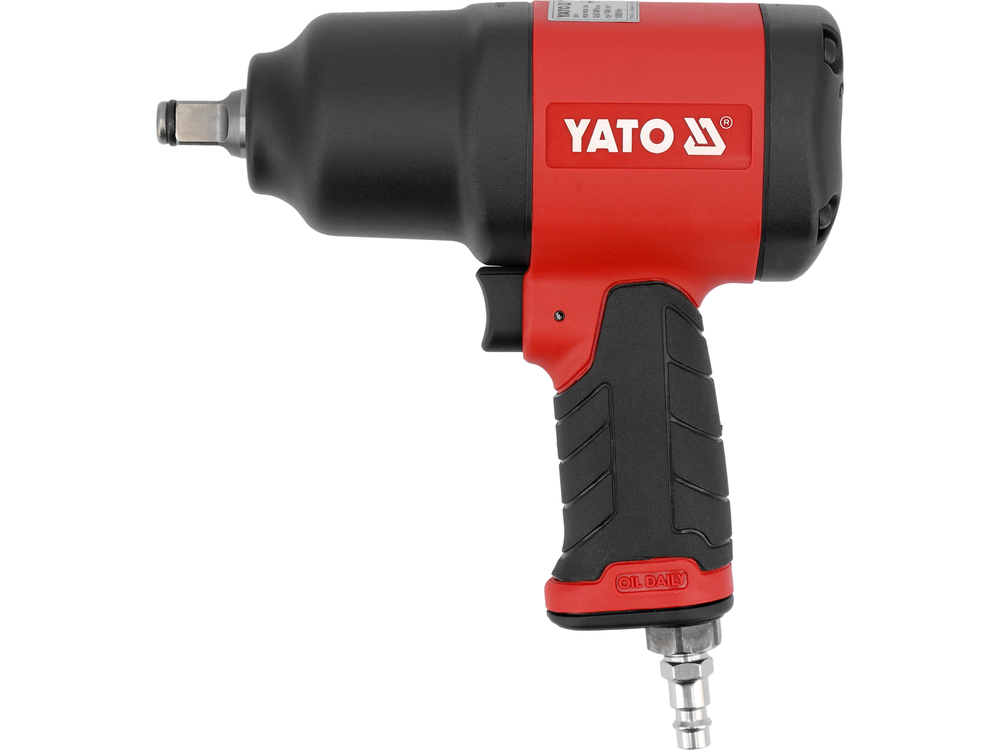

Composite 1/2" Impact wrench with 1800 Nm of power. Designed for use in industry, mechanical services and garages. Made of composite casting and duralumin. The high performance of the spanner is ensured by the TWIN HAMMER impact mechanism. Its small size and low weight allow it to be used in areas with limited access.
- power supply: standard 1/4" connection
- Speed: 7400 rpm
- Length: 195 mm
- weight: 2.2 kg
- air consumption: 255 l/min
- direction of rotation switch
