YT-82148

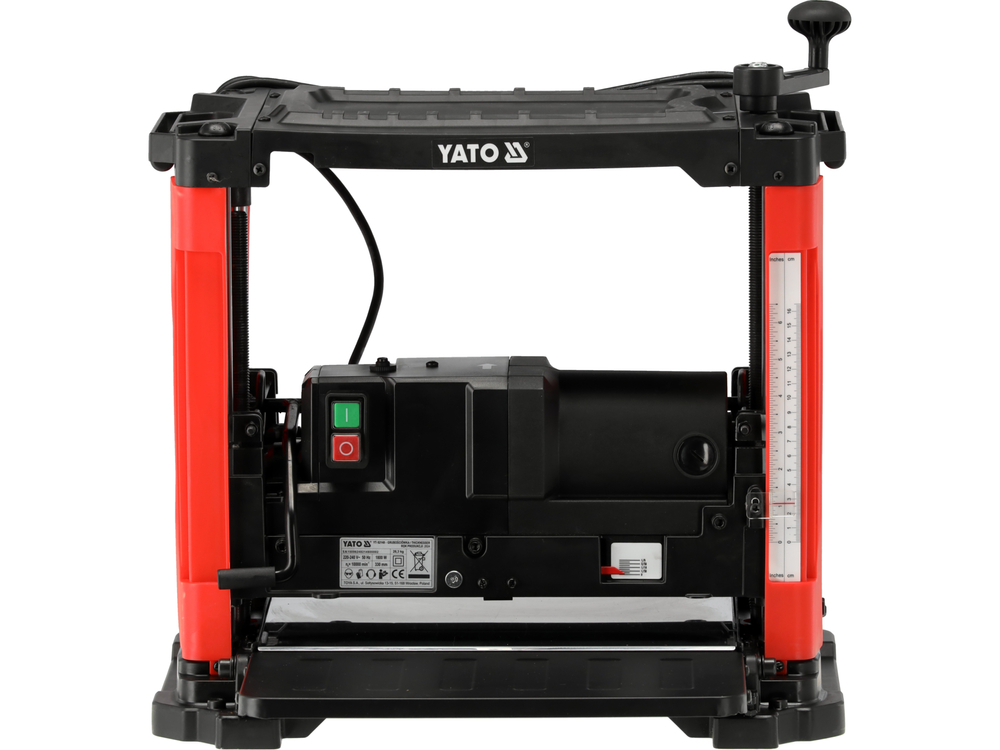

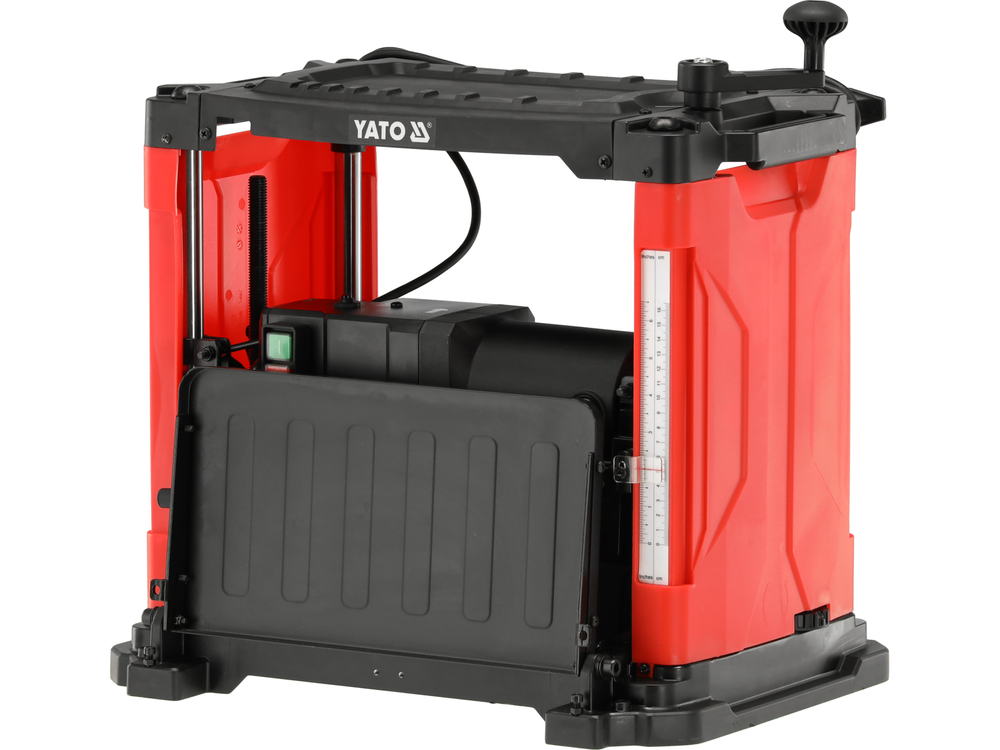

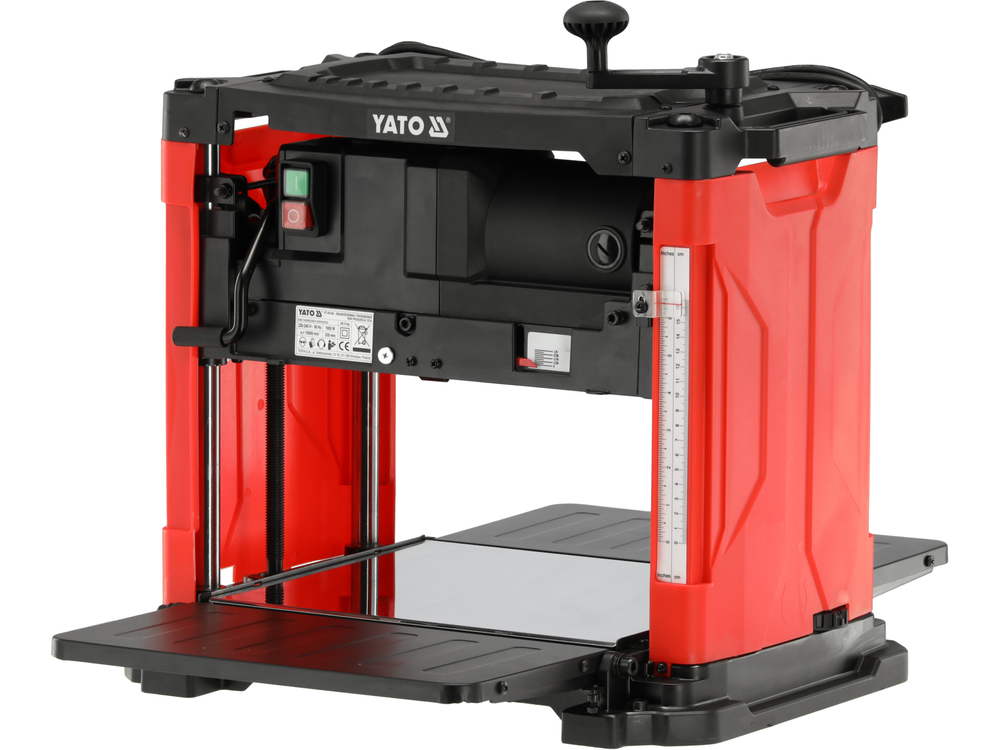

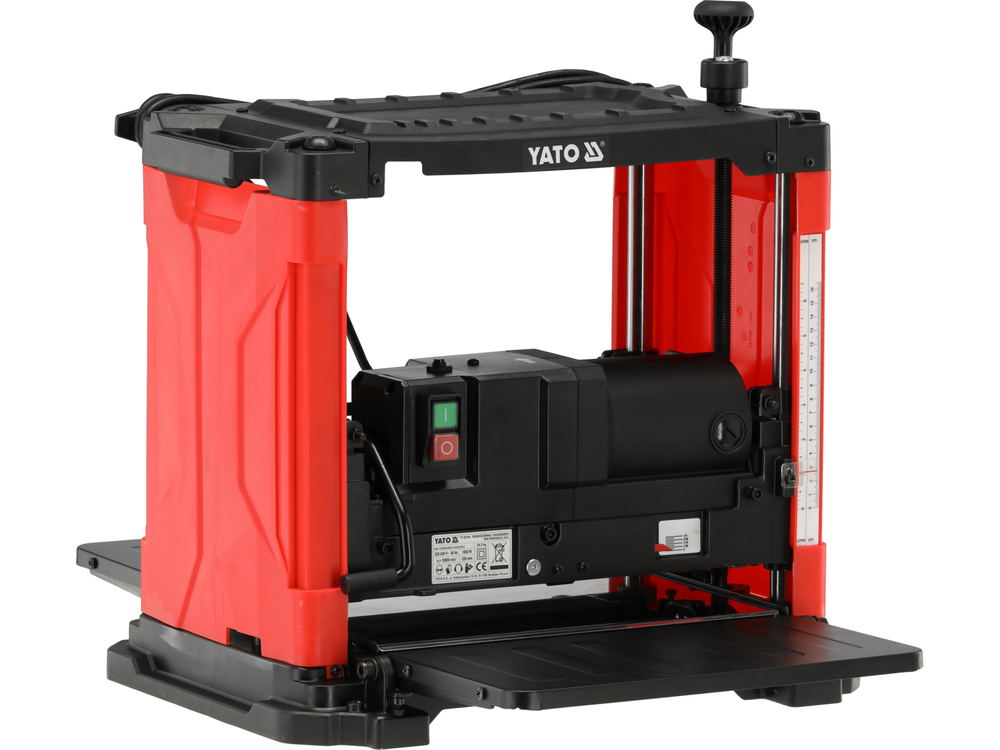

THICKNESSER 1800W, MAX WIDTH 330MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
1800 W
Rotations
10000 min⁻¹
Voltage
220-240 V a.c.
Frequency
50 Hz
Max. planing speed
7.9 m/min
Max. planing depth
2.4 mm
Planing height
7-127 mm
Max. planing width
330 mm
Min. planing length
127 mm
Cutting block diameter
49 mm
Dust extraction connection diameter
2-3/8" (60 mm)
Cable length
2 m
Working temperature range
4~40 ˚C
Electric insulation class
II
Protection grade
IPX0
Acoustic pressure
86.5 ± 3.0 dB(A)
Acoustic power
99.5 ± 3.0 dB(A)
Weight
26.3 kg
Set includes
thicknesser, dust extraction connection, blade assembly key
Symbol
YT-82148

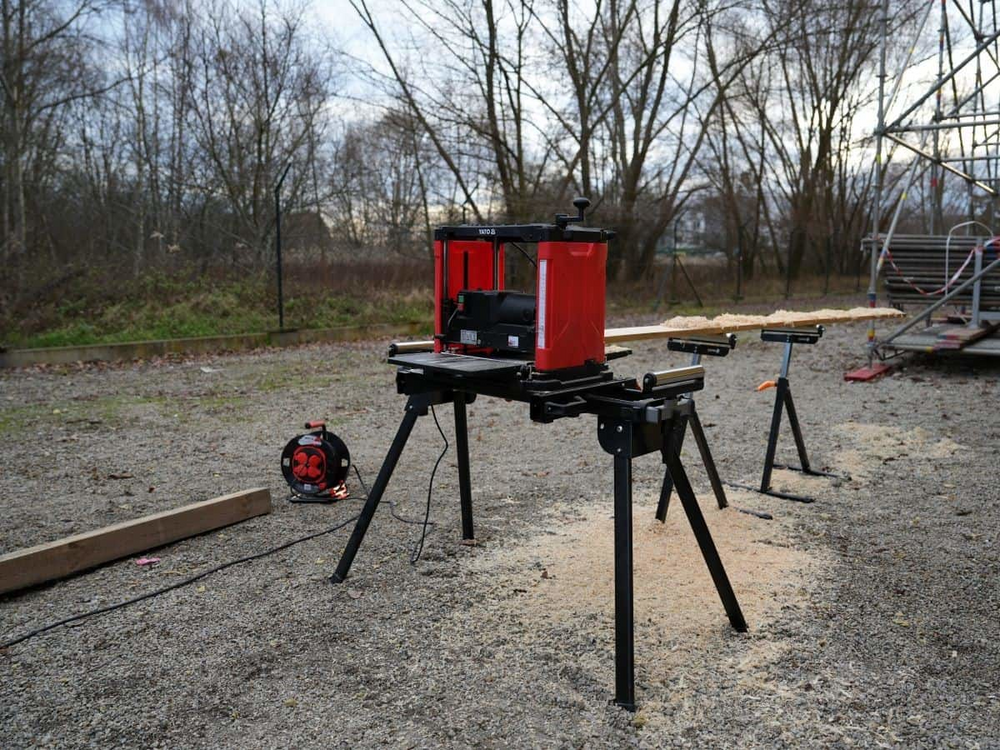

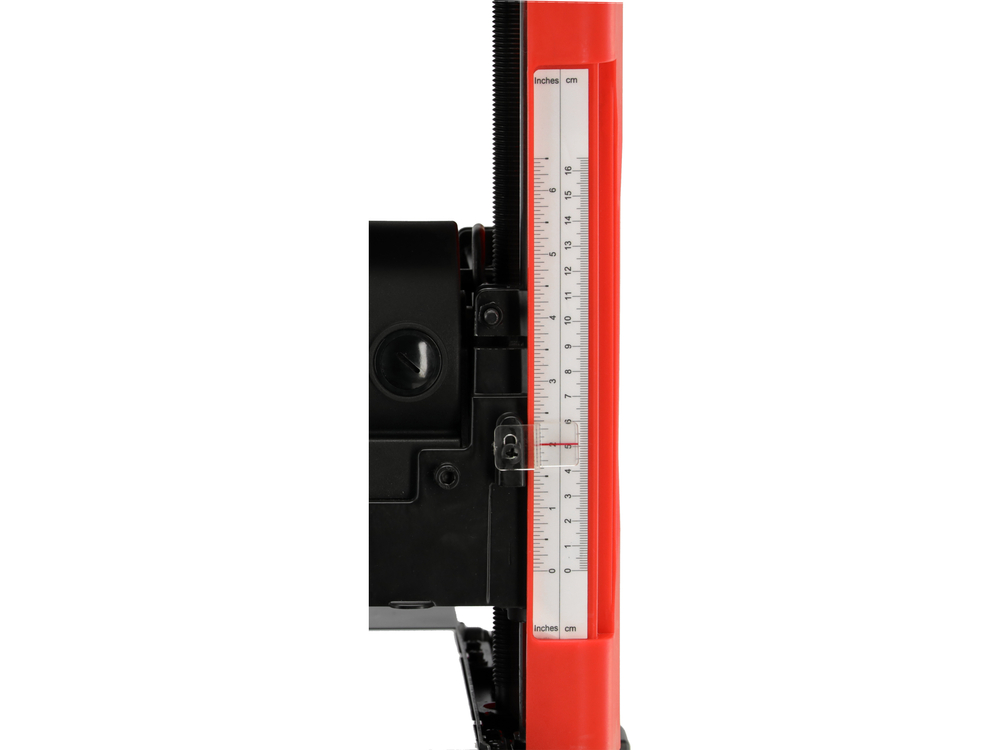

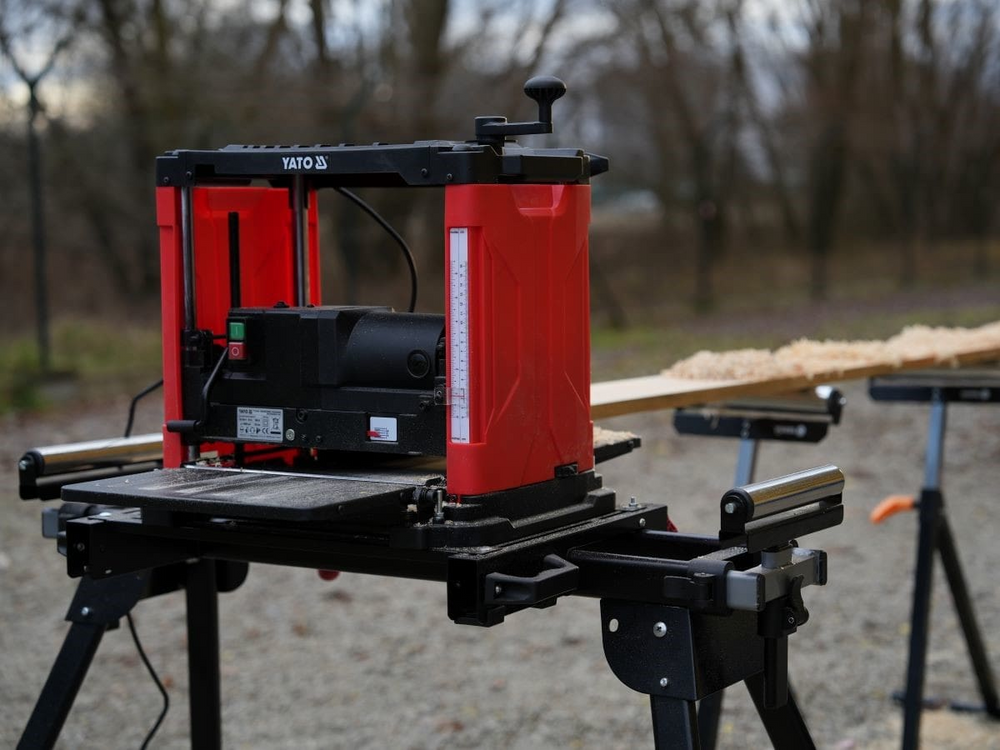

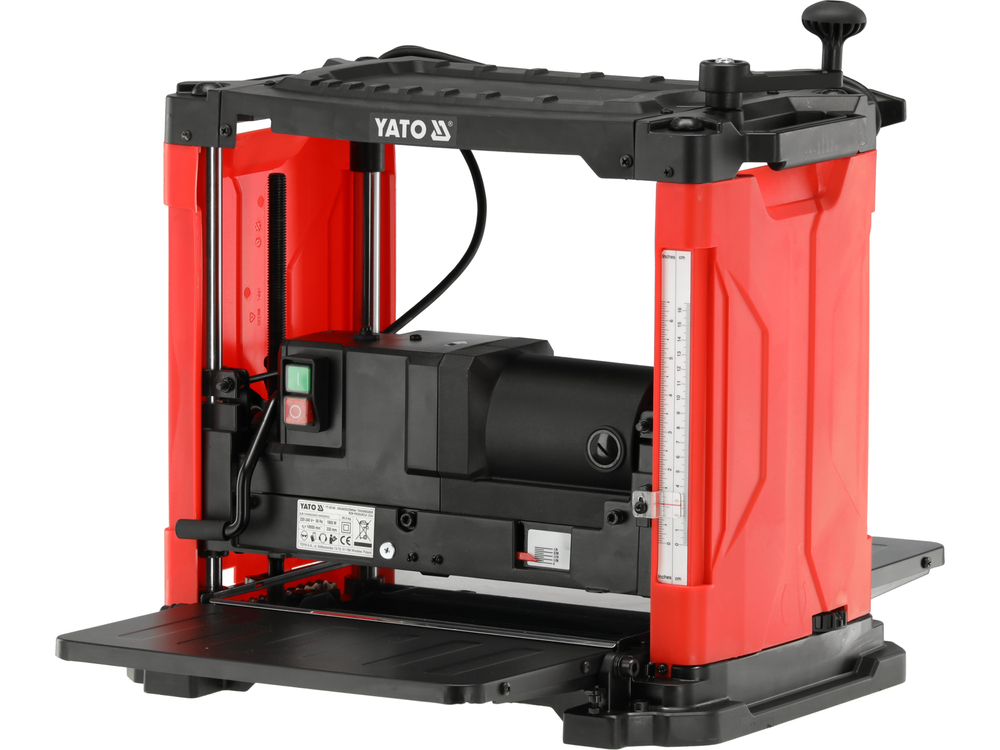

The thicknesser is an indispensable tool both in the carpentry shop and on the building site. By adjusting the thickness of the machining, the planing depth can be fine-tuned as required. The depth stop allows the material to be repeatedly planed to the same thickness for consistency and accuracy. To increase the stability of the machine, it is recommended that the thicknesser is fixed to the ground. The side handles make it easy to carry, which is particularly useful when working in different locations. In addition, the dust extraction connection helps keep the workplace tidy by minimising dust and chips.
- power: 1800 W
- rotation speed: 10000 rpm
- maximum planing depth: 2.4 mm
- maximum planing speed: 7.9 m/min
- minimum planing thickness: 127 mm
- planing height: 7-127 millimeters
- maximum planing width: 330 mm
- diameter of cutting block: 49 mm
- diameter of dust extraction connection: 2-3/8" (60 mm)
- cable length: 2 m
- weight: 26.3 kg
