YT-83090
PORTABLE BATTERY STATION 300W, 315WH, 230V, USB-C PD
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
300 W
Dimensions
270x150x182 mm
Storage temperature
10~30 ˚C
Set includes

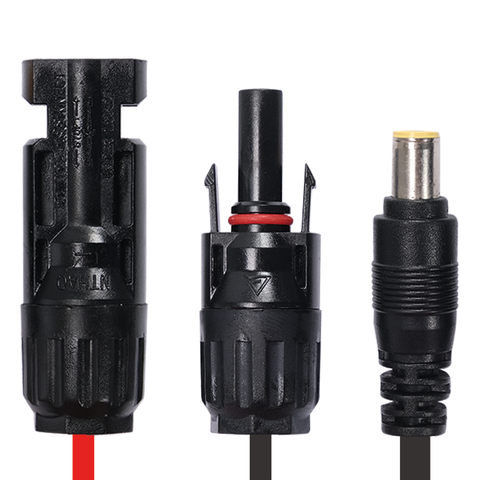

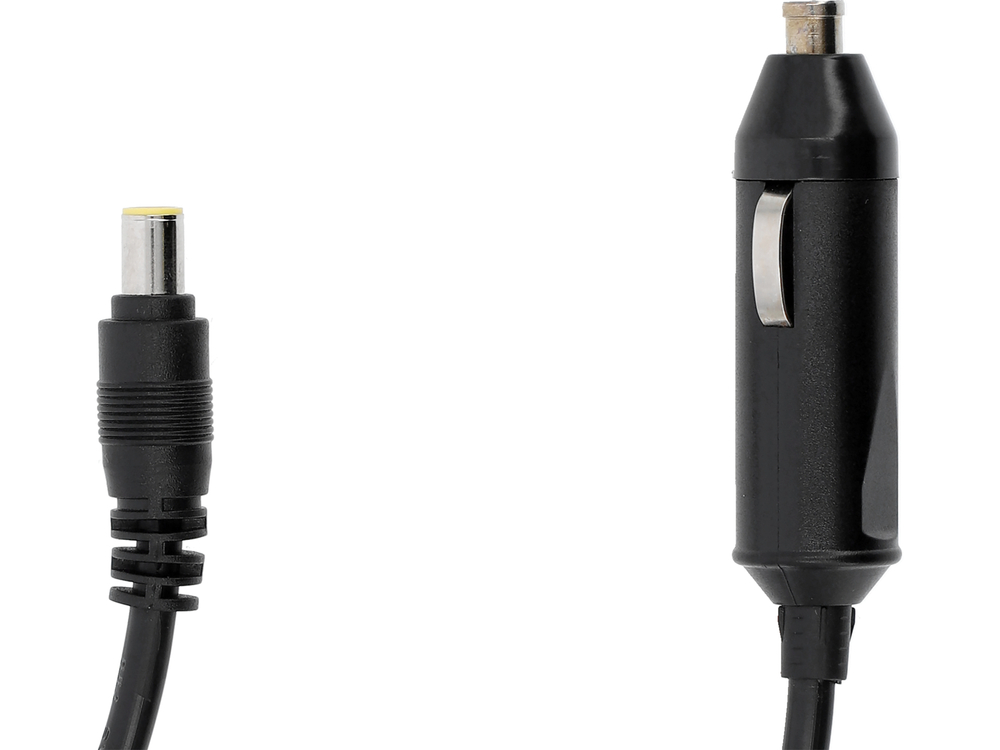

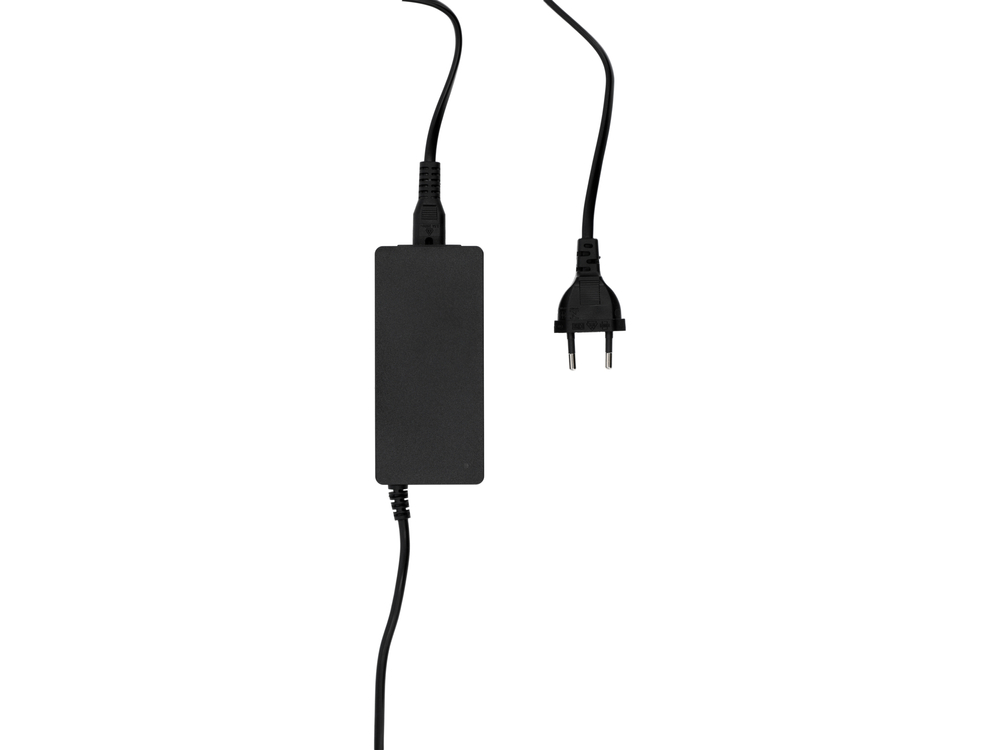

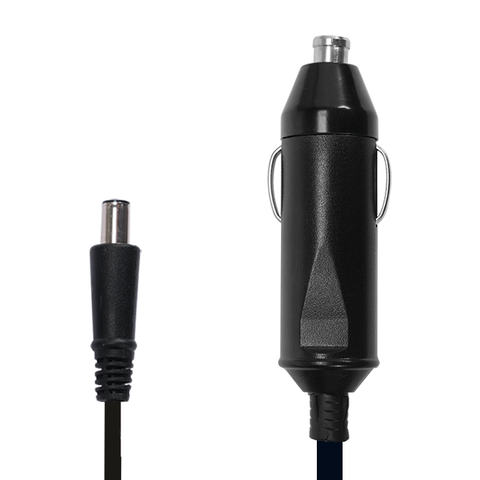

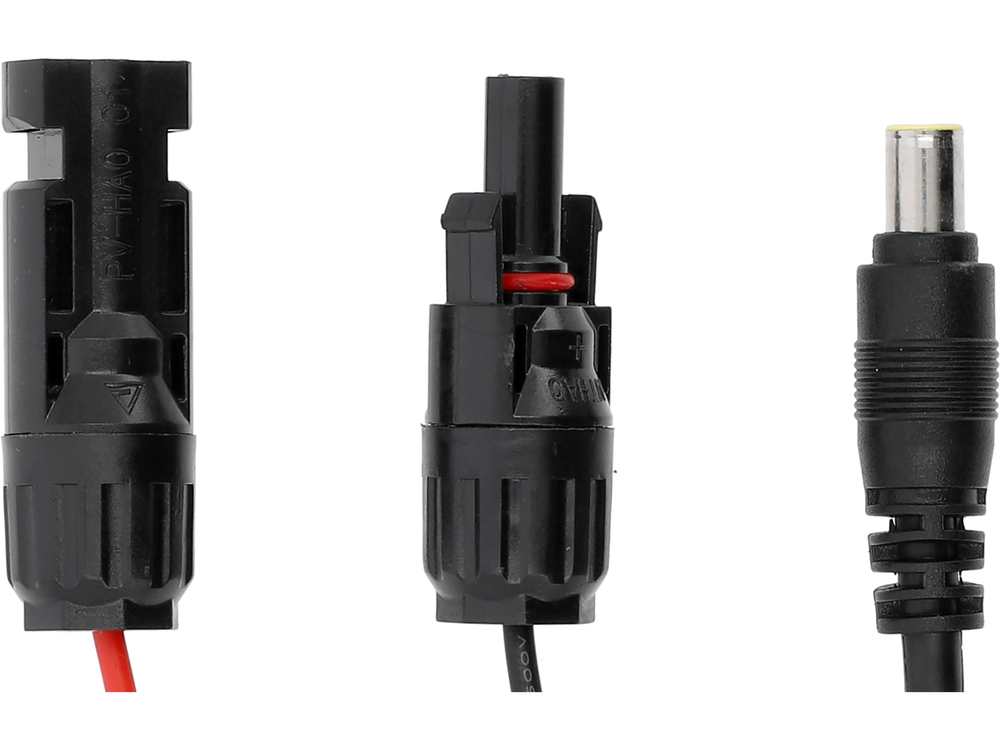

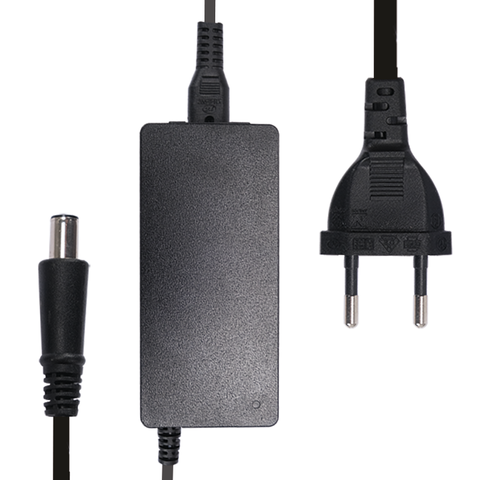

station, mains charger, cable for charging the product from a 12V DC electrical installation, cable for charging the product from an external solar panel
Weight
3.9 kg
Efficiency
80 %
Protection grade
IP20

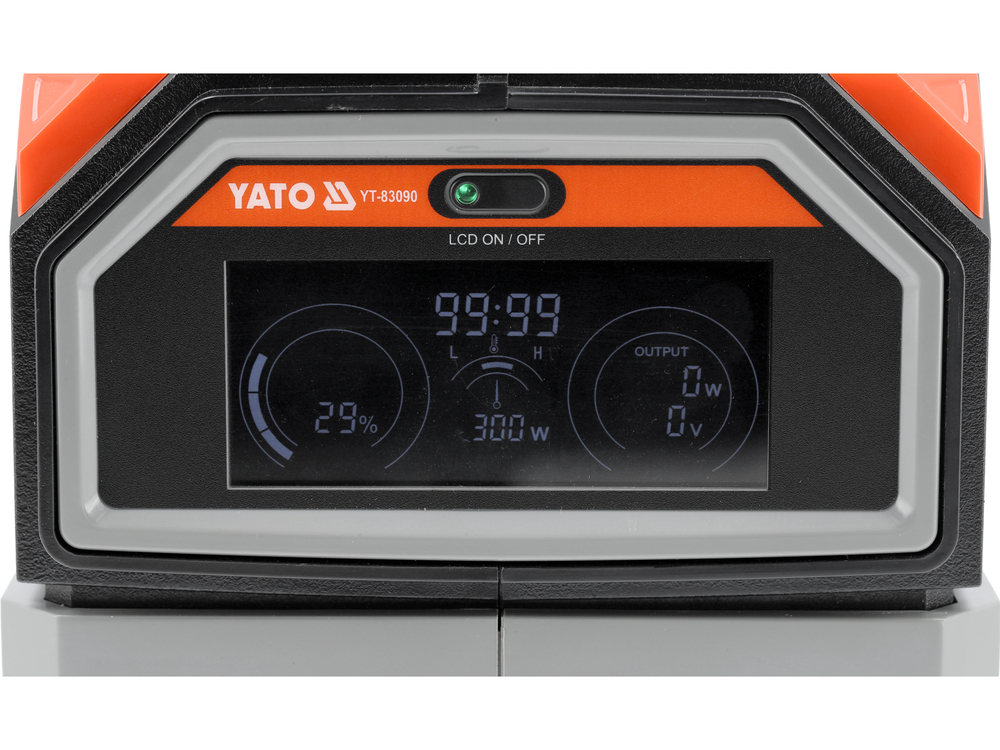

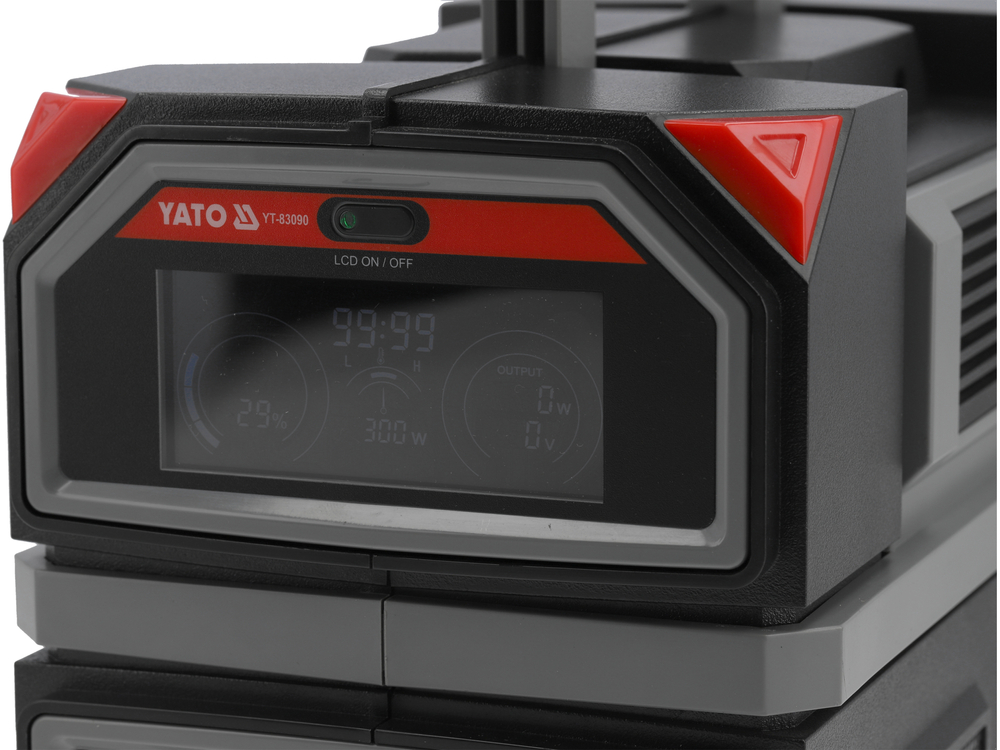

Display type
LCD
Battery capacity
12500 mAh
Electric insulation class
II
Front lighting
yes
Battery voltage
25.2 V d.c.
Battery type
Li-Ion
Charger type
mains 110-240V~ 50/60Hz, 12V car, charging from external solar panels
Battery energy
315 Wh
Moc maksymalna
600 W
Output signal characteristics
pure sine
Charging temperature
0~45 ˚C
Discharge temperature
-20 ~ +60 ˚C
Safeguard
BMS: over current, short circuit, over discharge/over charge/over voltage/over heat,
Security continued.
inverter: against undervoltage/overvoltage/short circuit/overload/overheating
Symbol
YT-83090

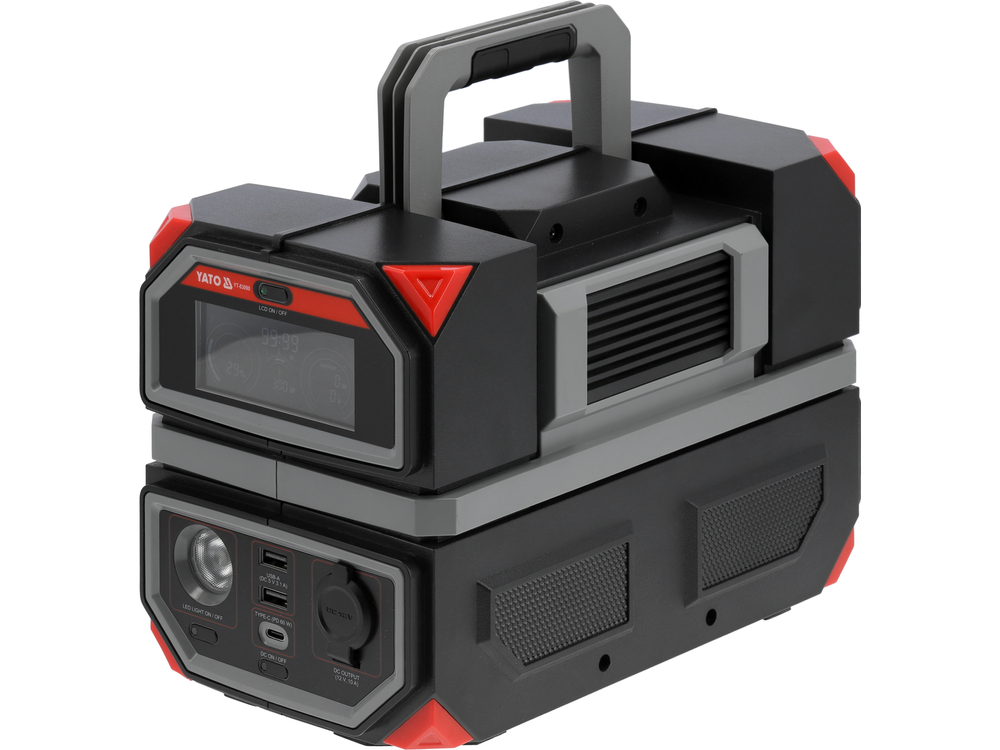

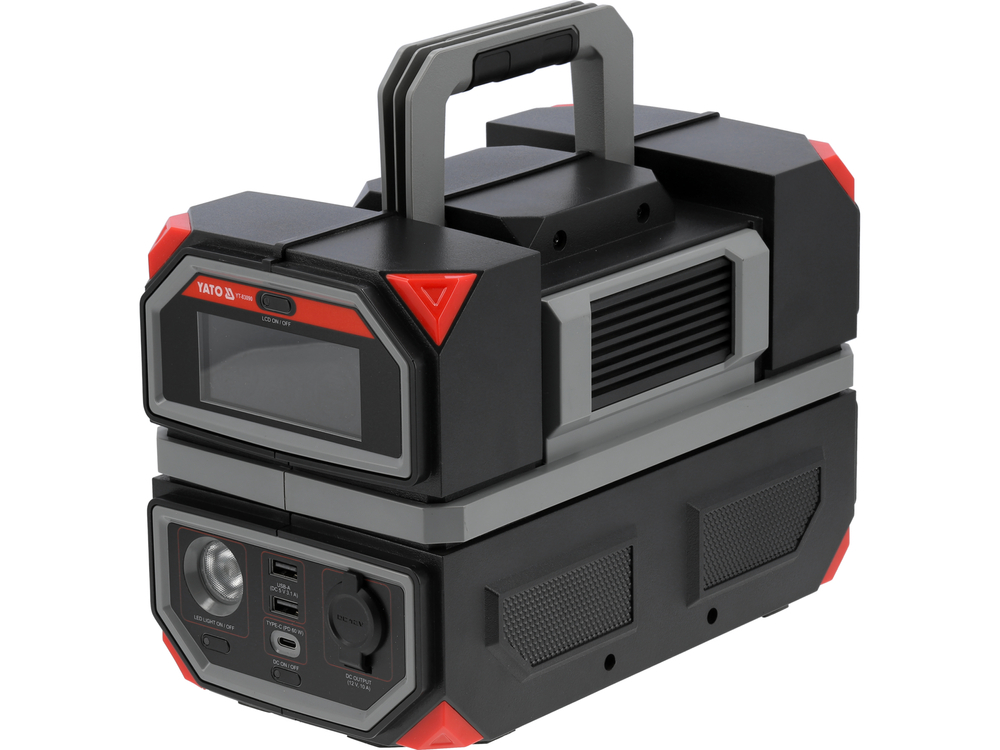

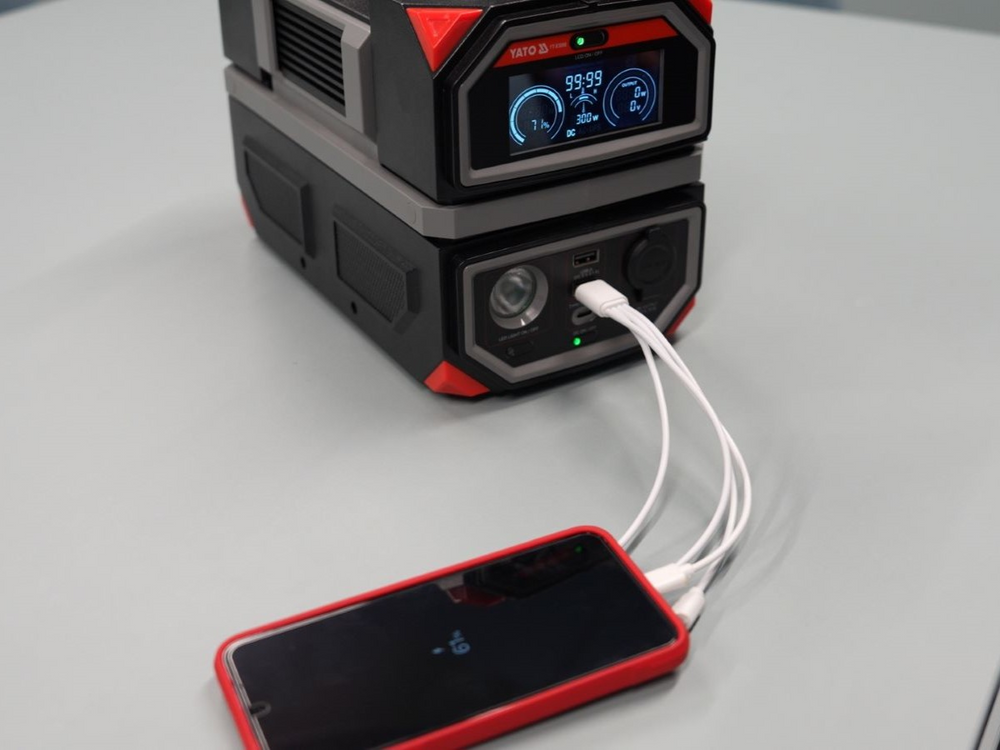

Portable battery power station with 315 Wh capacity. It will support five devices simultaneously. The built-in AC inverter with pure sine wave with a rated output of 300 W (up to 600 W at peak) will prove useful as an emergency power source for, among other things, the pump and controller of the central heating furnace, router, set-top box or television. Three USB ports, including one USB-C with PD 60 Wtechnology, will power and repeatedly charge a smartphone, tablet or laptop. A 12-volt socket will successfully power a touring fridge or dedicated lighting.
- Built-in power bank with 35 Li-Ion high discharge rate cells in NMC/INR technology in 18650 housing with a nominal voltage of 3.6 V and a capacity of 2500 mAh (total 87500 mAh)
- capacity does not drop below 80% of the initial value even after 500 full discharge cycles
- cells arranged in a robust cage with a design that allows free access of air to each cell, significantly improving cooling efficiency
- an advanced BMS that monitors all current parameters and cell temperature in real time, ensuring a safe charging and discharging process
- The BMS has overcurrent, short-circuit, over-discharge, over-voltage and overheating protection.
- cell balancing system extends the life of the entire pack

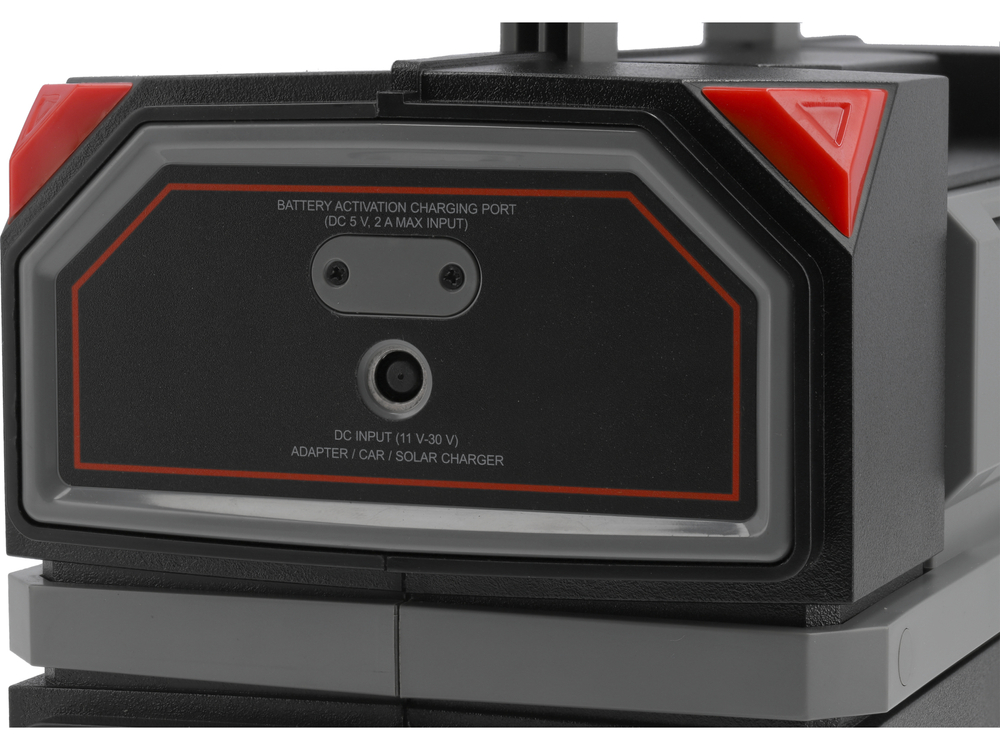

- a special USB-C port for the excitation of the cell pack - if you leave the station discharged to 0% for a long time and the device does not react to the connected charger, with the help of a 5 V, 2 A power supply we can excite the cells and restore the station and the BMS to operation
- recharging of the station is possible in three ways: with a maximum power supply of 72 watts, via a cable under the cigarette lighter or from external photovoltaic panels
- manufactured to automotive standards
Other information:
- harmonic content ratio (THD) at full load: ≤3%
- operating time at rated unit load (300 W): 40 min
- charging time from the power supply: ~6 h
- charging time from cigarette lighter: 5-6 h
- charging time from photovoltaic panels: ~6 h

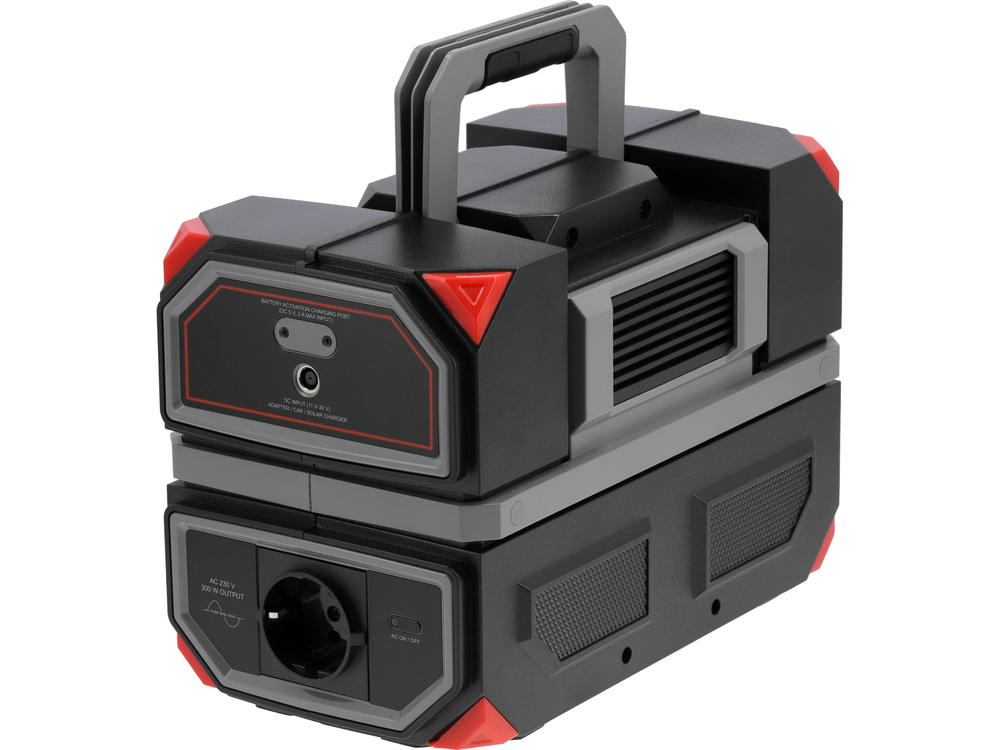

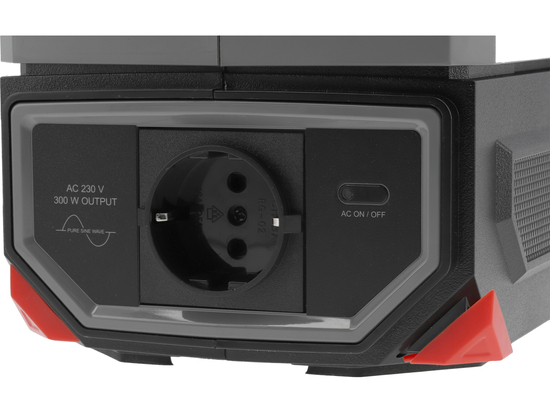

- Continuous power from AC 230 V outlet: 300 W (600 W peak)

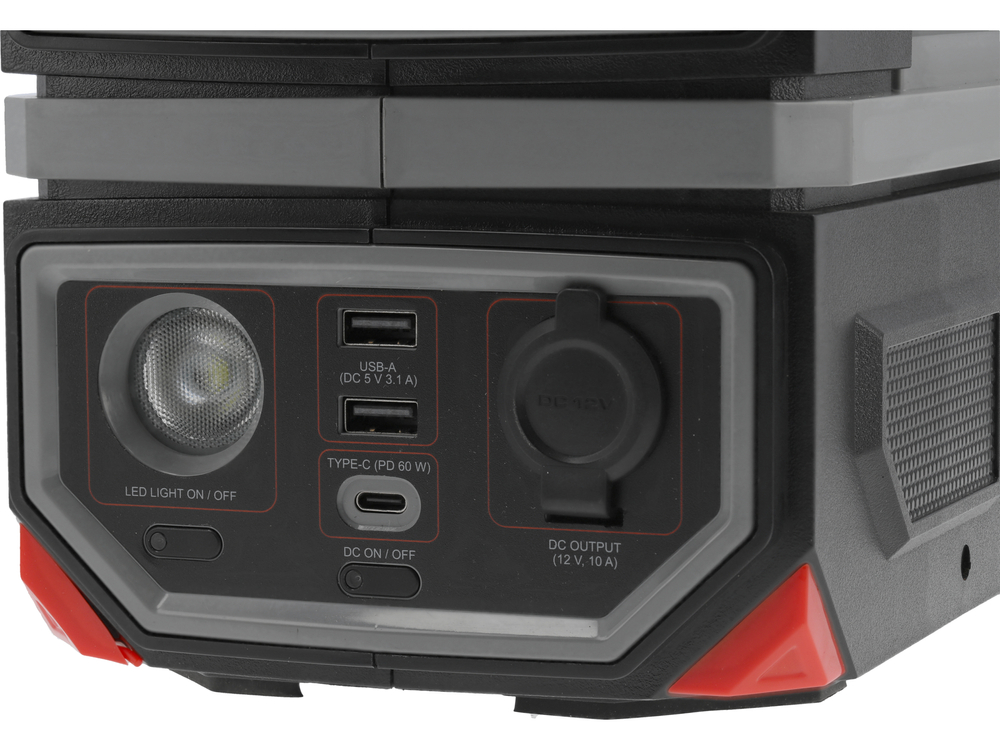

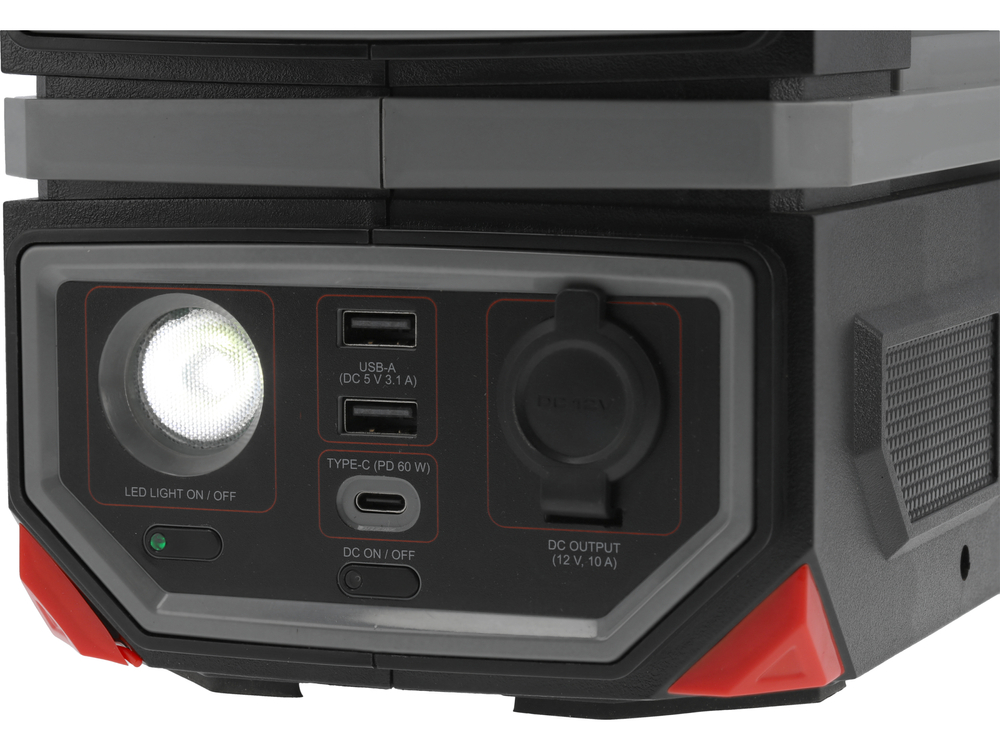

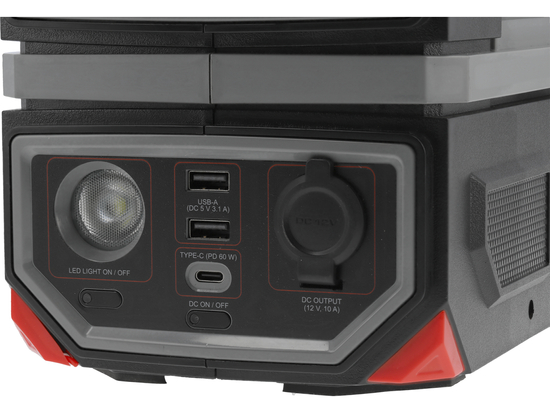

- cigarette lighter socket: 12V/10A
- USB-A socket: 5V/3.1A
- USB-C socket: 60 W in PD technology
- BMS protection: overcurrent, short-circuit, over-discharge, over-voltage, overheating
- inverter protection: under-voltage, over-voltage, overheating, short-circuit, overload
- LED light with 3 modes, including SOS, 2W
- dimensions: 270 × 150 × 182 mm
- weight: 3.9kg
- contents of the set: station, mains charger, cable for charging the product from a 12 V DC electrical installation, cable for charging the product from an external solar panel







Usage warnings:
Caution: Possibly hazardous optical radiation emitted from this product. Do not stare at operating lamp. May be harmful to the eyes.To download
