YT-83092

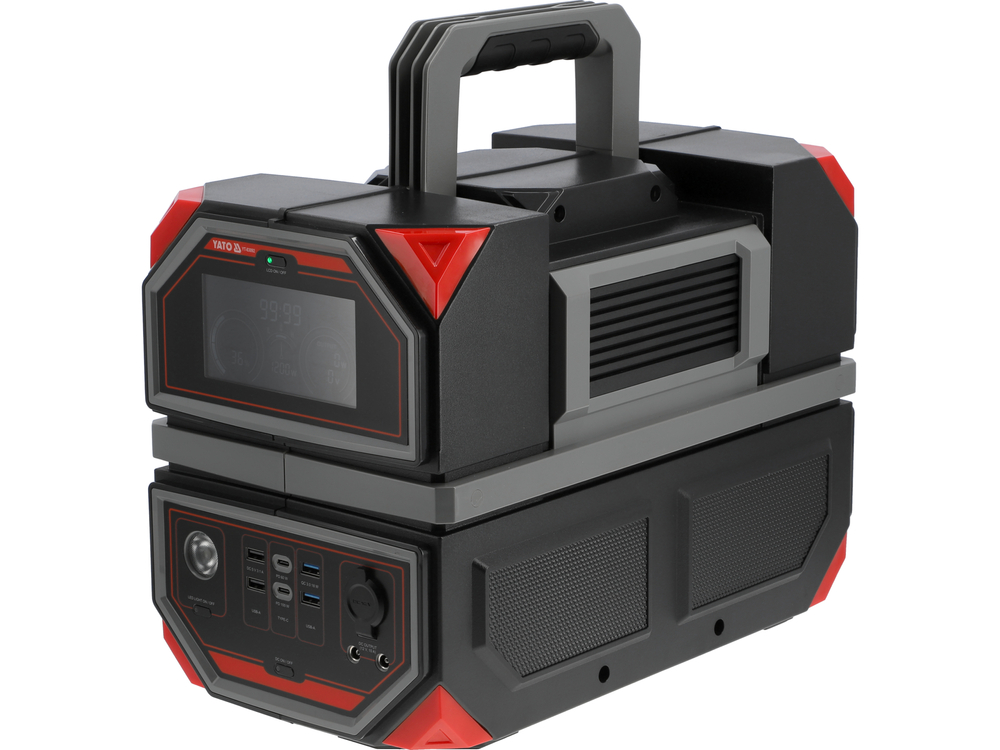

PORTABLE BATTERY STATION 1200W WITH UPS, 917WH, 230V, USB-C PD

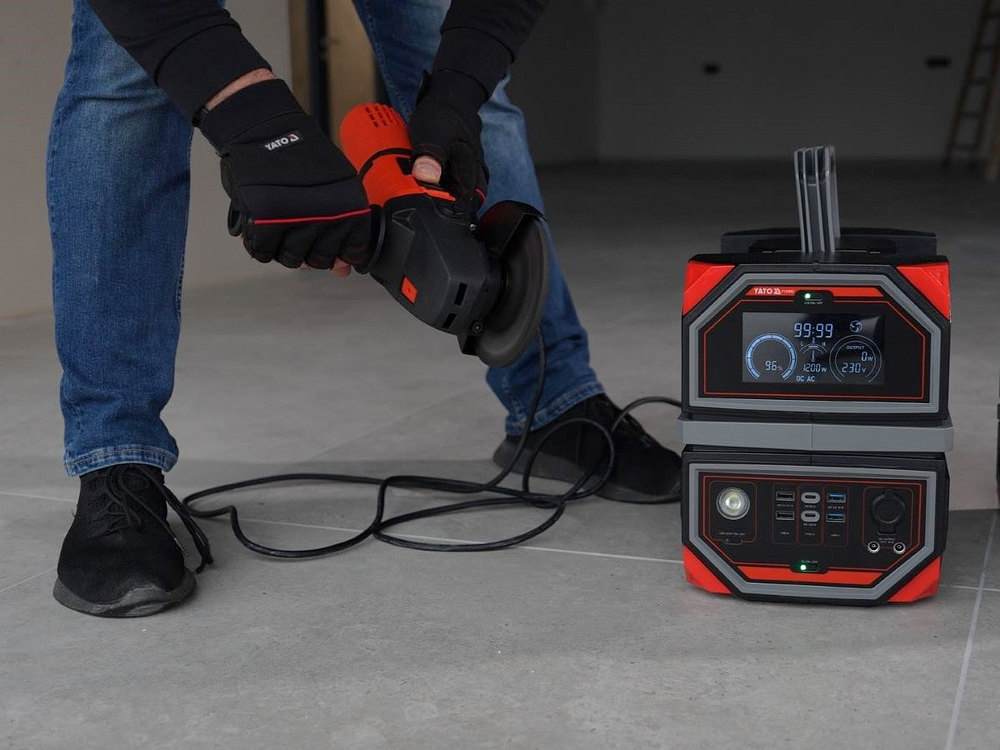

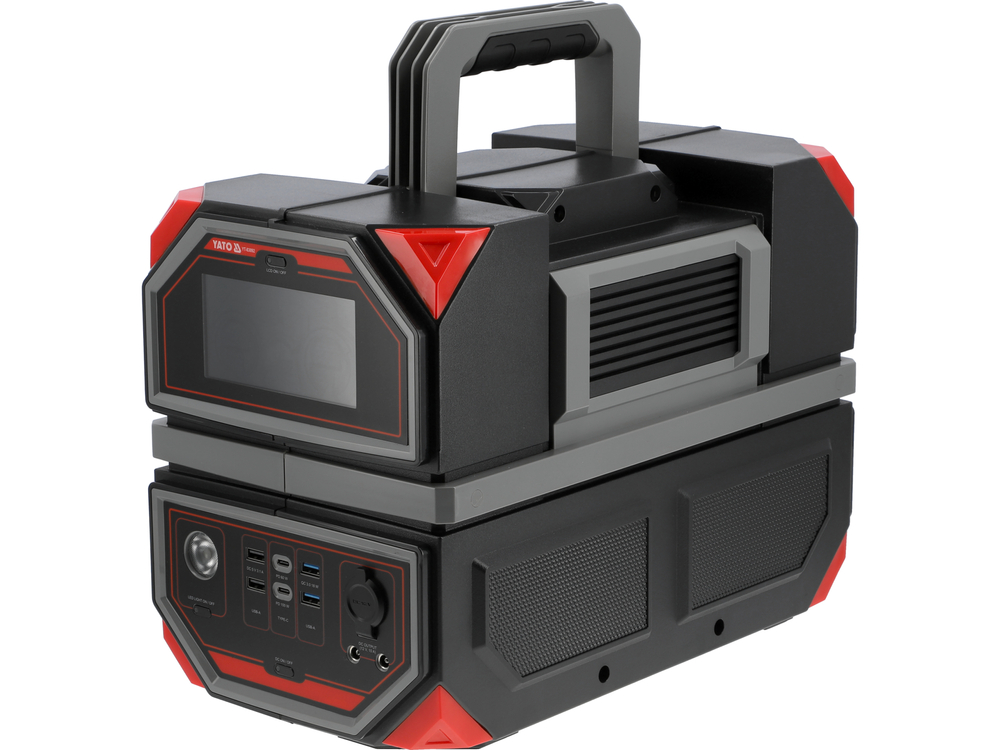

Portable 917 Wh battery power station with UPS function. It will support eleven devices at a time. The built-in bidirectional AC inverter with pure sine wave with a power rating of 1200 W (up to 2400 W at peak) will prove useful as an emergency power source for, among other things, the central heating furnace pump and controller, router, desktop computer, most power tools and many other devices. Six USB ports, including two USB-A with Q.C techonolgy max 18 W, two USB-C with PD 60 W technology and PD100 Wtechnology, will power and repeatedly charge a smartphone, tablet or laptop. A 12-volt socket will successfully power a touring fridge or dedicated lighting. The two jack sockets with 12 V output can be used, for example, to hold the voltage in the car while the battery is charging.
- The UPS function ensures continuity of operation of the connected devices in the event of a power failure, and will handle devices with a total rated power of 500 W. In the event of a power failure, the module will switch from mains power to battery power in no more than 20 milliseconds (imperceptible to the devices).
- the energy reserve at full charge and constant 500 watts is sufficient for approximately two hours of continuous operation
- Built-in power bank with 98 Li-Ion high discharge rate cells in NMC/INR technology in 18650 housing with a nominal voltage of 3.6 V and a capacity of 2600 mAh (total 254800 mAh)
- capacity does not drop below 80% of the initial value even after 500 full discharge cycles
- cells arranged in a robust cage with a design that allows free access of air to each cell, significantly improving cooling efficiency
- an advanced BMS that monitors all current parameters and cell temperature in real time, ensuring a safe charging and discharging process
- The BMS has overcurrent, short-circuit, over-discharge, over-voltage and overheating protection.
- cell balancing system extends the life of the entire pack

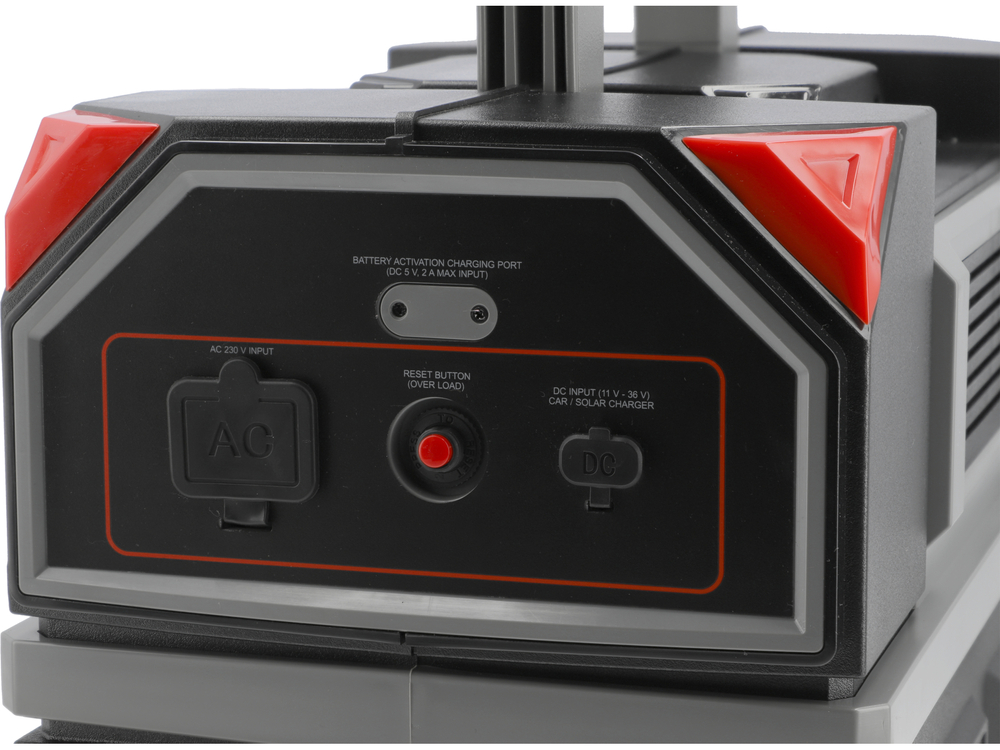

- a special USB-C port for the excitation of the cell pack - if you leave the station discharged to 0% for a long time and the device does not react to the connected charger, with the help of a 5 V, 2 A power supply we can excite the cells and restore the station and the BMS to operation
- the charging of the station is possible in three ways: thanks to a bidirectional converter, fast charging directly from the mains socket, via a cable under the cigarette lighter or from external photovoltaic panels
- as one of the few on the market, it has an embedded MPPT charge controller, which allows full use to be made of the energy supplied by the panels, without cutting off excess voltage
- manufactured to automotive standards
Other information:
- harmonic content ratio (THD) at full load: ≤3%
- operating time at the unit's rated load (1200 W): 40 min
- charging time from the mains socket: ~1,4 h
- charging time from cigarette lighter: 6-9 h
- charging time from photovoltaic panels: ~6 h

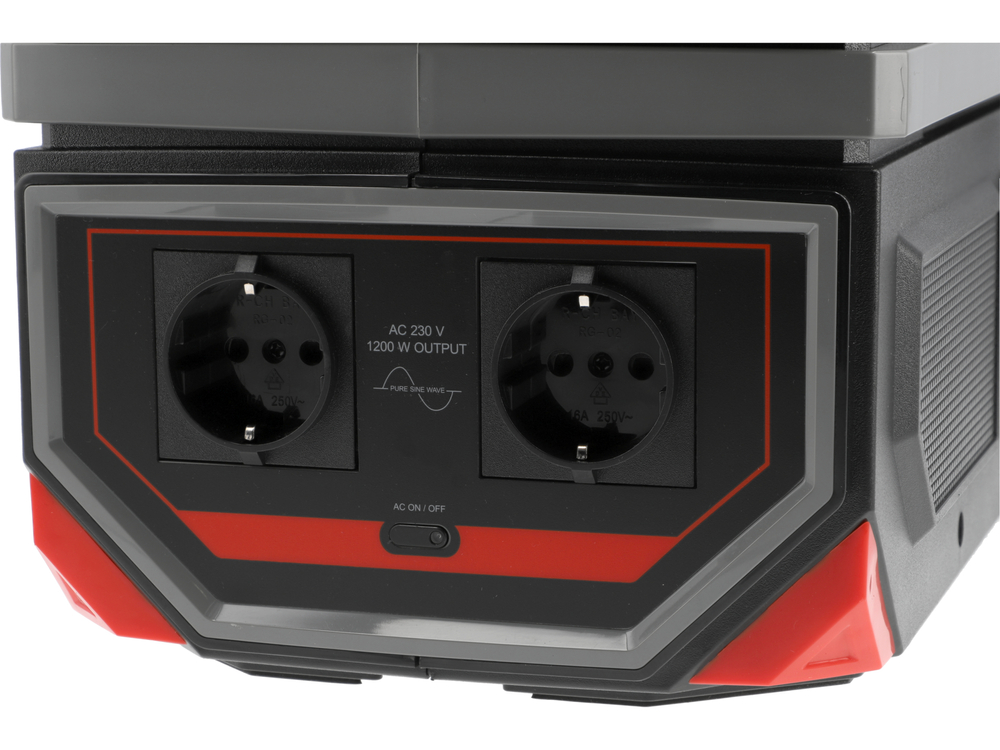

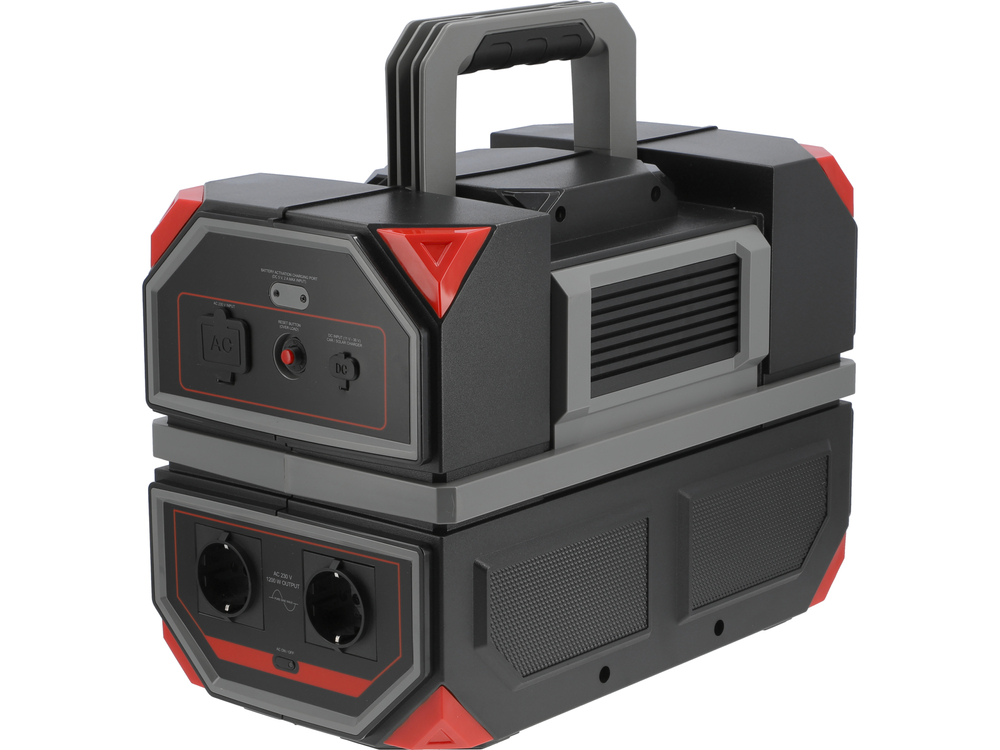

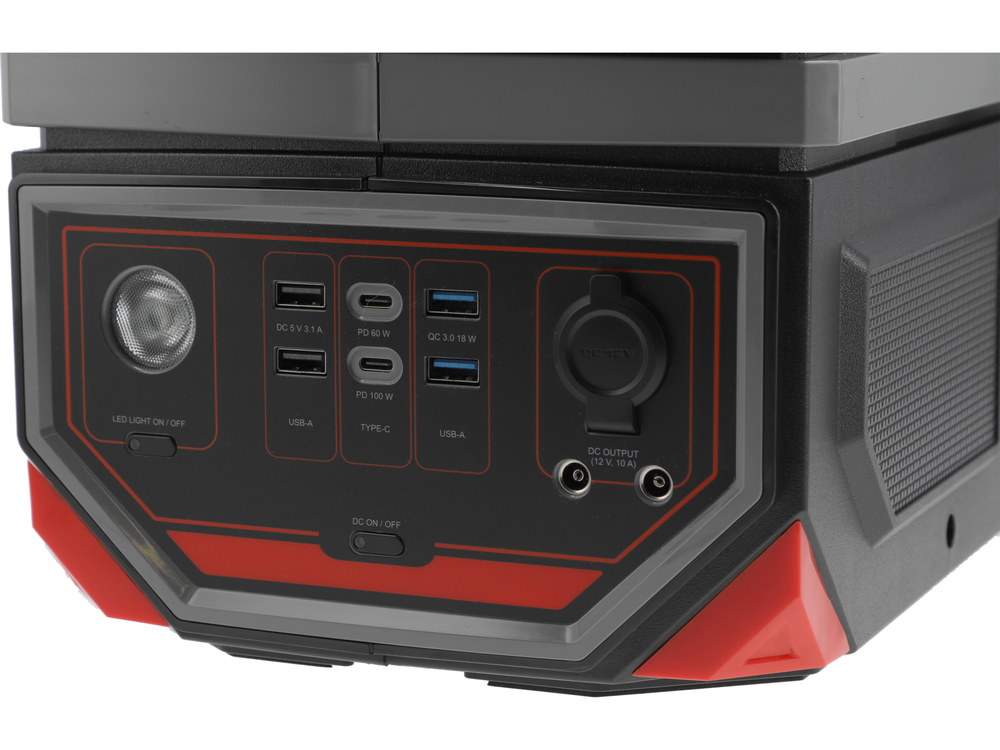

- Continuous power from AC 230 V sockets: 1200 W (2400 W peak)

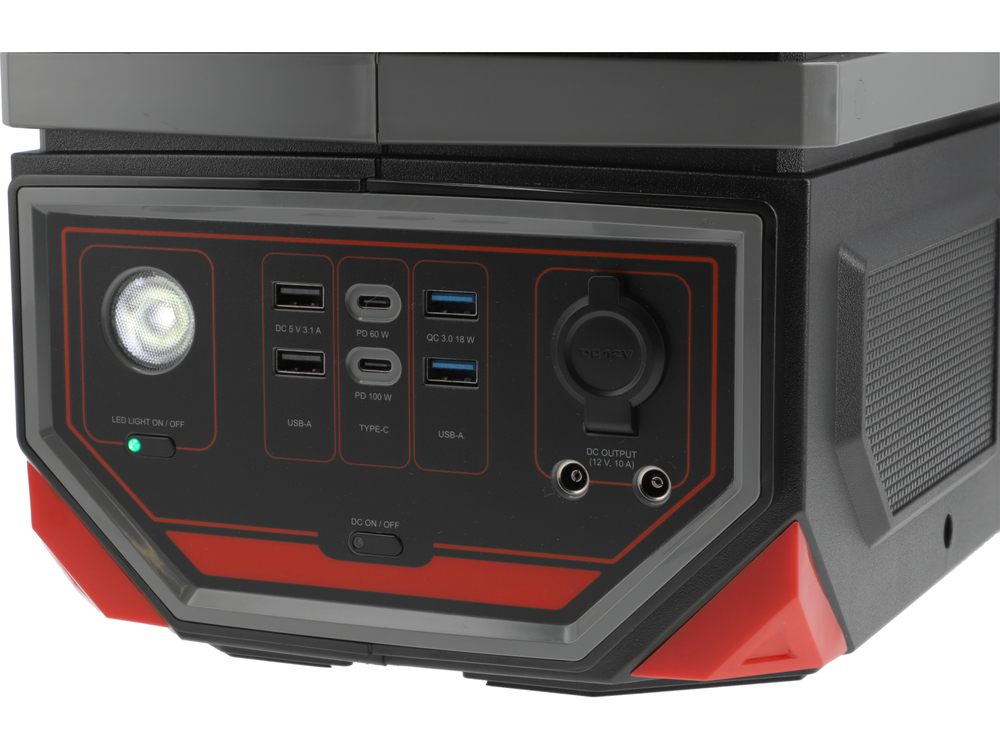

- cigarette lighter socket: 12V/10A
- 2 jack sockets: 12V/10A
- 2 USB-A sockets: 5V/3.1A
- 2 USB-A sockets: 18 W with Q.C. technology. 3.0
- 2 USB-C sockets: 60 W and 100 W in PD technology
- BMS protection: overcurrent, short-circuit, over-discharge, over-voltage, overheating
- inverter protection: under- and overvoltage protection, short-circuit protection
- LED light with 3 modes, including SOS, 2W
- dimensions: 387 × 285 × 219 mm
- weight: 12kg

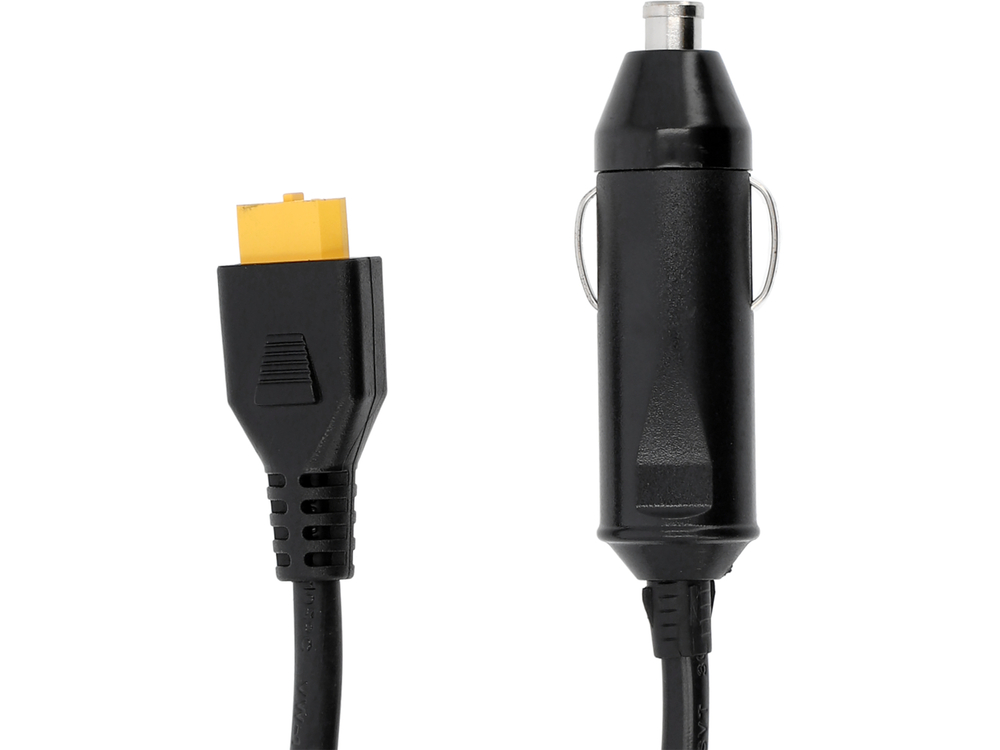

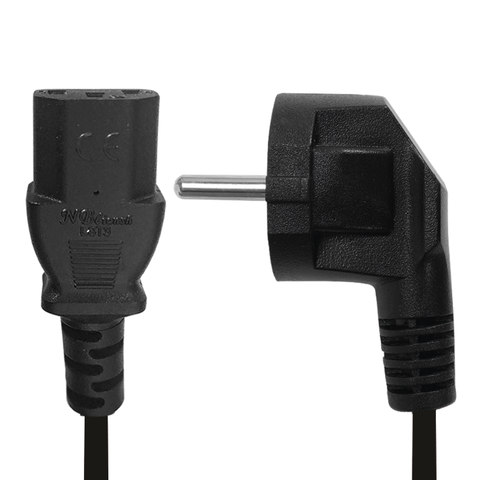

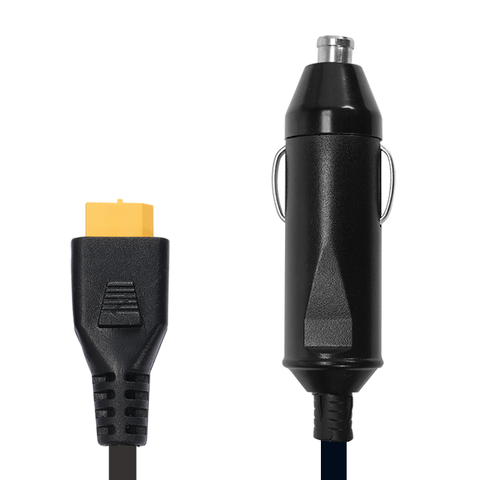

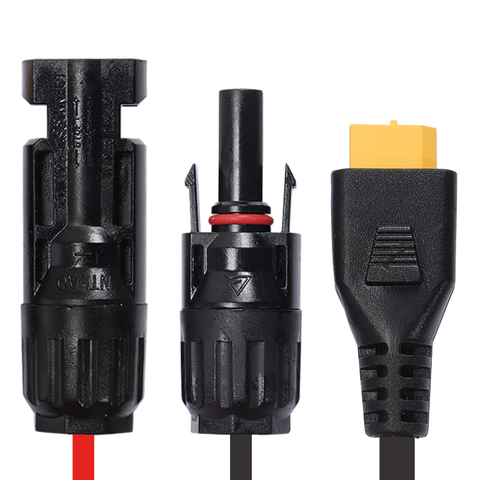

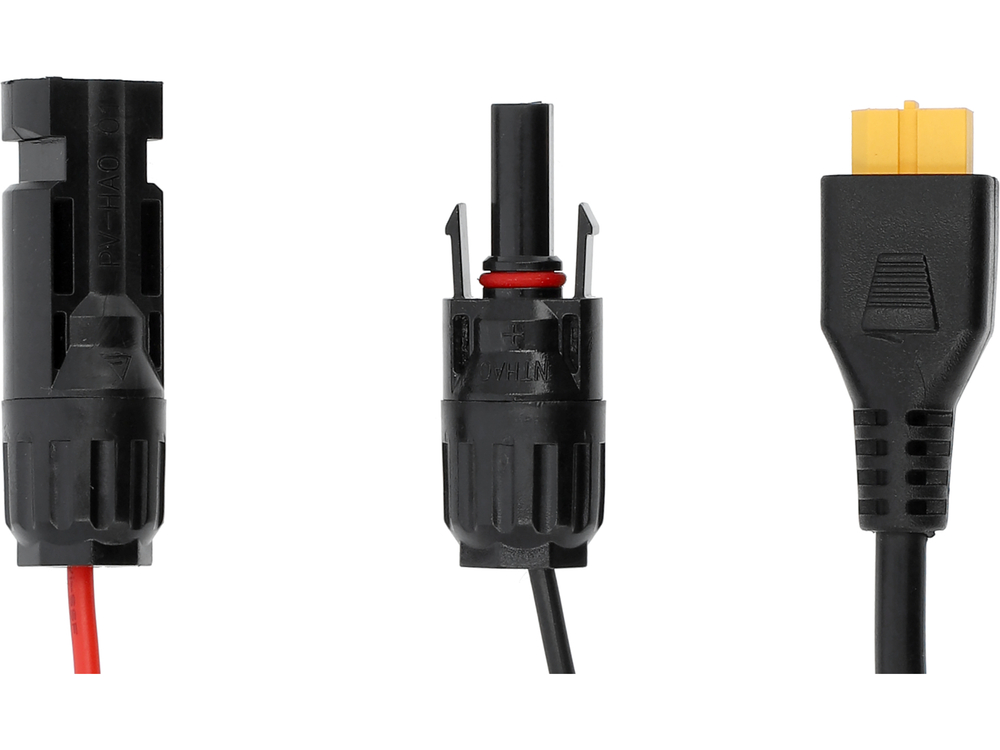

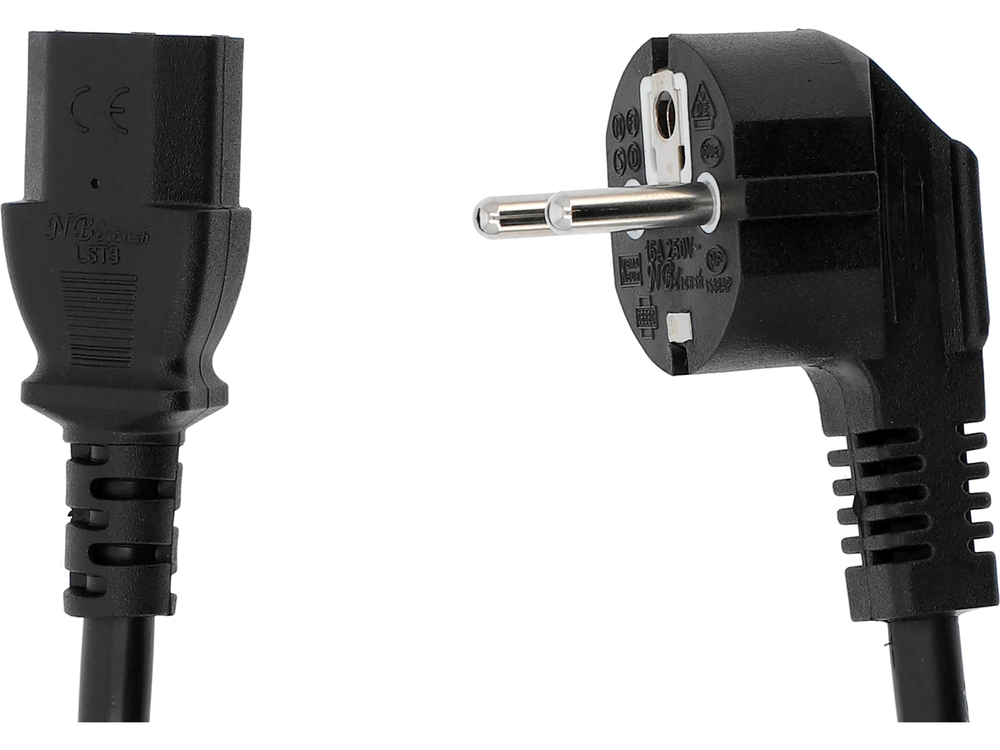

- contents of the set: station, power cable, cable for charging the product from a 12 V DC electrical installation, cable for charging the product from an external solar panel
