Novelty
74485

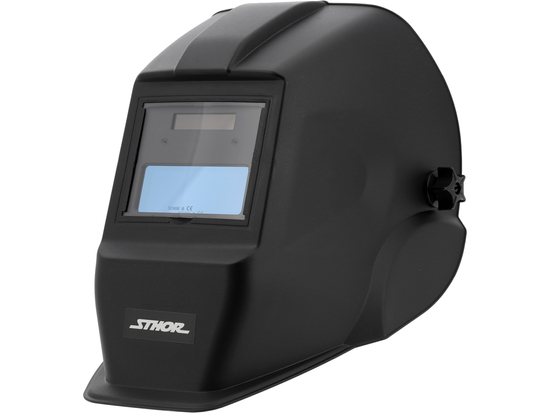

WELDING HELMET TRUE COLOR FILTER 90X35 MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Standard
EN 175:1997, EN 379:2003 + A1:2009
Optical characteristic
1 / 1 / 1 / 2
Dark state
11 DIN
Light state
3 DIN
Filter type
auto-darkening TRUE COLOR
Filter size
110x90 mm
Viewing area
90x35 mm
Helmet material
PP
Lens material
P.C
3 point headgear
yes
Arc sensor quantity
2
Reaction time
1/15000 s
Shade control
no
Brightening time
0.4 s
Delay control
automatic in the range of 0.25-0.45s
Automatic sensitivity adjustment
yes
Auto power on / off
yes
UV/IR proof
yes, DIN 16
Power supply
solar cell, battery
Type of battery
3V; CR2032
Working temperature range
-5 ~ +55 ˚C
Storage temperature
-20 ~ +70 ˚C
Welding process
MMA, MIG, MAG
Symbol
74485
Welding mask equipped with Auto-darkening welding helmet with TRUE COLOR technology, protects against arc light, UV/IR rays up to DIN 16 and splinters. Unlike filters with a traditional self-shading filter, it does not alter colour perception. The welding source is visible in the full colour palette.
Overview:
- visor made of flame-retardant polypropylene, filter screen made of polycarbonate
- fitted with a 3-point adjustable harness that allows the visor to be perfectly adjusted to the shape and size of the head
- soft material thrusters for improved working comfort
- Mini filter equipped with 2 sensors works automatically when it is illuminated by an electric arc (as soon as the sensors detect light coming from welding, the filter will change the degree of darkening)
Parameters:
- dark condition: DIN 11; bright condition: DIN 3
- optical class: 1/1/1/2
- field of vision: 90 × 35 mm
- response time 1/15000 s; brightening time 0.4 s
- powered by solar cell and CR2032 battery
