YT-05335
PNEUMATIC PULLER FOR INJECTOR 21PCS
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Max. working pressure
0.8 MPa
Recommended working pressure
0.5 MPa
Max. torque
30 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Acoustic pressure
102.0 ± 3.0 dB(A)
Acoustic power
113.0 ± 3.0 dB(A)
Vibrations
23.8 ± 1.5 m/s²
Weight
3.8 kg
Pcs
21
Application
for dismantling Bosch, Delphi, Denso, Siemens injectors
Symbol
YT-05335

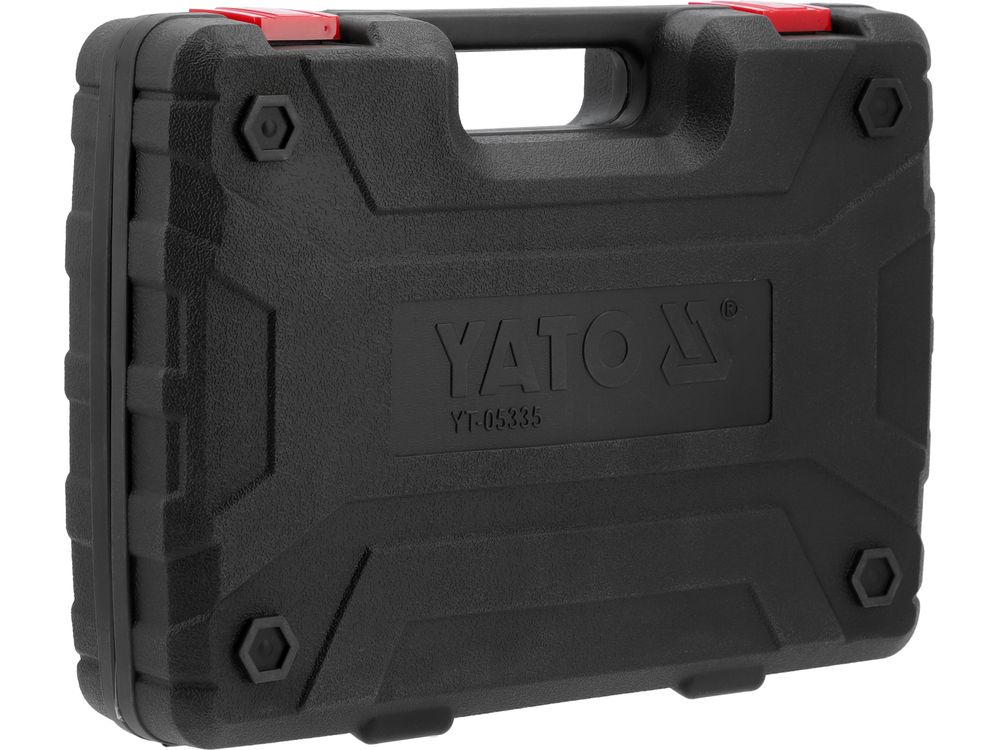

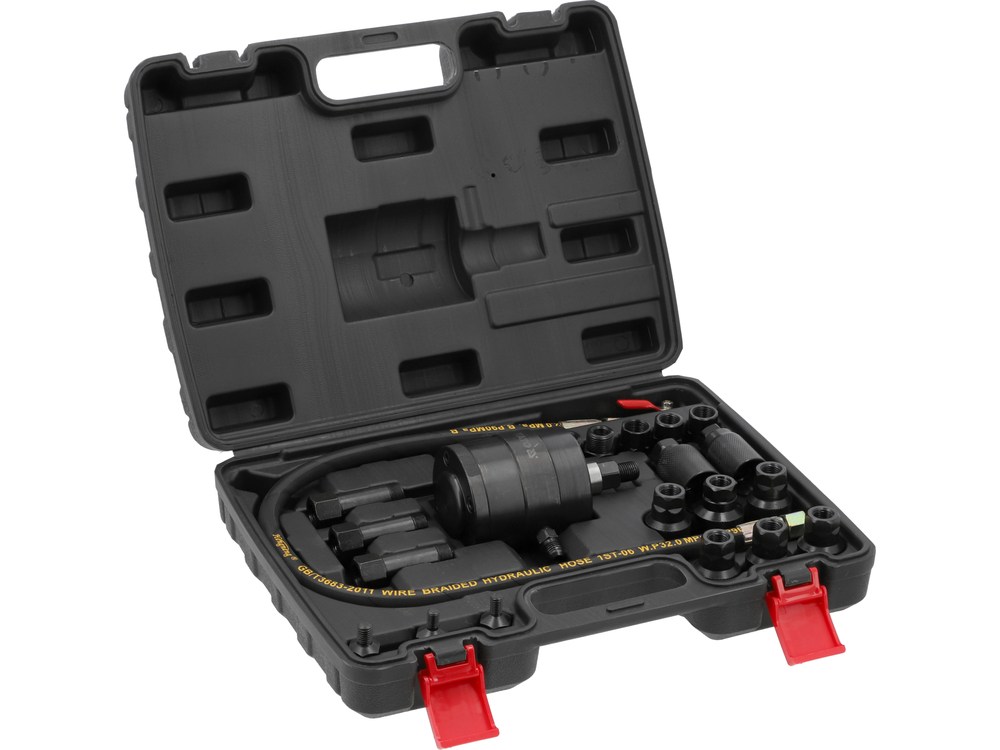

Kit designed for removing Bosch, Delphi, Denso and Siemens injectors on petrol and diesel engines. Contains 21 components in a BMC plastic case.
- recommended operating pressure: 0.5 MPa
- max. operating pressure 0.8 MPa
- Max. torque: 30 Nm
- Quick coupler size: standard
- air connection diameter: standard
- diameter of air supply hose: 3/8" (9.5 mm)
- weight: 3.8kg

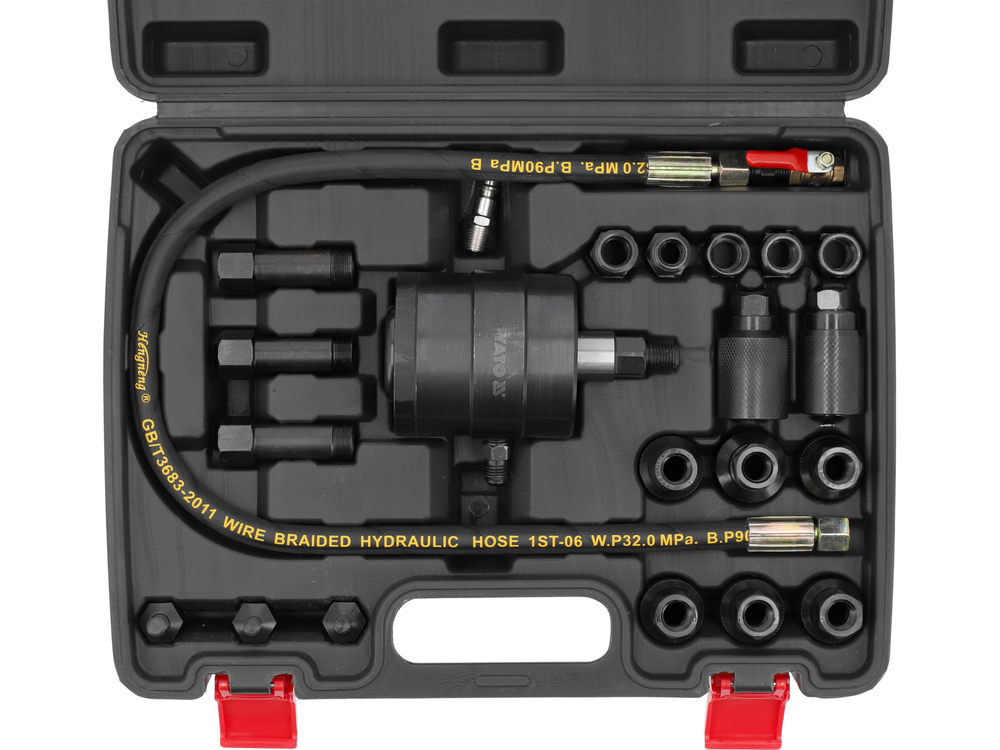

- content:
- Pneumatic cylinder with main thread M14 x 1.5
- flexible pneumatic hose length 730 mm with ball valve and male connection (standard)
- 19 Hose couplings in sizes: M20 x 1.0, M18 x 0.75, M17 x 1.0, M8 x 1.25, M8 x 1.0, M10 x 1.5, M22 x 1.5, M20 x 1.5, M16 x 1.5, M18 x 1,5, M12 x 1.5, M31 x 0.75, M26 x 0.75, M25 x 0.5, M29 x 1.0, M27 x 0.75, M27 x 1.0, M27 x 1.0, M25 x 1.0
