YT-821591

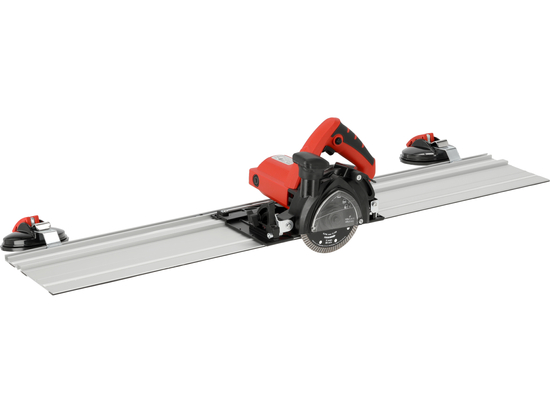

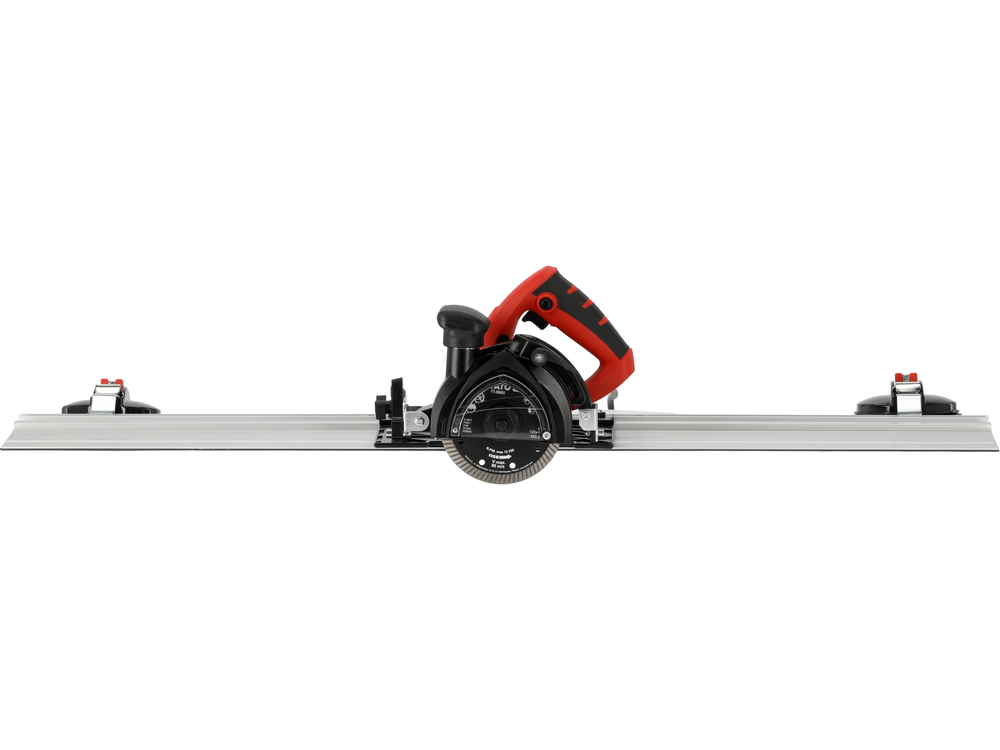

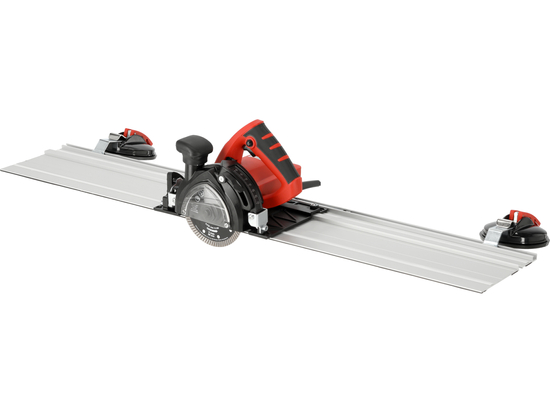

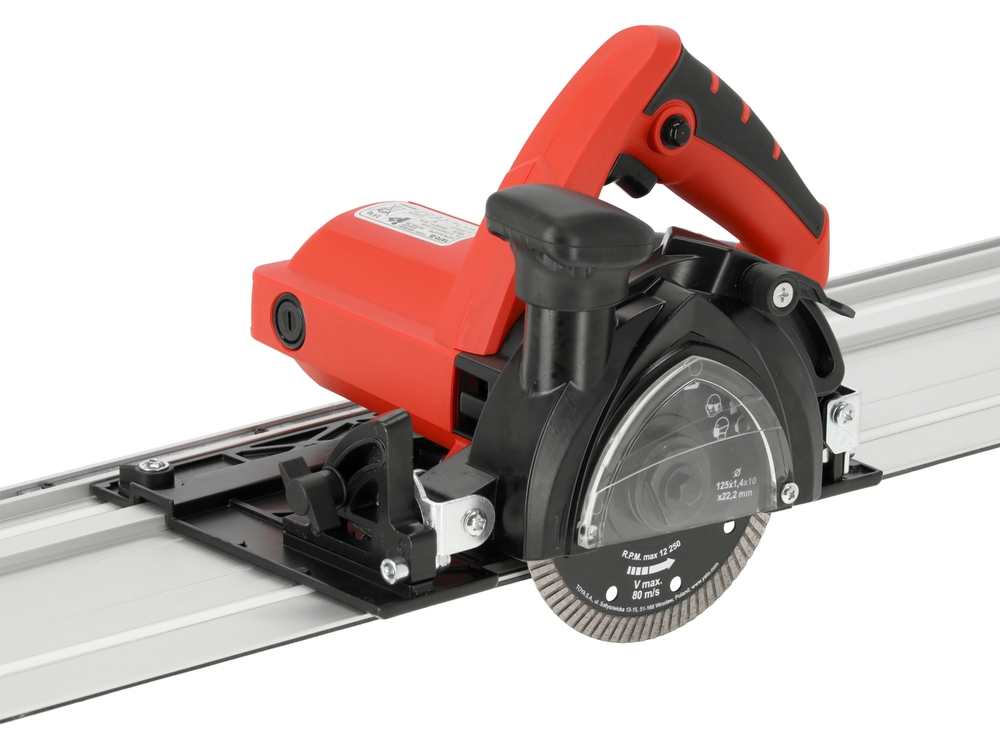

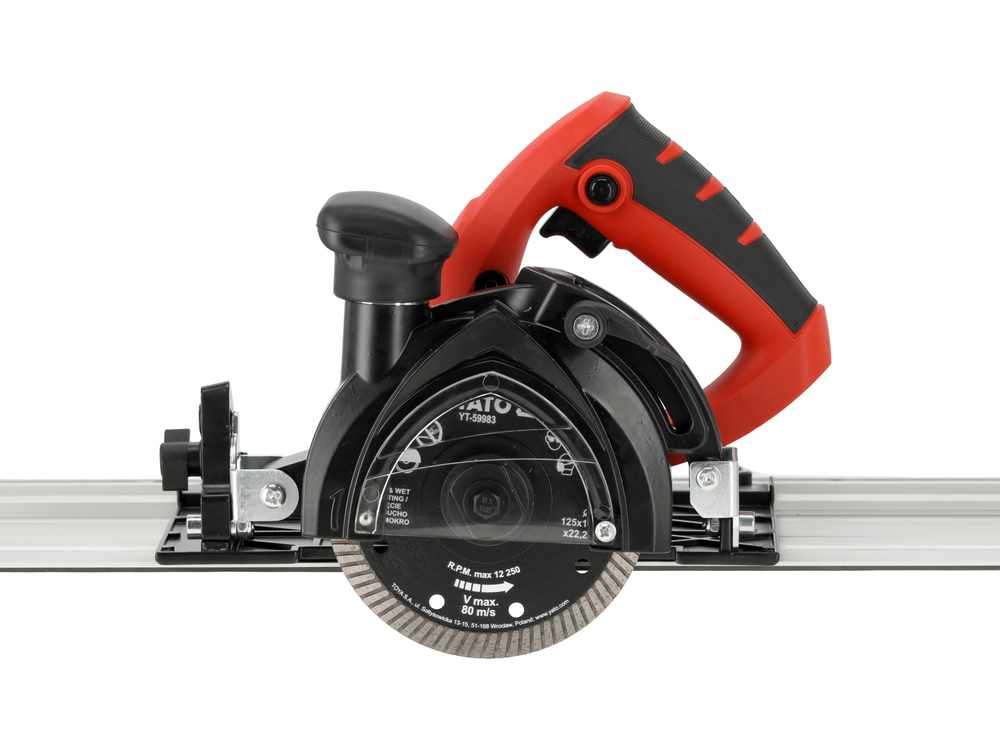

TILE CUTTER 125MM 1400W (DUST FREE; 0-45°)
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Work type
dry, wet
Power
1400 W
Rotations
12250 min⁻¹
Voltage
220-240 V a.c.
Frequency
50 Hz
Cutting disc outer diameter
125 mm
Cutting disc internal diameter
22.2 mm
Cutting disc max. thickness
2.2 mm
Spindle thread size
M6
Guide bar length
1500 (500 x3) mm
Guide material
high-quality aluminum profile
Operation angle
0-45 ˚
Switch
yes, residual current
Length of cable
3 m
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
91.0 ± 3.0 dB(A)
Acoustic power
102.0 ± 3.0 dB(A)
Vibrations
4.46 ± 1.5 m/s²
Weight
3.6 kg
Application
stoneware, natural stone
Set includes

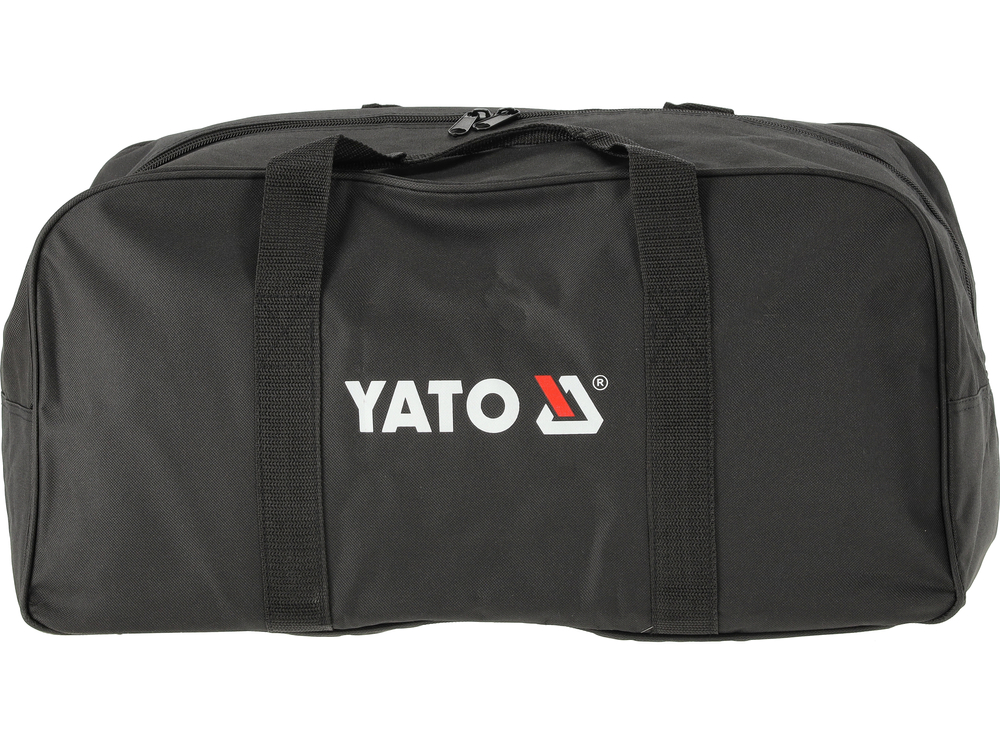

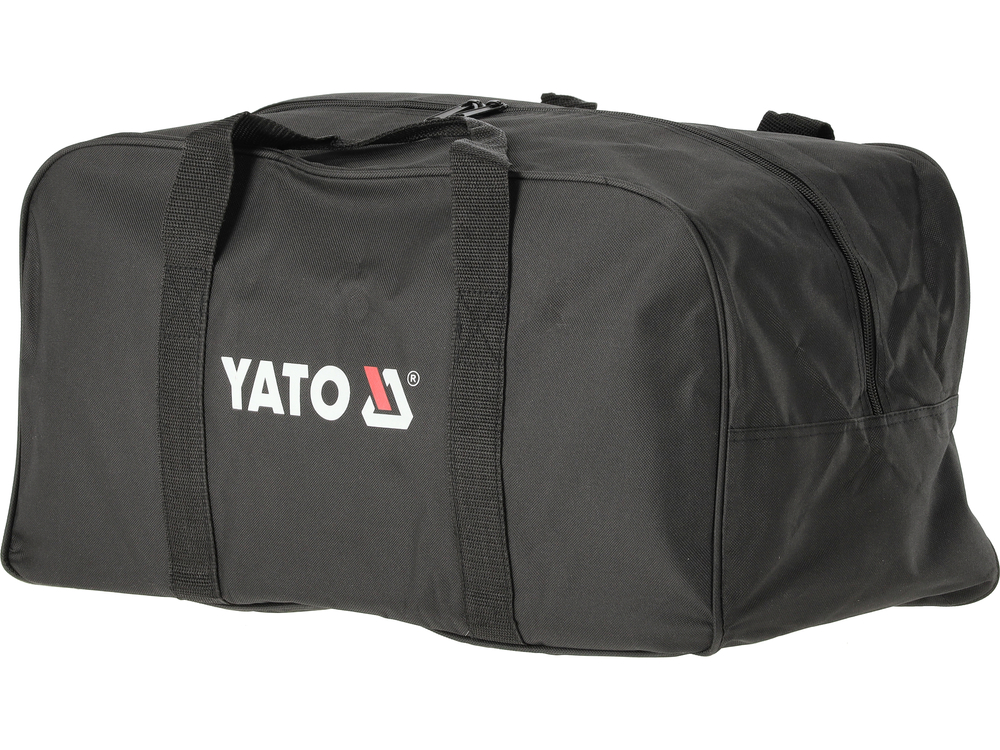

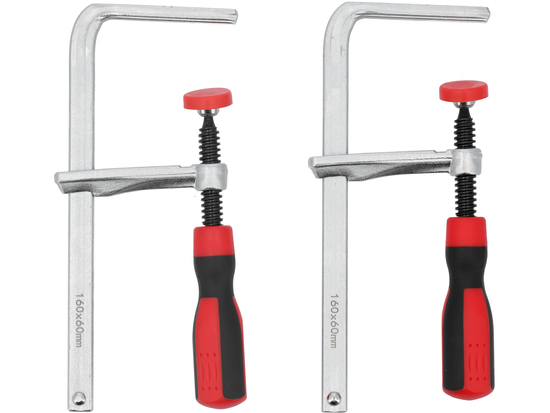

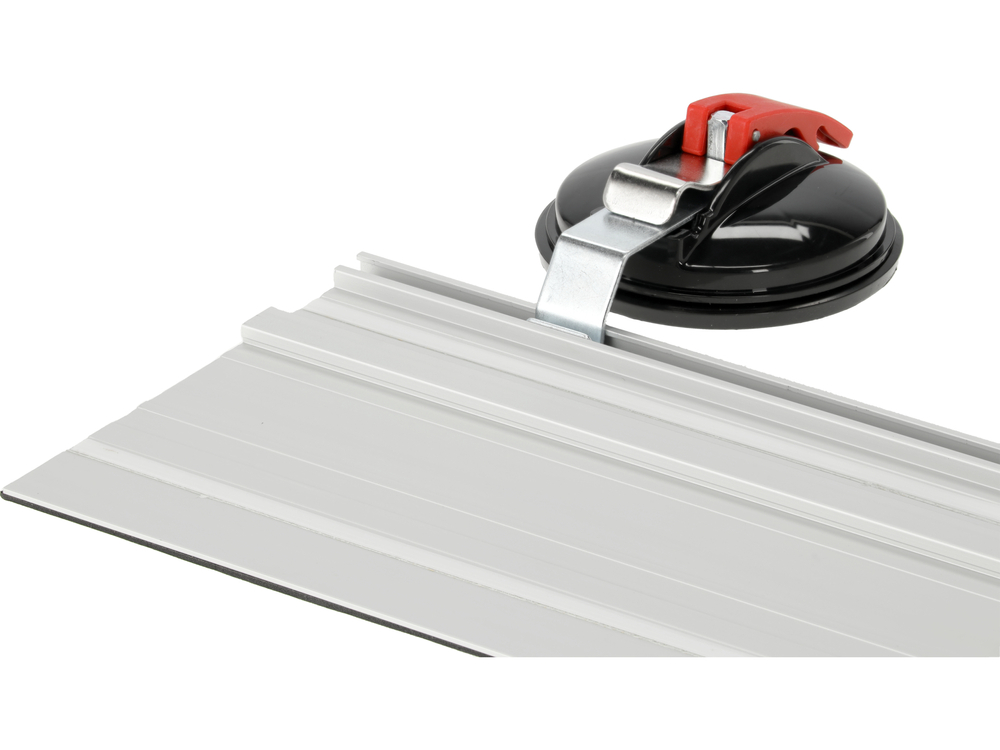

cutter, cutting disc, water connection guide x3 (500 mm), squeeze x2, suction cup x2, dust extraction adapter, bag
Symbol
YT-821591

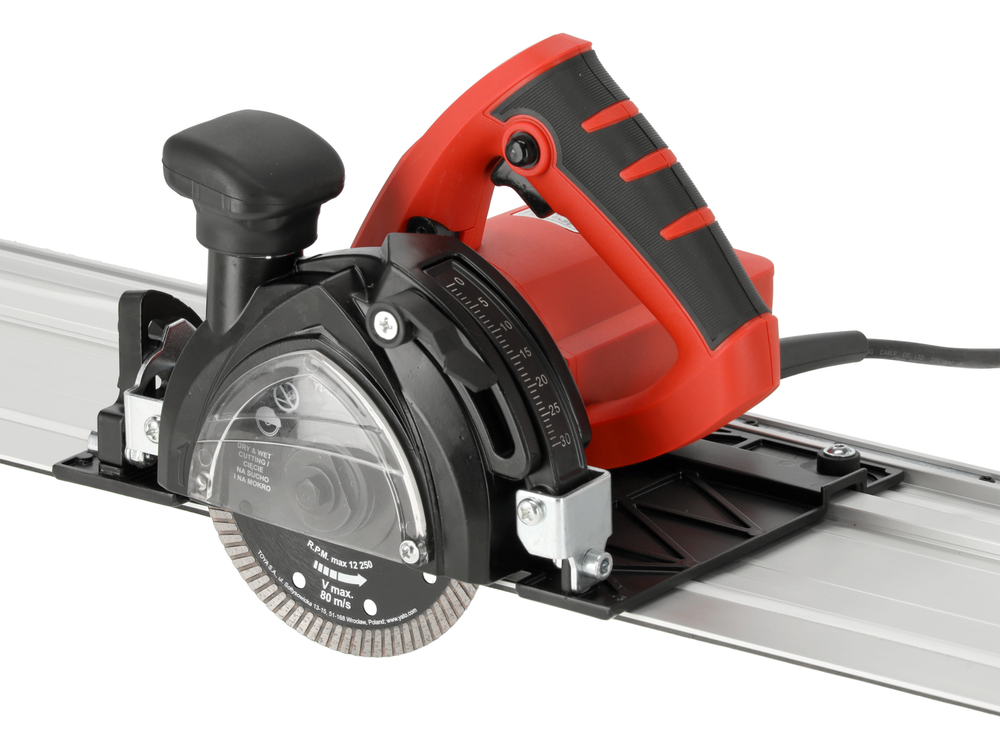

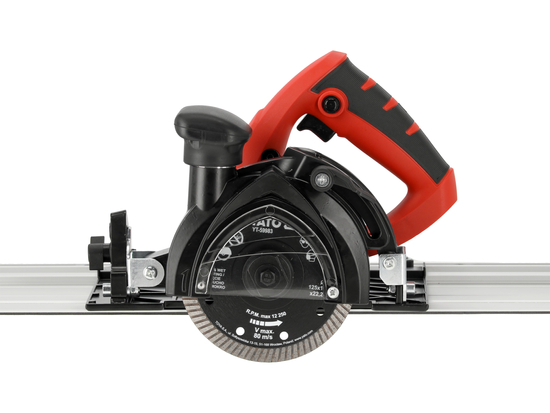

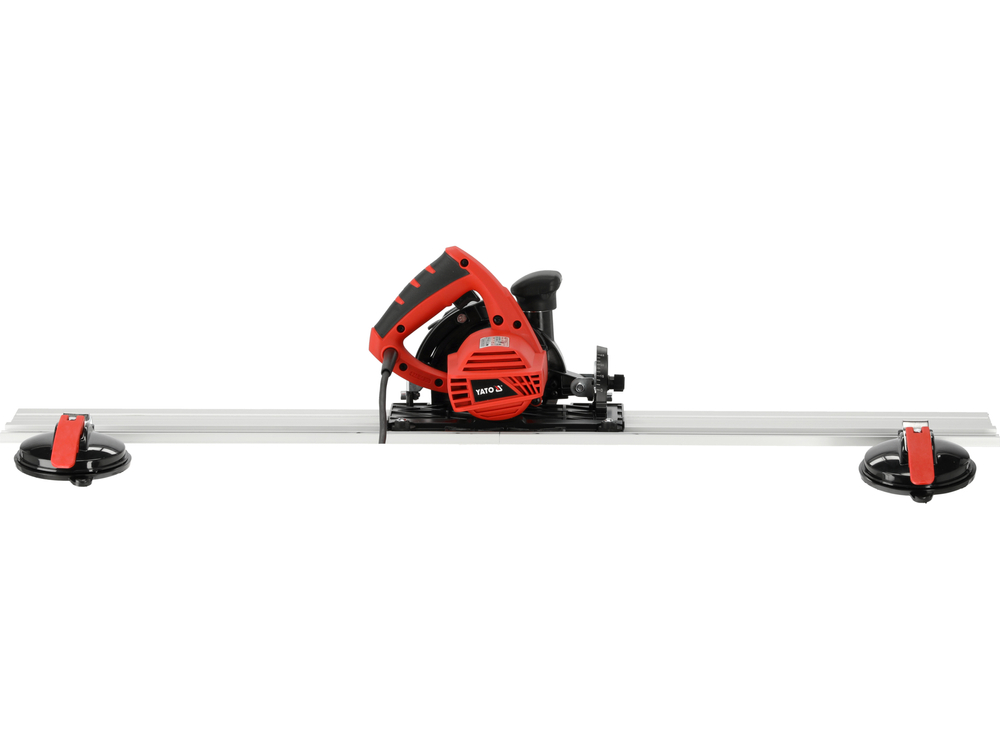

Electric tile chamfering machine with guide bar for cutting glazed tiles, porcelain stoneware, natural stone and also for chamfering tiles. Allows dry and wet work, with adjustable cutting depth. It has a locking device for safe disc replacement. High-quality extra-thin diamond blade included.
- power: 1400 W
- rotation speed: 12250 rpm
- Outside diameter of disc: 125 mm
- Internal disc diameter: 22.2 mm
- Spindle thread: M6
- Guide bar length: 3 × 500 mm
- high-quality aluminium profile
- working angle: 0-45˚
- residual current circuit breaker
- 3 m cable
- protection class IP20
- noise emissions: 91 dB
- weight: 3.6kg

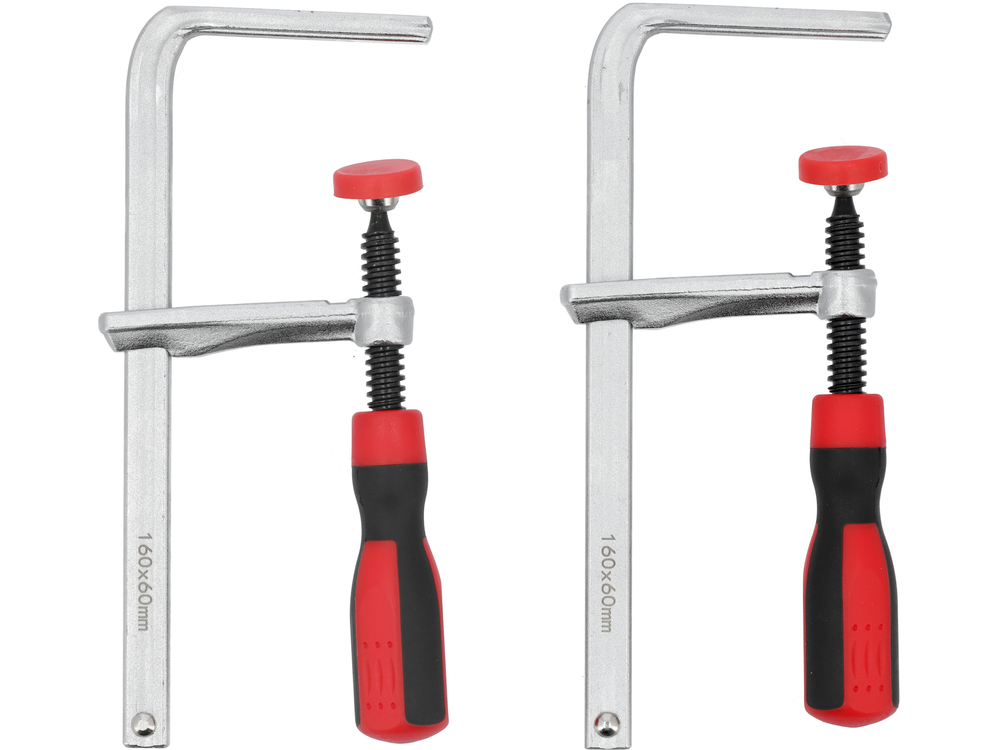

- included: 3 Guide bars 500 mm, cutting disc, water connection, 2 clamps, 2 suction pads, dust extraction adapter, carrying bag
