Novelty
YT-81483

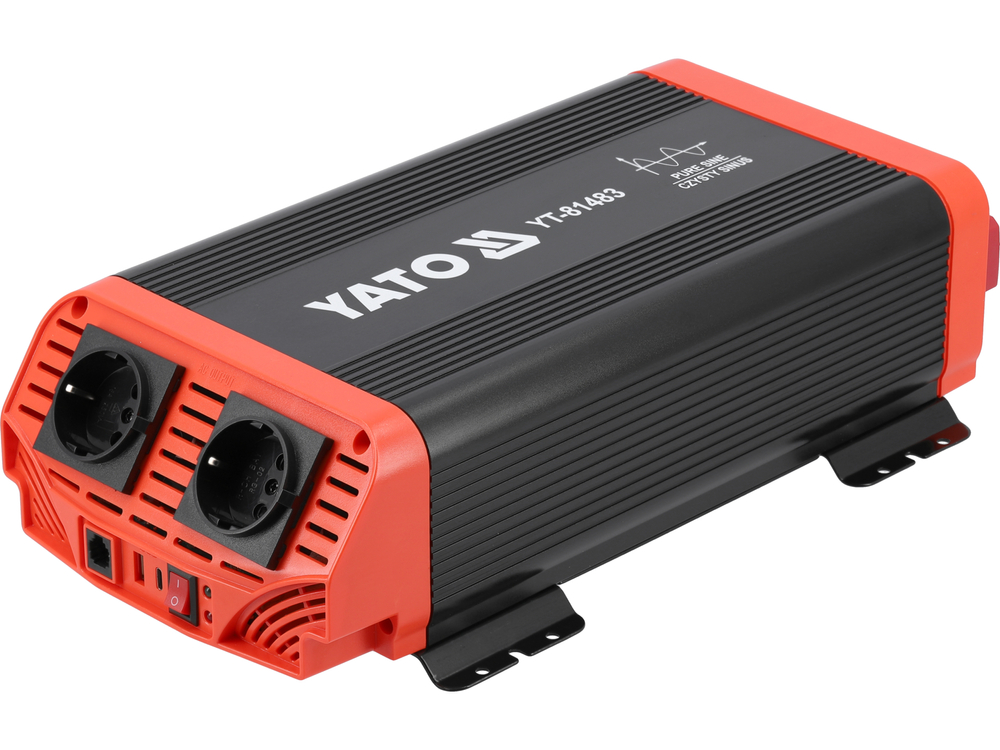

POWER INVERTER 12/230V 1000W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
1000 W
Peak power
2000 W
Input voltage
12 V d.c.
Input operating voltage
11-15 V d.c.
Output voltage
230 V a.c.
Output operating voltage
230 ± 10% V a.c.
Output frequency
50 Hz
USB slot output voltage
5 (typu A), 5 / 9 / 12 (typu C) V d.c.
Max. USB slot output current
2.1 (typu A), 3.1 / 2 / 1.5 (typu C) A
Current intake without load
<1.1 A
Inverter switch-off input voltage
9.5 ± 0.3 V d.c.
Input voltage overload
16 ± 0.3 V d.c.
Power overload
1100-1250 W
Low battery alarm voltage
10.5 ± 0.3 V d.c.
Output signal characteristics
czysta sinusoida
Efficiency
≥85 %
Fuse
35A x4
Working temperature
-15 ~ +25 ˚C
Electric insulation class
I
Protection grade
IPX0
Weight
3.56 kg
Application
for powering electrical devices requiring 230V alternating voltage from batteries and car installations with 12V direct voltage
Symbol
YT-81483
The Power inverter allows electrical equipment requiring mains electricity to be powered by a 12-volt car battery. Thanks to its small size and weight and its high power output, it is able to supply power to different electrical appliances in places without access to the mains.
- pure sine wave
- power: 1000 W
- peak power: 2000 W
- input voltage: 12 V
- operating input voltage: 11-15 V
- output voltage: 230 V
- efficiency: >85%
- Operating temperature: -15°C~+25°C
- protection rating: IPX0
- power supply and fault indicators
- Multifunctional protections: short-circuit, overheating, overload, overvoltage, undervoltage
- low voltage alarm
- Suitable for STD, GEL, AGM, LiFePO4 batteries
- optional remote control panel
- USB Type A and USB Type C
- weight: 3.56kg
