YT-821597
TILE SAW MACHINE 1500W (250MMX25,4;1200MM)
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Power
1500 W
Rotations
2990 min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Max. cutting length
1250 mm
Cutting disc outer diameter
250 mm
Cutting disc internal diameter
25.4 mm
Max. cutting depth
50 (90˚), 37 (45˚) mm
Work type
dry, wet
Operation angle
0-45 ˚
Switch
yes, residual current
Laser
yes
Laser class
2
Laser wave length
655 nm
Laser power
≤1 mW
Zasilanie modułu laserowego
2x1.5V; AAA
Working table dimensions
1000x460 mm
Electric insulation class
I
Protection grade
IP54
Vibrations
<2.5 m/s²
Acoustic pressure
85.0 ± 3.0 dB(A)
Acoustic power
98.0 ± 3.0 dB(A)
Weight
51 kg
Symbol
YT-821597

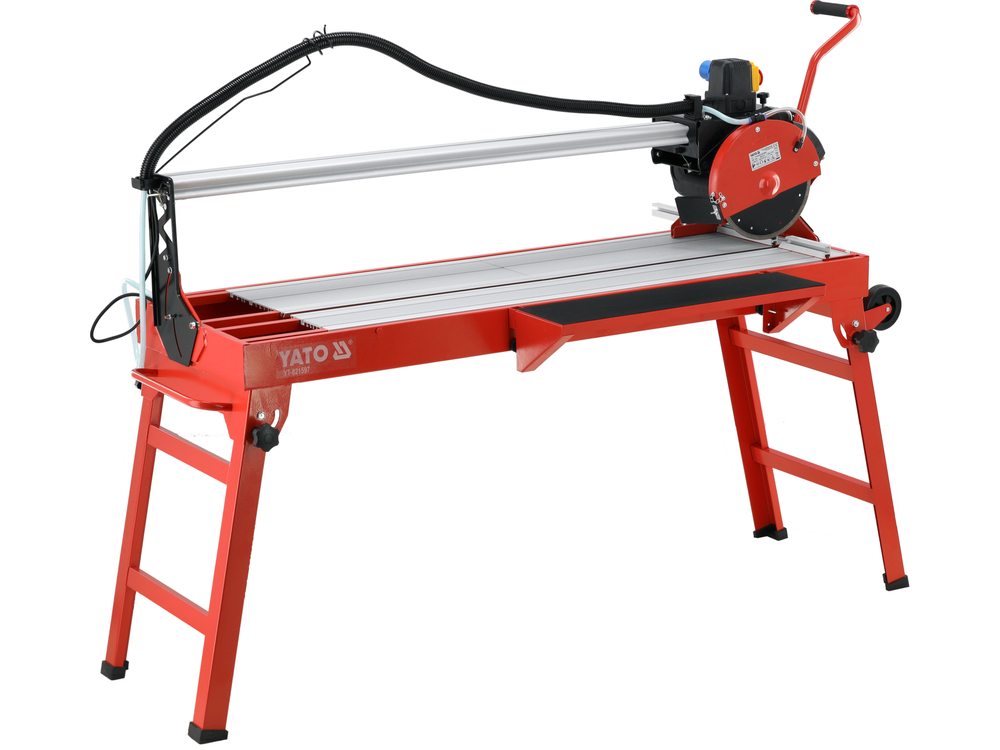

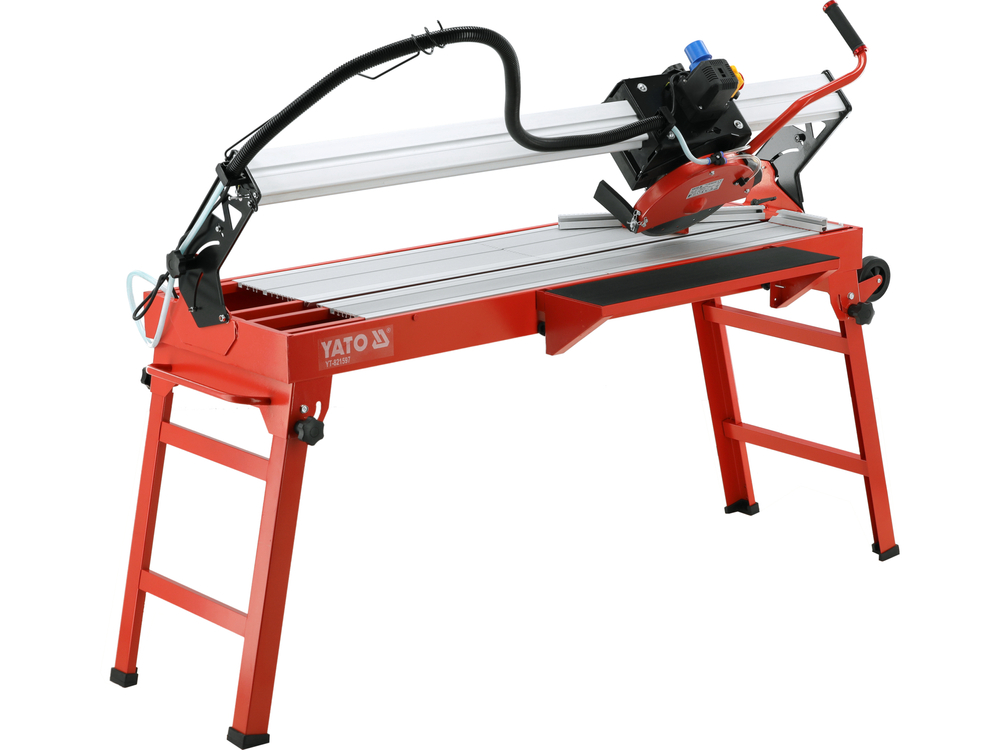

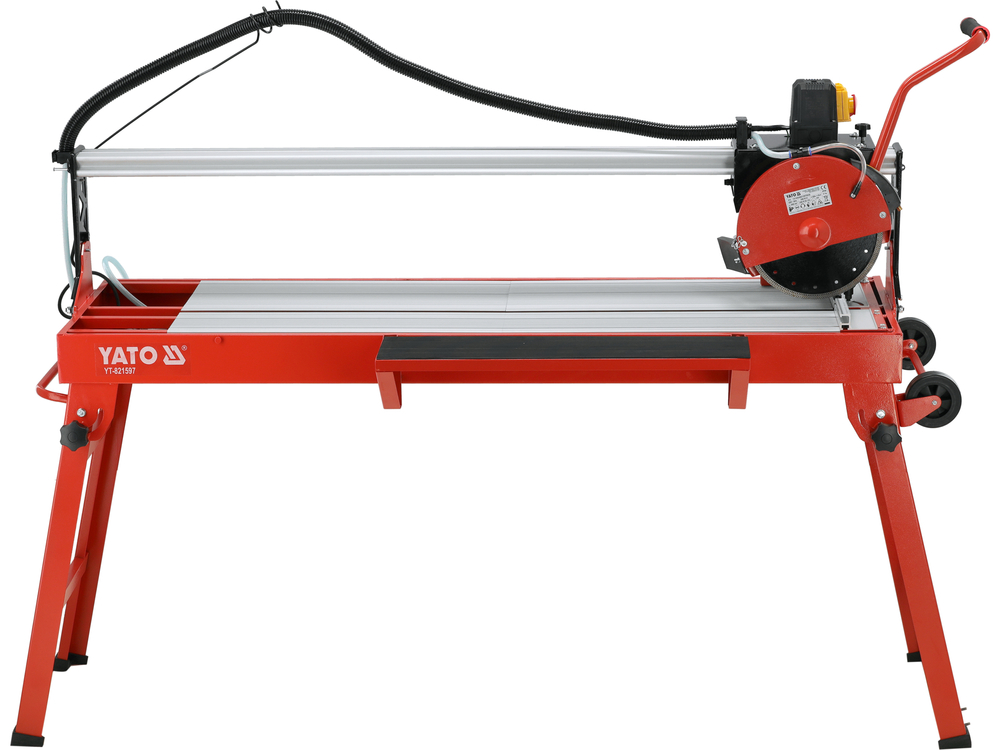

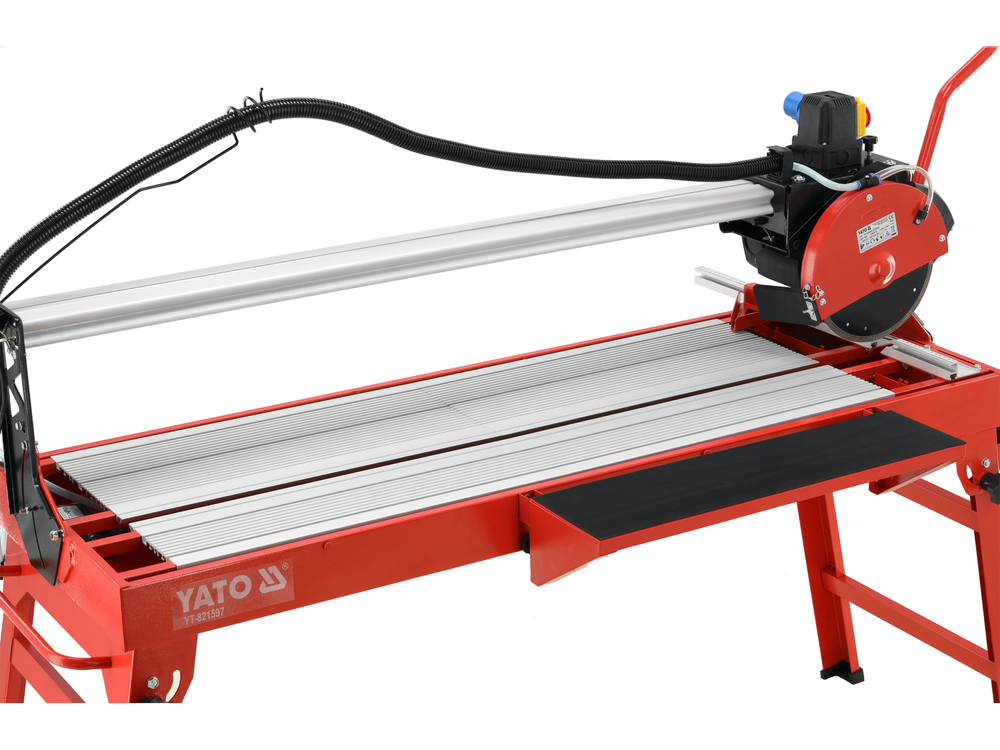

Table saw with guide rail and laser pointer designed for wet cutting with diamond discs of ceramic materials - tiles, glazed tiles, porcelain stoneware, terracotta. Robust table with a large working surface and an additional table top allows cutting large-format tiles with a maximum size of 1200 x 600 mm.
- precise cutting without the need for scribing thanks to the laser-determined line and guide rail
- diamond blade and rotational speed of up to 2990 rpm ensure burr-free cutting in a straight line and at an angle of 45°

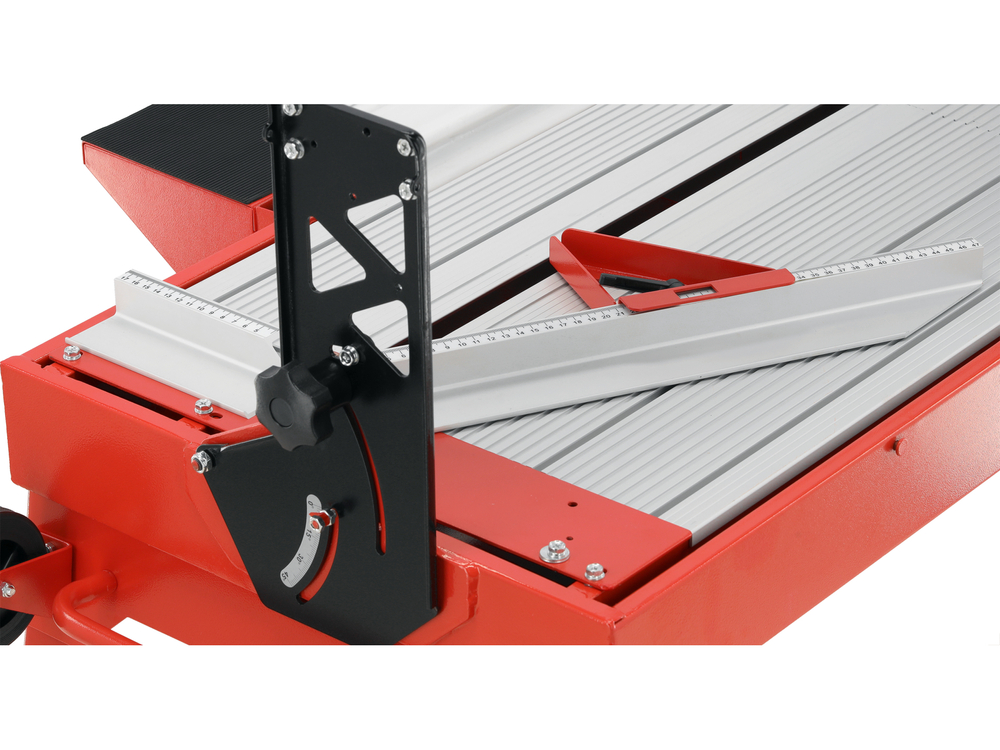

- adjustable length, depth and angle of cut

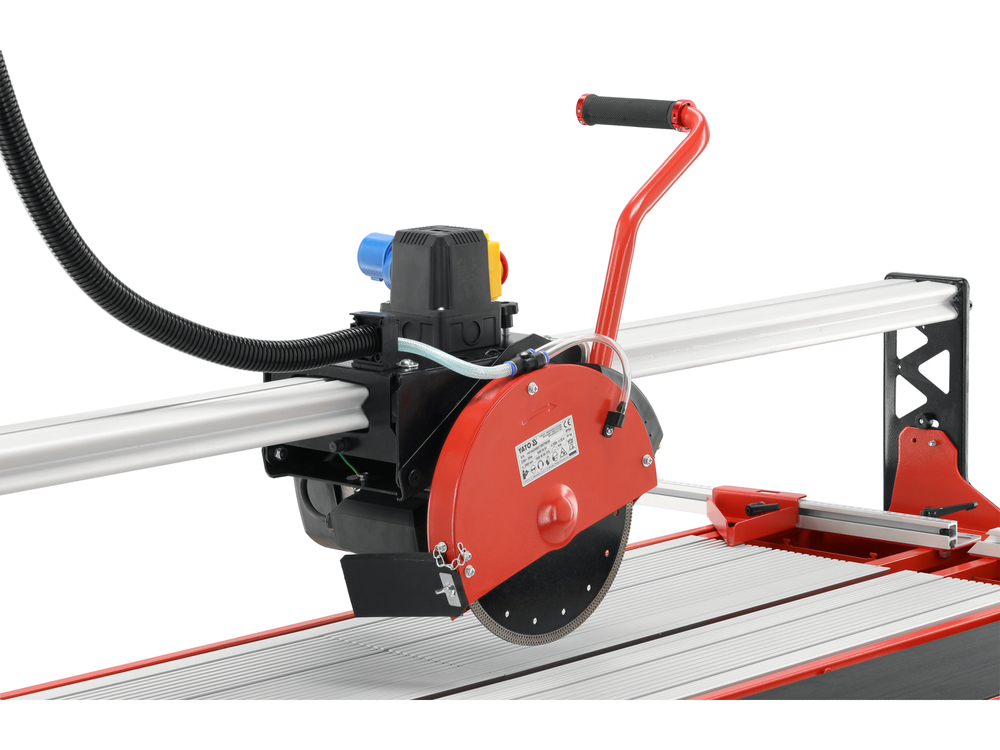

- head also movable in the vertical axis
- max. cutting length: 1250 mm
- max. cutting depth: 50 mm - 90°/37 mm - 45°
- cutting angle: 0-45°
- blade diameter: 250 x 25,4 mm
- laser with a wavelength of 655 nm powered by 2 AAA batteries
- duralumin table top

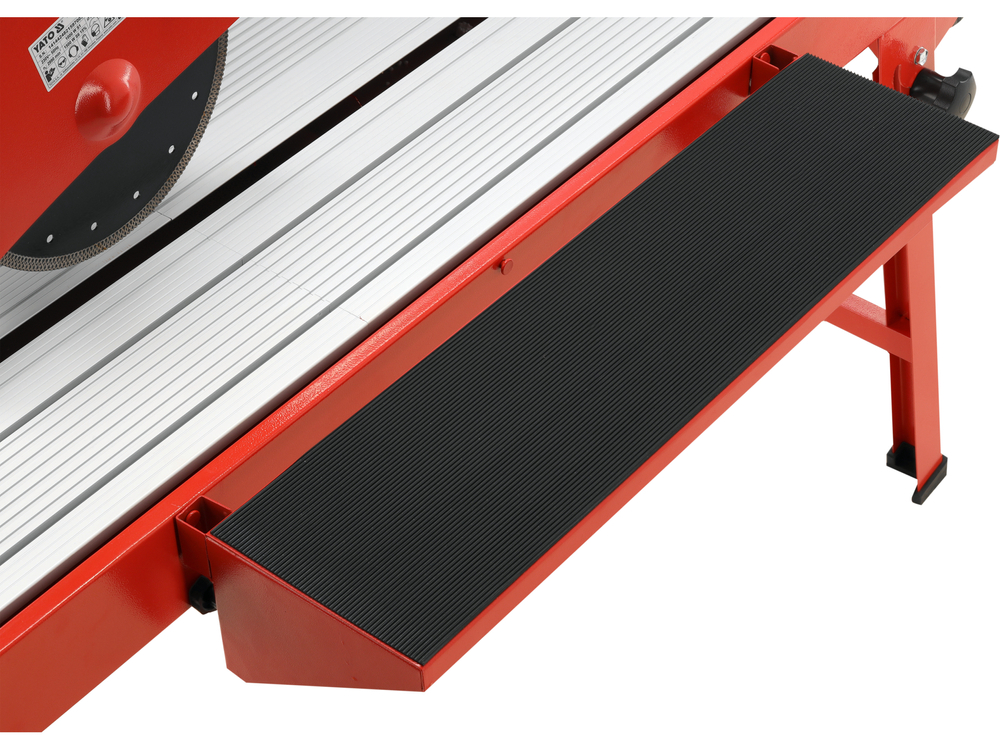

- additional table top allows to enlarge the working surface

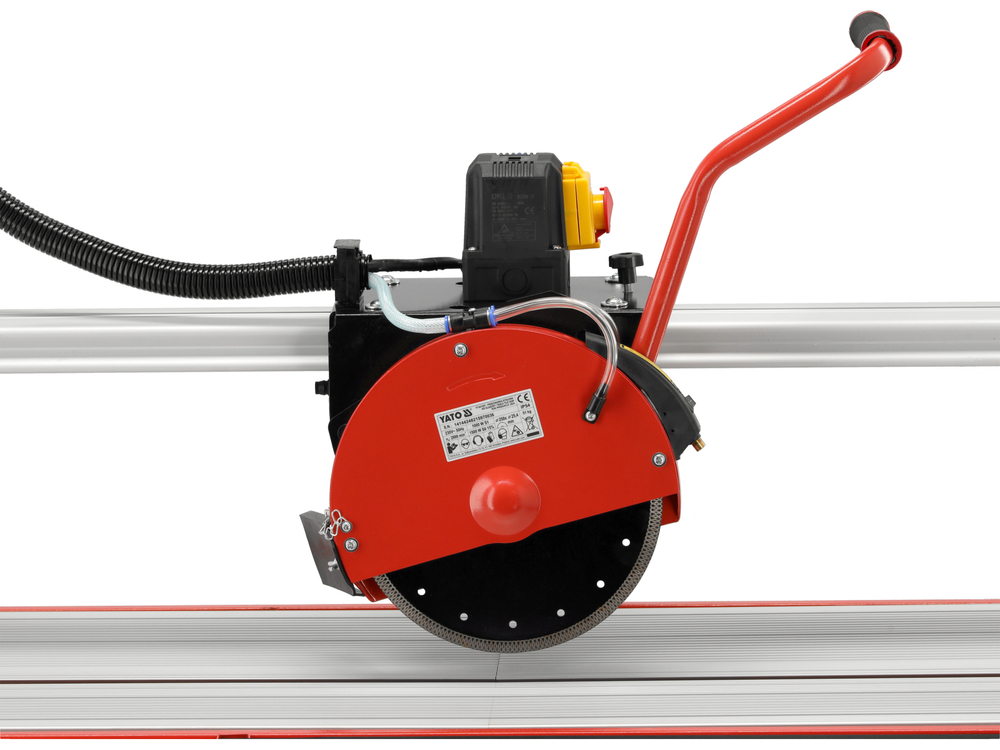

- cutting blade guard increases operator safety

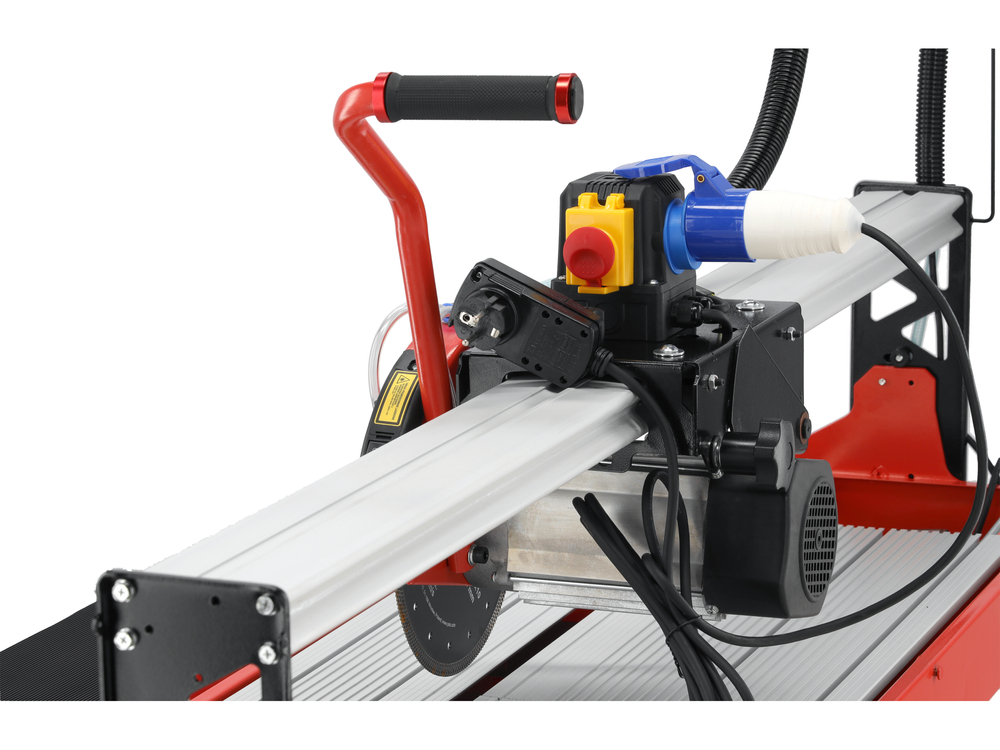

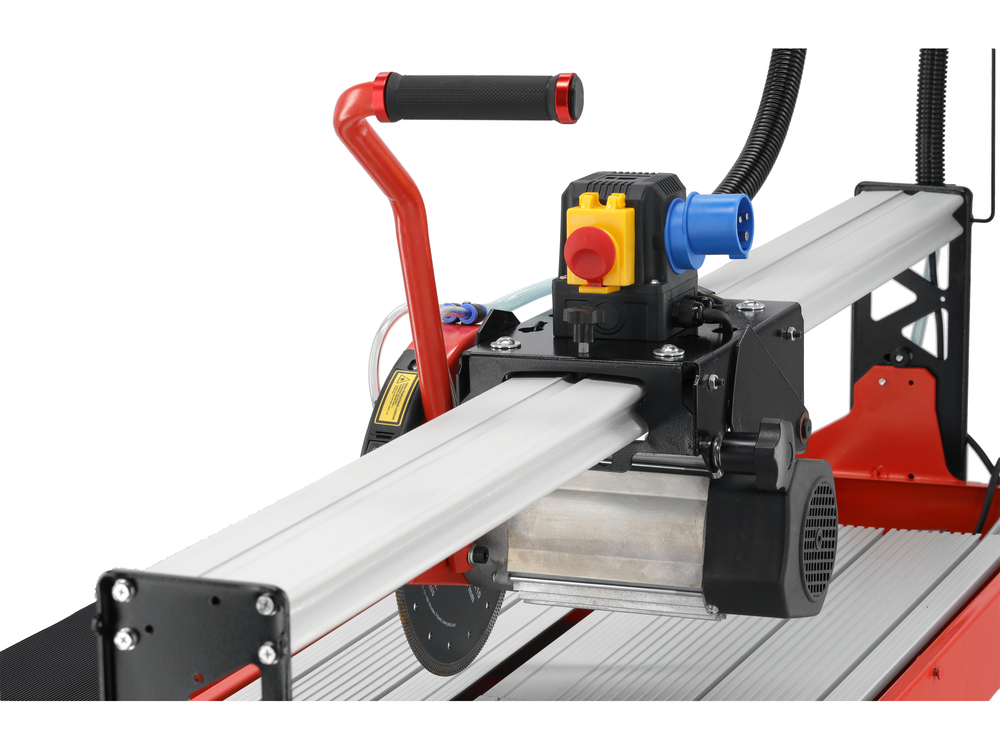

- residual current circuit breaker

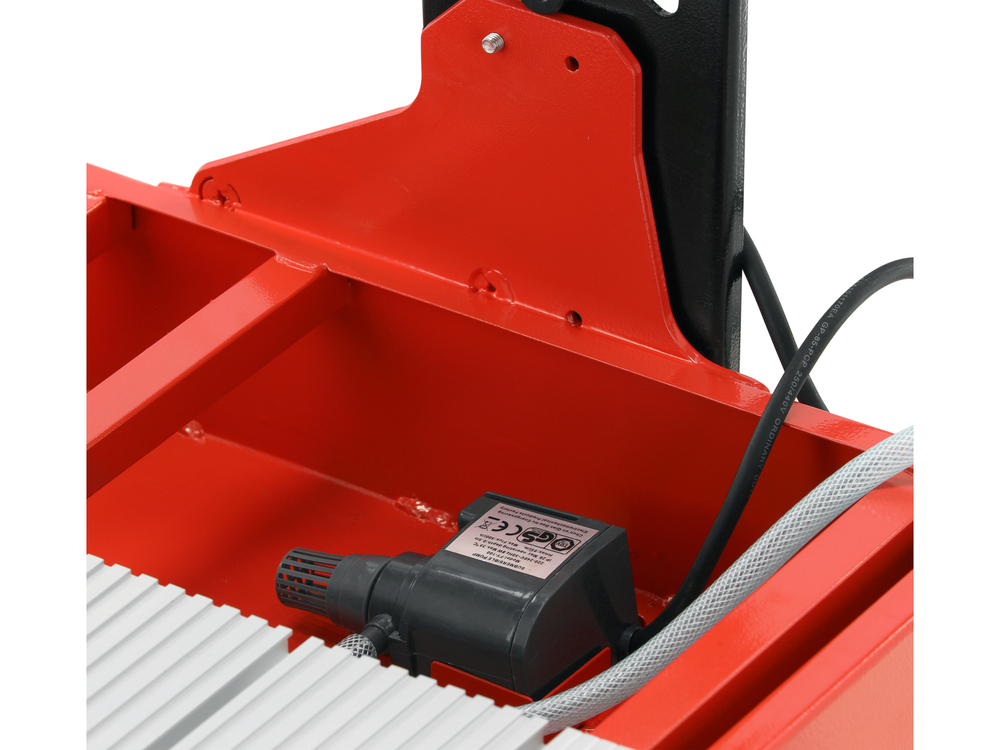

- wet operation with attached water pump and hose
- 4 folding legs with possibility of locking with knobs

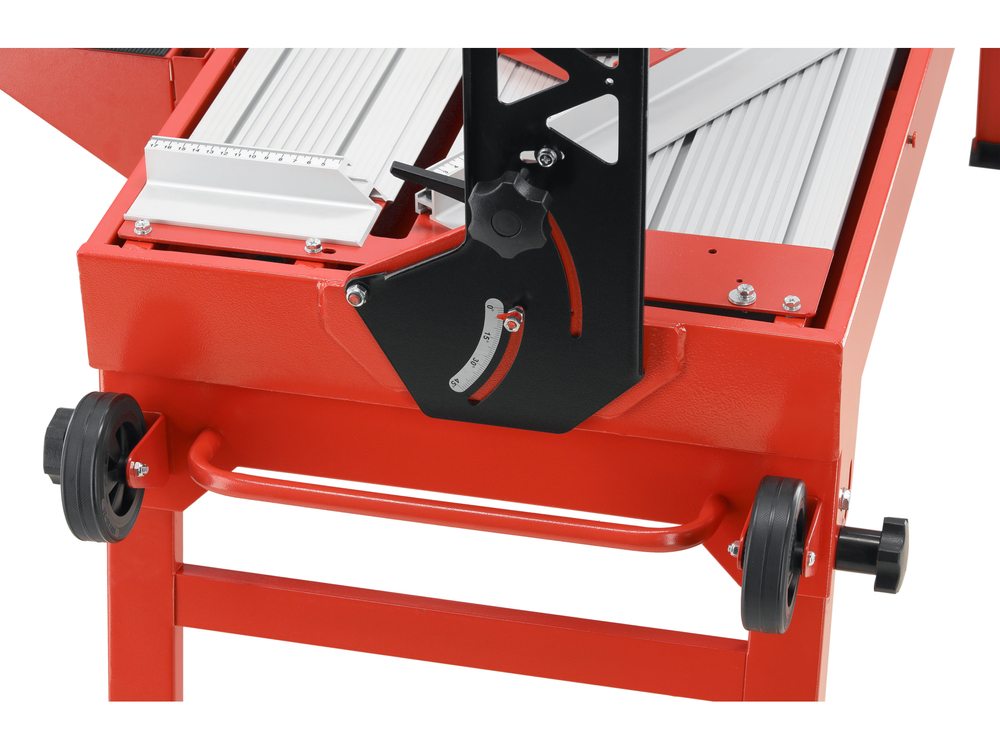

- large wheels and handle make the machine easy to transport











Usage warnings:
Attention! Laser radiation. Do not stare into the beam.Class 2 laser device.
