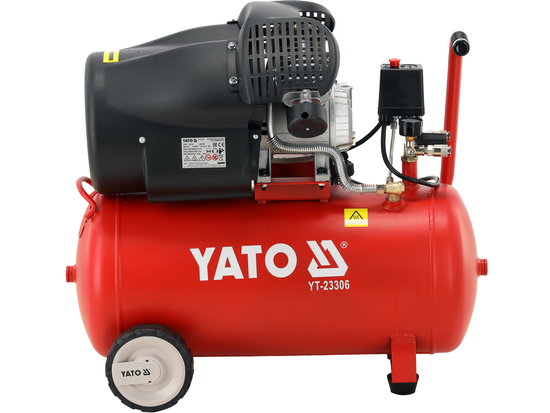

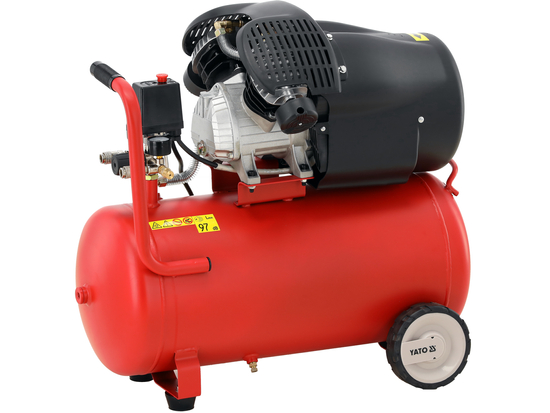

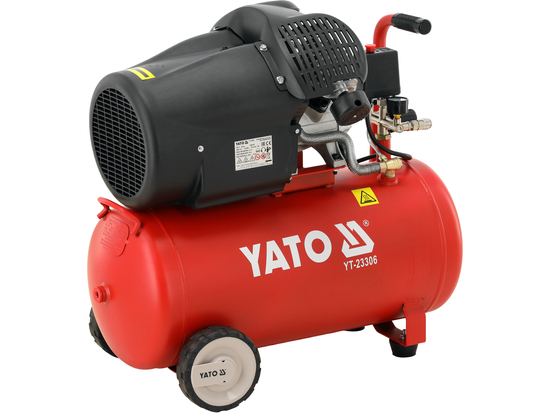

DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
+3more
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP
DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP

YT-23306

DIRECT DRIVEN OIL COMPRESSOR 50L 3.0HP

+ Add to compareAdd to shopping list
Tank capacity
Size
universal
Regular price: / pcs.
970,47 zł
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Buy now, pay in 30 days
14 days for easy returns
Instalment
Official manufacturer's store
Safe shopping
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
GRF
Tank capacity
50 l
Power
3 KM
2200 W
Max. pressure
0.8 / 8 / 116 MPa/bar/PSI
volume
412 l/min
Rotations
2850 min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Short-circuit current
55 A
Load current
9.3 A
Cylinders number in engine (motor)
2
Wheels
yes
Wheel quantity
2
Manometer
yes
Electric insulation class
I
Protection grade
IPX0
Acoustic pressure
75.1 ± 2.11 dB(A)
Acoustic power
95.1 ± 2.11 dB(A)
Weight
42 kg
Set includes
compressor, quick connector x2
Symbol
YT-23306


Reliable compressed air in your workshop

Increase the efficiency of your work with the efficient compressor YT-23306. It is the perfect solution for powering pneumatic tools and precise cleaning.


Versatile application and reliability:
  • Two-cylinder design for greater efficiency and stability
  • Oil system for long life and quiet operation
  • Two connectors for simultaneous operation of two tools
  • Precise pressure regulation for various tasks
  • Effective blowing out of drill holes and thorough surface cleaning
  • Indispensable in industry, workshop, agriculture, and construction
  • Easy to transport thanks to built-in, durable wheels

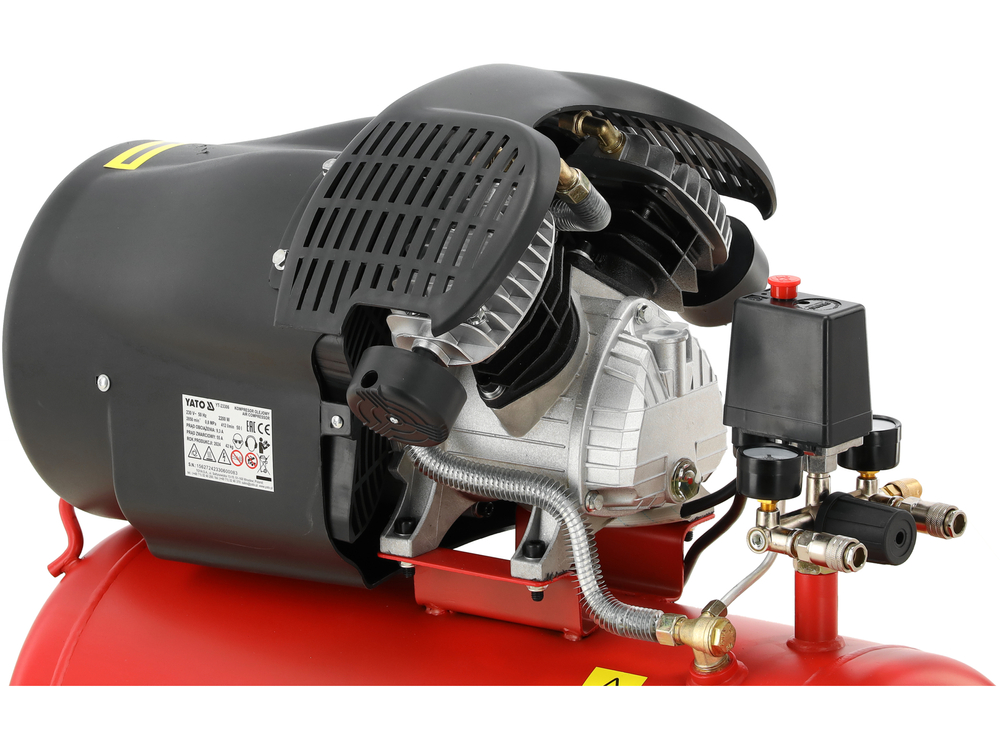

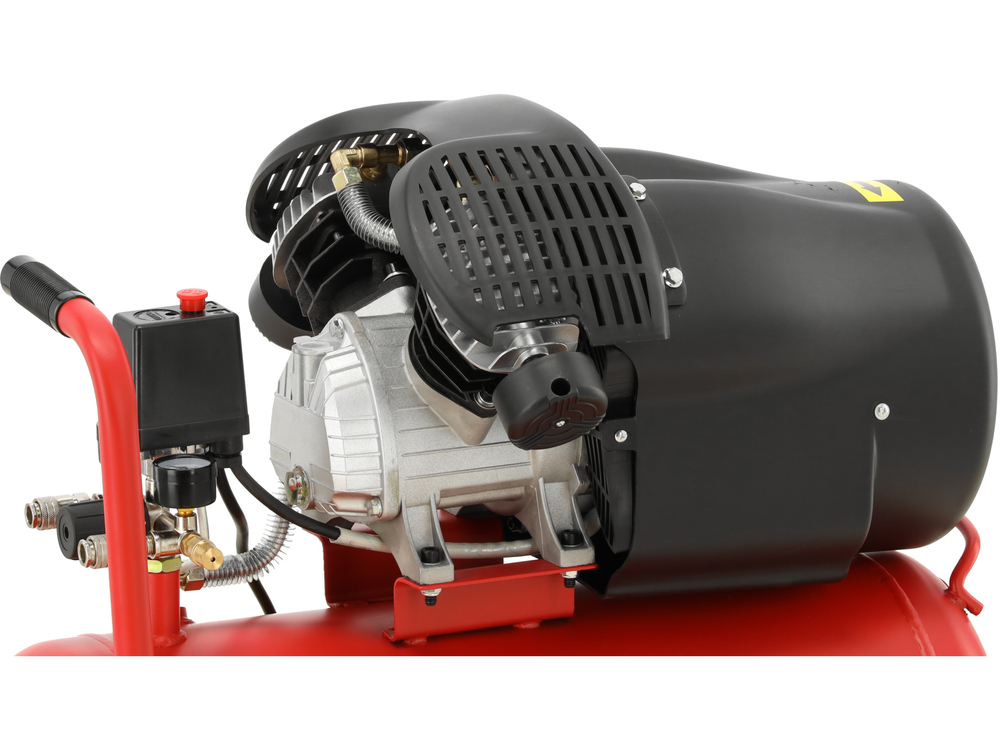

Two-cylinder power
Two-cylinder power

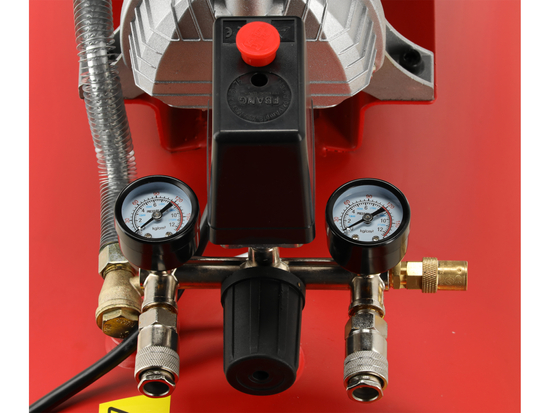

Pressure regulation
Pressure regulation
Professional applications
Professional applications
50l tank
50l tank
Mobile design
Mobile design


Detailed technical data and equipment:
  • Engine power: 2200 W (3 HP)
  • Tank capacity: 50 liters
  • Performance: 412 l/min
  • Maximum pressure: 0.8 MPa / 8 bar
  • Number of cylinders in the engine: 2
  • Engine speed: 2850 rpm

Detailed technical data and equipment

  • Device weight: 42 kg
  • Supply voltage: 230 V
  • Frequency: 50 Hz
  • Protection class: IPX0
  • Electrical insulation class: I
  • Acoustic pressure: 75.1 ± 2.11 dB(A)
  • Acoustic power: 95.1 ± 2.11 dB(A)
  • Standard equipment: Pressure gauge, 2 quick couplings
  • Transport: 2 durable transport wheels
  • Short-circuit current: 55 A
  • Load current: 9.3 A

Usage warnings:

Warning! Before first use, fill in oil and replace the transport plug by supplied oil plug.
