Novelty
YT-23311
DIRECT DRIVEN OIL COMPRESSOR 100L 3.0HP
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
3 KM
2200 W
Max. pressure
0.8 / 8 / 116 MPa/bar/PSI
Efficiency
412 l/min
Rotations
2850 min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Short-circuit current
55 A
Load current
9.3 A
Tank capacity
100 l
Cylinders number in engine (motor)
2
Wheels
yes
Wheel quantity
2
Manometer
yes
Electric insulation class
I
Protection grade
IPX0
Acoustic pressure
75.1 ± 2.11 dB(A)
Acoustic power
95.1 ± 2.11 dB(A)
Weight
52 kg
Set includes
compressor, quick connector x2
Symbol
YT-23311
Two-cylinder air compressor with two connections and pressure control. Used for driving compressed air equipment, blowing boreholes and cleaning surfaces in industry, workshops, agriculture, construction sites.
- power: 2200 W (3 HP)
- motor speed: 2850 rpm
- capacity: 412 l/min
- max. pressure 0.8 MPa/8 bar
- tank capacity: 100 l

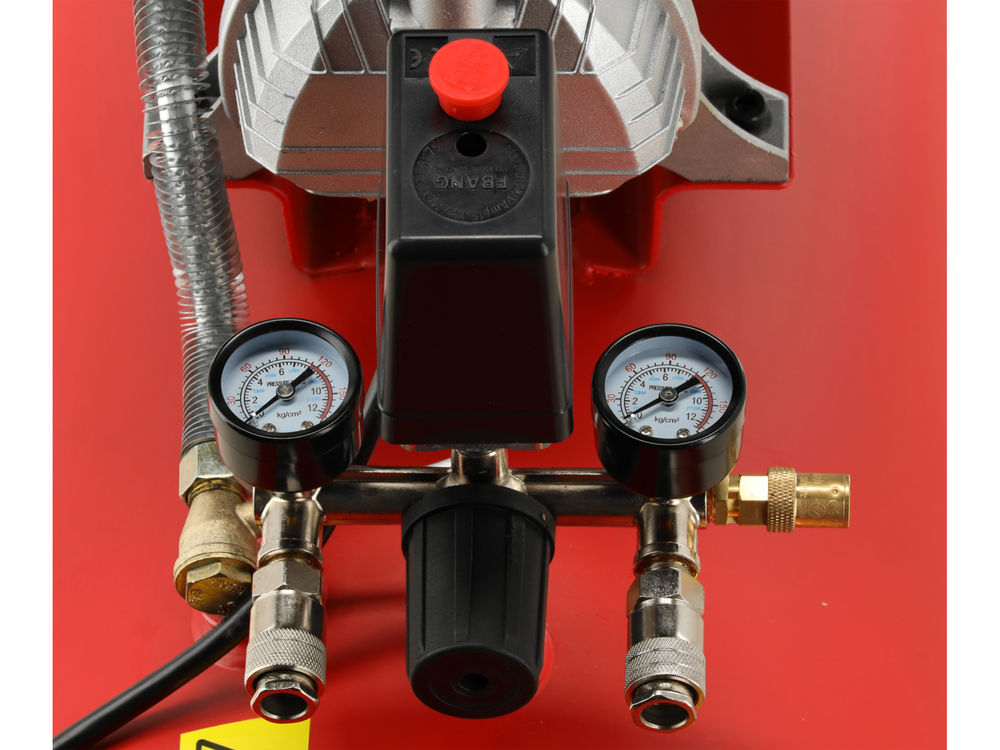

- Pressure gauge
- protection rating: IPX0
- Electrical insulation class I
- 2 wheels
- weight: 52 kg
- 2 Quick couplers included
Usage warnings:
Attention! Before first use, top up the oil and replace the transport cap with the supplied oil cap.To download
