YT-23321

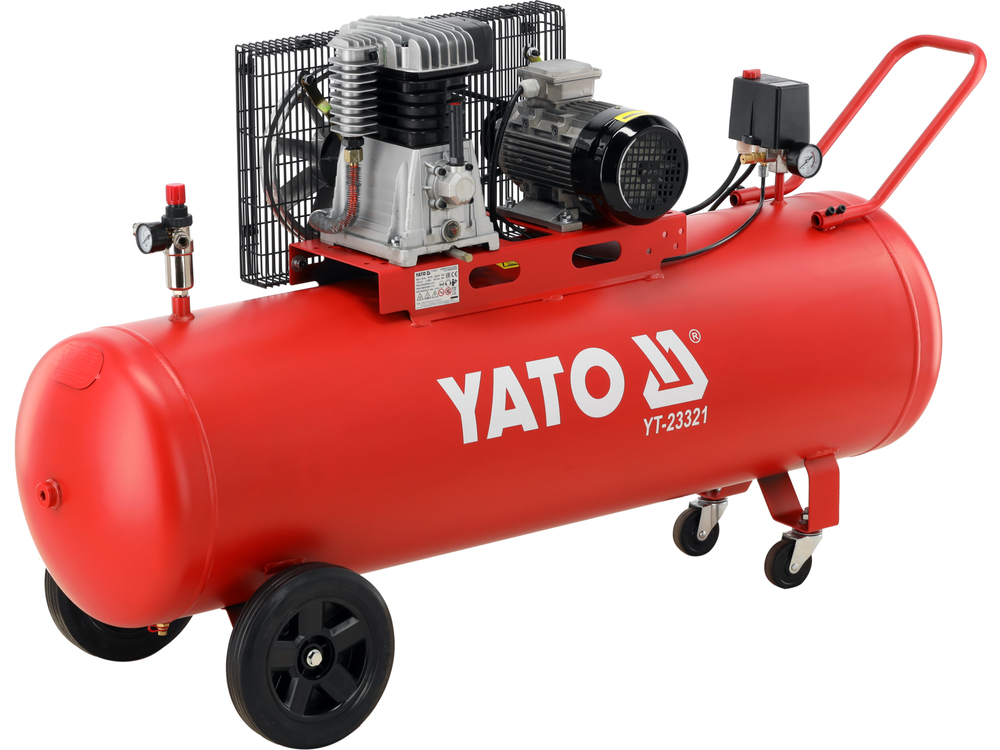

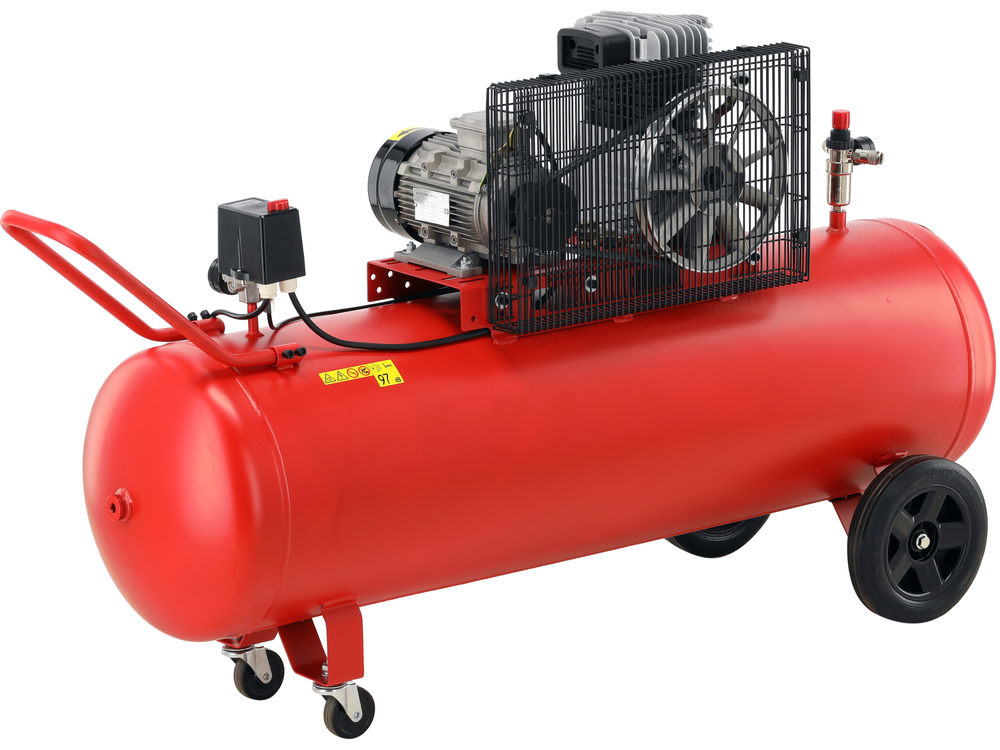

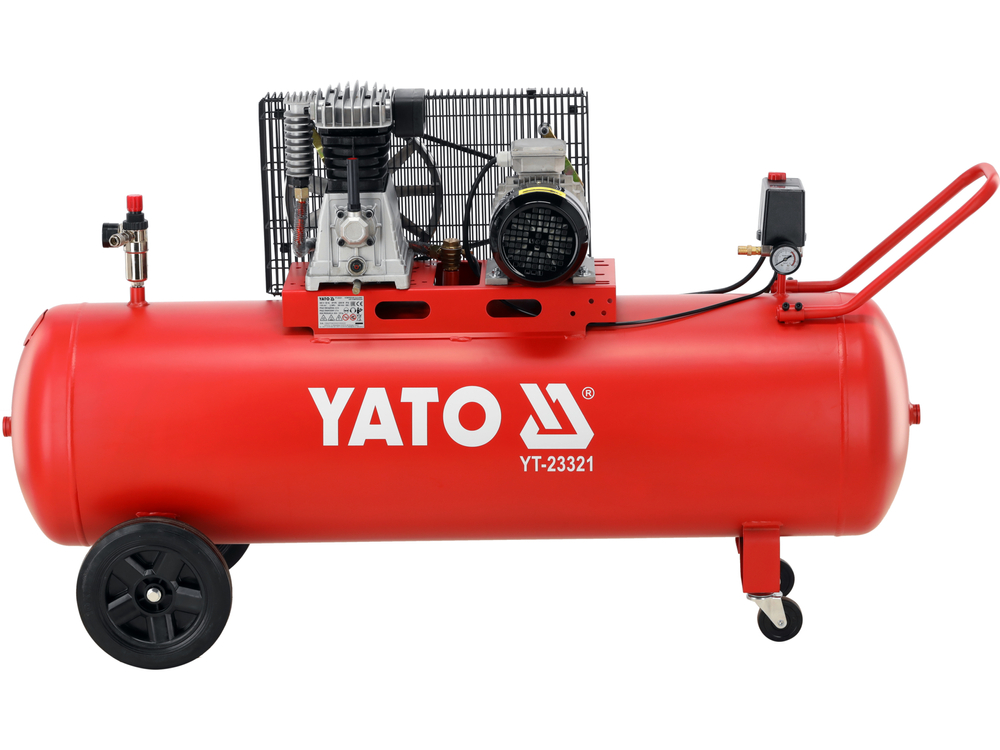

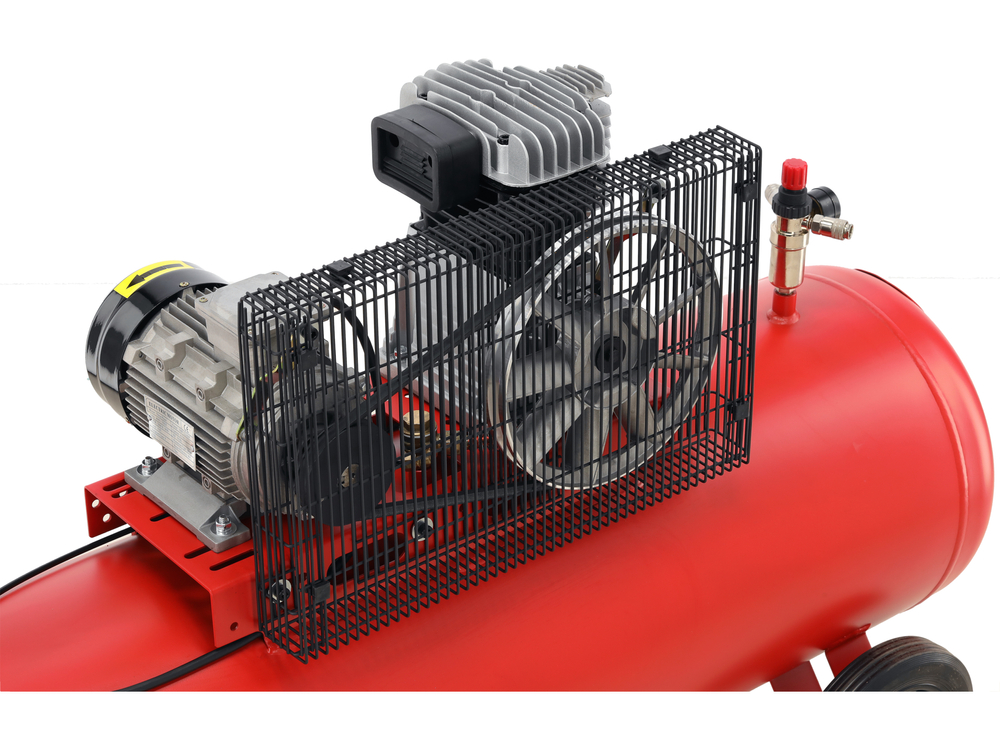

BELT DRIVEN OIL COMPRESSOR 400V 200L 3.0HP
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
3 KM
2200 W
Max. pressure
1 / 10 / 145 MPa/bar/PSI
Efficiency
360 l/min
Rotations
1100 min⁻¹

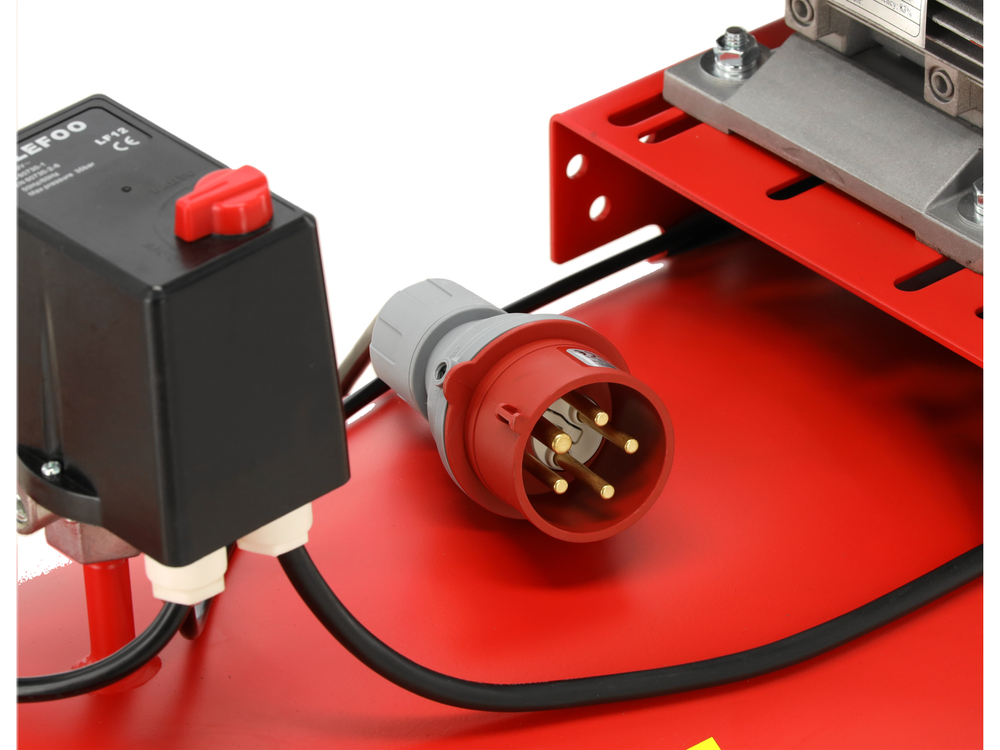

Voltage
400 V a.c.
Frequency
50 Hz
Short-circuit current
27 A
Load current
4.5 A
Tank capacity
200 l

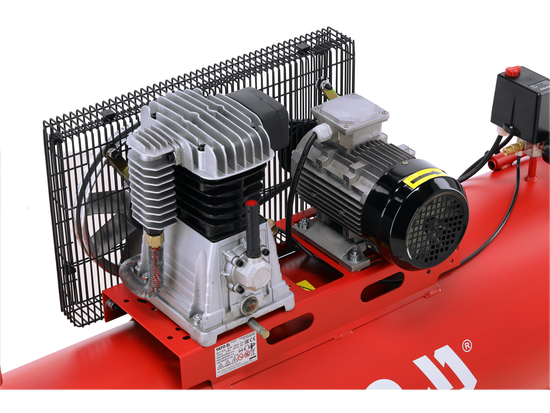

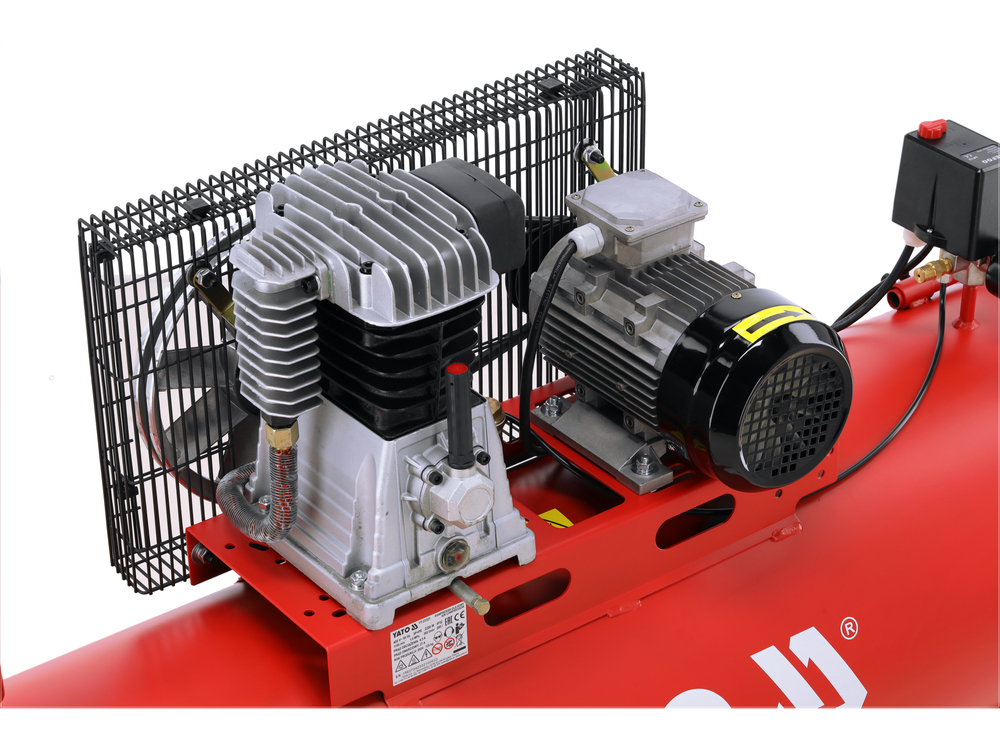

Cylinders number in engine (motor)
2
Wheels
yes
Wheel quantity
4
Manometer
yes
Electric insulation class
I
Protection grade
IP32
Acoustic pressure
75.1 ± 2.11 dB(A)
Acoustic power
95.1 ± 2.11 dB(A)
Weight
125 kg
Set includes
compressor, quick connector x2
Symbol
YT-23321

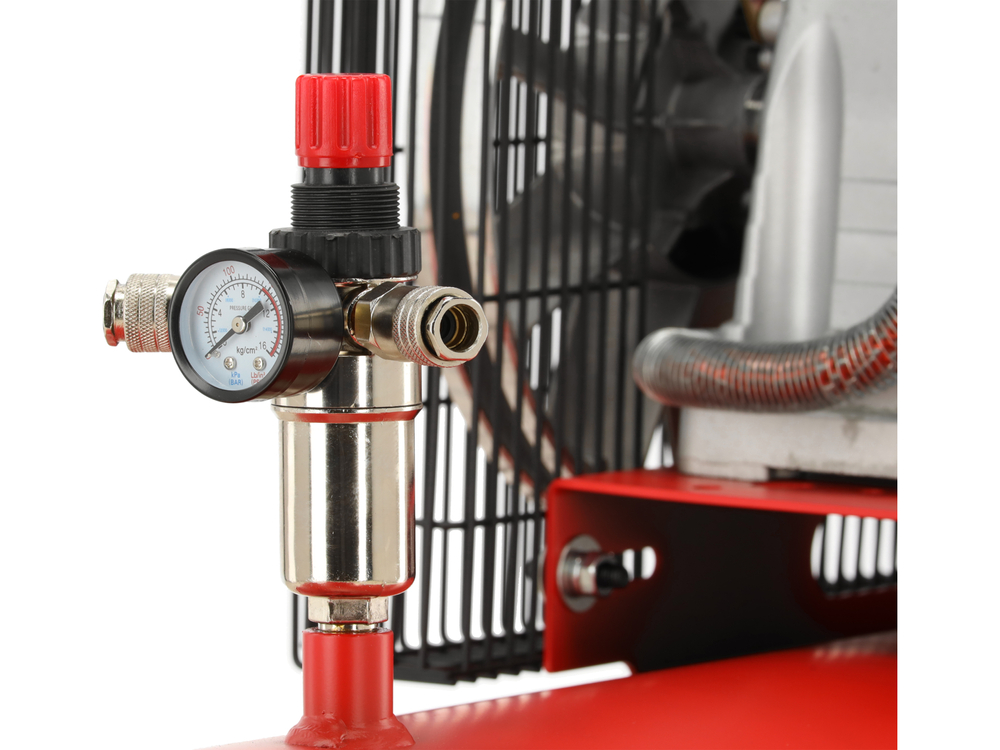

Two-cylinder air compressor with two connections and pressure control. Used for driving compressed air equipment, blowing boreholes and cleaning surfaces in industry, workshops, agriculture, construction sites.
- power: 2200 W (3 HP)
- motor speed: 1100 rpm
- capacity: 360 l/min
- max. pressure 1 MPa/10 bar
- tank capacity: 200 l

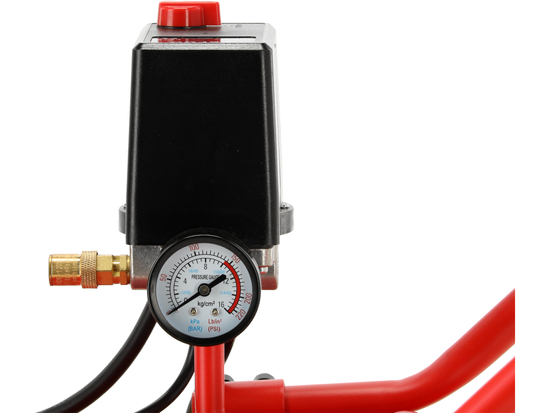

- Pressure gauge
- protection rating: IP32
- Electrical insulation class I
- 4 wheels
- weight: 125 kg
- 2 Quick couplers included
Usage warnings:
Attention! Before first use, top up the oil and replace the transport cap with the supplied oil cap.To download
