SOLDERING STATION C245 190W
SOLDERING STATION C245 190W
SOLDERING STATION C245 190W
SOLDERING STATION C245 190W
SOLDERING STATION C245 190W
SOLDERING STATION C245 190W
SOLDERING STATION C245 190W

YT-82463

SOLDERING STATION C245 190W

Regular price: / pcs.
199,00 zł
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Buy now, pay in 30 days
Instalment
Official manufacturer's store
Safe shopping
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
192 W
Voltage
110-240 V a.c.
Frequency
50/60 Hz
Working temperature
90-500 ˚C
Temperature stability
±2 ˚C
Tip type
C245
Functions
kalibracji temperatury (zakres -80 ~ +80˚C), device hibernation, automatic shutdown
Temperature setting memory
x3
Switch
yes
Auto power off
20~999 s
Display type
LCD
Soldering iron supply voltage
25 V d.c.
Tip-to-ground voltage
˂ 2 mV
Tip-to-ground resistance
˂ 2 Ω
Cable length
1.1 m
Electric insulation class
II
Protection grade
IPX0
Weight
0.6 kg
Set includes
soldering station, grot lutowniczy, stock stand with a pocket for a brass shavings tip cleaner
Symbol
YT-82463

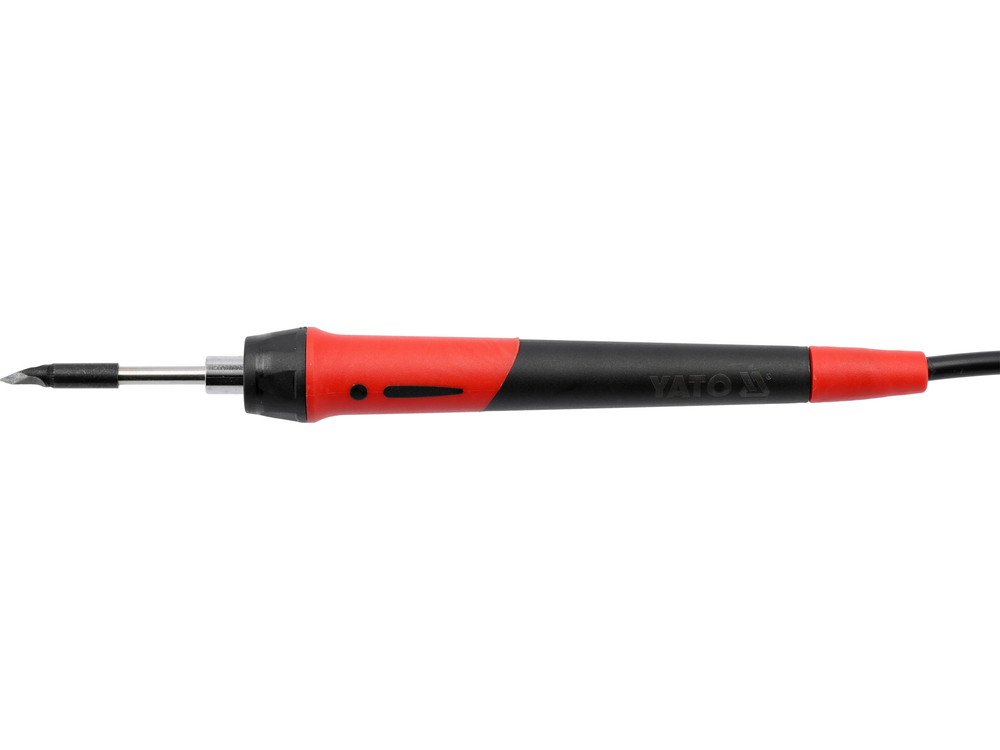

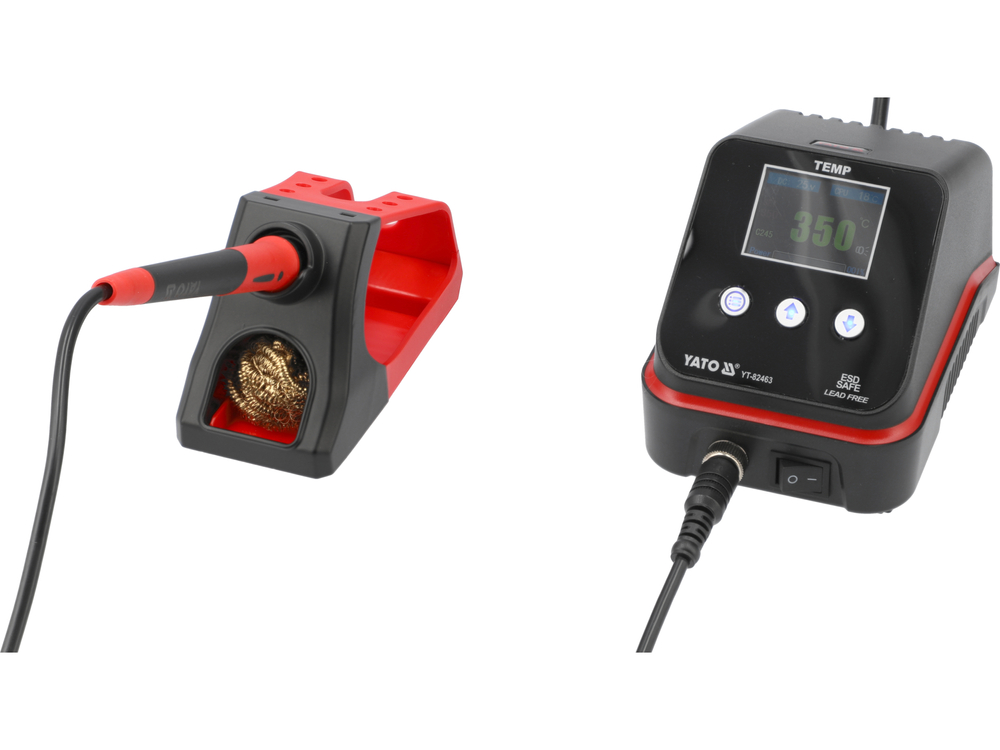

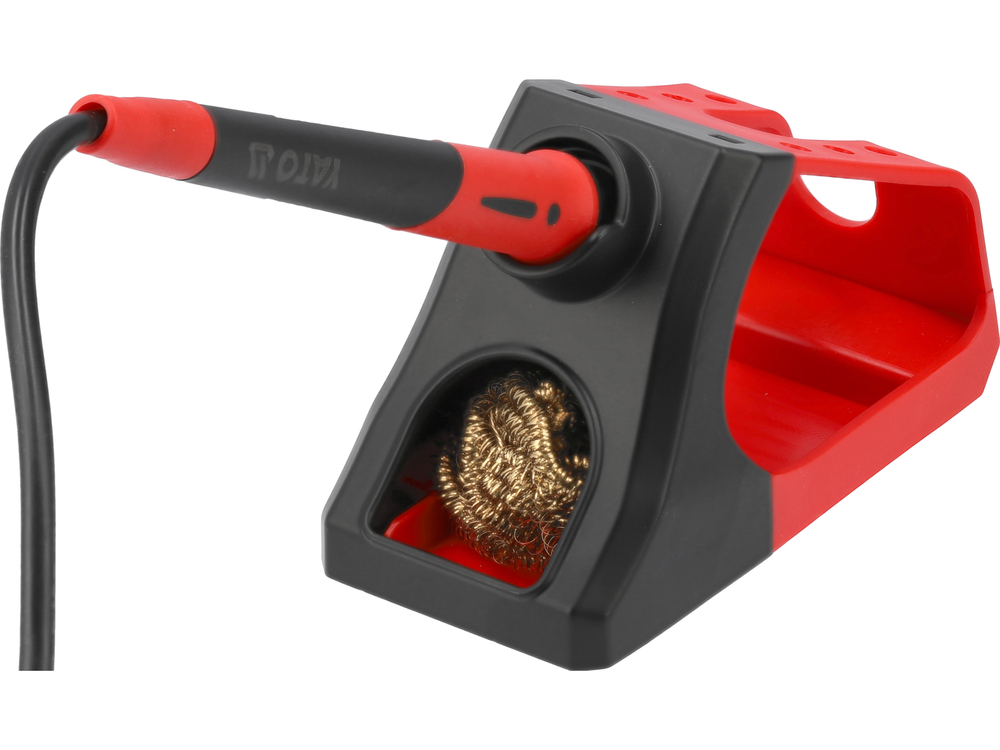

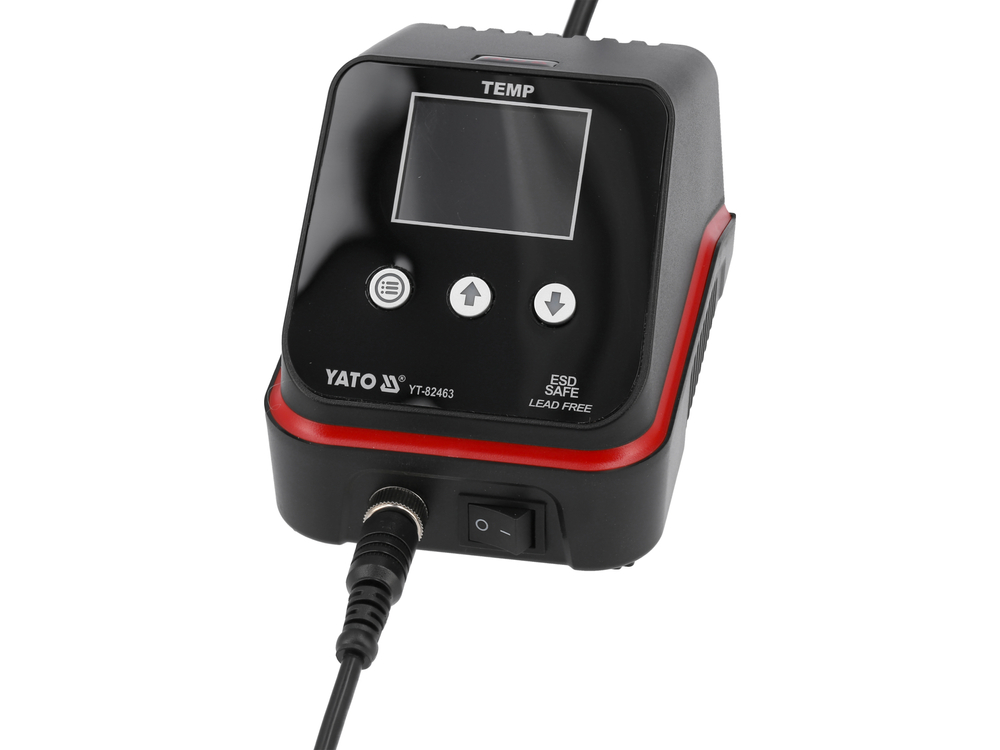

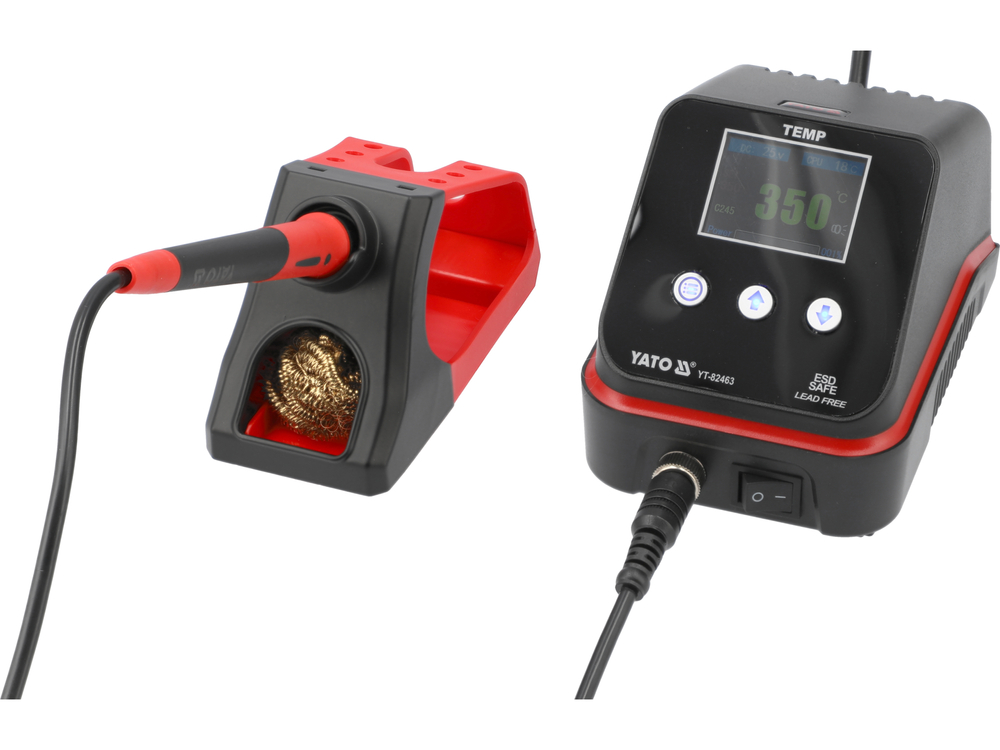

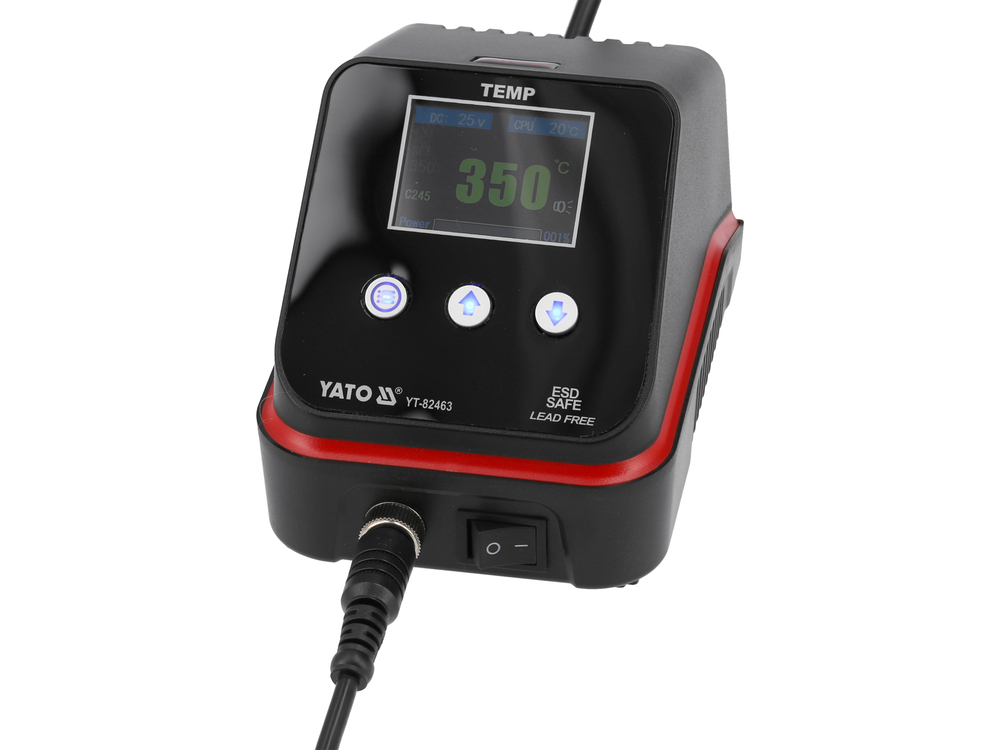

Soldering station with colour LCD display, temperature control and calibration, sleep and shutdown functions and three memory channels. Works with type 245 arrowheads. It takes just three seconds to heat the blade to 350°C. The soldering iron flask allows the quick exchange of soldering tips. The flask's power cable is flexible, housed in a heat-resistant silicone lagging. Soldering iron stand with brass chip cleaner and 245 Type K soldering iron tip included.

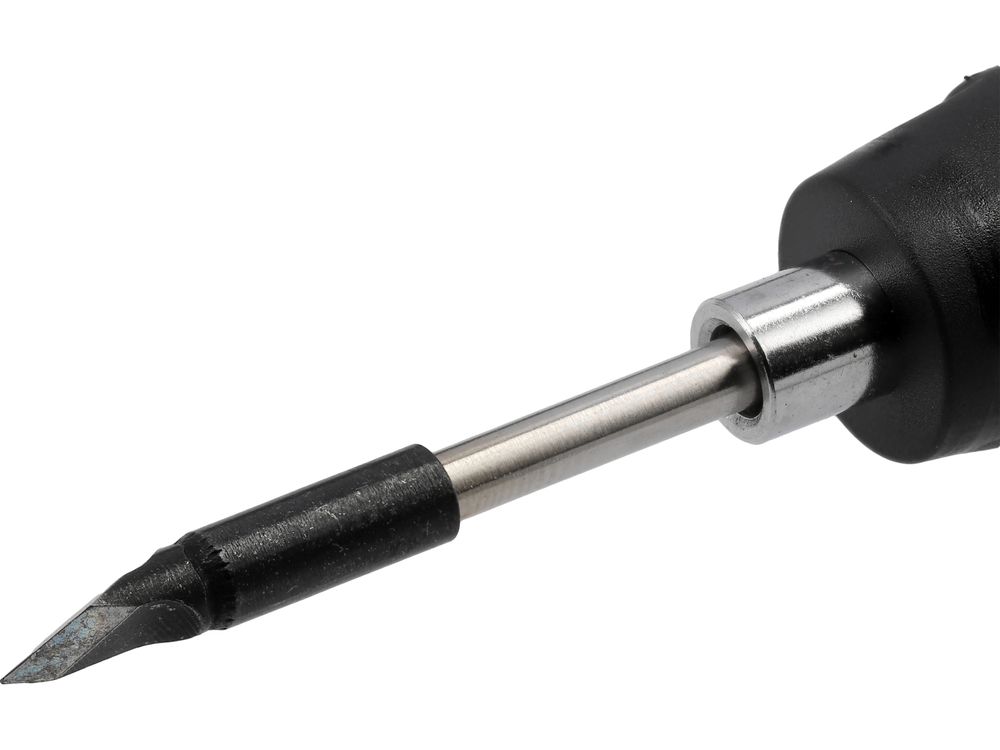

Like the T12 soldering irons, the 245 type K-heads are a combination of a ceramic-sunk resistance wire, a temperature sensor and a high-quality soldering tip. Among other things, the 245 and T12 arrowheads differ in maximum power. The 245 arrowheads are equipped with a heater that is almost three times as powerful, making both the heating up and the temperature stabilisation action much faster, together with a properly selected power supply and electronics.

  • power: 190 W
  • working voltage of the heater: 24 V
  • temperature range: 90 – 500°C
  • temperature accuracy: +/- 2°C
  • temperature stabilisation
  • temperature calibration: -80°C to +80°C
  • sleep function: 20 to 999 seconds
  • auto-off function: 20 to 999 seconds

Usage warnings:

Warning! Always use personal safety equipment at work.
