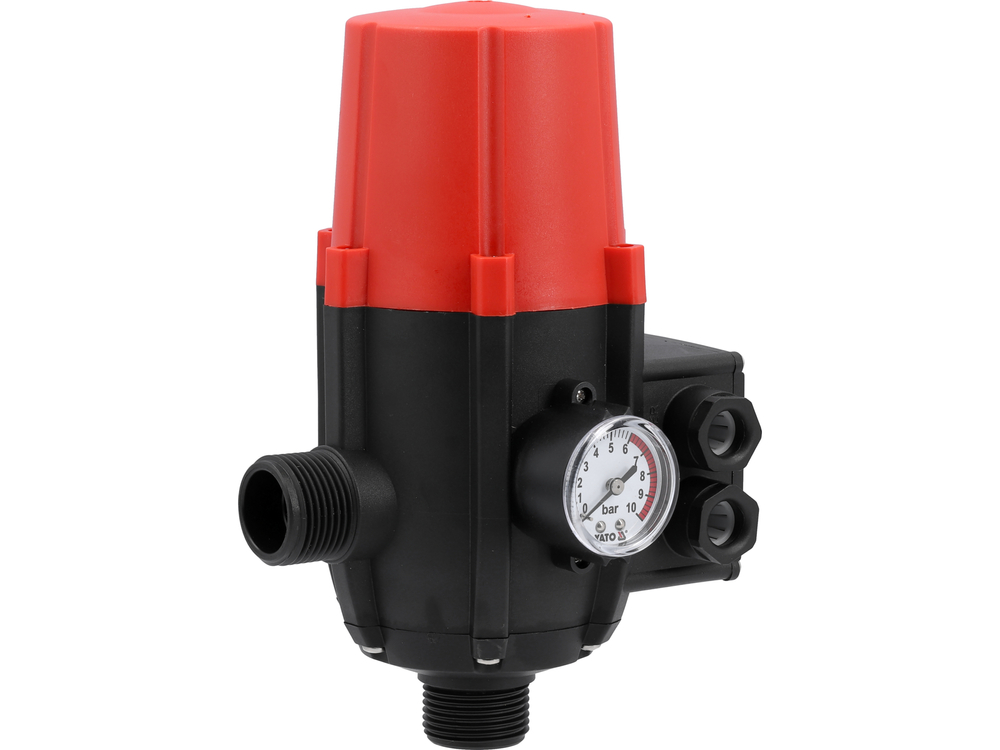

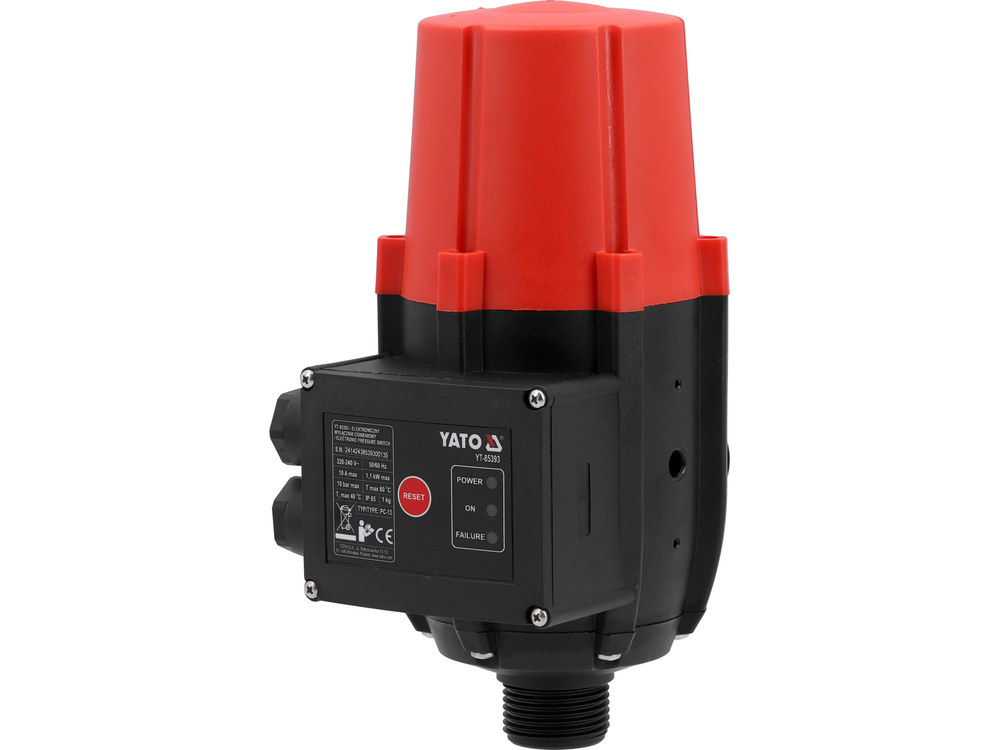

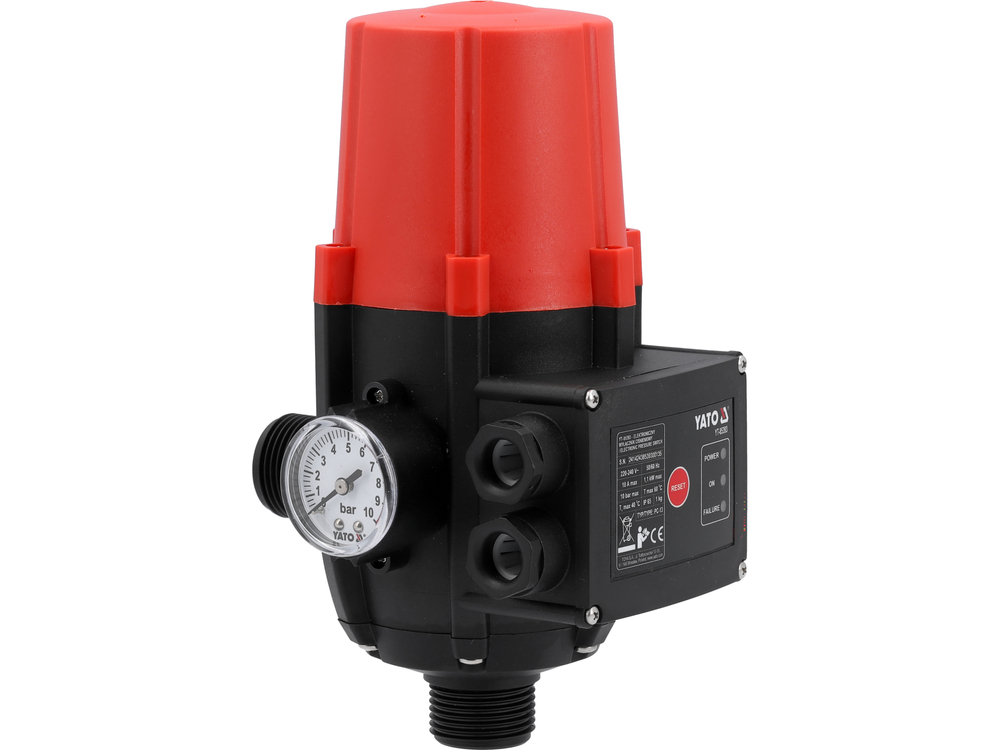

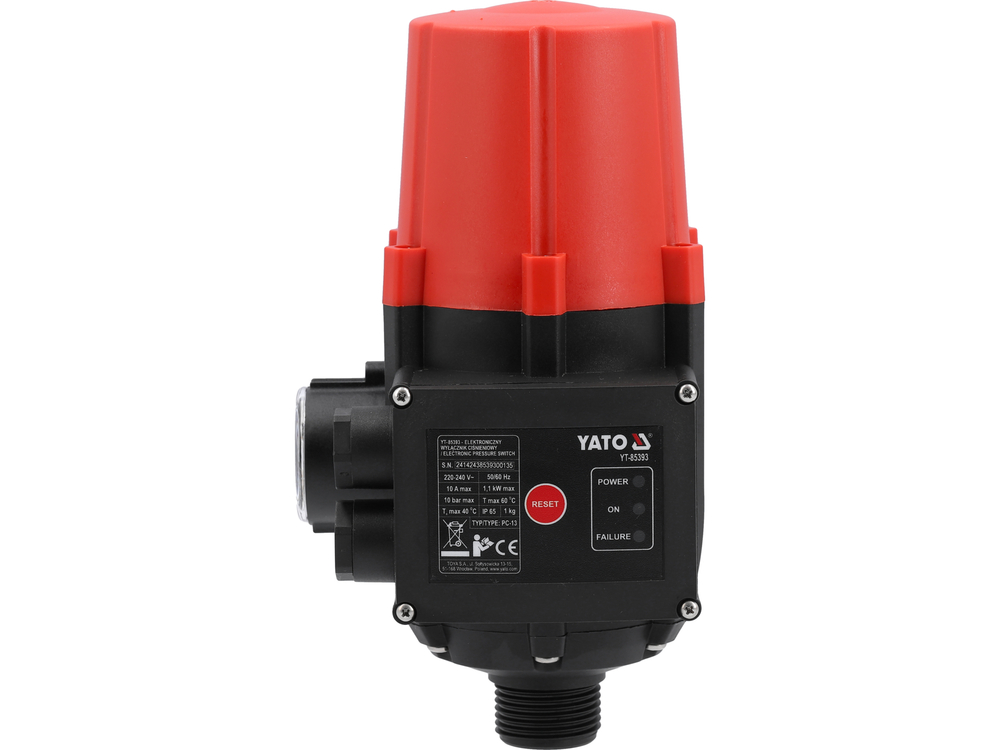

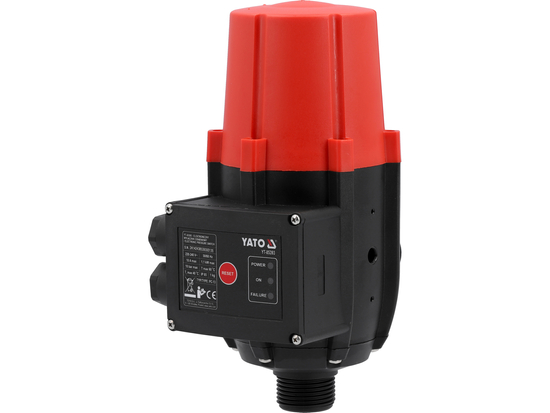

The pressure switch provides constant water pressure for garden irrigation or domestic water supply.

The line pressure in the connected system is monitored by a pressure switch. The water pump is automatically started and stopped according to the opening and closing of the valve.

Product benefits:

• monitors water pressure
• ensures constant water pressure
• protects against dry running

Technical specifications:

• type: PC-13
• initial pressure: 1.5–2.2 bar
• max. pressure 10 bar
• voltage: 220-240 V
• rated current: 10A
• max. power 1.1 kW
• max. liquid temperature 60°C
• max. ambient temperature 40°C
• protection rating: IP65
• housing material: polypropylene
• input: 1 m cable
• output: 0.5 m cable
