YT-30415
4D GREEN LASER, TRIPOD AND ACCESSORIES
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Working range
25 m
Laser
yes
Laser class
2
Laser power
≤1 mW
Laser wave length
520-530 nm
Laser range
25 m
Laser accuracy
±3 mm / 10 m
Laser pointer colour
green
Self-levelling range
±3 ˚
Power supply
rechargeable
Battery type
Li-Ion
Battery voltage
3.7 V d.c.
Battery capacity
2400 mAh
Battery energy
8.88 Wh
Max. working time
8 h
Dimensions
110x100x135 mm
Tripod height
1 m
Tripod included
yes
Tripod connection size
1/4" (6.35 mm) 20UNC
Working temperature range
-10 ~ +40 ˚C
Protection grade
IP52
Weight
0.57 kg
Set includes
laser, battery x2, charger, pilot, uchwyt ścienny, adapter do statywu, statyw, płytka metalowa, platforma regulowana góra-dół, goggles
Compatible with
YT-30416
Symbol
YT-30415

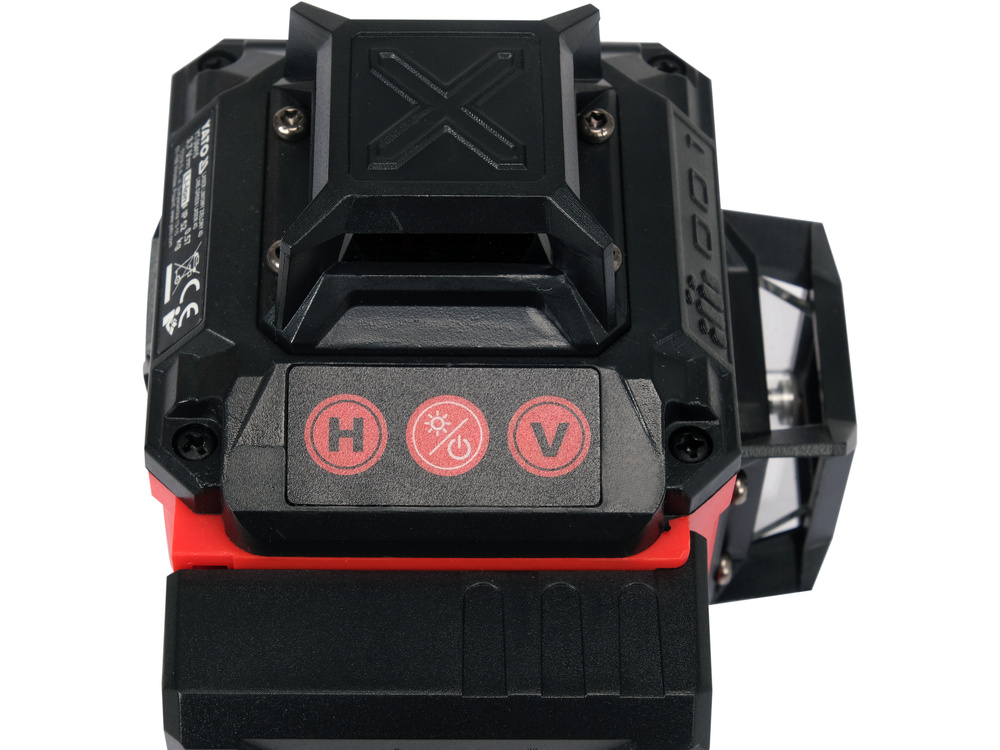

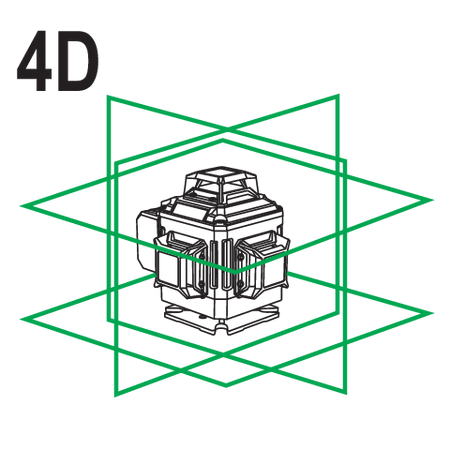

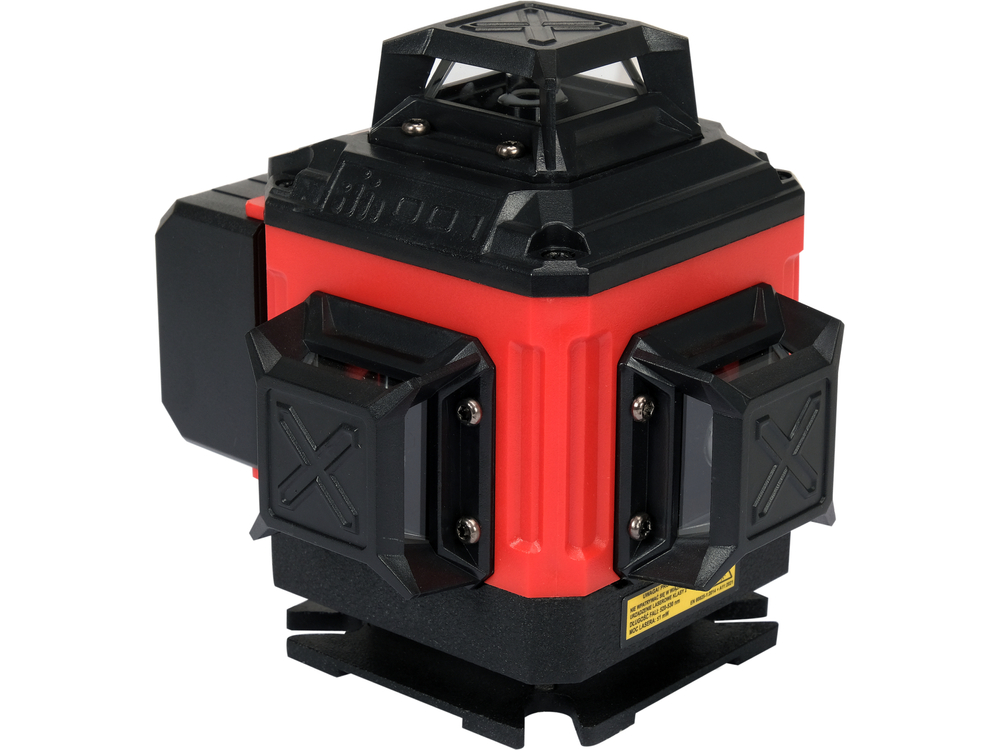

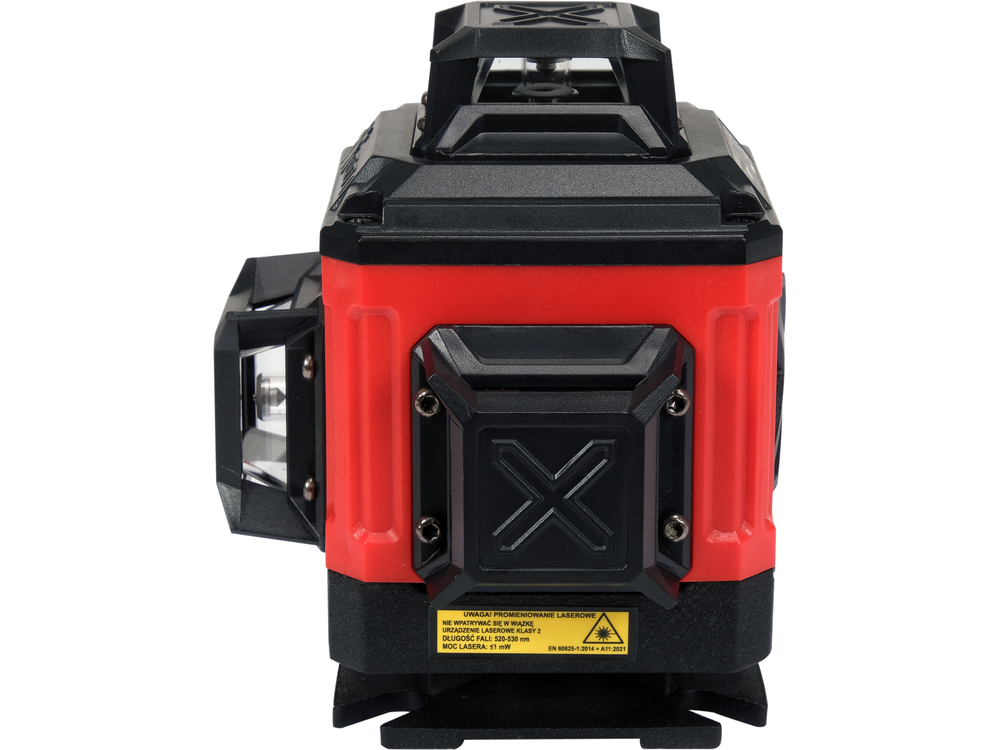

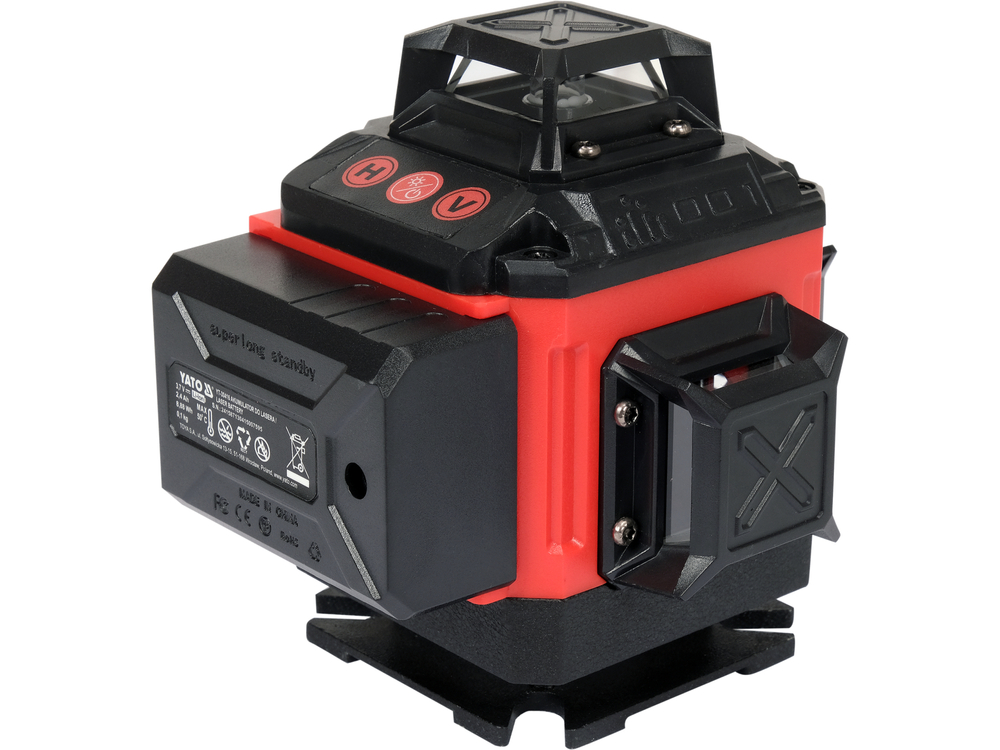

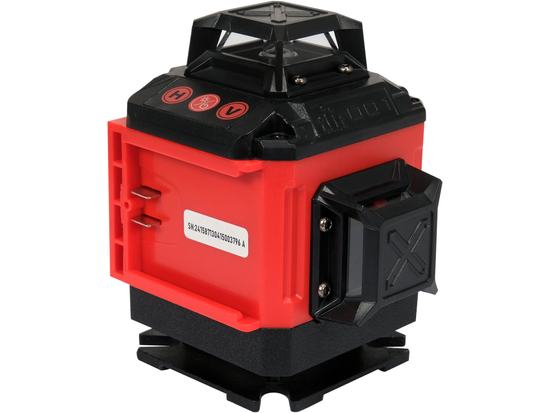

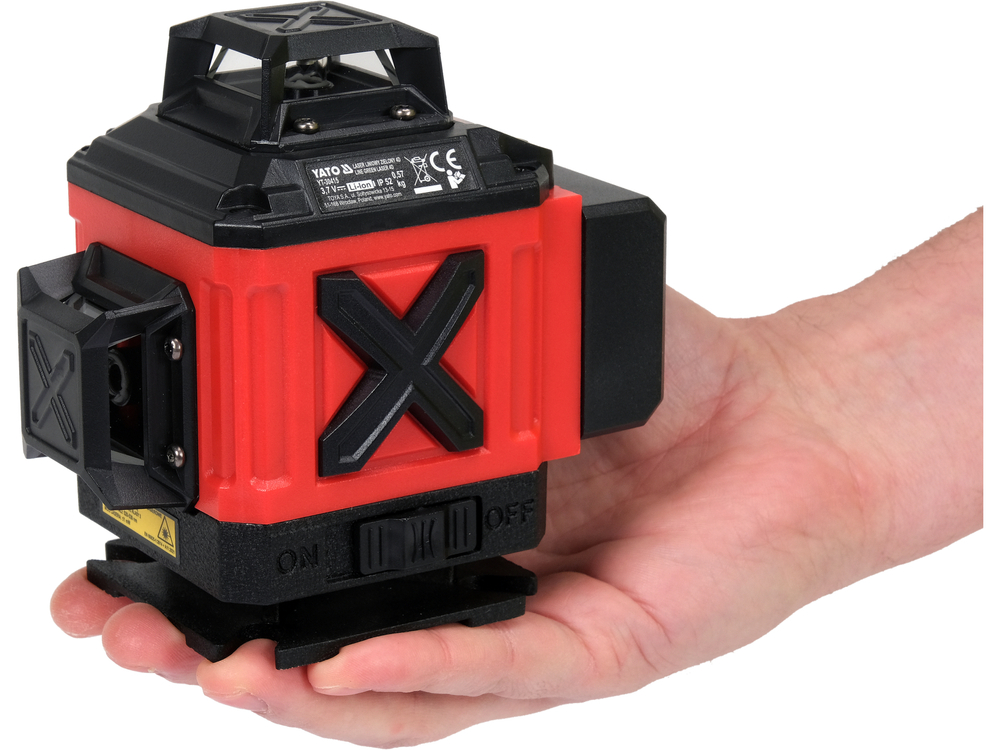

Self-leveling 4D four-plane laser with green beam. Casts 16 lines, four per plane. Allows you to get level and plumb on any wall simultaneously in real time. The laser diode guarantees indoor visibility of up to 25 meters.

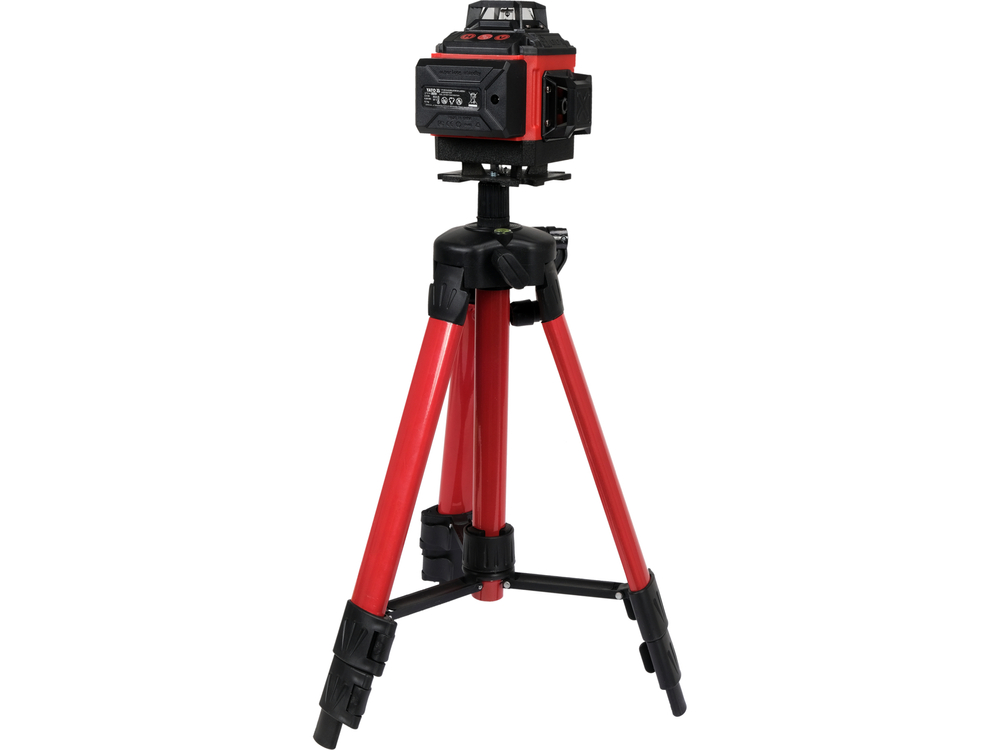

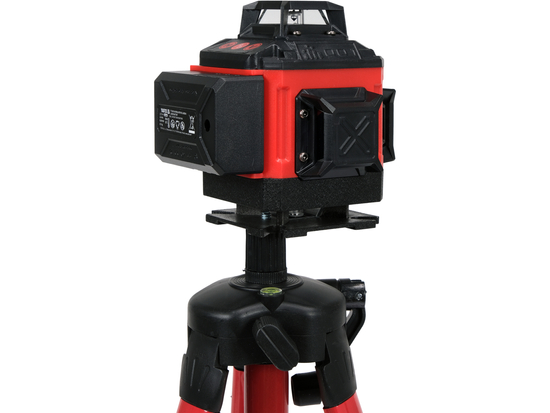

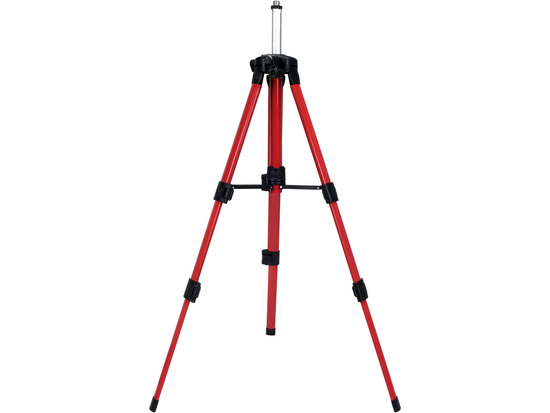

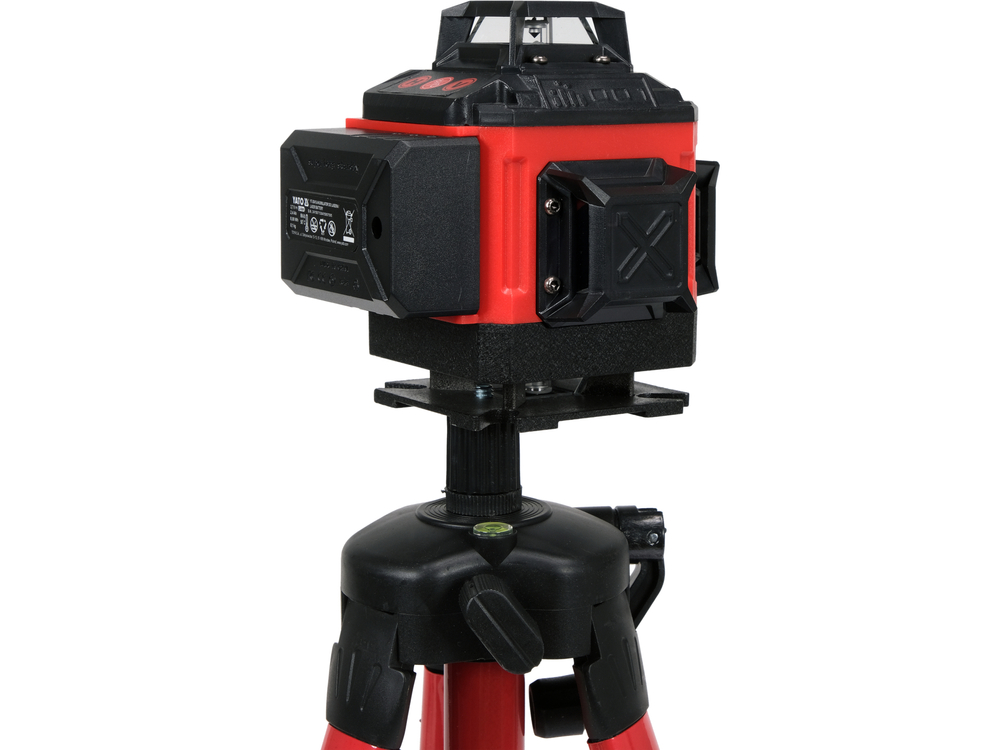

A rich set of accessories, including a 1.2-m aluminum tripod with adapter, and two rechargeable batteries included, allow uninterrupted operation for extended periods.
- working range: 25 m
- accuracy: ± 3 mm/10 m
- wavelength: 520-530 nm
- power: ≤1 mW
- self-leveling range: ± 3,0°
- class: 2
- water resistance: IP52
- working temperature: -10 ~ +40˚C

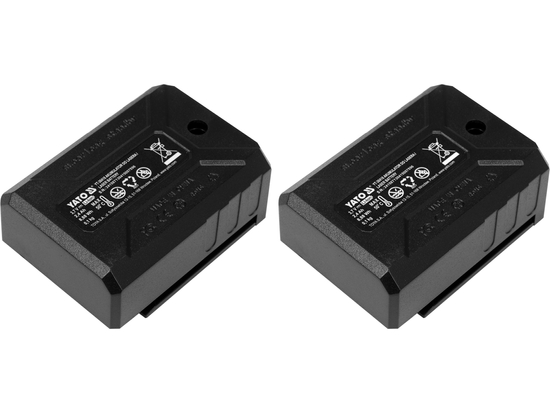

- 2 Li-Ion rechargeable batteries: 3.7 V, 2400 mAh
- max. working time on one battery: 8 h
- attachment: 1/4'' thread
- dimensions: 110 x 100 x 135 mm
- weight: 0.57 kg

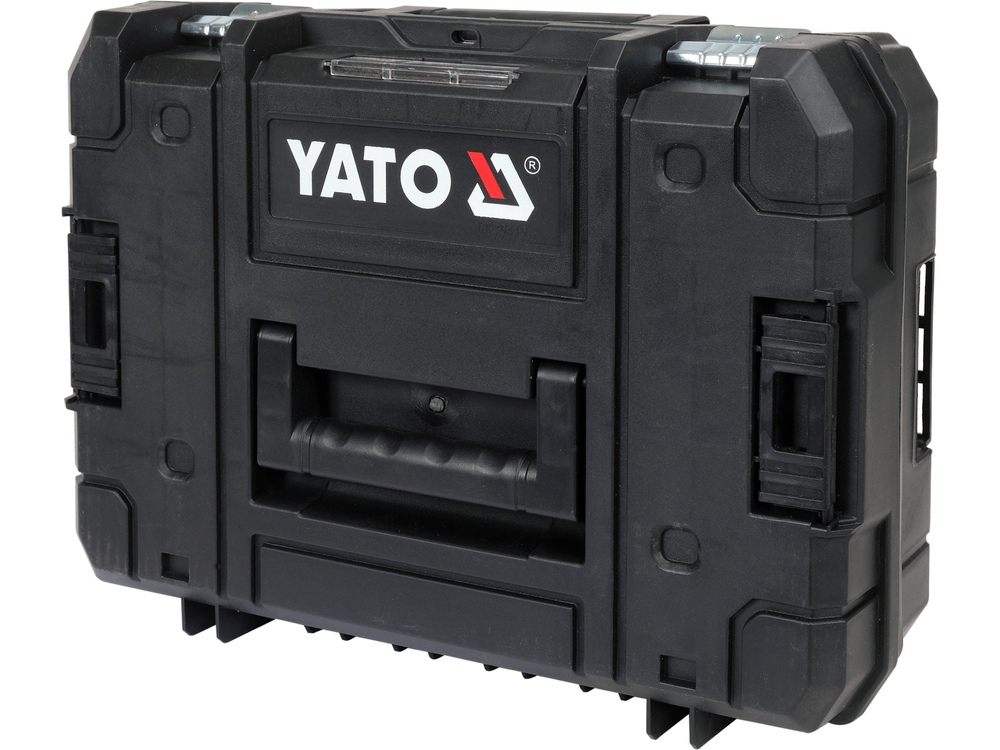

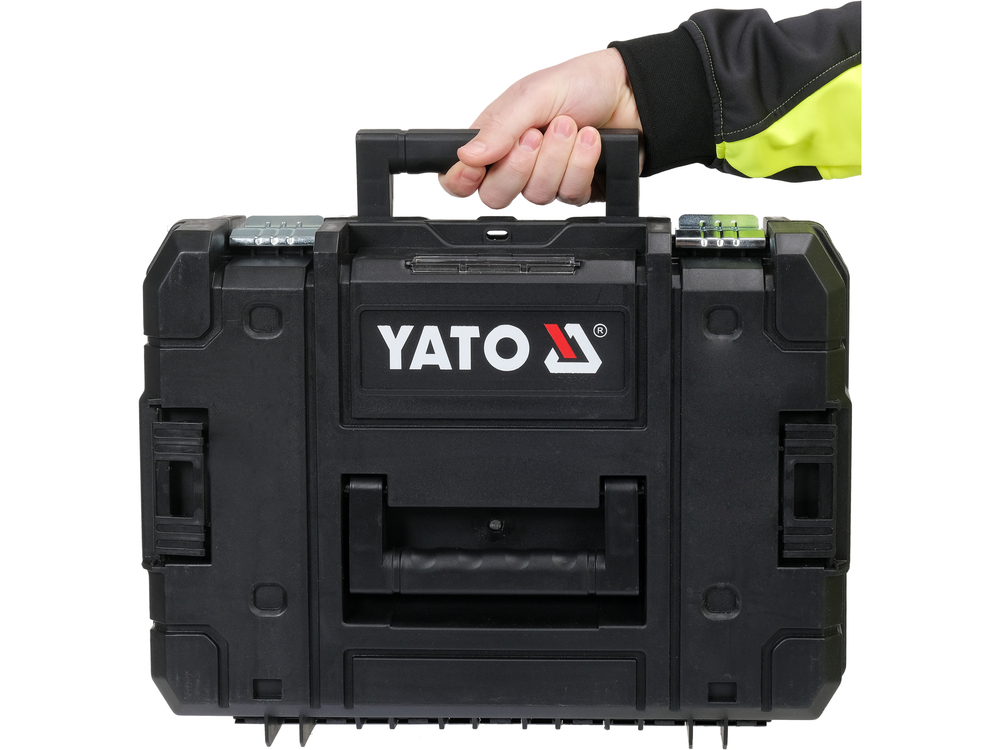

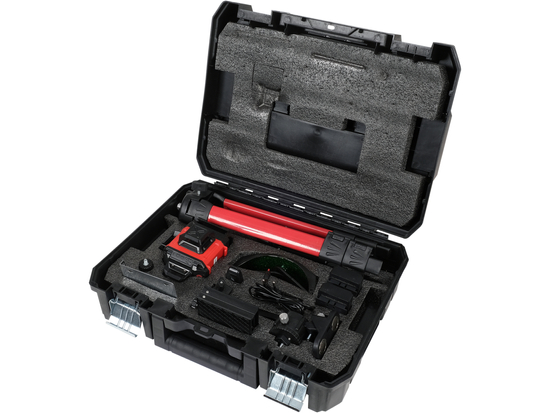

- packed in a sturdy case with vibration-absorbing filling

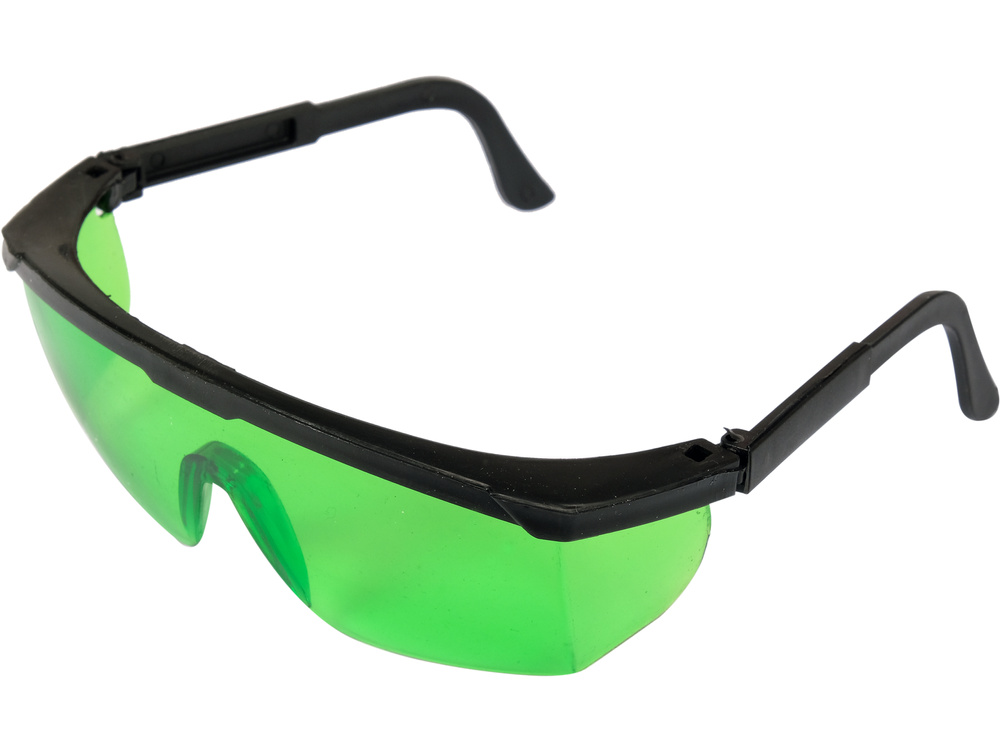

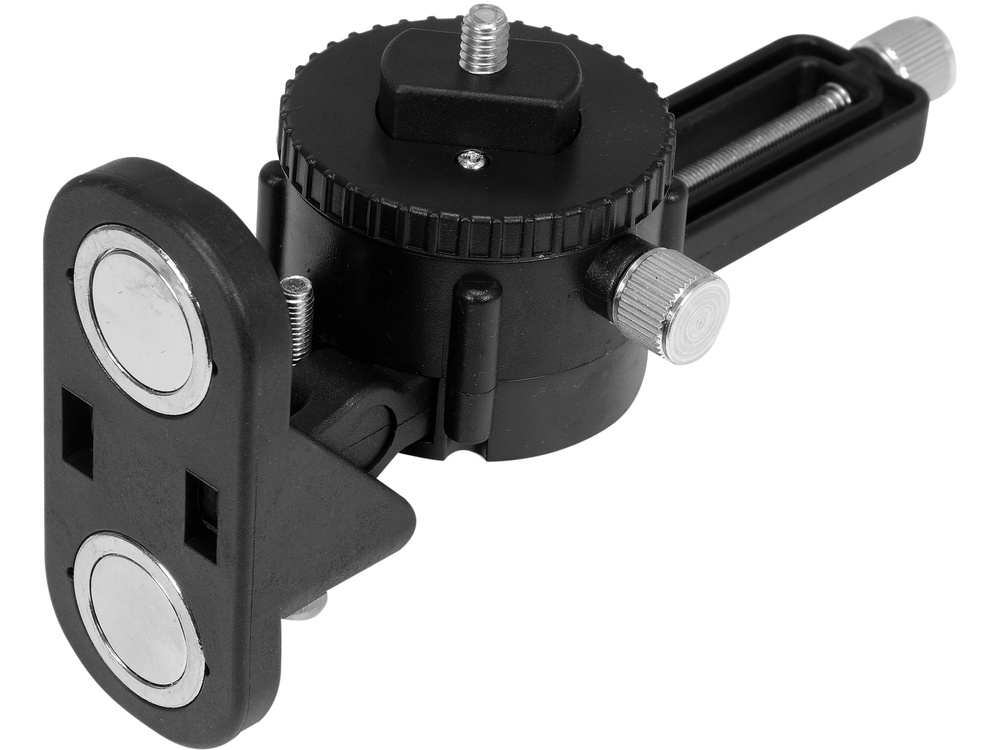

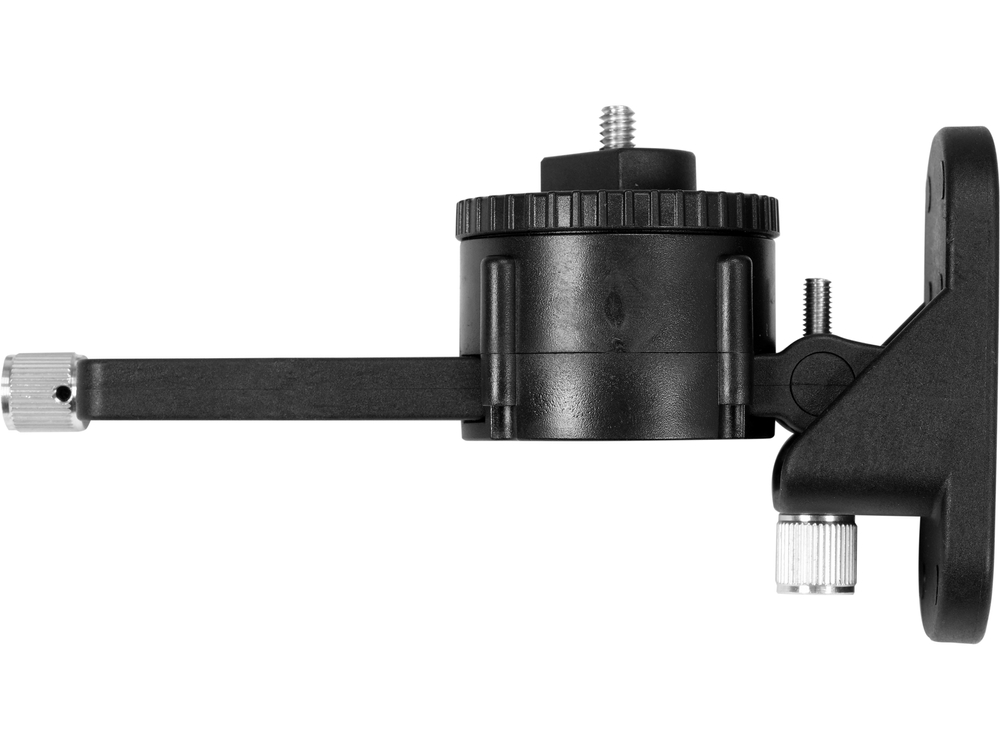

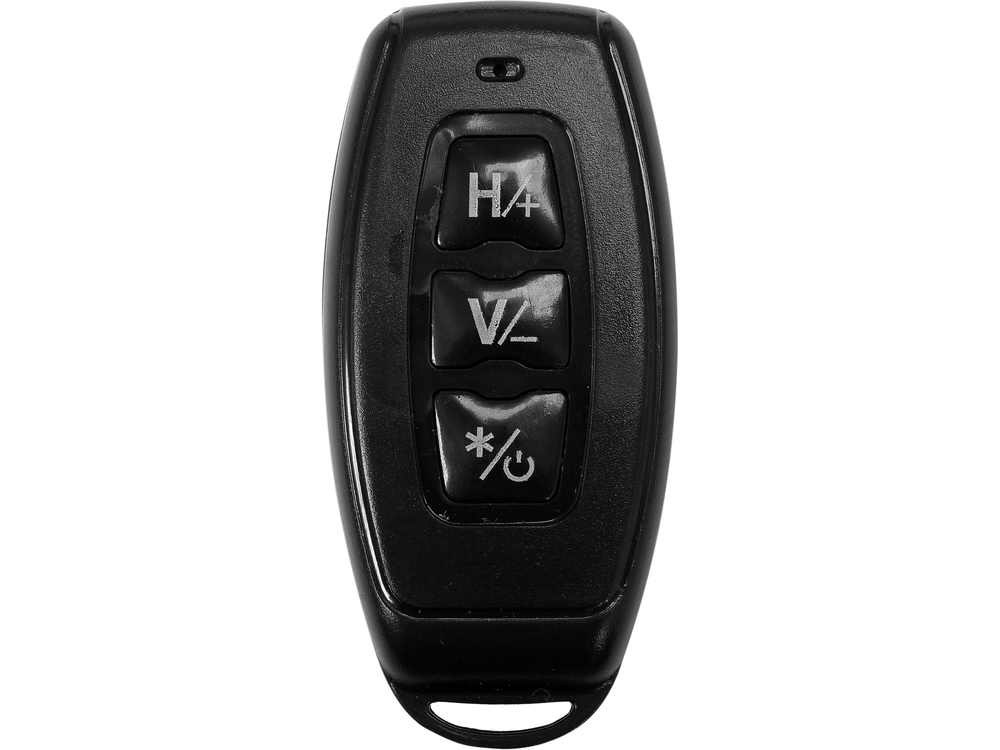

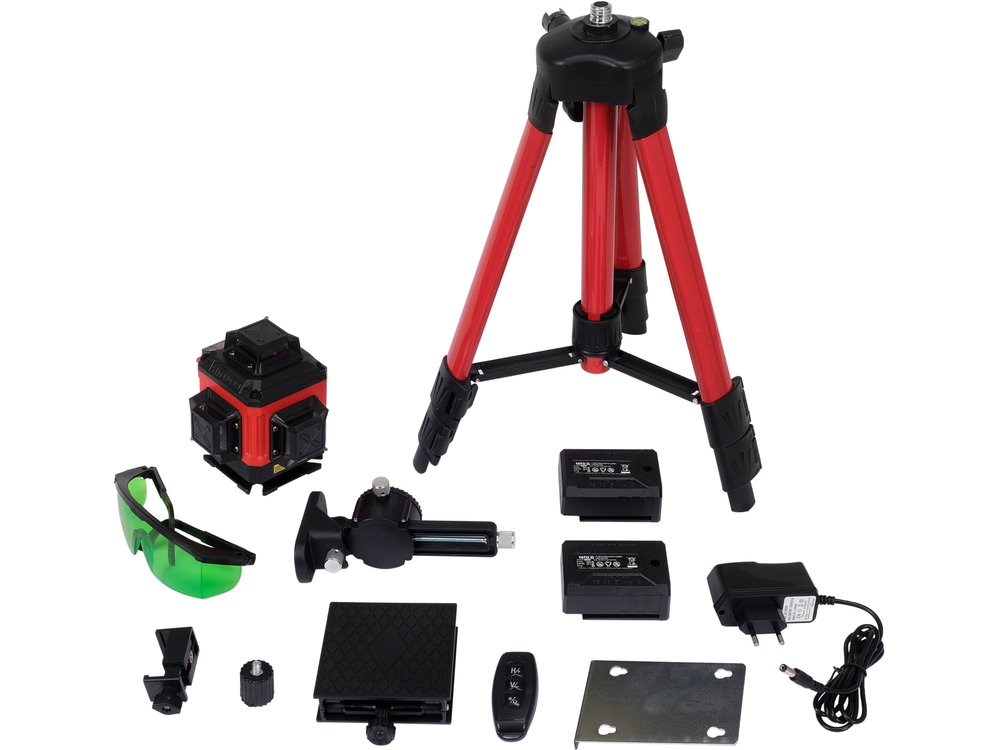

- included: 2 rechargeable batteries, charger, remote control, wall mount, tripod adapter, tripod, metal plate, green beam glasses, up and down adjustable platform
Possibility to buy a rechargeable battery YT-30416.










Usage warnings:
Class 2 laser device.Caution: laser radiation. Do not stare into the beam.
