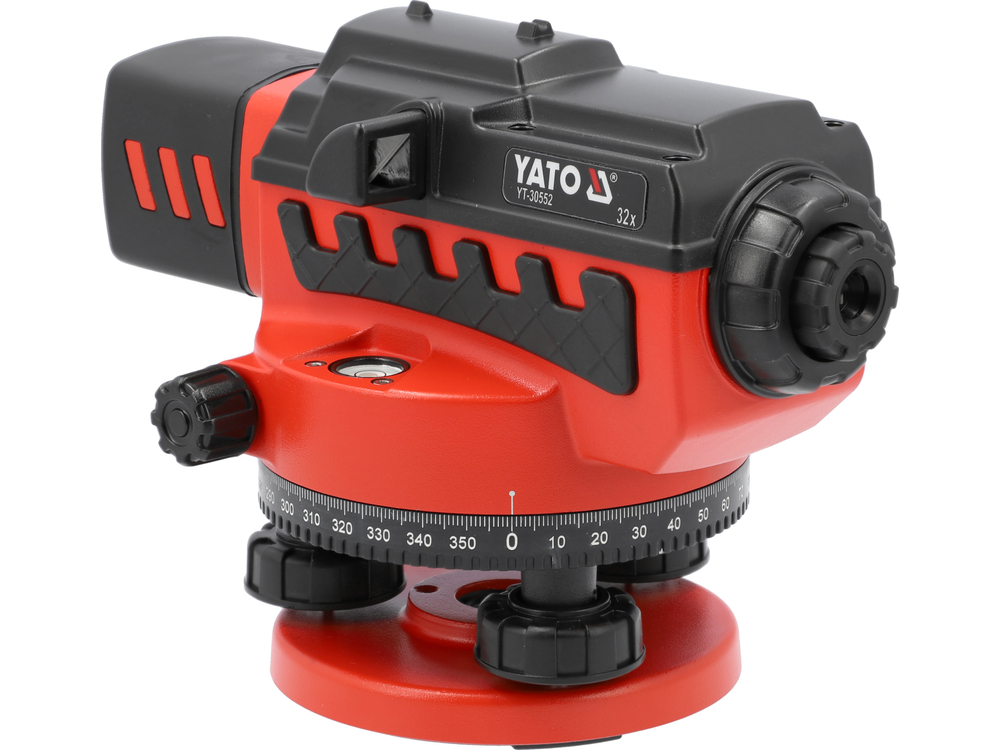

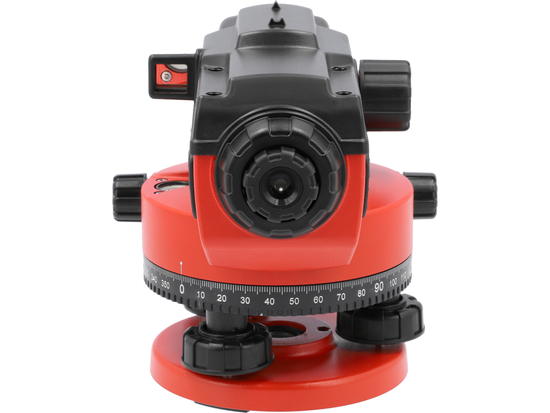

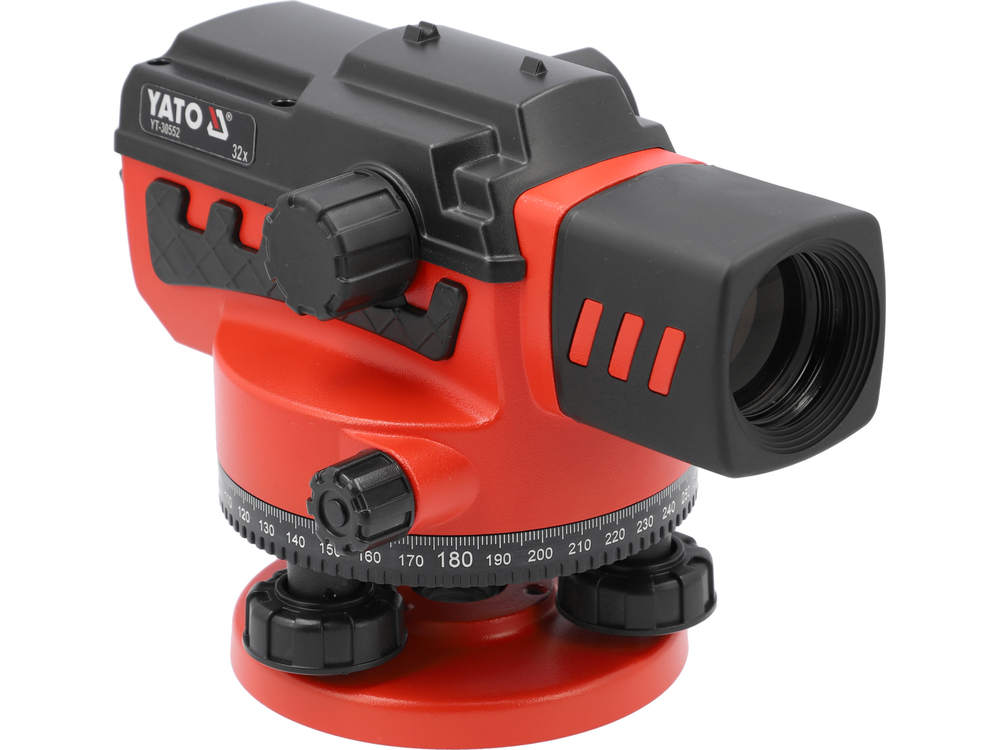

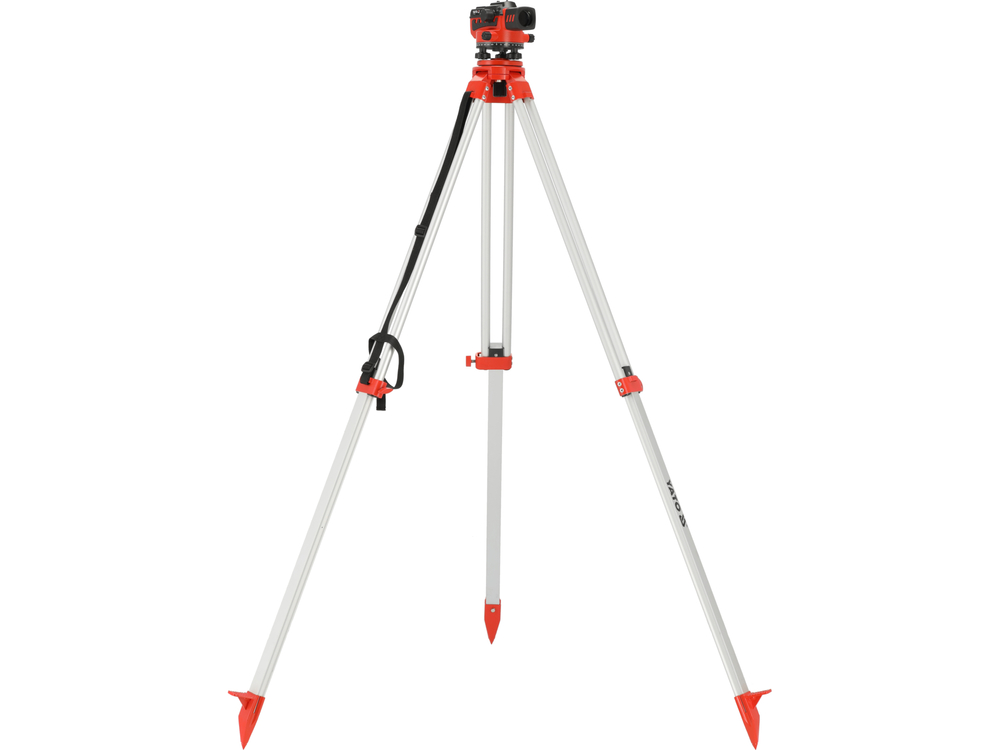

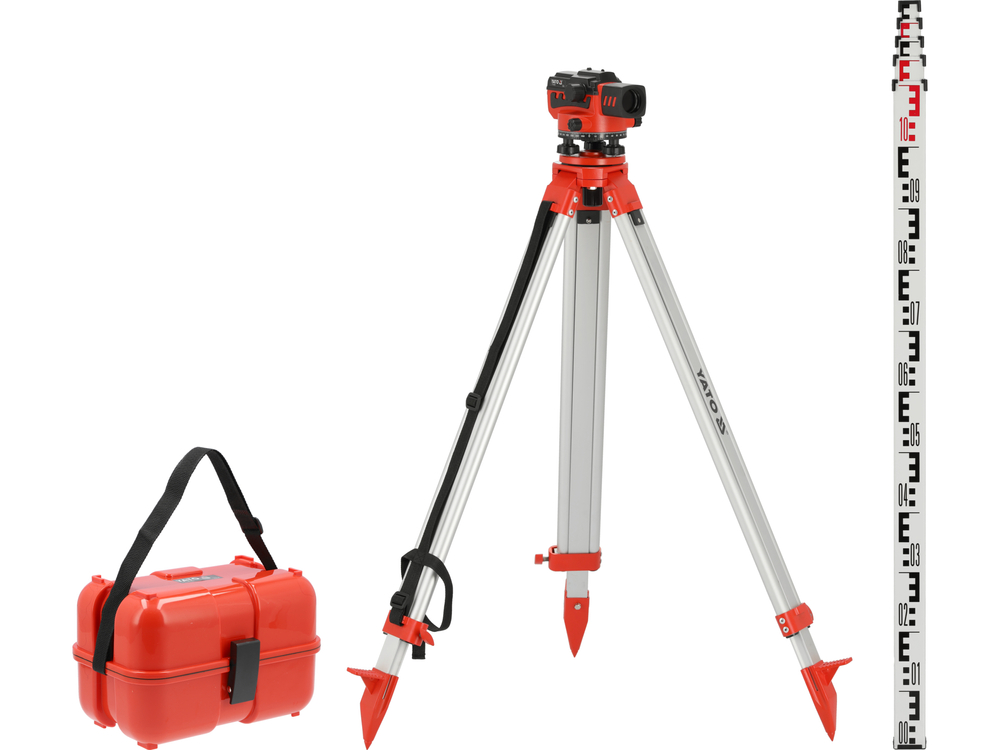

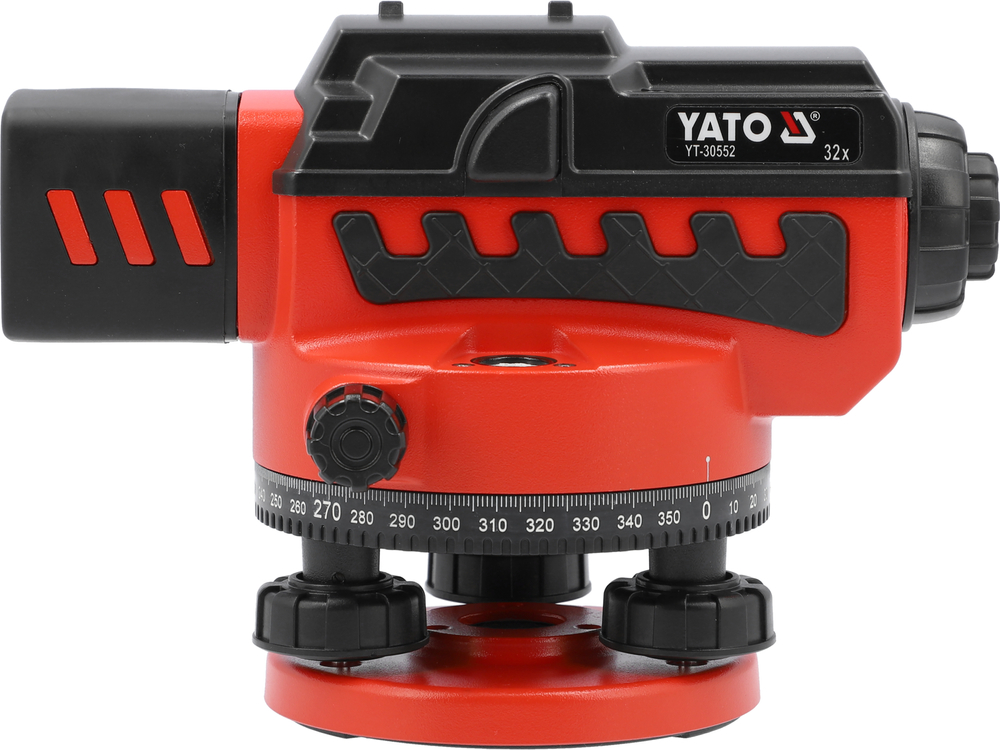

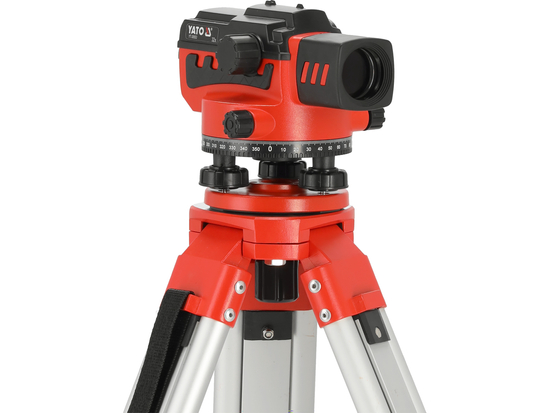

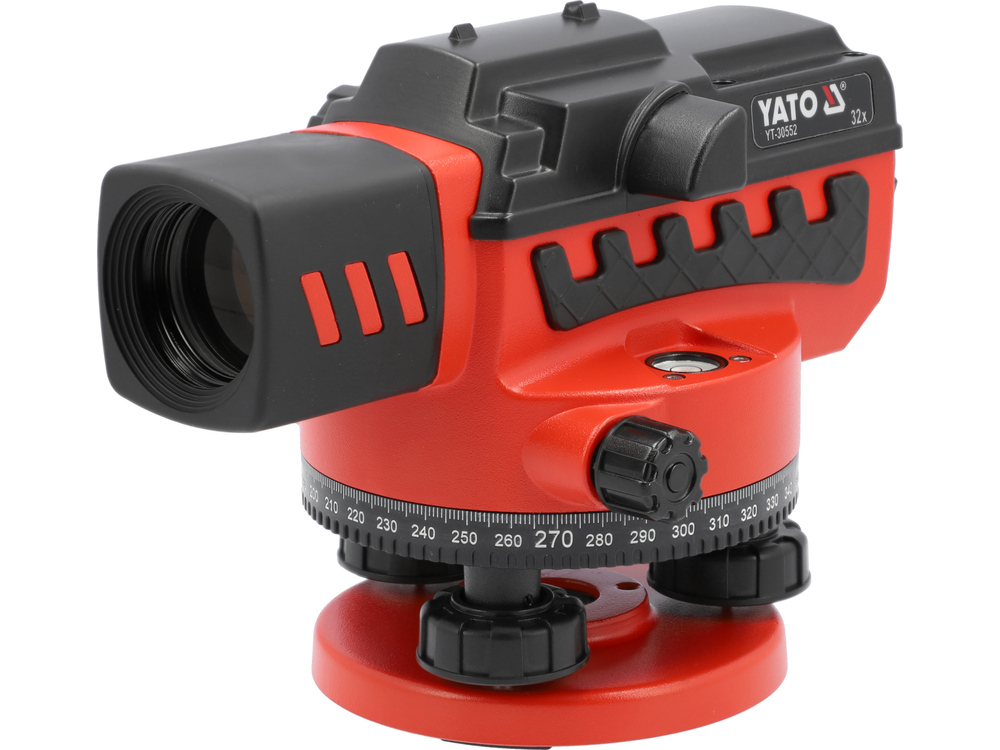

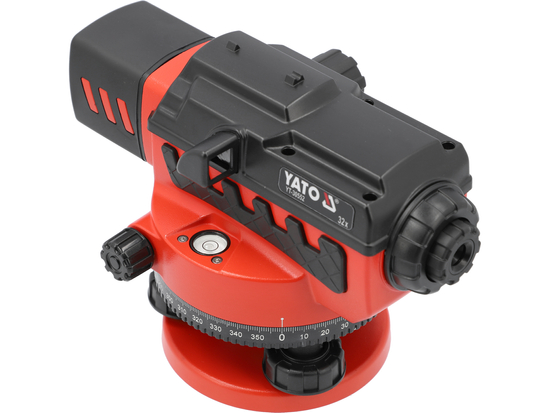

Optical leveller for surveying and construction, complete with tripod and 5 m surveying staff. Factory calibrated, ready to use. Equipped with an IP54-rated housing, which means protection from raindrops and dust in quantities that do not interfere with the unit's operation. High-quality optics, a pneumatically damped compensator and a working range of 100 metres guarantee repeatable, precise operation under optimum conditions.

• Coverage: 100 m (within 1 to 50 metres)
• height measurement accuracy in a single measurement: 1.0 mm/30 m
• deviation per 1 km of double levelling: ± 2.0 mm
• accuracy of the box vial: 8′/2 mm
• pneumatic compensator
• compensator levelling range: ±15′
• image: vertical
• scope magnification: 32 x
• field of vision: 1°20´
• lens diameter: 38mm
• minimum measurement distance: 1m
• multiplication factor: 100, accuracy 0.5''
• pitch, horizontal circle: 1°
• Waterproof: IP54
• Tripod mount: 5/8''
• weight: 1.4kg

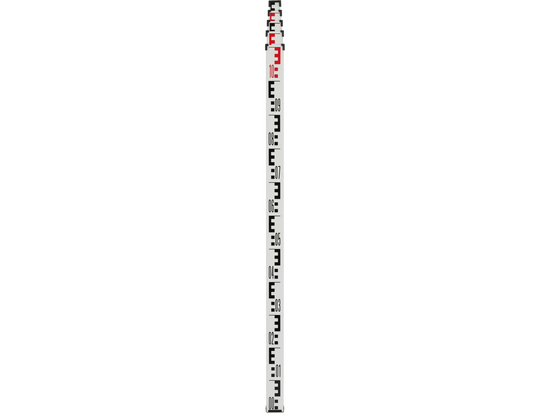

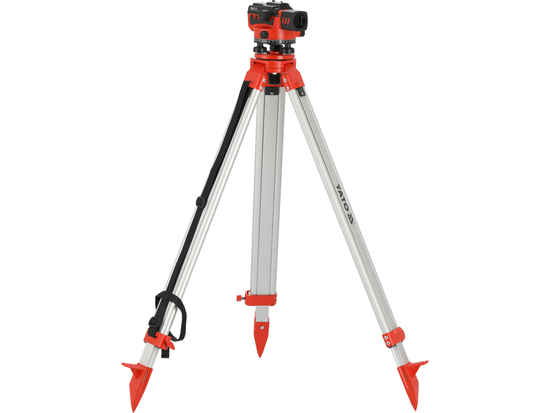

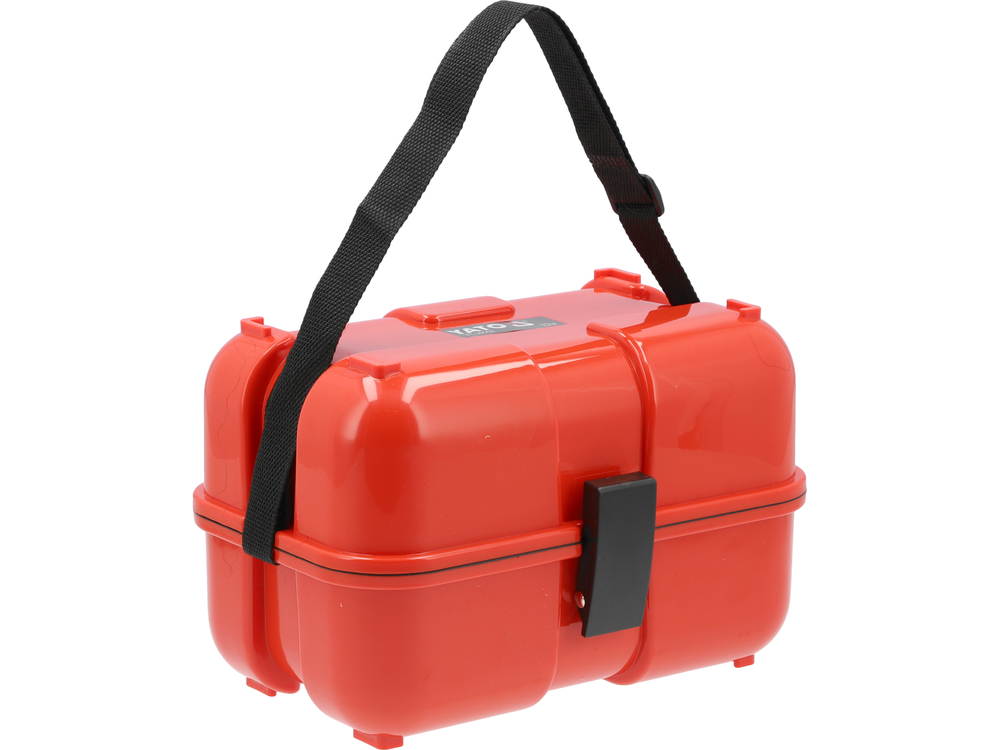

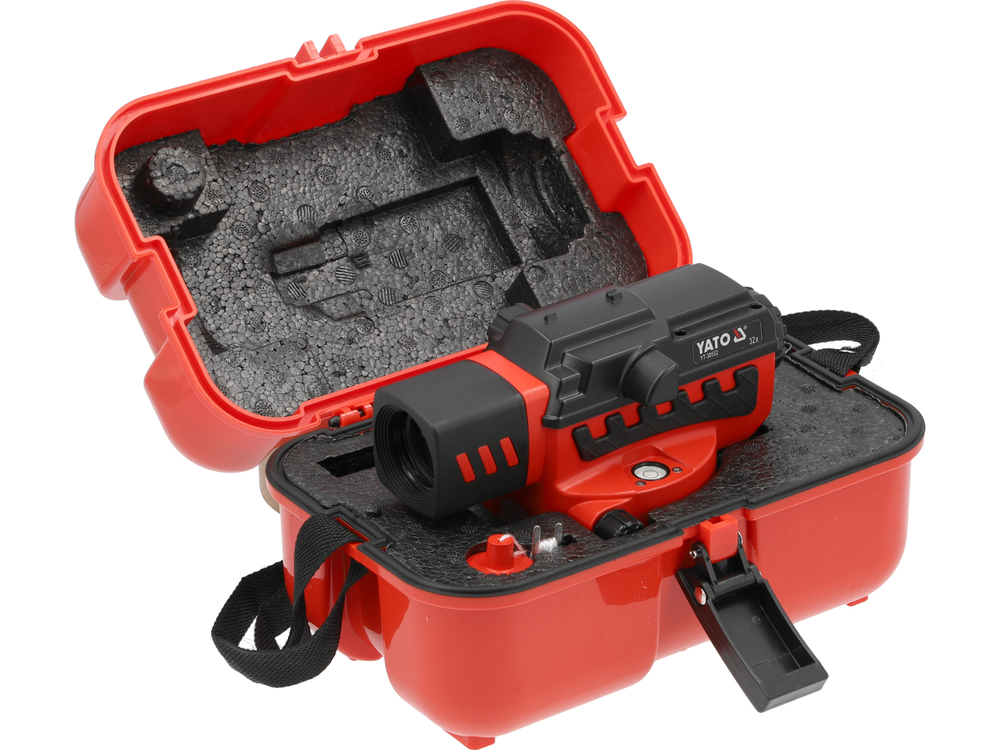

• tripod, surveying staff, shock-absorbing plastic case, plumb bob, allen key, adjustment pin, calibration certificate, instruction manual
