DIGITAL MULTIMETER TRUE RMS LCD 25000
DIGITAL MULTIMETER TRUE RMS LCD 25000
DIGITAL MULTIMETER TRUE RMS LCD 25000
DIGITAL MULTIMETER TRUE RMS LCD 25000
DIGITAL MULTIMETER TRUE RMS LCD 25000
DIGITAL MULTIMETER TRUE RMS LCD 25000
DIGITAL MULTIMETER TRUE RMS LCD 25000

YT-730895

DIGITAL MULTIMETER TRUE RMS LCD 25000

Regular price: / pcs.
192,20 zł
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Buy now, pay in 30 days
Instalment
Official manufacturer's store
Safe shopping
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Alternating voltage
0-750 V a.c.
Direct voltage
0-1000 V d.c.
Alternating current
0-20 A
Direct current
0-20 A
Resistance
0-250 MΩ
Capacity measurement
0-99.99 mF
Frequency measurement
0-10 MHz
Temperature
-20 ~ +1000 ˚C
Duty cycle
1 ÷ 99 %
Continuity test
0-50 MΩ
Conduction test
yes
Diode test
yes
Wartość minimalna pomiaru
yes
Wartość maksymalna pomiaru
yes
Relative value
yes
TRUE RMS
yes
Data Hold
yes
Non-contact AC voltage detection NCV
yes
Dimensions
180x90x50 mm
Material
ABS
Display type
LCD
LED backlight
yes
Display range
25000
Bell ring
yes
Auto measurement range
yes
Sampling frequency
3 times per second
Bar graph
0-100
Auto power off
15 min
Front lighting
no
Low battery indicator
yes
Power supply
battery
Type of battery
2x1.5V; AA
Working temperature range
0~40 ˚C
Operating relative humidity Rh
<75 %
Storage temperature
-10 ~ +50 ˚C
Weight
0.26 kg
Application
electric
Symbol
YT-730895

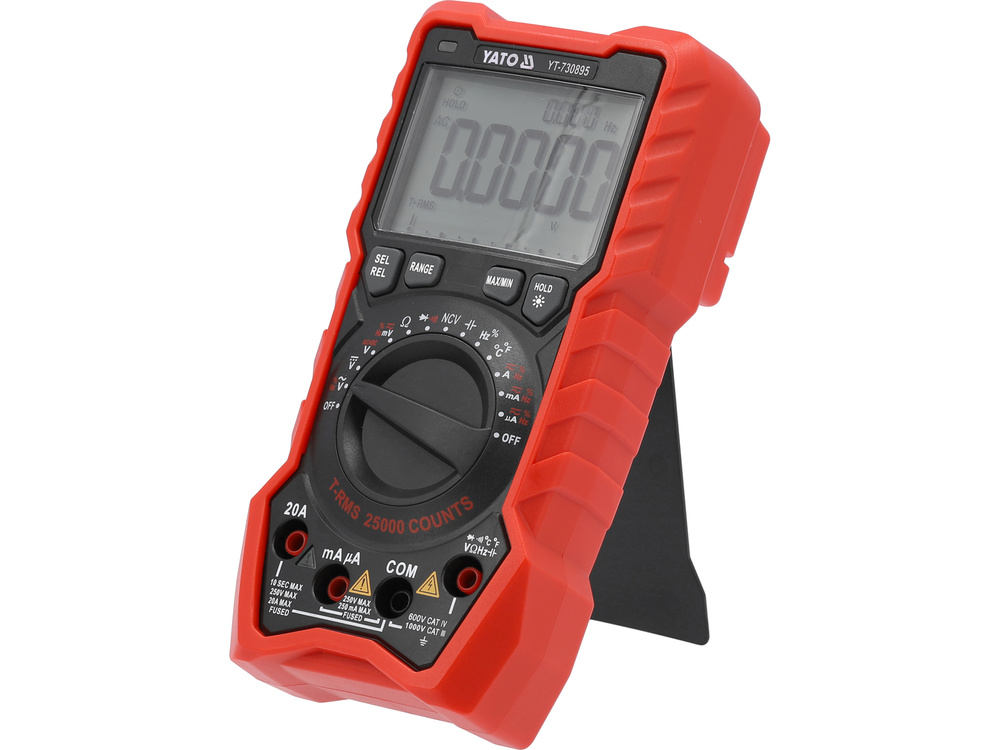

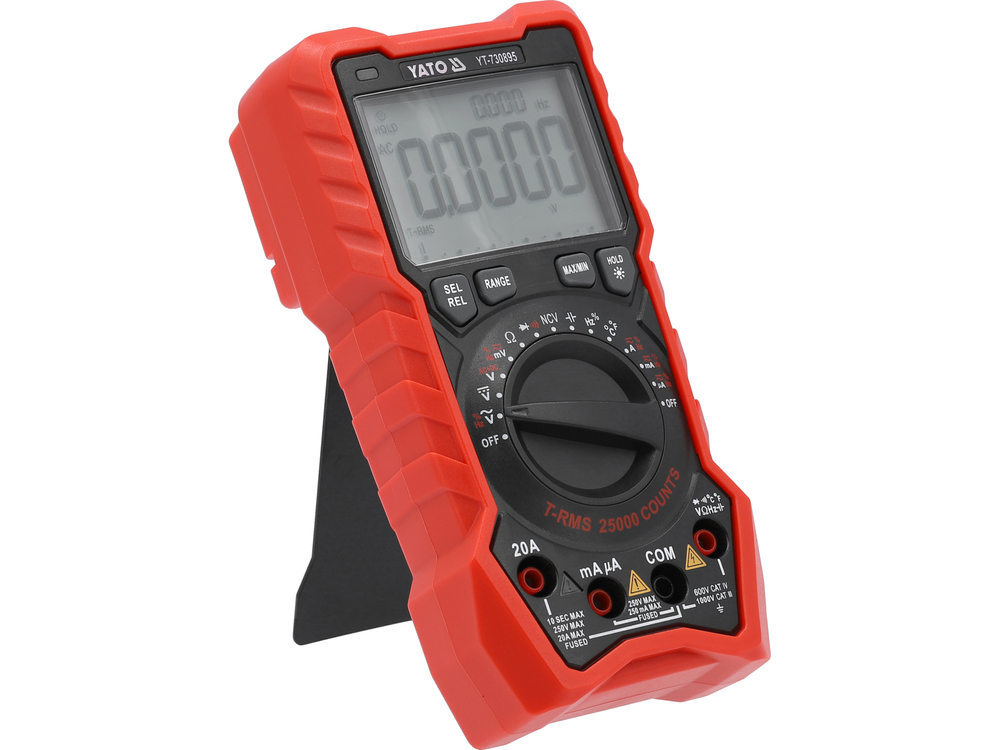

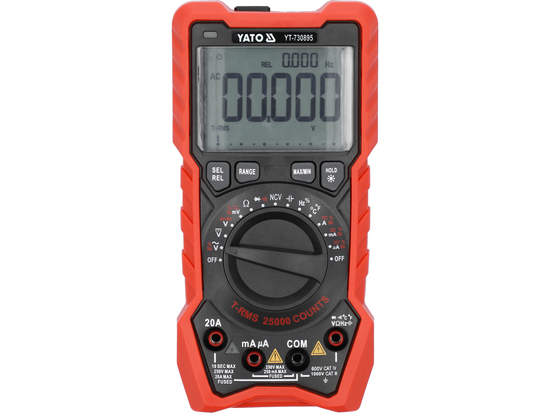

Universal meter with TRUE RMS function and automatic range for each measurement. It counts as many as 25000 digits. Allows you to perform basic and advanced measurements of electrical quantities. The large multifunction LCD display, a number of functions to facilitate measurements, wide measurement ranges, speed of operation and industrial precision will be appreciated by electronic engineers, electricians and home do-it-yourselfers alike. The rugged case is retrofitted with a red PVC holster with a non-slip structure, with dedicated places for measuring probes. The holster reduces the risk of slipping from hands and mitigates the effects of falls. The leads of the measurement probes have silicone insulation, which is flexible and resistant to high temperatures.

Basic measurements:

  • AC voltage measurement: A.C. 0-750V, TRUE RMS (40-1000Hz)
  • DC voltage measurement: D.C. 0-1000V
  • alternating current measurement: A.C. 0-20A, TRUE RMS (40-1000Hz)
  • DC current measurement: D.C. 0-20A
  • resistance measurement: 0-250MΩ
  • diode test:IF 1.8mA,UR 3.2V
  • circuit continuity test: 0-50Ω

Additional measurements:

  • AC+DC voltage measurement : 1-1000V
  • capacitor measurement: 0-99.99mF
  • frequency measurement: 0-10Mhz
  • fill factor measurement: 1-99%
  • temperature measurement: -20 to 1000°C
  • non-contact AC voltage detection: NCV

Measurement accuracy:

Example of accuracy determination for AC voltage measurement. Calculation for the measurement result: 235V

  • Measurement accuracy of YT-730895 meter for this range is : ±(0.3% + 3), resolution 0.1V
  • calculation of measurement error formula: (measurement result x 0.3%) + 3 x resolution
  • calculation: (235 x 0.3%) + 3 x 0.1 = 0.705 + 0.3 = 1.005V

Actual result including measurement error for 235V indication = 235 ± 1.005V

  • Result including measurement error for DC voltage measurement indication: 12V = 12 ± 0.009V
  • result including measurement error for AC current measurement indication: 8A = 8 ± 0.067A

A table with the resolution and accuracy for the measurement can be found in the user's manual.

Functions:

  • TRUE RMS - a meter with this function displays the true rms value of AC voltage/voltage. Unlike averaging meters, devices with true rms show the correct value not only for sinusoidal waveforms, but also for sinusoidal waveforms distorted, such as by higher harmonics, or square or triangular waveforms. A must-have function wherever switching power supplies, motor inverter drives, HVAC systems, etc. appear in a circuit.

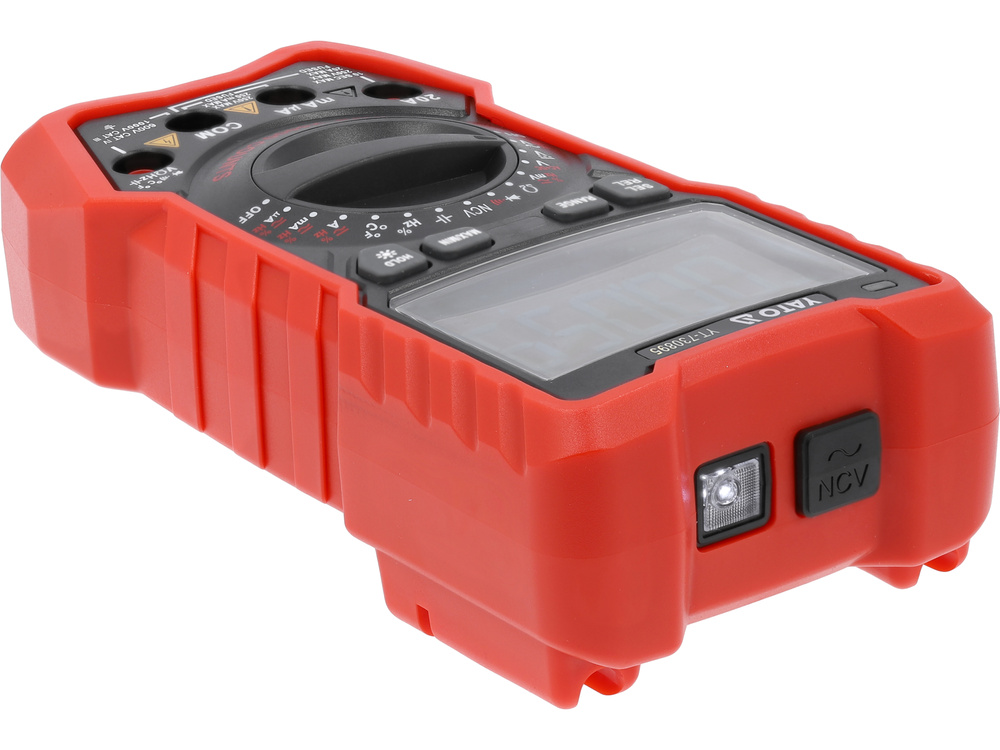

  • NCV - non-contact AC voltage detection by inductive method. The meter detects the presence of voltage in an insulated conductor using the NCV sensor on the face of the device
  • AUTO - automatic adjustment of the measurement range. When measuring unknown values with a meter with manual range adjustment using the dial, take measurements sequentially from the largest range up to the range giving the most accurate result - otherwise you risk damaging the device. On the other hand, in the case of a multimeter with the AUTO function, you only need to make one measurement and the meter will automatically find the optimal range. The meter starts by default in AUTO mode
  • RANGE - manual change of the measurement range. A useful function when checking many of the same components with a known value, such as a series of resistors. Manual setting of the range will shorten the time of such measurements significantly
  • REL - using the function during a measurement will reset the display to zero and take the value seen before the display as the reference level. The next measurement will show the difference between the measured value and the retained reference value
  • SEL - changing the measurement mode, e.g. from AC to DC voltage measurement
  • MAX/MIN - retaining on the display the maximum or minimum value from the current measurement
  • HOLD - retaining the currently measured value on the display

Additional information:

  • LCD display, maximum displayed result: 25000
  • backlighting of the screen
  • sound and light signal in the test of circuit continuity for resistance below 50Ω
  • possibility to enable diode and circuit continuity tests separately
  • measuring probes with a length of 14.5 cm
  • cable length including probes: 97 cm
  • diameter of the cable including insulation: 3.5 mm

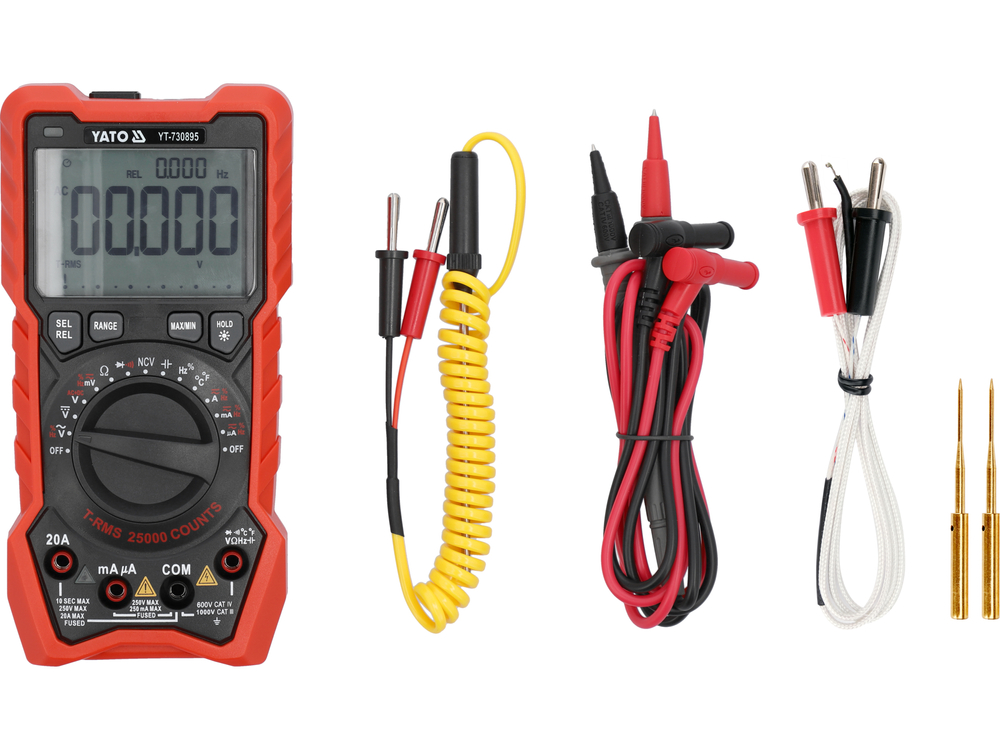

  • immersion probe for temperature measurement
  • point probe for temperature measurement
  • construction with overload protection
  • ABS plastic housing
  • automatic shutdown of the meter after 15 minutes of inactivity
  • possibility to disable the automatic shutdown mode
  • low battery indicator
  • warning light at the sockets for current measurement

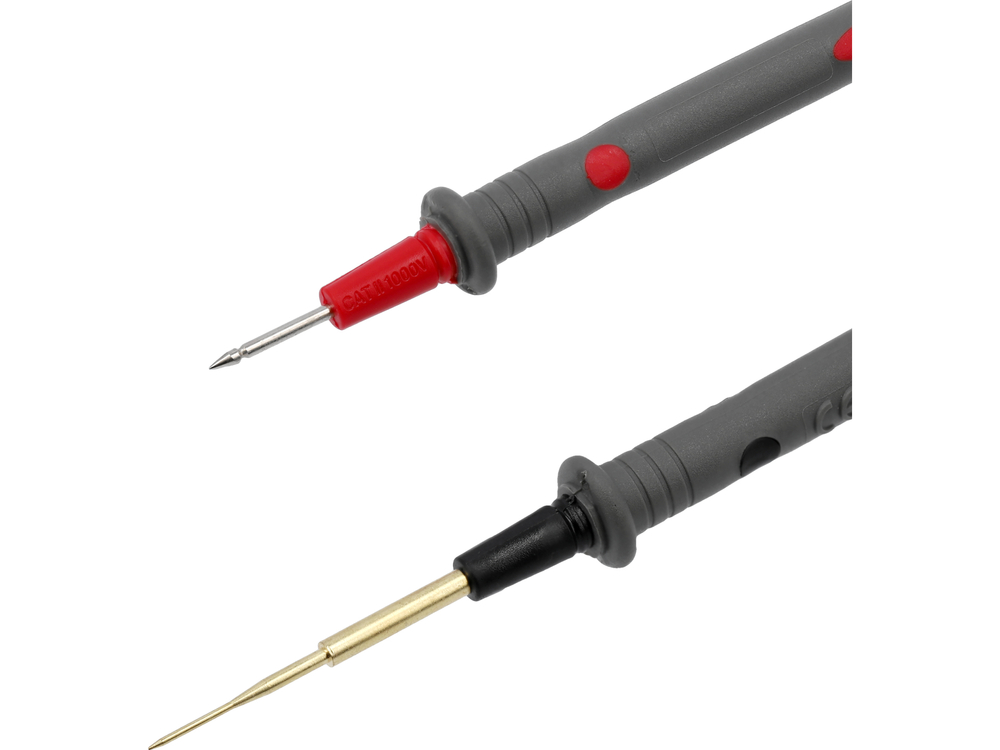

  • needle caps for measurements of small SMD components

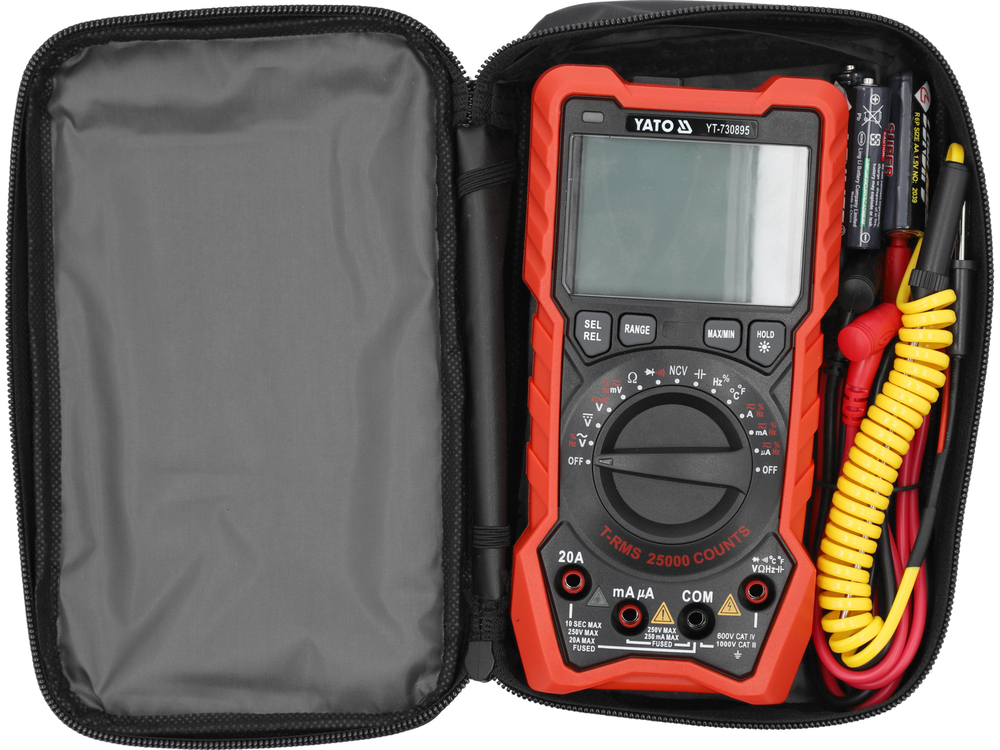

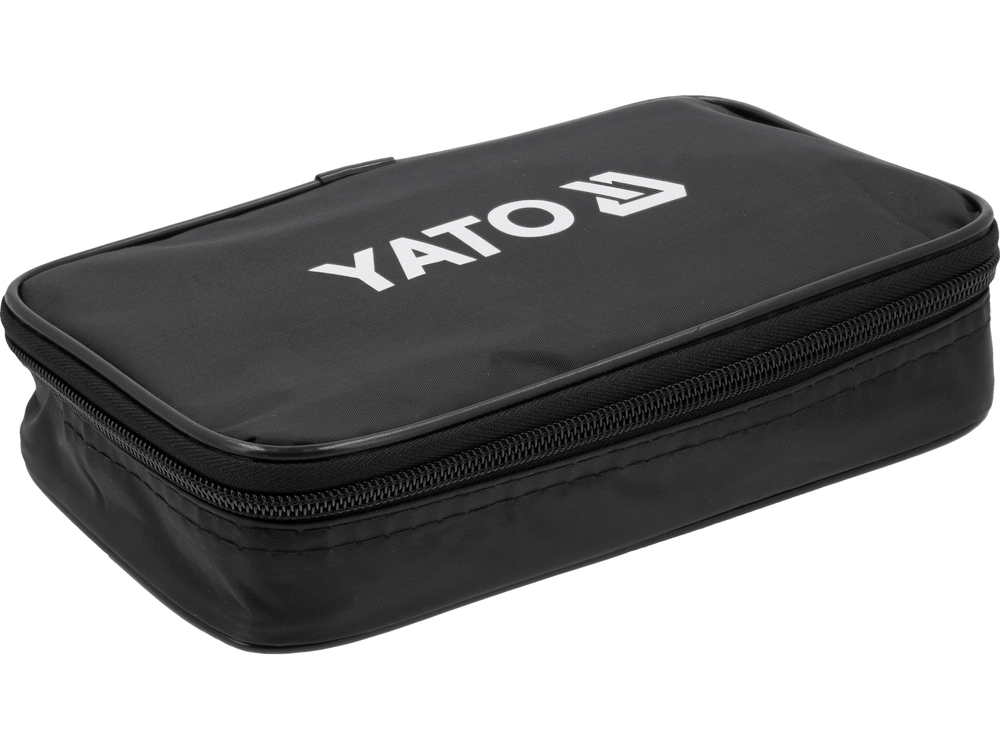

  • soft case with zipper
  • power supply: three 1.5V(AA) batteries
