YT-85851
WALKING TRACTOR
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Power
9 kW
12.24 KM
Engine (motor) capacity
420 cm³
Rotations
3600 min⁻¹
Power take-off speed (PTO)
990 min⁻¹
Fuel type
unleaded petrol E10
Fuel tank capacity
6.5 l
Oil type
SAE 15W-40 (engine), GL-5 SAE 80W-90 (gear)
Oil tank capacity
1.1 l
Gearbox
3 forward gears, 2 reverse gears
Coupling type
arid, with differential lock
Boot type
manual, electric
Drive type
handbook
Voltage
12 V d.c.
Battery type
lead-acid
Battery capacity
6500 mAh
Engine (motor) type
silnik LONCIN
Ignition plug type
F7RTC
Lubrication system
oil bath
Cooling
air
Steering wheel
adjustable in height and laterally, with 180° adjustment for complete control of the machine
Wheels
yes
Wheel quantity
2
Wheel type
pneumatic
Wheel diameter
500 mm
Cylinders number in engine (motor)
1
Strokes number in engine (motor)
4
Acoustic pressure
85.8 ± 3.0 dB(A)
Acoustic power
104.6 ± 2.23 dB(A)
Vibrations
5.91 ± 1.5 m/s²
Weight
110 kg
Compatible with
YT-85860, YT-85861, YT-85862, YT-85863, YT-85864, YT-85865, YT-85866, YT-85867, YT-85868, YT-85869, YT-85870, YT-85872, YT-85873, YT-85874, YT-85875, YT-85876, YT-85877, YT-85878, YT-85880, YT-85881
Symbol
YT-85851
Reliability in every inch

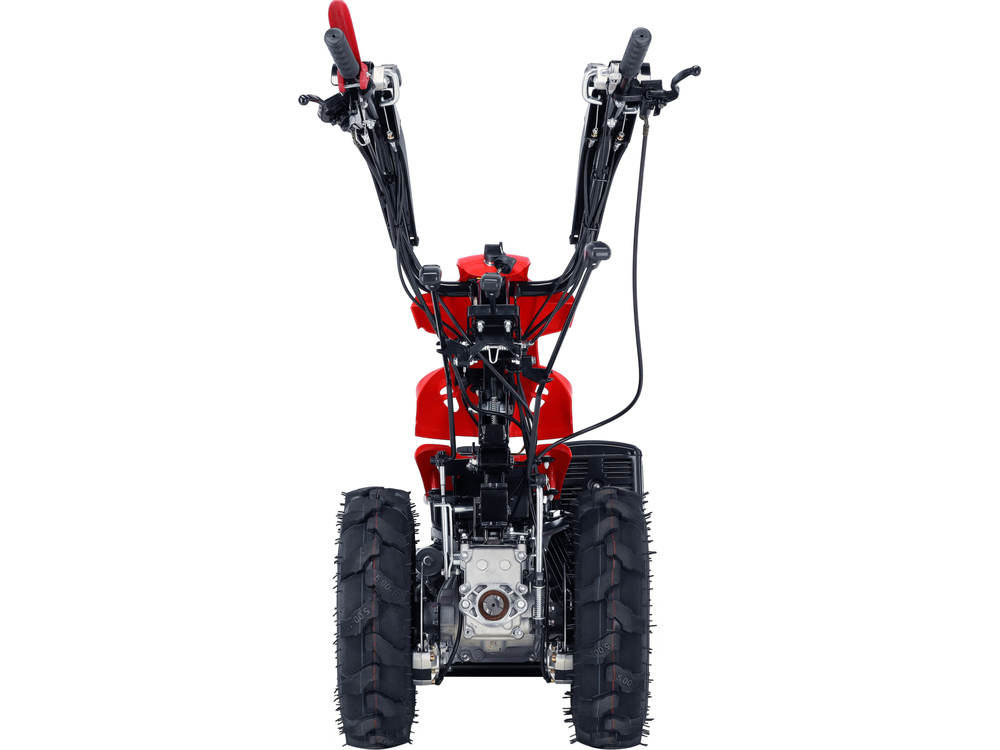

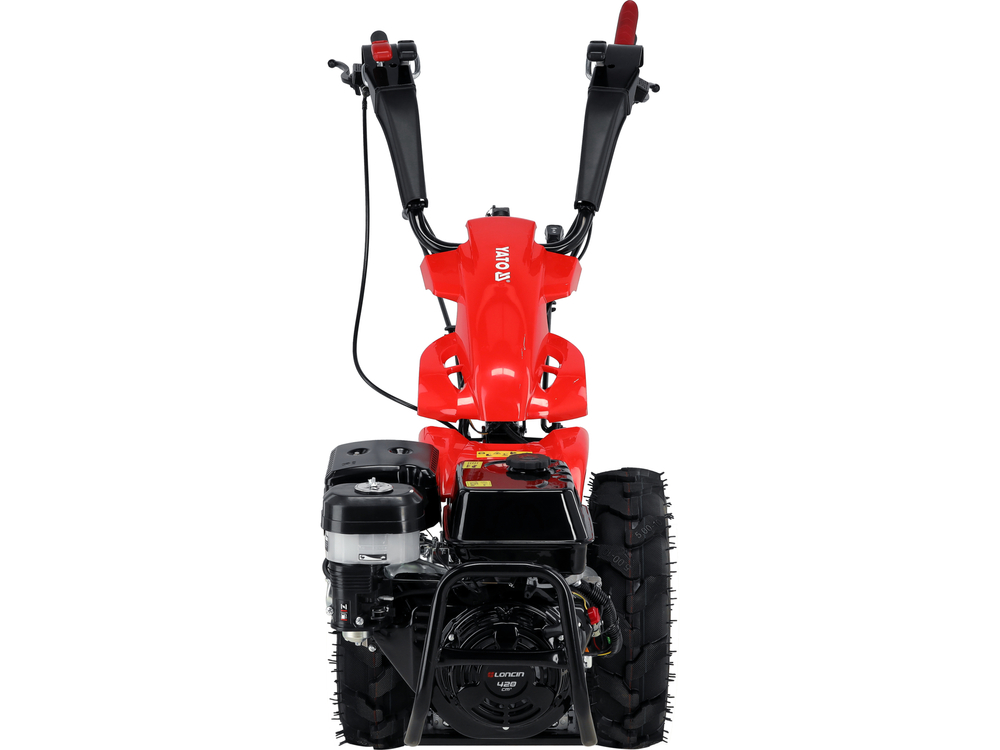

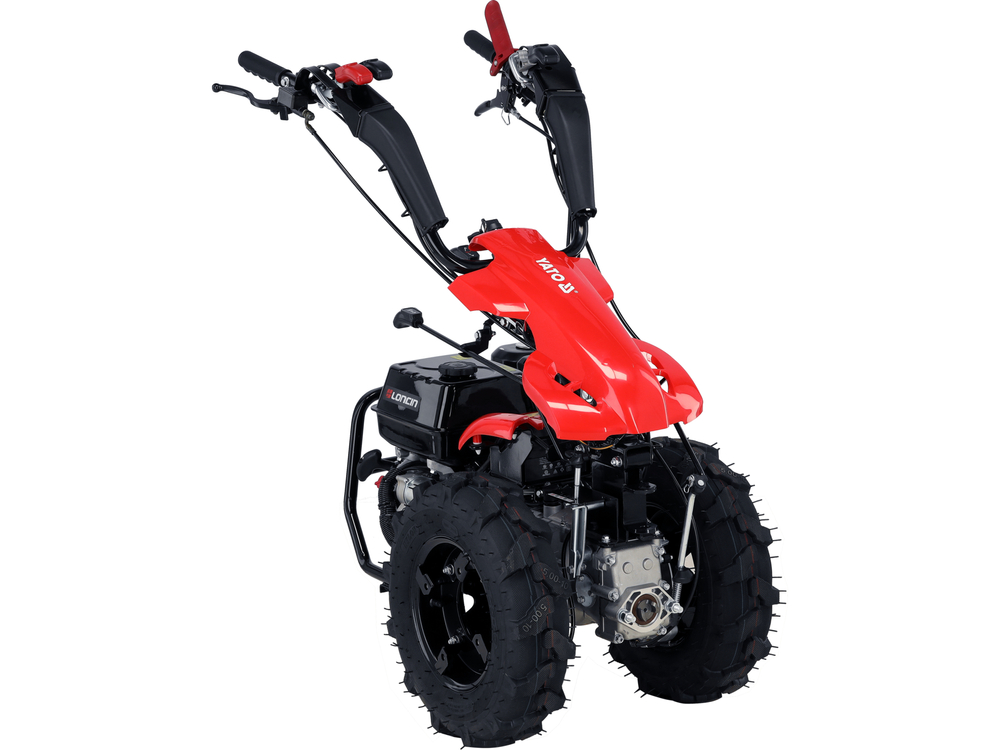

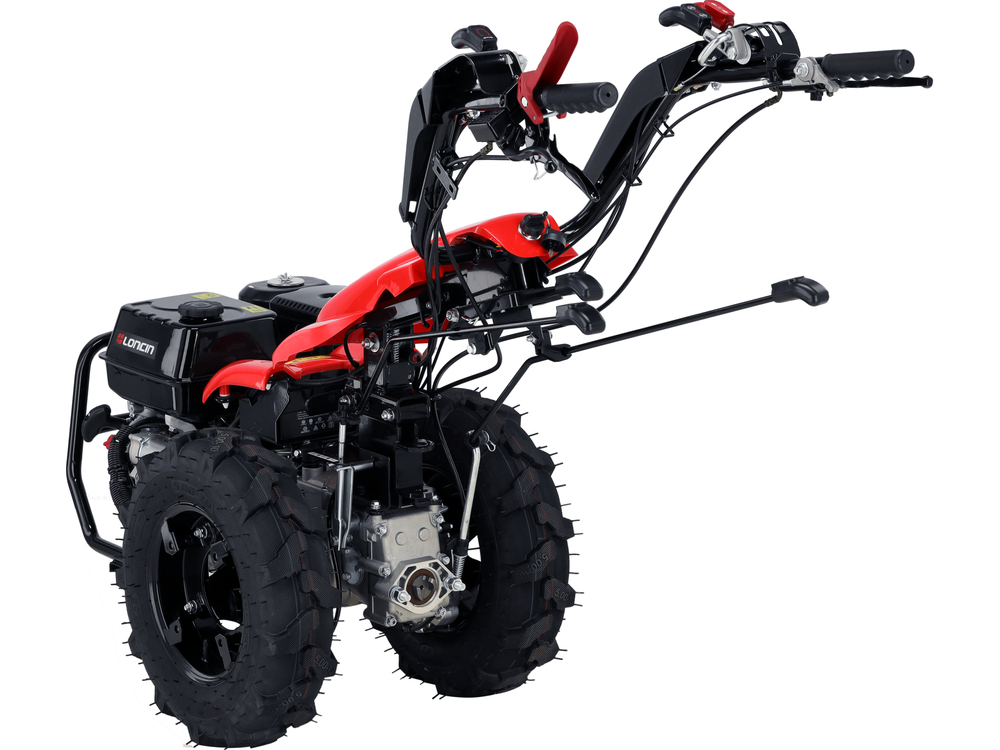

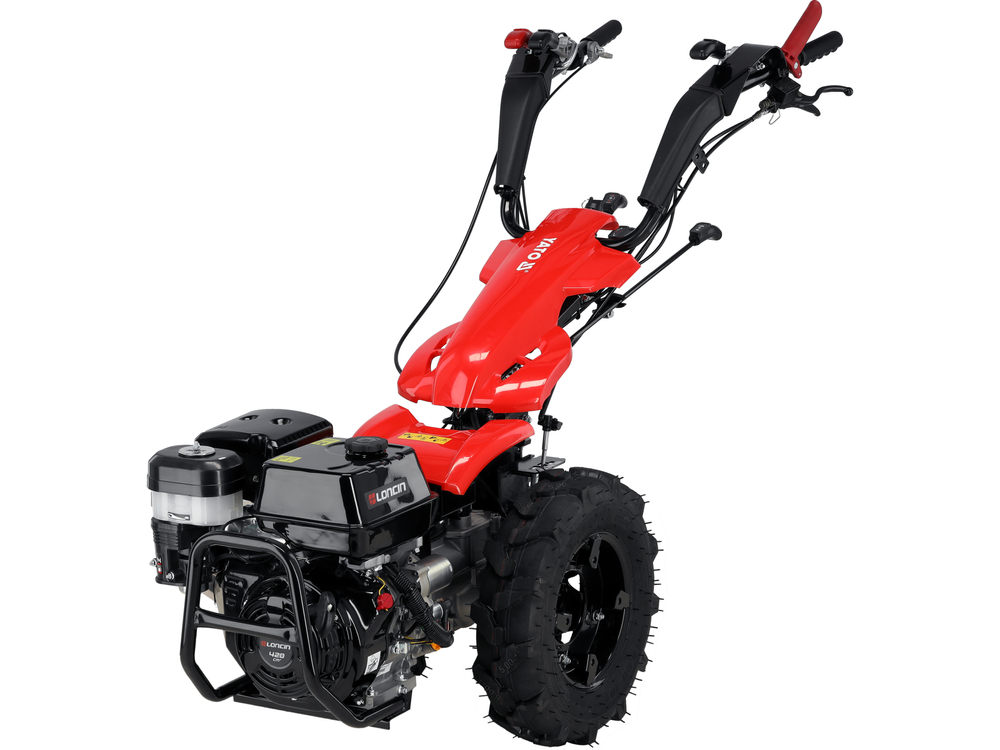

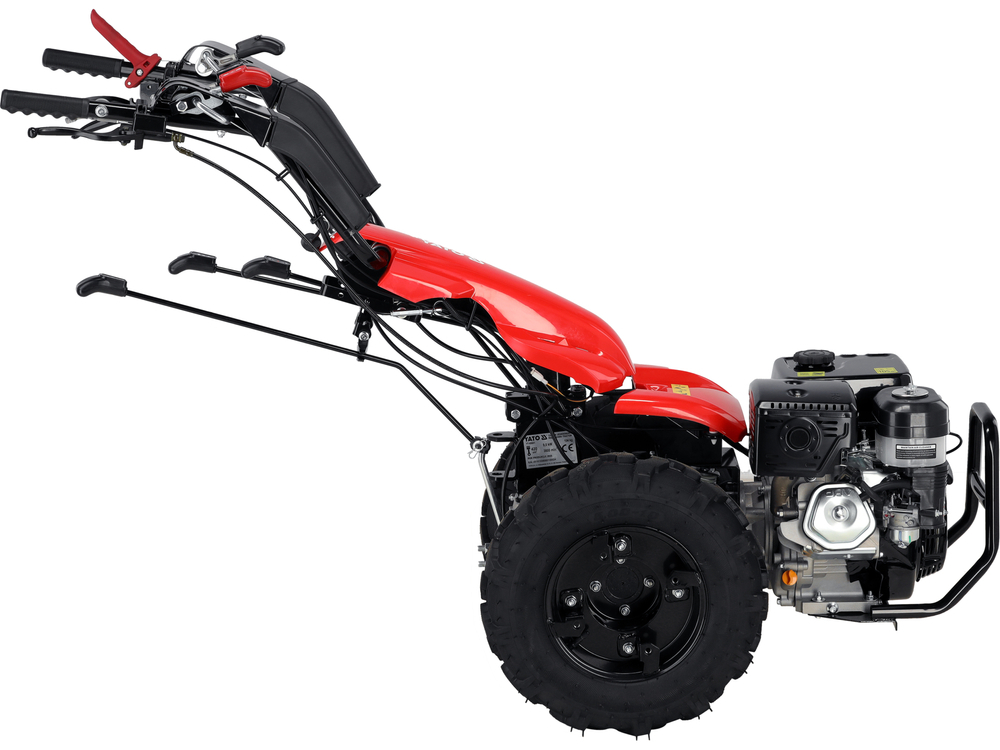

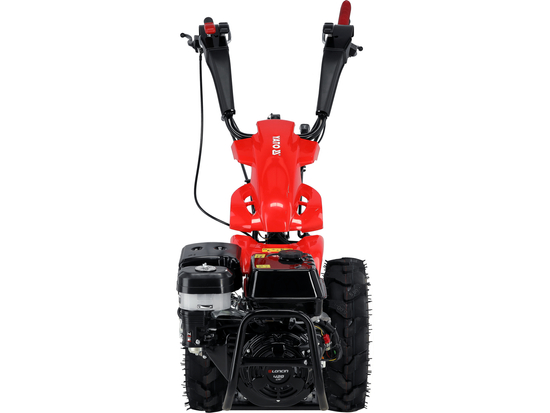

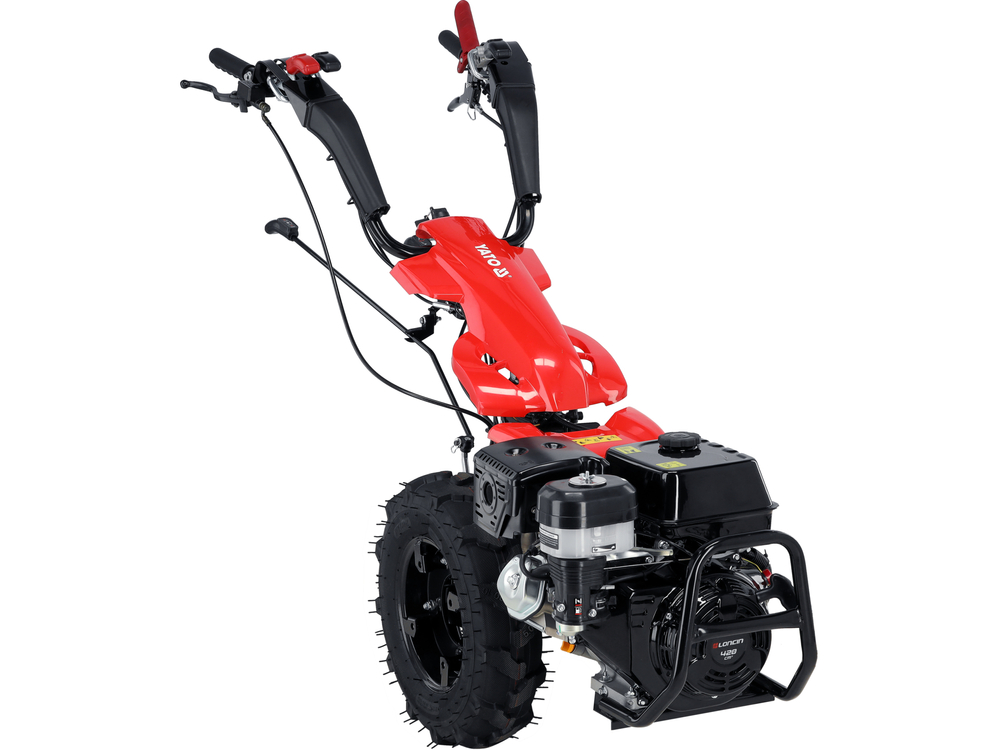

The single-axle tractor YT-85851 is a powerful tool designed for heavy work. Equipped with a 420 cm3 engine, it ensures reliability and comfort even in the most challenging conditions.
Reliability and efficiency
- Reliable agricultural machine perfect for various tasks on the farm, garden, and green areas
- Solid construction and modern technological solutions
- Efficiency up to 3.2 hours of work on a full fuel tank for long sessions
- Efficient and comfortable work even in the most difficult terrain conditions
- Gear drive to all wheels and direct power transmission for excellent traction and durability

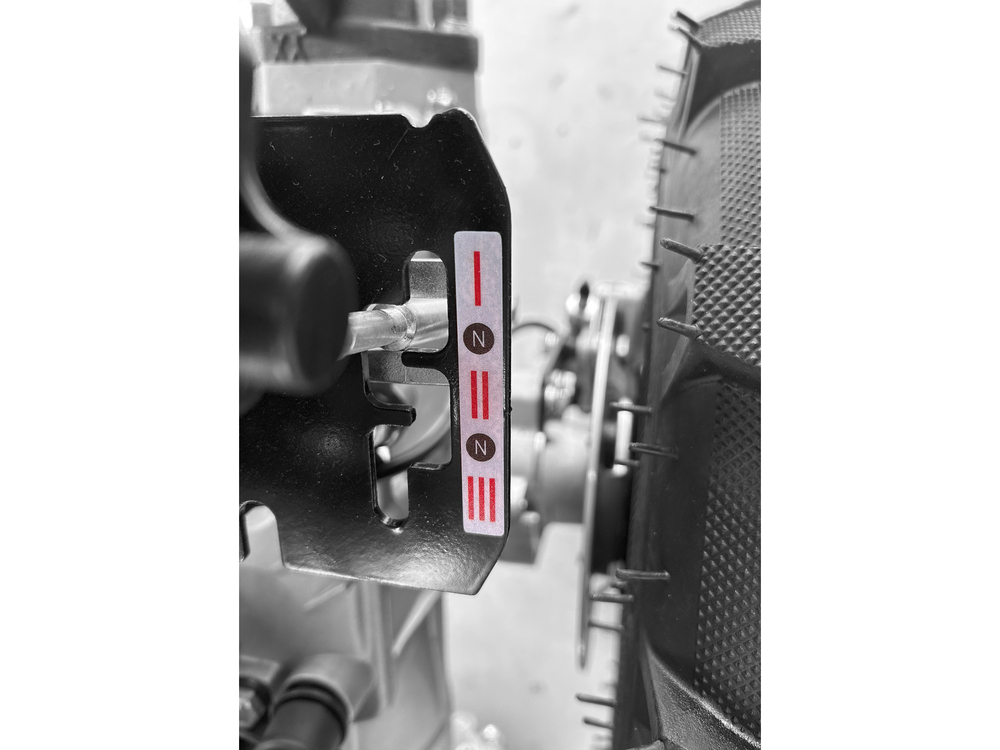

- 3 forward gears and 2 reverse gears gearbox, allowing precise speed adjustment for the work being performed

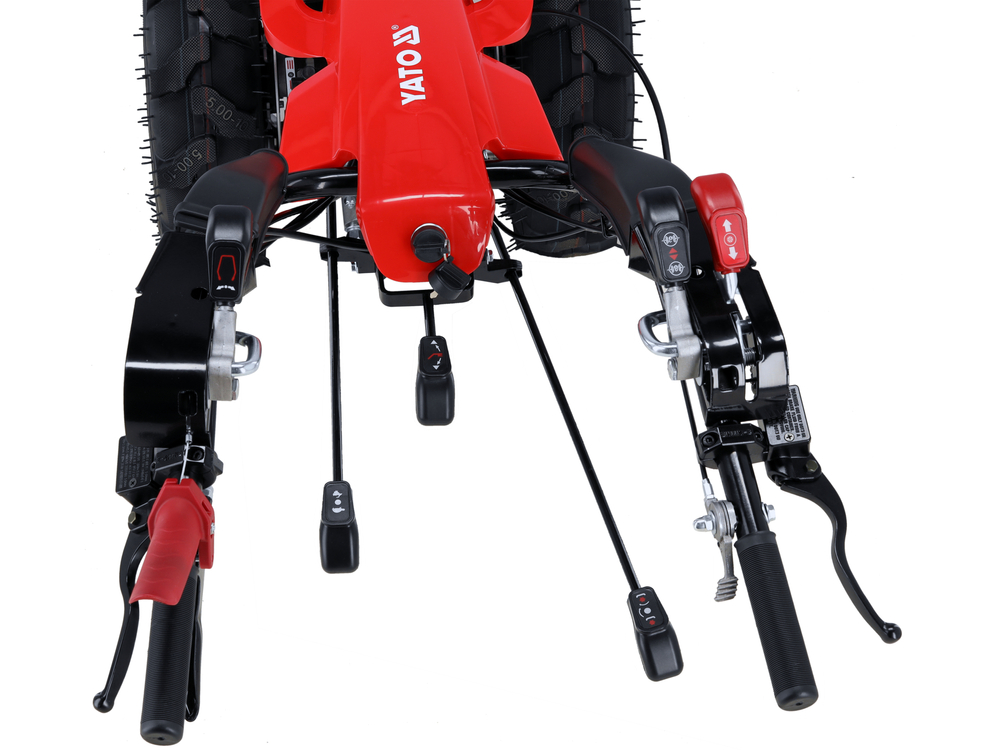

- Steering wheel with height and angle adjustment up to 180° for full control and ergonomics
- Oil bath lubrication system ensuring long engine life
- Dry clutch with differential lock for better traction and stability

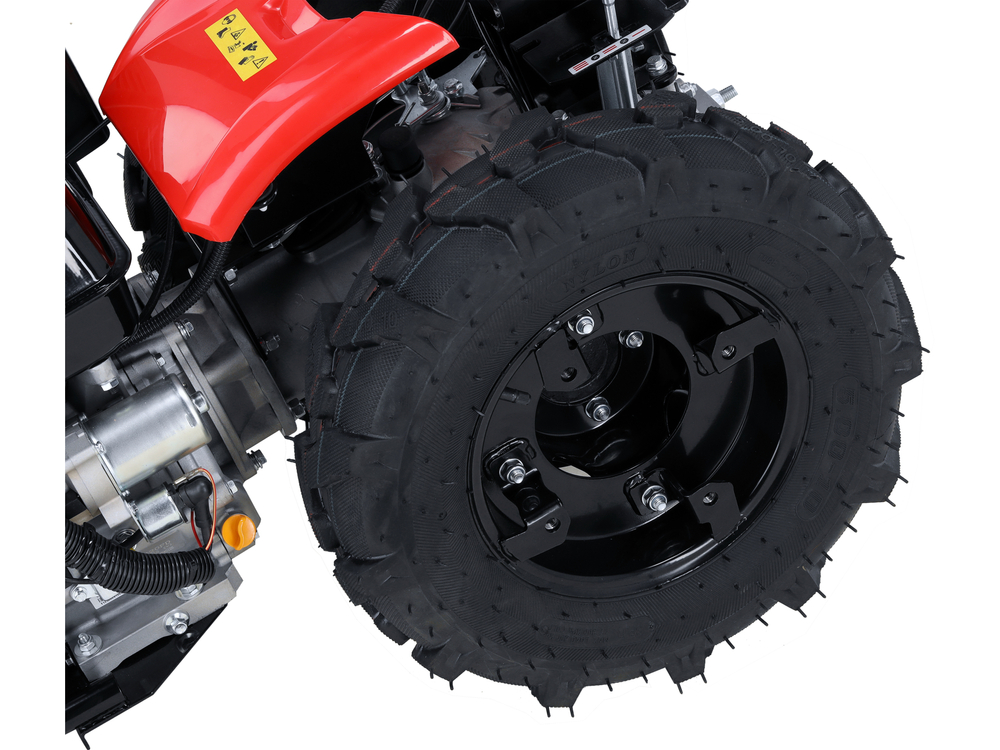

- Durable 20" pneumatic wheels resistant to demanding terrain conditions
- Power steering for easier maneuvering and increased work comfort
Professional applications
Solid construction

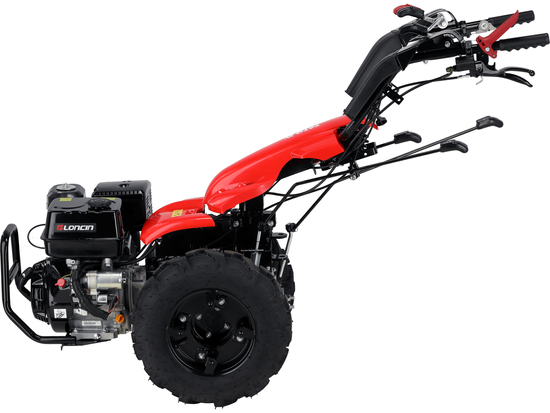

Strong LONCIN engine
Agricultural machine
Wide compatibility
Detailed technical data and parameters:

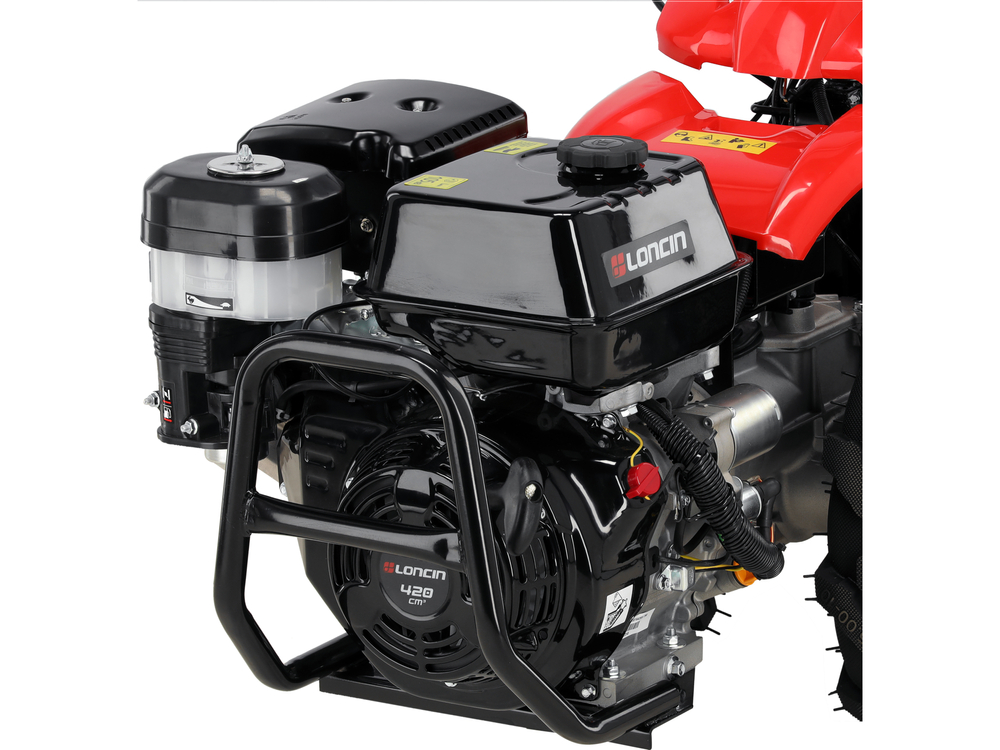

- Engine: LONCIN G420FD, four-stroke, 420 cm3
- Engine power: 9 kW (about 12.24 HP)
- Maximum torque: 3600 rpm
- Start: manual and electric (6.5 Ah, 12 V lead-acid battery)
- Fuel tank capacity: 6.5 l (unleaded gasoline E10)
- Oil pan capacity: 1.1 l (engine oil SAE 15W-40)
- Transmission oil type: GL-5 SAE 80W-90
- Transmission: 3 forward gears (1.18 / 2.76 / 12.67 km/h) and 2 reverse gears (1.24 / 2.91 km/h)

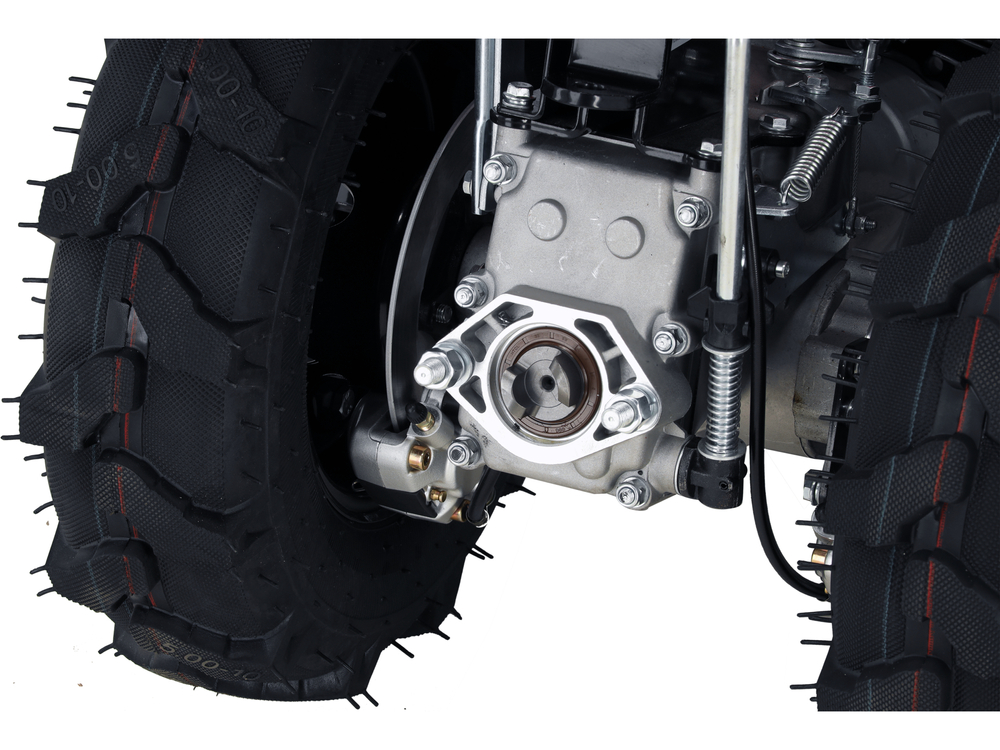

- Power take-off shaft (PTO): 990 rpm at 3600 rpm engine speed
- Dimensions: 104 × 61.5 × 77.5 cm
- Weight: 120 kg (gross)
