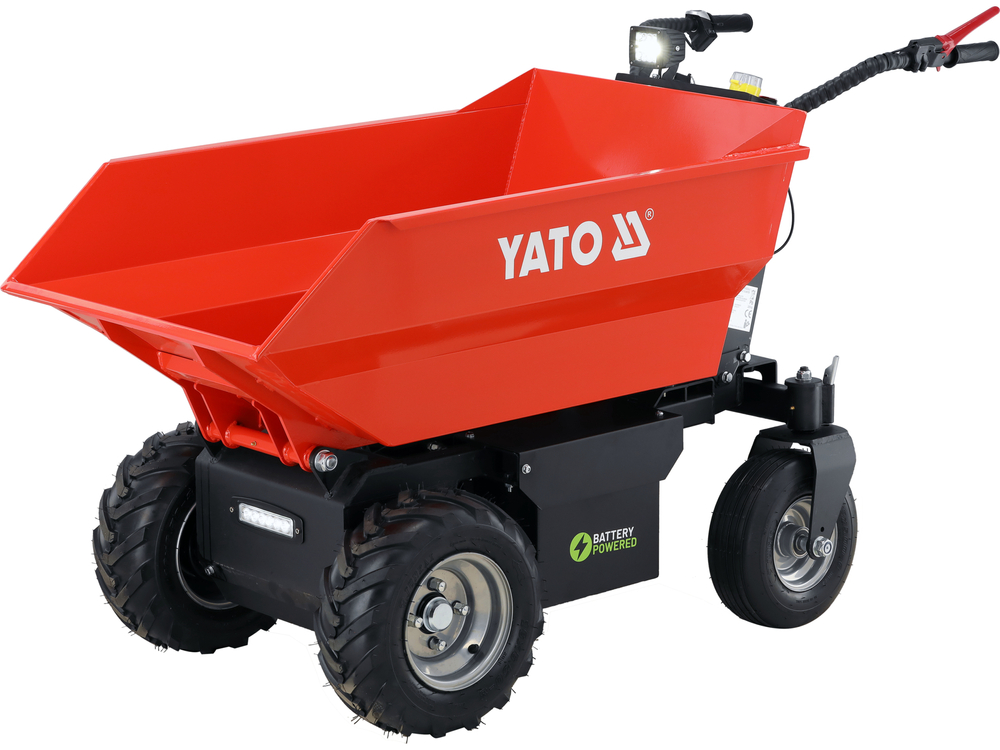

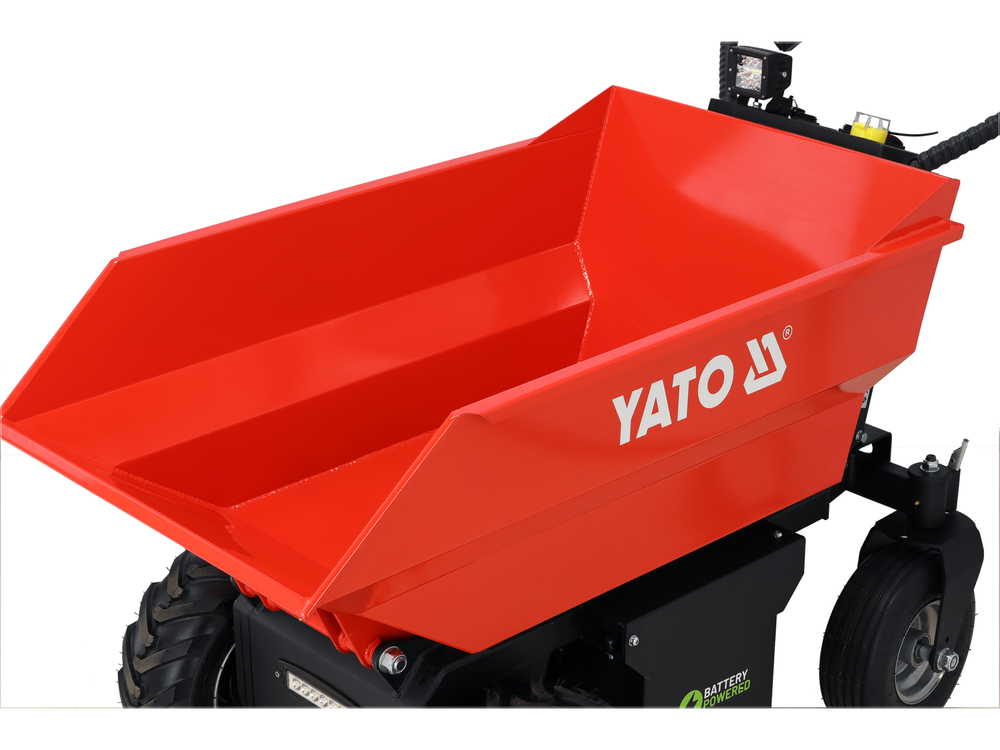

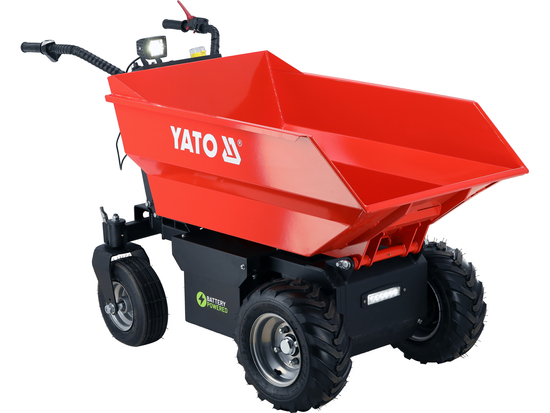

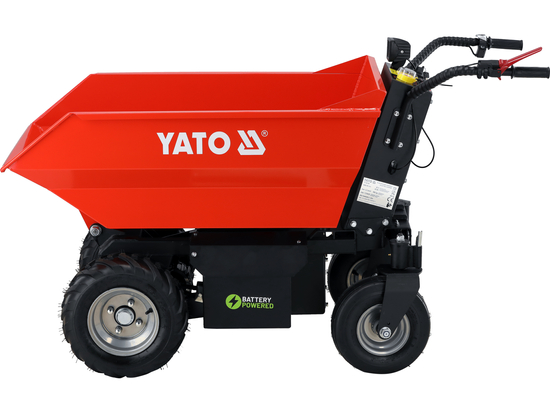

ELECTRIC DUMP TRUCK 500 KG, 48V 32AH, 1000W

YT-86106

Name: ELECTRIC DUMP TRUCK 500 KG, 48V 32AH, 1000W
Brand: Yato
Price: 7195.50 PLN
Availability: OutOfStock

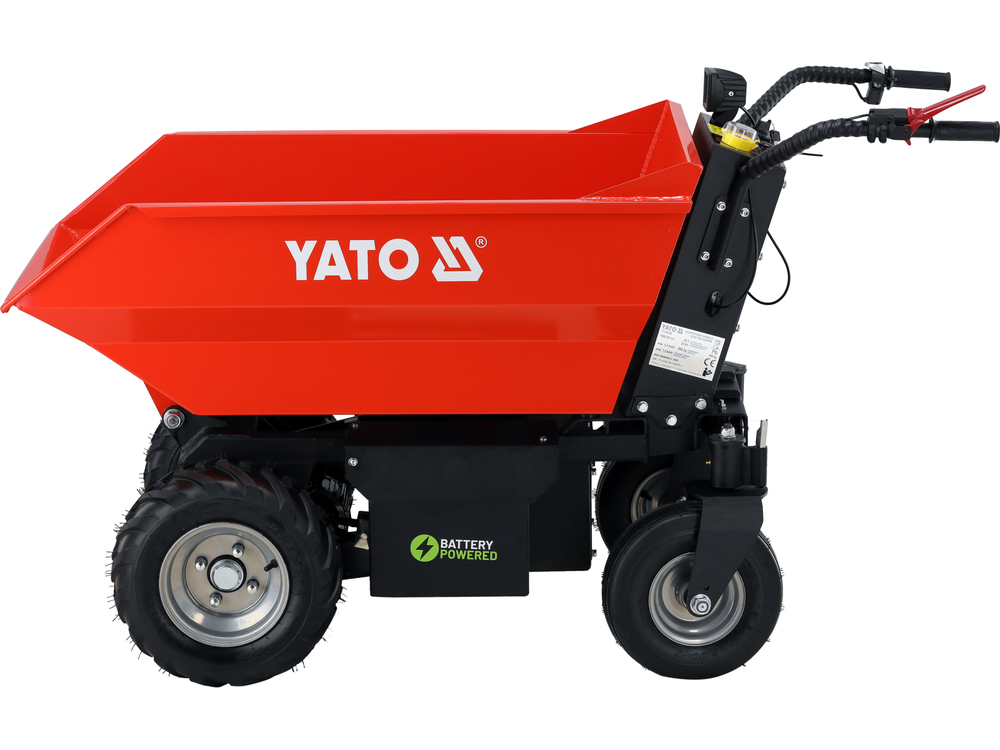

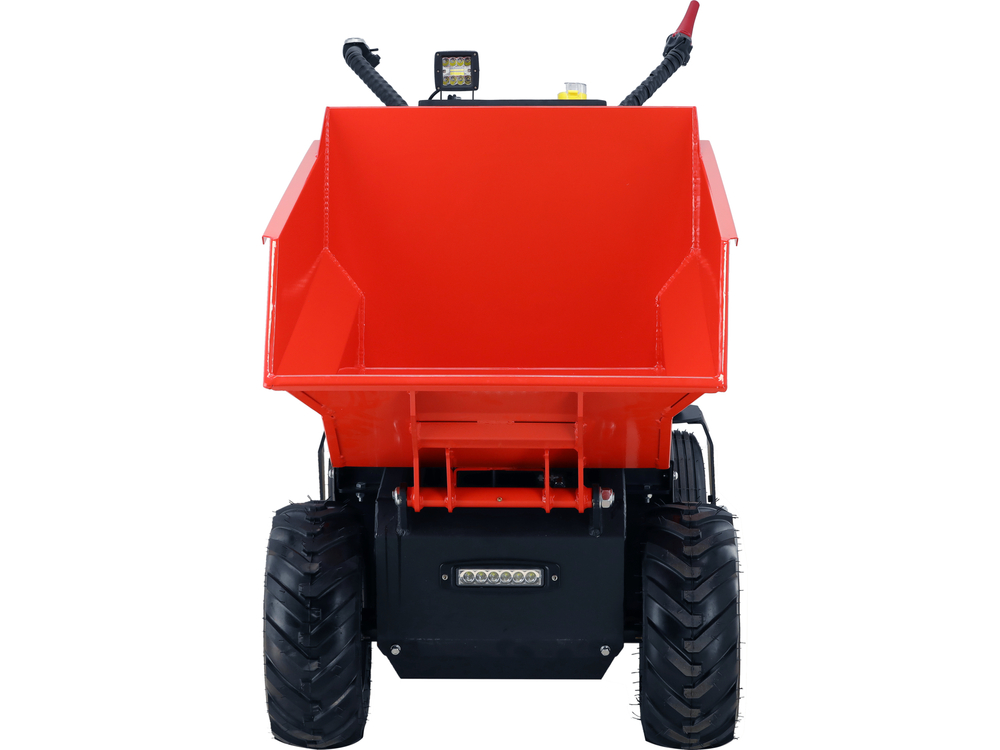

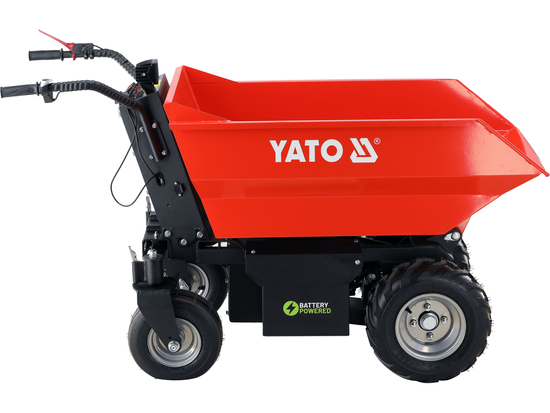

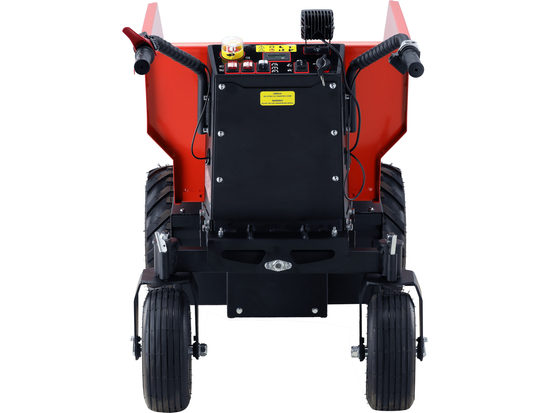

ELECTRIC DUMP TRUCK 500 KG, 48V 32AH, 1000W

+ Add to compare Add to shopping list

Brand

Yato

Entity responsible for this product in the EU

TOYA S.A.More

Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl

Series

GRF

Power

1000 W

Battery type

lead-acid

Voltage

48 V d.c.

Battery capacity

32000 mAh

Charging time

6-7 h

Working time

8-10 h

maximum load

500 kg

Tipping method

hydraulic power unit (HPU)

Max. speed

5.3 km/h

Max. reversing speed

1.5 km/h

Oil type

AW 46

Oil tank capacity

1.5 l

Engine (motor) type

brushless

Casing material

metal

Dimensions

1726x769x1068 mm

Wheel diameter

front: 16" (406 mm) x2, rear: 13" (330 mm) x2

Work area lighting

yes

Display type

LCD

LED lamp power

30 W

Protection grade

IPX4

Acoustic pressure

85.2 ± 3.0 dB(A)

Acoustic power

64.5 ± 3.0 dB(A)

Vibrations

2.24 ± 1.5 m/s²

Weight

208 kg

Application

construction work (transport of loose materials, bricks, concrete blocks), warehouse work (transport of heavy loads in confined spaces),

Application contd

Horticulture and agriculture (transport of soil, fertilisers, tools), use in urban areas (delivery of goods in low emission areas)

Symbol

YT-86106

Ecological transport and tipper in one

The electric construction vehicle YT-86106 is an indispensable transport device on construction sites and wherever fast and efficient movement of loads is important - also in confined spaces.

Wide application:

Thanks to the ecological direct current motor and hydraulic tipper, the device will work great:

in construction work (transport of bulk materials, bricks, concrete blocks);
in warehouse work (transporting heavy loads in confined spaces);
in gardening and agriculture (loading soil, fertilizers, tools);
in urban transportation and logistics (deliveries in low emission zones).

Ecological
solution

Professional
applications

Direct current
motor

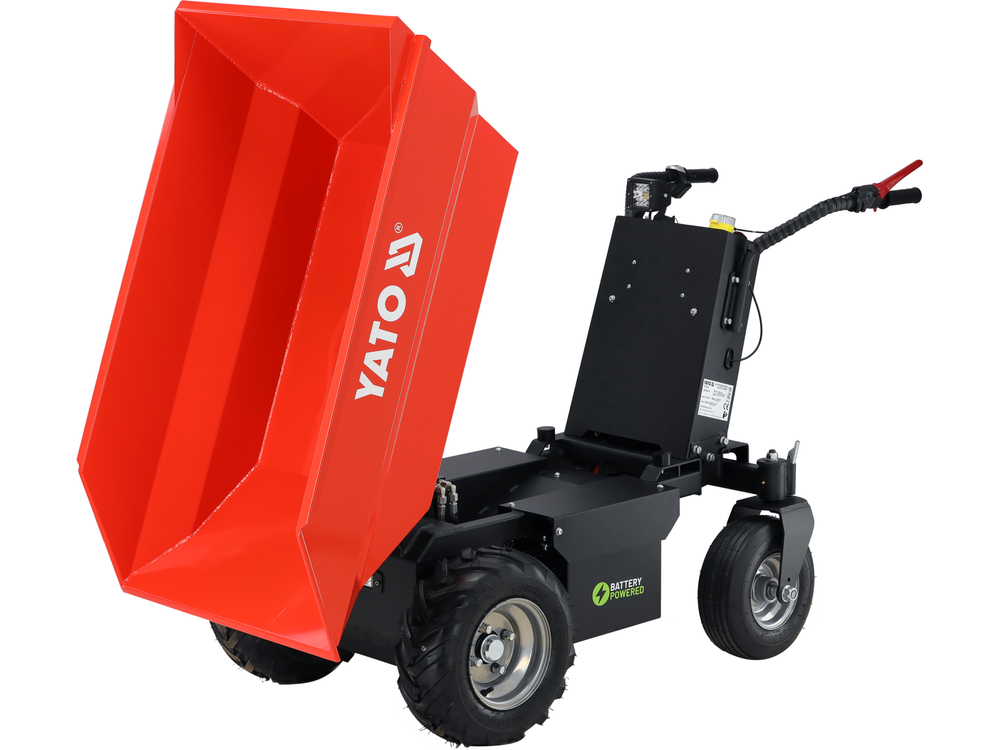

Tipper
function

Workplace
lighting

Technical details:

Brushless direct current motor with power of 1000 W
48 V d.c. lead-acid battery, 32 Ah
Operating time on one charge: 8-10 h

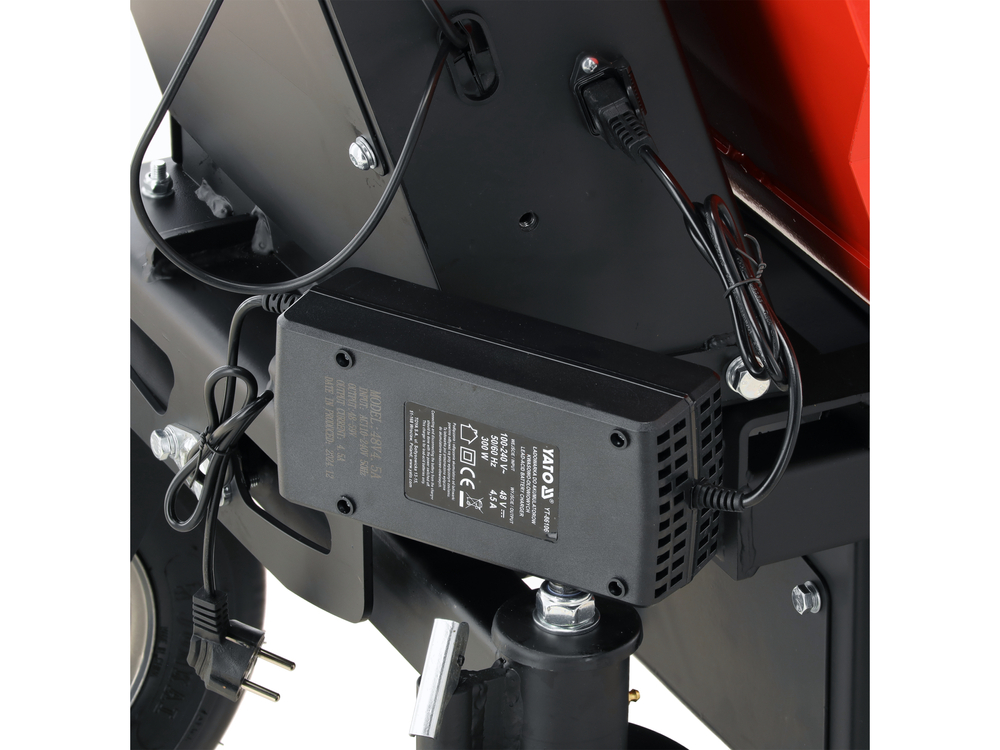

Charging time: 6-7 h
Max. driving speed: 5.3 km/h (1.5 km/h in reverse)
Maximum load capacity: 500 kg

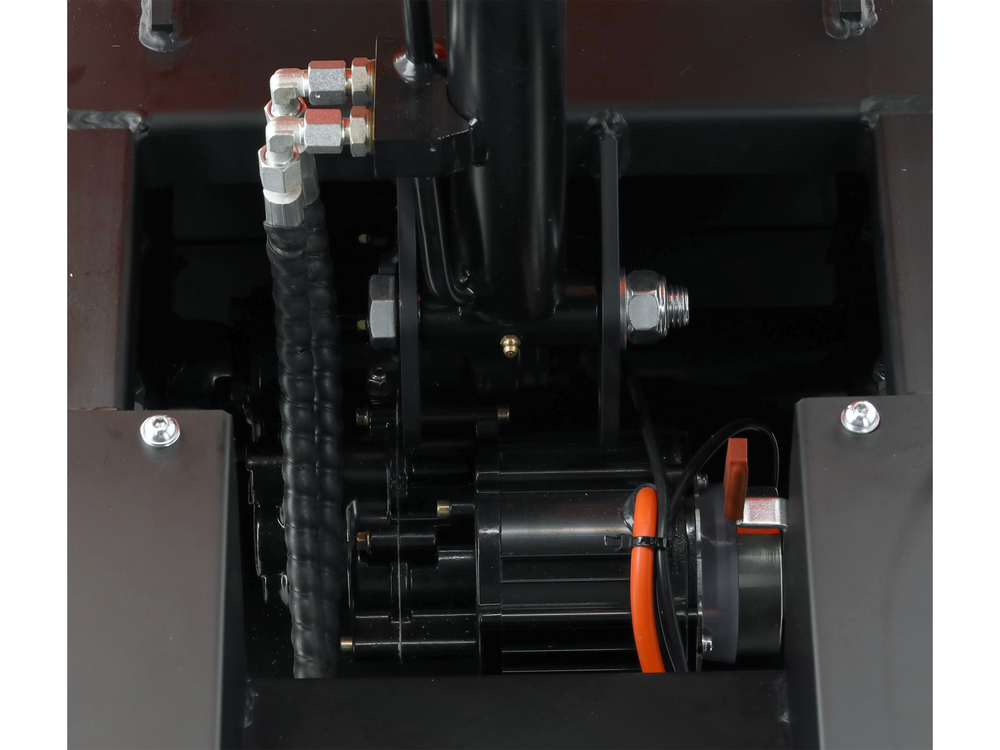

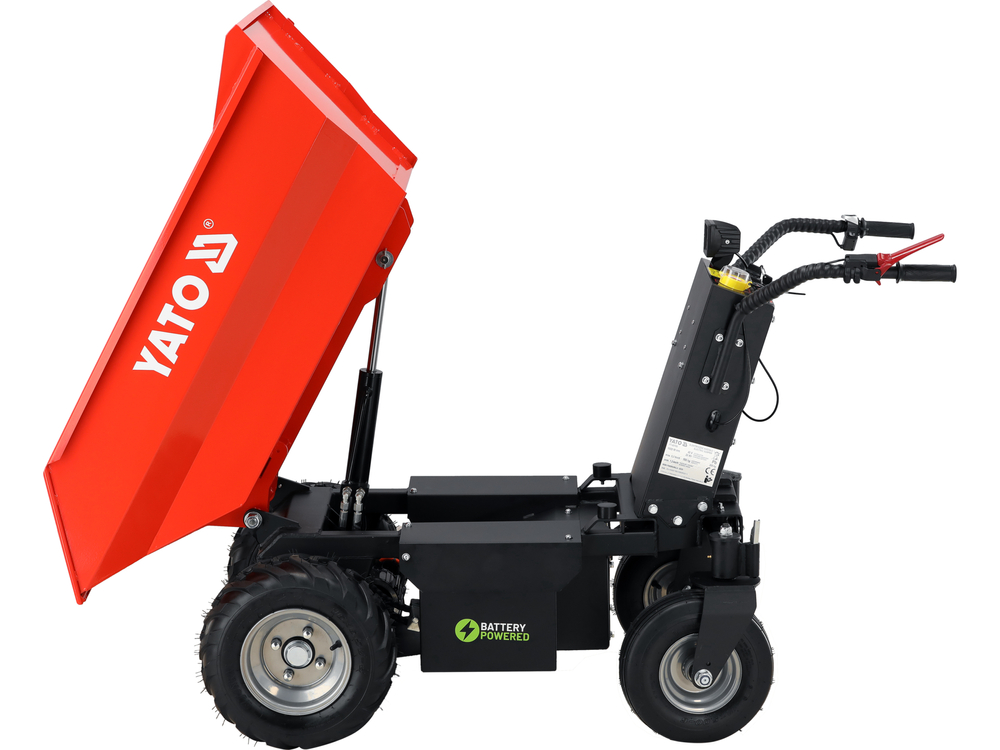

Tipper method: hydraulic unit (HPU)
Oil: AW 46 | Oil tank capacity: 1.5 l

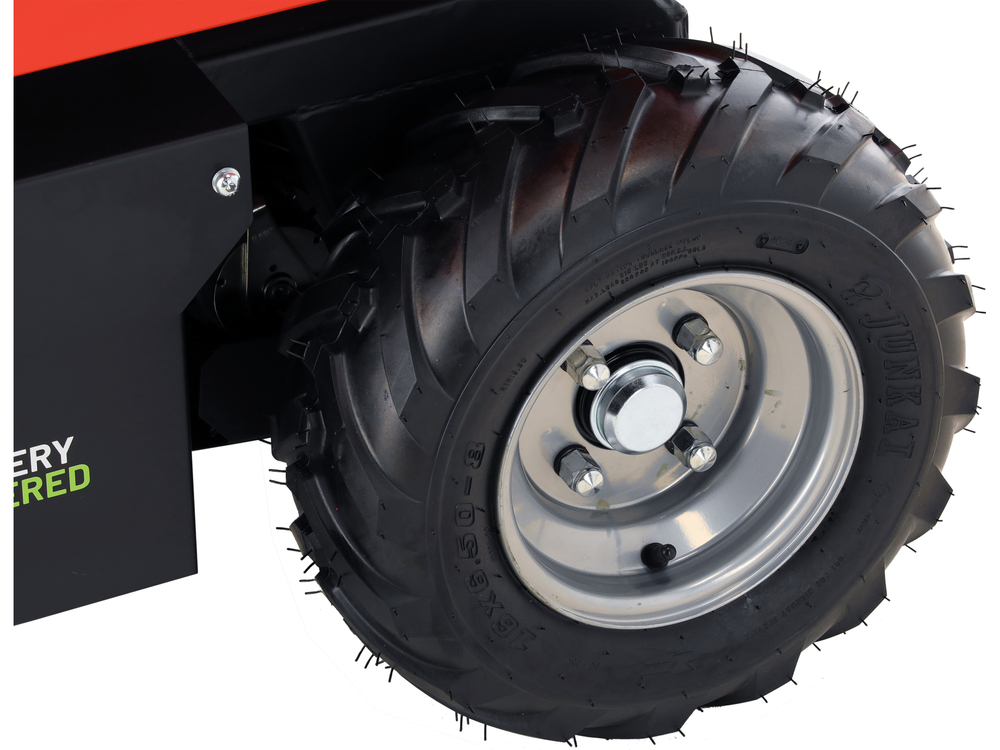

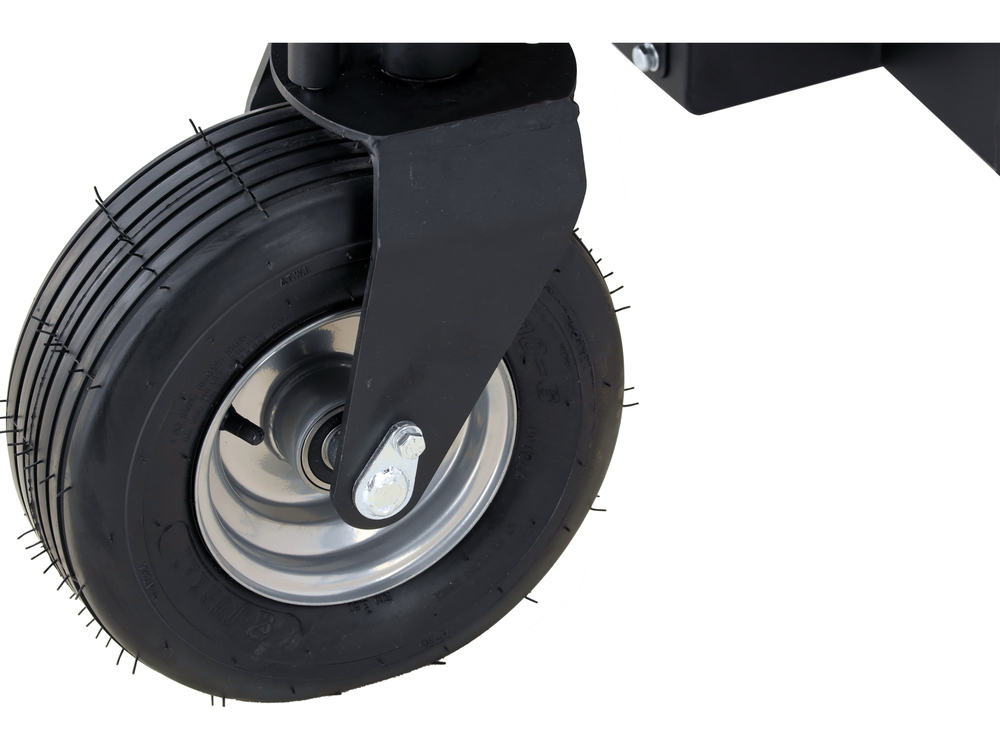

Wheel diameter: 16” (front), 13” (rear)

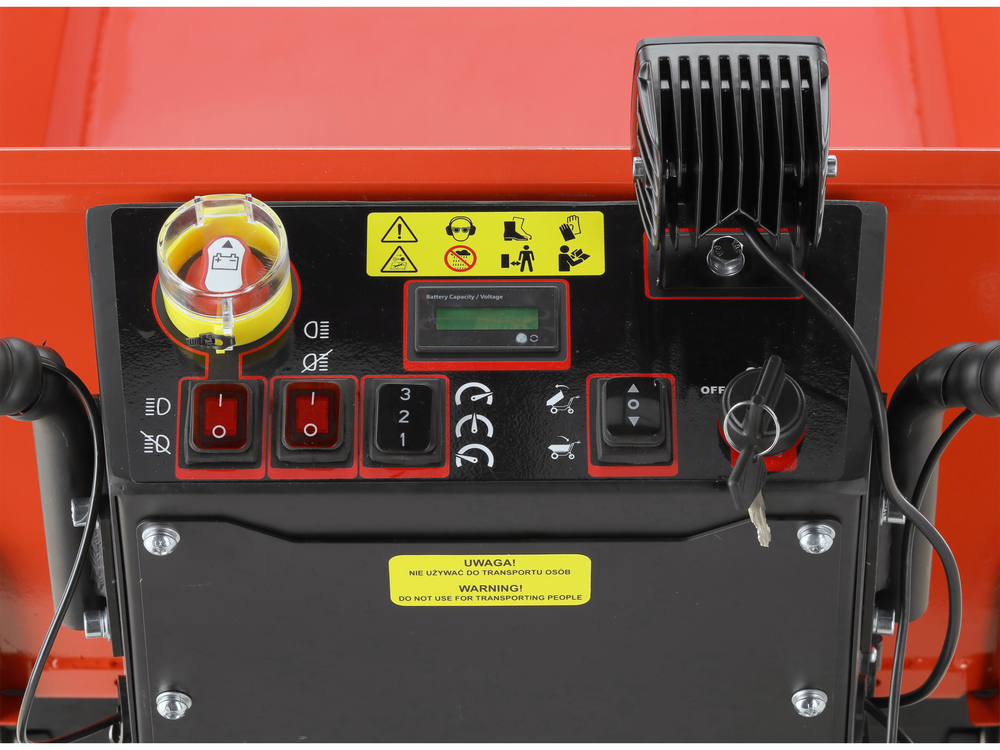

Workplace lighting LCD with power of 30 W
Protection class: IPX4 | Weight: 208 kg

Usage warnings:

WARNING! Do not use for transporting people.
