YT-86115

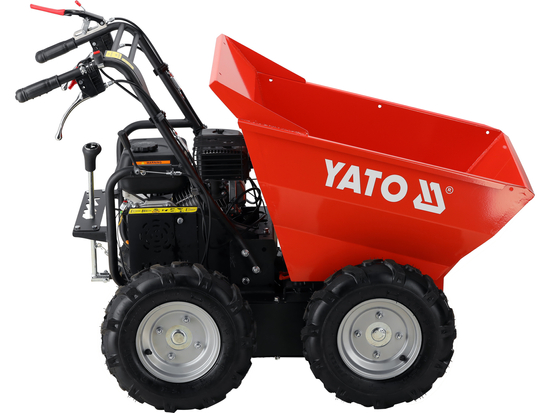

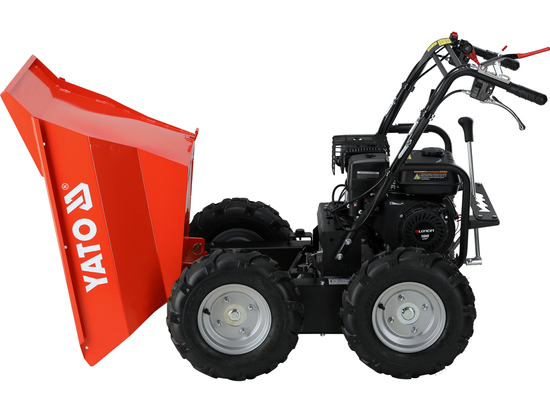

GASOLINE DUMP TRUCK 300 KG, 196 CC
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
4.1 kW
5.58 KM
Engine (motor) capacity
196 cm³
Rotations
3600 min⁻¹
maximum load
300 kg
Fuel type
unleaded petrol E10
Fuel tank capacity
3.6 l
Oil type
SAE 15W-40 (engine), GL-5 SAE 80W-90 (gear)
Oil tank capacity
0.6 (engine), 0.65 (gear) l
Max. speed
3.6 km/h
Gearbox
3 forward gears, 1 reverse gear
Boot type
manual
Drive type
4x4
Engine (motor) type
Loncin G200F
Ignition plug type
F7RTC
Cooling
air
Casing material
metal
Dimensions
1368x746x950 mm
Wheels
yes
Wheel quantity
4
Wheel type
pneumatic
Wheel diameter
16" (400 mm)
Cylinders number in engine (motor)
1
Strokes number in engine (motor)
4
Acoustic pressure
82.2 ± 3.0 dB(A)
Acoustic power
97.45 ± 0.67 dB(A)
Vibrations
2.48 ± 1.5 / 3.25 ± 1.5 m/s²
Weight
168 kg
Application
construction work (transport of loose materials, bricks, concrete blocks), horticulture and agriculture (transport of soil, fodder, plants, fertilisers, tools),
Application contd
municipal works (transport of waste, soil, rubble)
Symbol
YT-86115

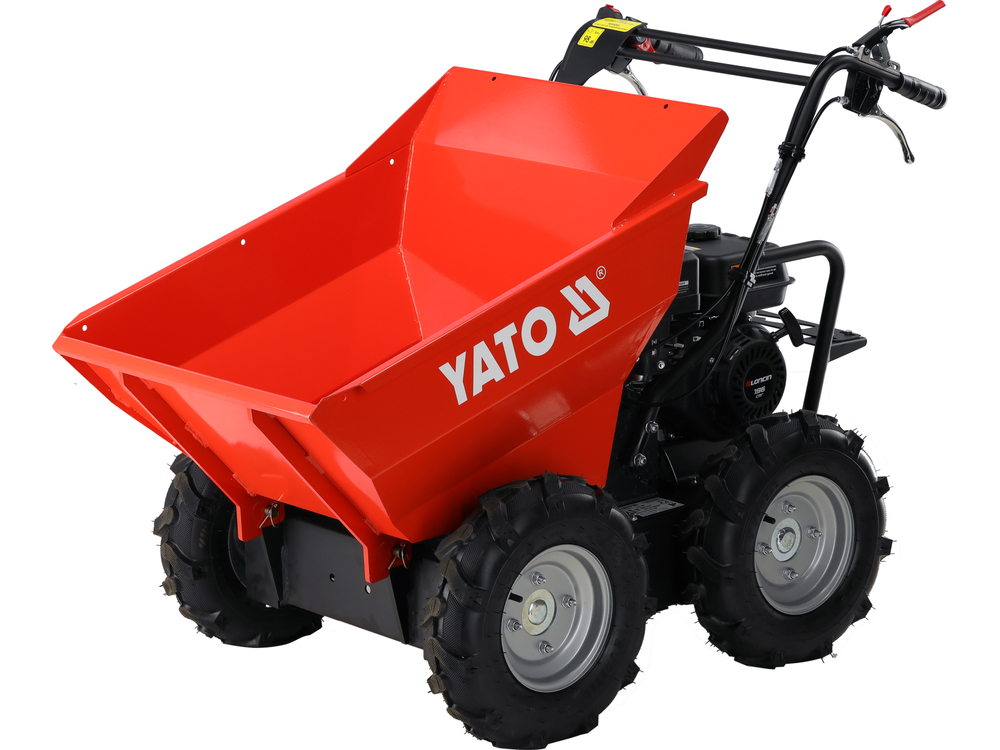

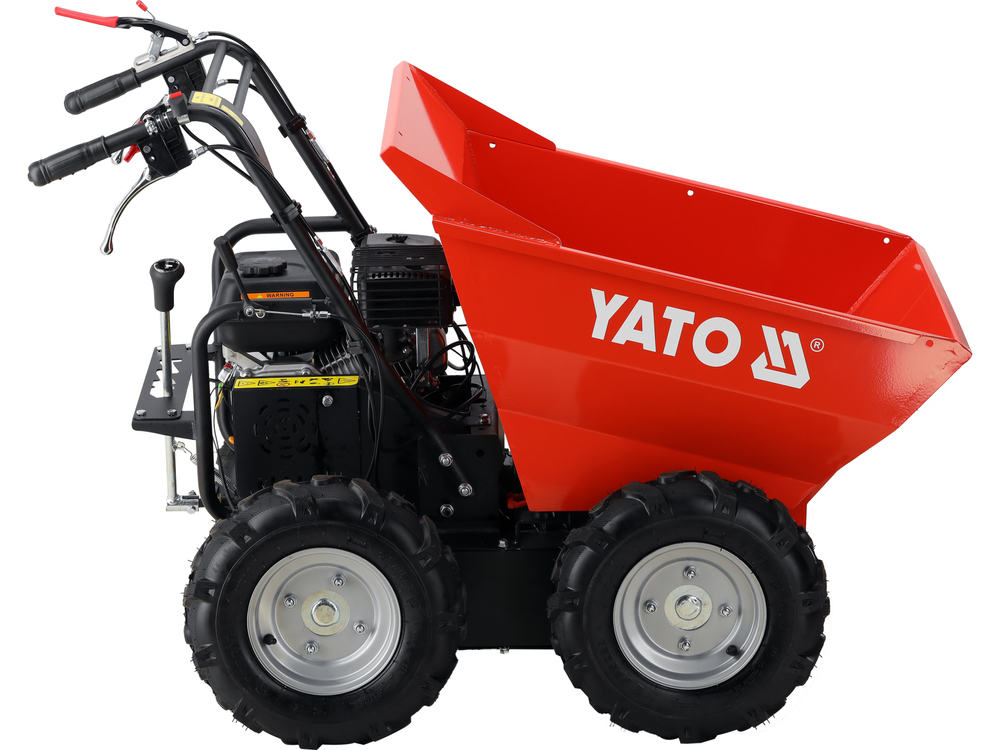

The diesel hauler is a versatile and powerful transportation device for use in construction, agriculture, horticulture and other industries requiring the transportation of loose and heavy materials. Compact dimensions and a powerful Loncin engine make the machine ideal for use even in demanding off-road conditions.

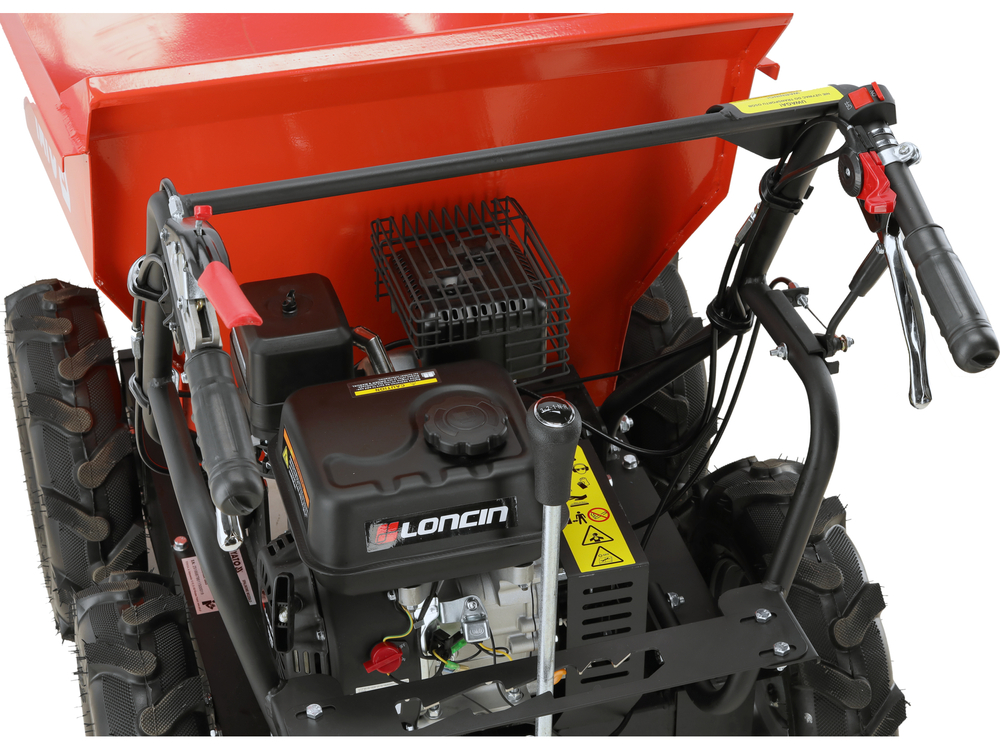

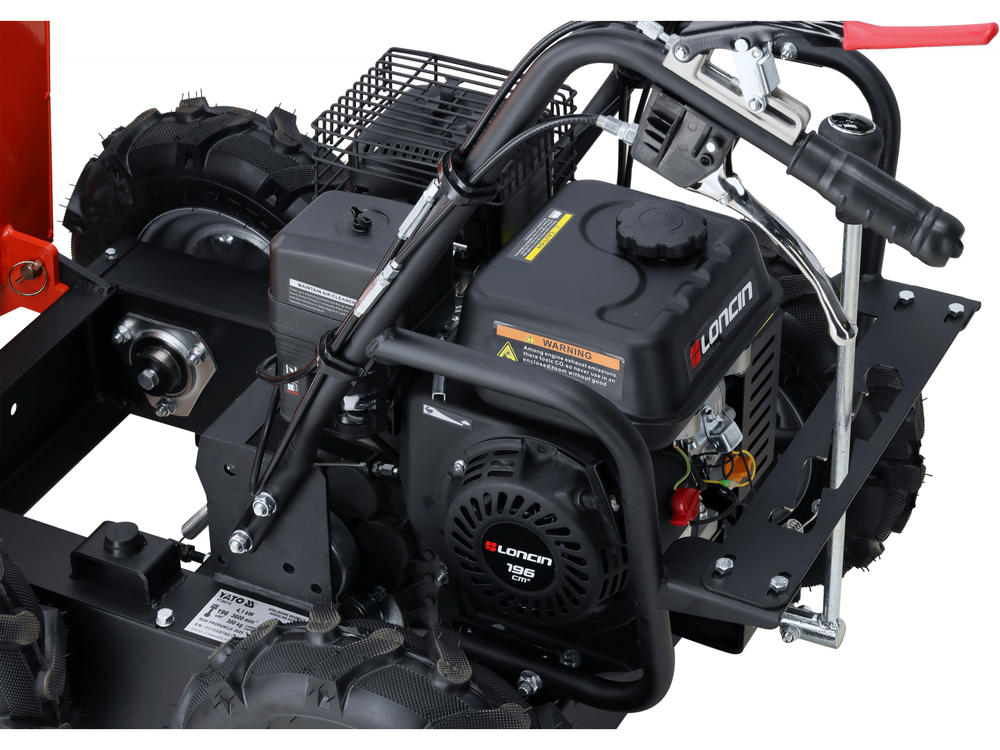

- Loncin G200F engine
- type: internal combustion engine, four-stroke
- power: 4.1 kW
- capacity: 196 cm³
- max. torque: 3600 rpm
- starting: manual
- spark plug type: F7RTC
- fuel type: unleaded gasoline E10
- oil type: SAE 15W-40
- transmission oil type: SAE 80W-90
- fuel tank capacity: 3,6 l
- oil sump capacity: 0,6 l
- transmission oil tank capacity: 0,65 l

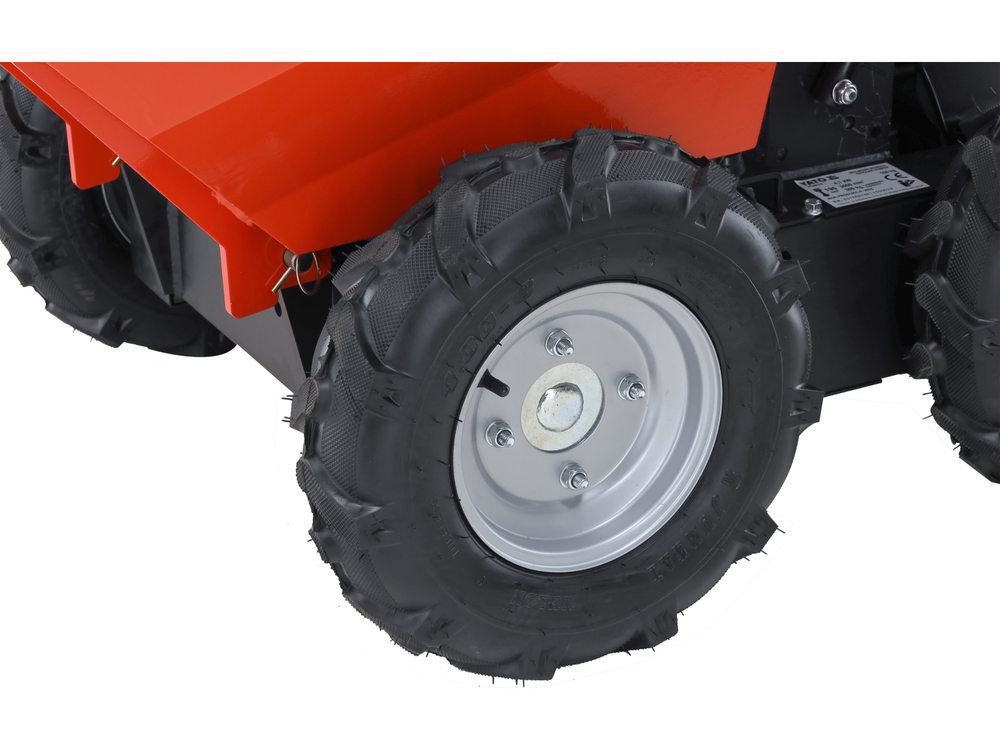

- 4 pneumatic wheels of 16" diameter with drive

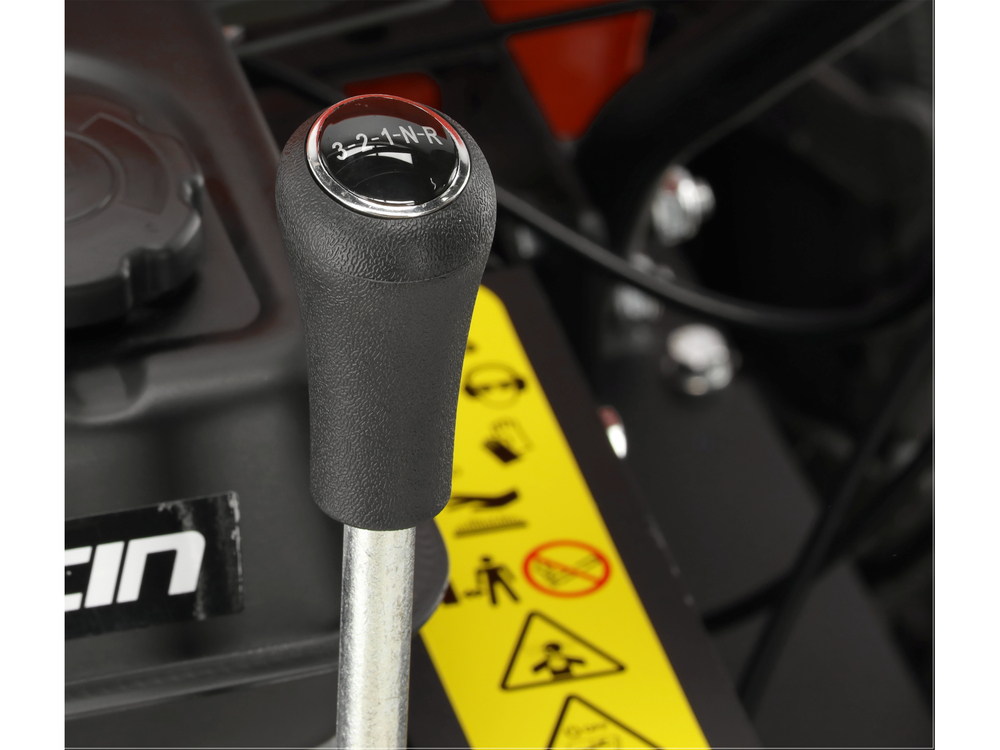

- transmission: 3 forward gears and 1 reverse gear allow you to adjust the speed to the work to be done
- maximum speed: 3.6 km/h
- air cooling
- maximum payload: 300 kg
- weight: 168 kg
The diesel hauler is widely used in:
- construction - transport of construction materials (sand, gravel, bricks, concrete)
- agriculture - transport of feed, fertilizers, wood
- horticulture - loading of soil, plants, tools
- municipal works - transportation of waste, soil, rubble















Usage warnings:
WARNING! Do not use for transporting people.To download
