YT-86155
GASOLINE BRANCH SHREDDER DIA. 100 MM, 196 CC
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
4.8 kW
6.53 KM
Engine (motor) capacity
196 cm³
Rotations
3600 min⁻¹
Max. shredding diameter
100 mm
Fuel type
unleaded petrol E10
Fuel tank capacity
3.6 l
Oil type
SAE 15W-40
Oil tank capacity
0.6 l
Boot type
physical
Functions
emergency stop
Engine (motor) type
Loncin G200F
Ignition plug type
F7RTC
Cooling
air
Casing material
metal
Wheels
yes
Wheel quantity
2
Wheel type
pneumatic
Wheel diameter
5.71" (145 mm)
Strokes number in engine (motor)
4
Cylinders number in engine (motor)
1
Working temperature range
5~30 ˚C
Storage temperature
5~30 ˚C
Acoustic pressure
89.7 ± 3.0 dB(A)
Acoustic power
104.9 ± 3.0 dB(A)
Weight
100 kg
Application
for shredding branches and plant debris in gardens, orchards and on plots of land
Symbol
YT-86155

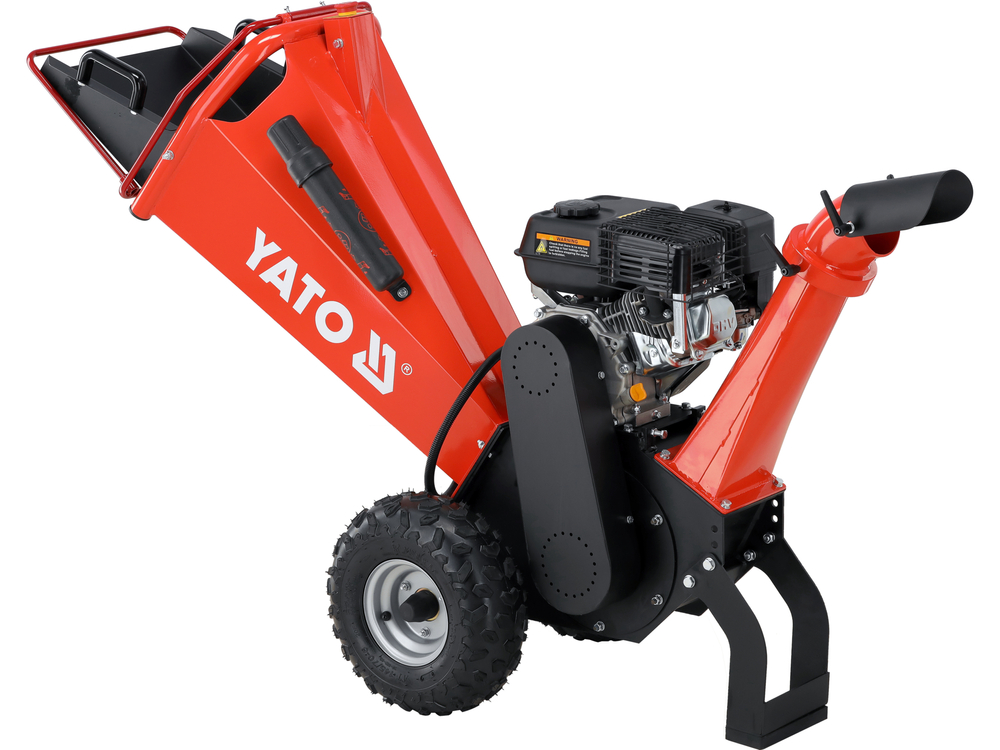

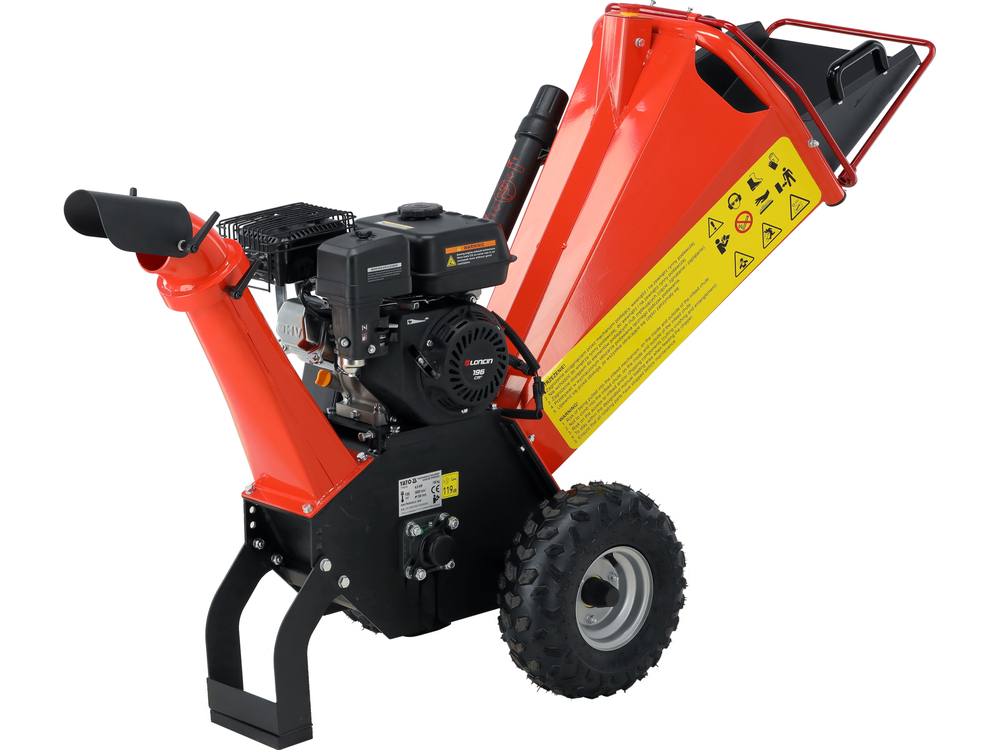

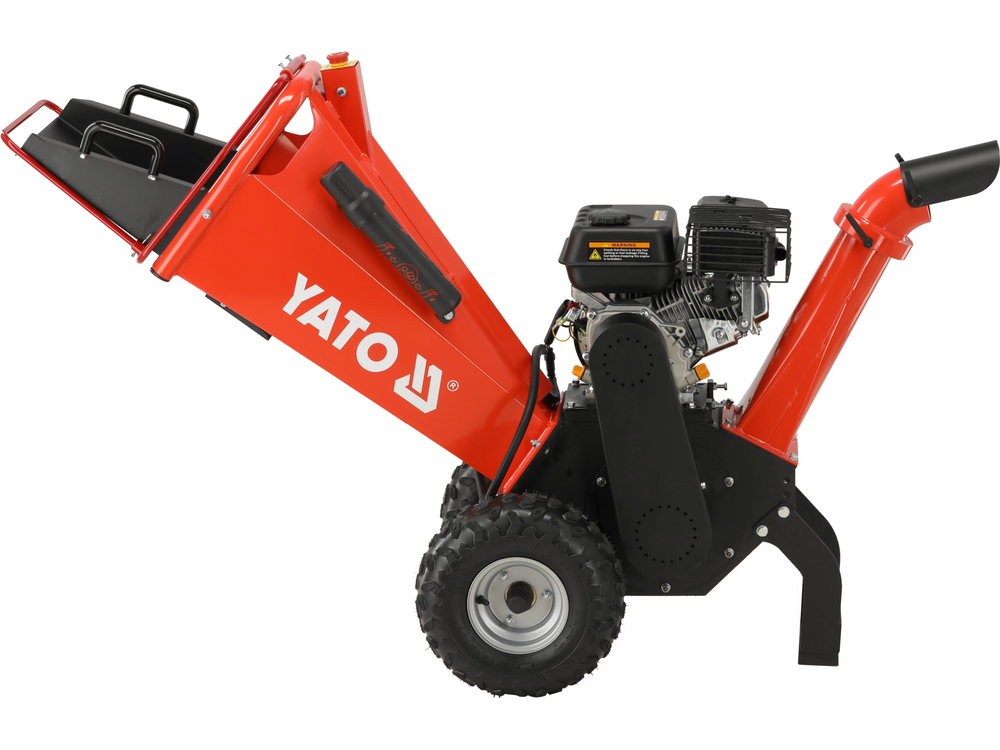

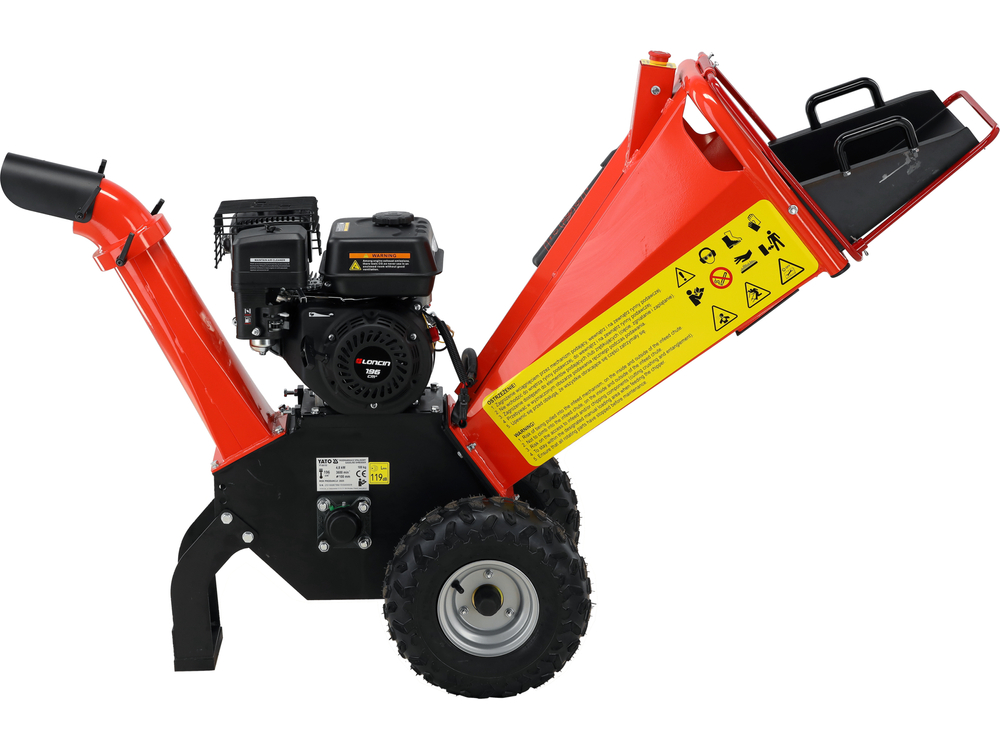

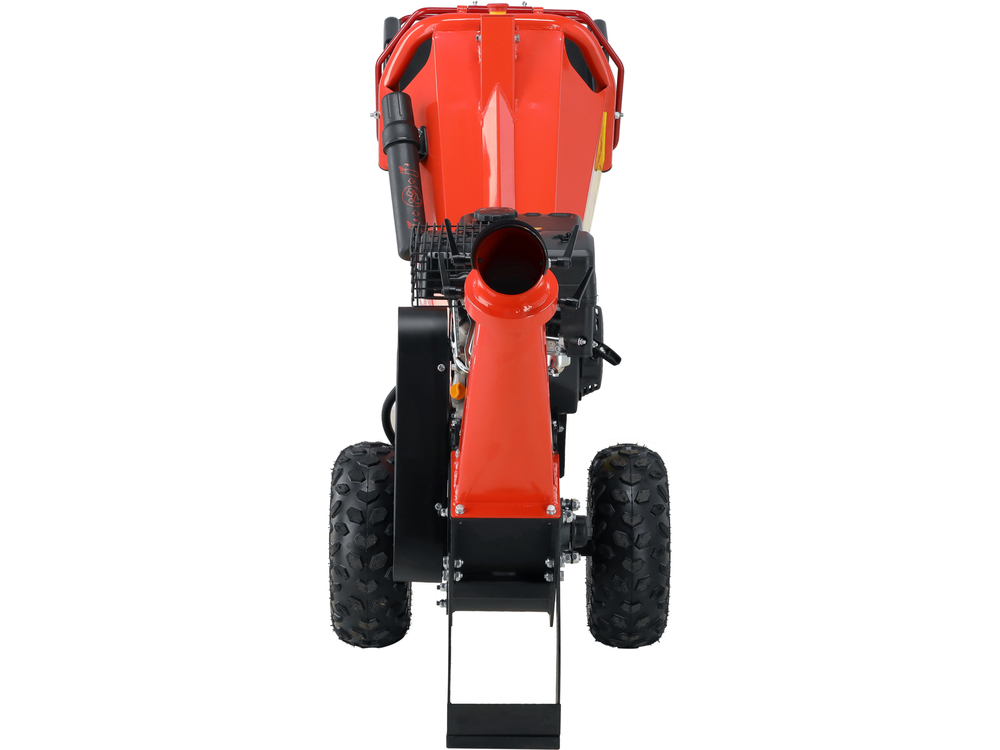

The petrol shredder equipped with LONCIN engine effectively and quickly shreds branches, wood waste and plant debris up to 100 mm in diameter. With its 4.8 kW of power, compact dimensions and robust design, it proves itself in private gardens, orchards and professional use for those involved in the care of green spaces, management of wood waste and cleanup work in forestry and municipal management.
The shredder facilitates the disposal of branches and plant debris. The waste processed into chips can be used as garden mulch, compost or fuel material.

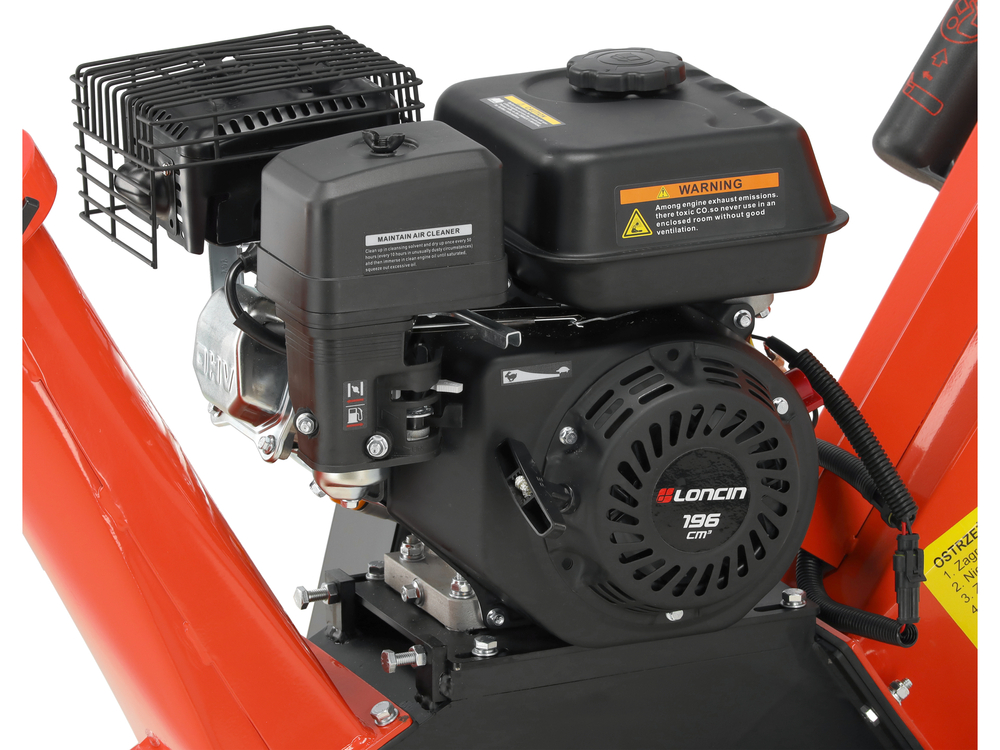

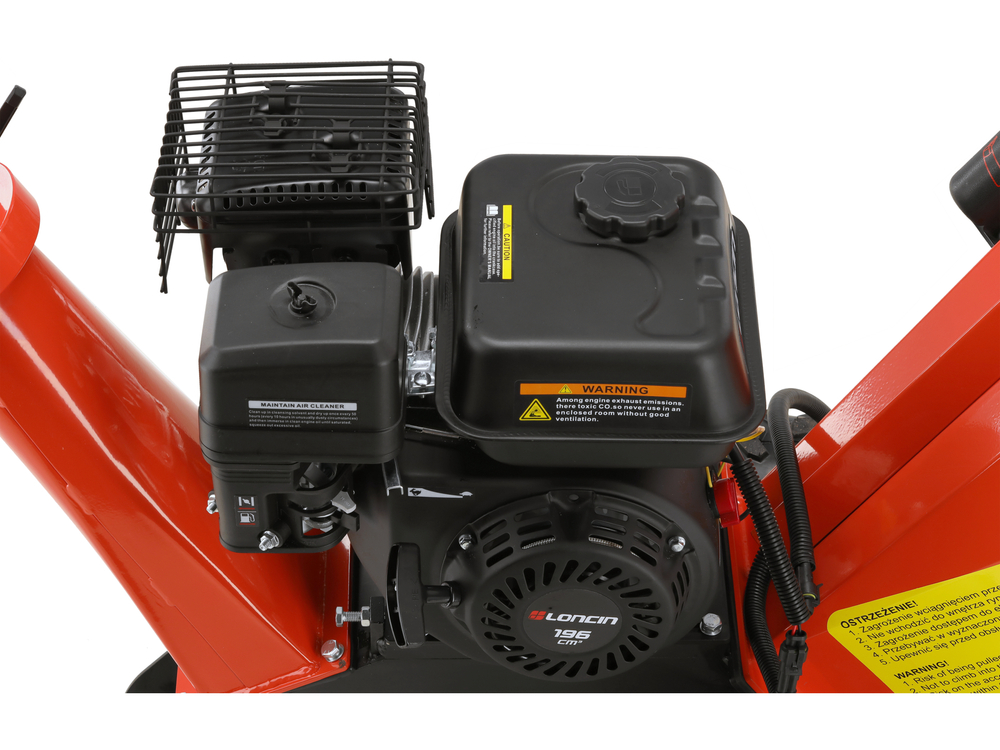

- LONCIN G200F engine with a power of 4.8 kW
- type: internal combustion engine, four-stroke
- capacity: 196 cm3
- max. torque: 3600 rpm
- starter: manual
- spark plug type: F7RTC
- fuel type: unleaded gasoline E10
- oil type: SAE 15W-40
- fuel tank capacity: 3,6 l
- oil sump capacity: 0.6 l
- max. branch diameter: 100 mm
- air cooling
- emergency stop function
- metal housing
- 2 pneumatic wheels with a diameter of 5.7" provide mobility in various terrain conditions
- weight: 100 kg
- noise emission: 119 dB



















Usage warnings:

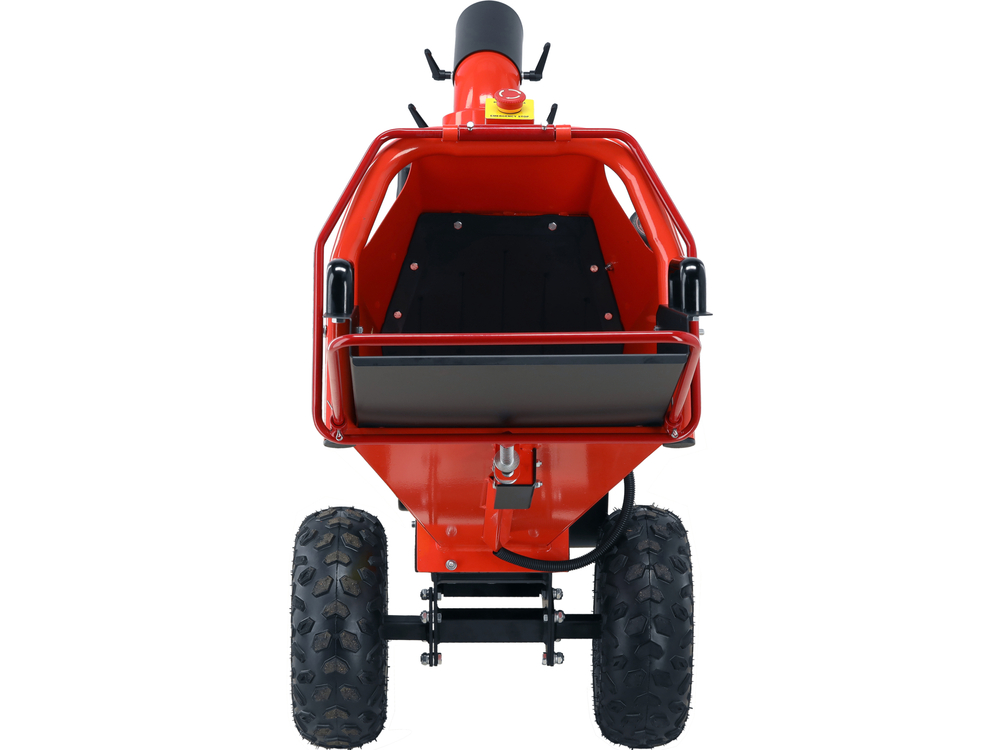

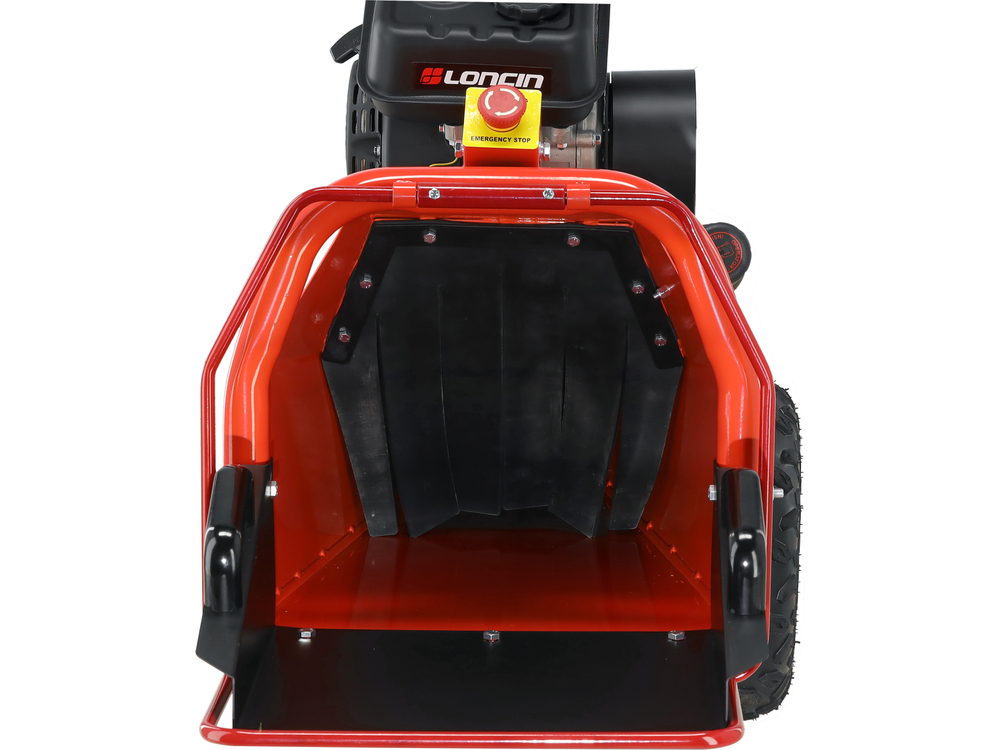

WARNING! 1. Risk of being pulled into the infeed mechanism, on the inside and outside of the infeed chute. 2. Not to climb into the infeed chute, on the inside and outside of the infeed chute. 3. Risk on the access to infeed and/or chipping components (cutting crushing and entanglement). 4. To stay within the designated manual loading area when feeding the chipper. 5. Ensure that all rotating parts have stopped before maintenance.To download
