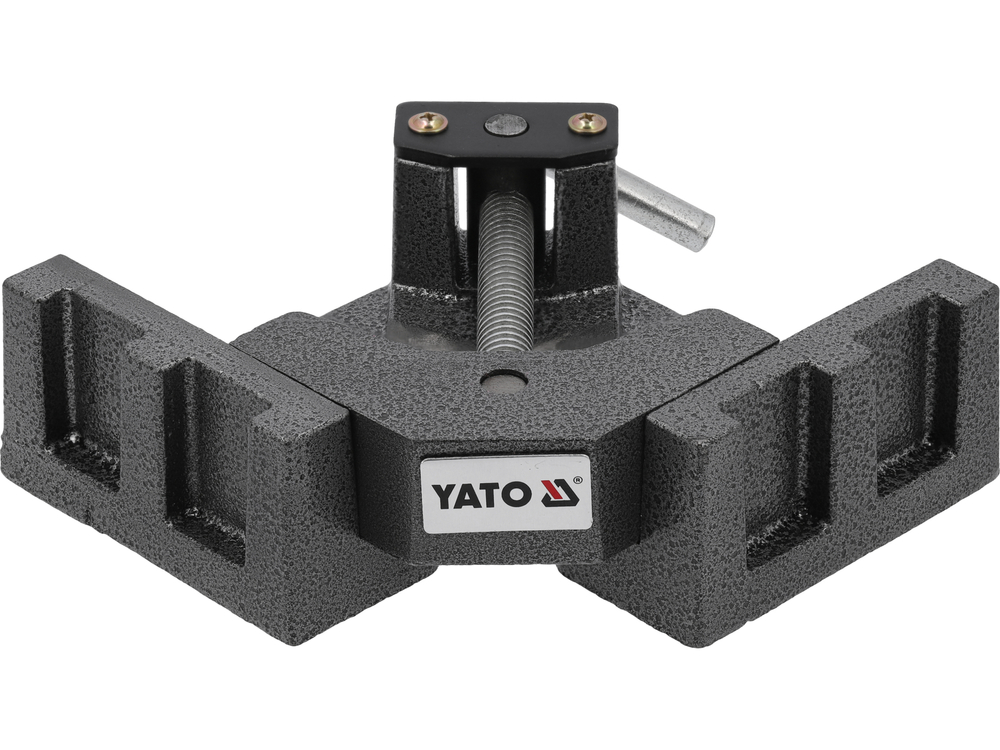

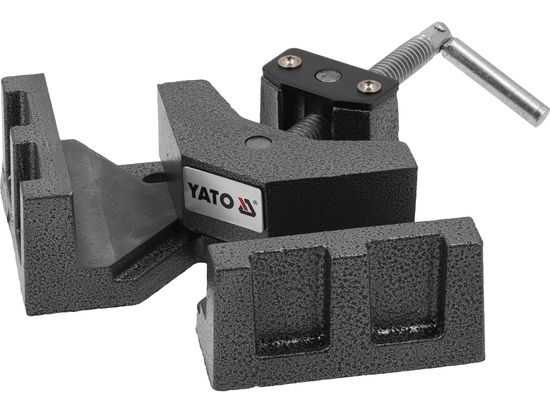

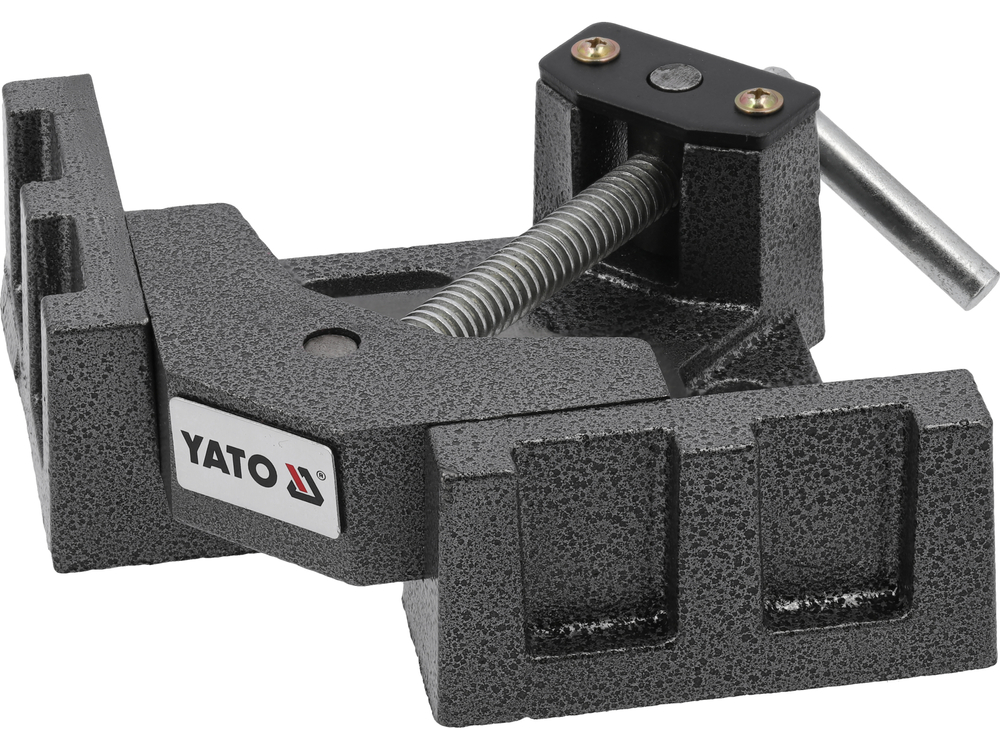

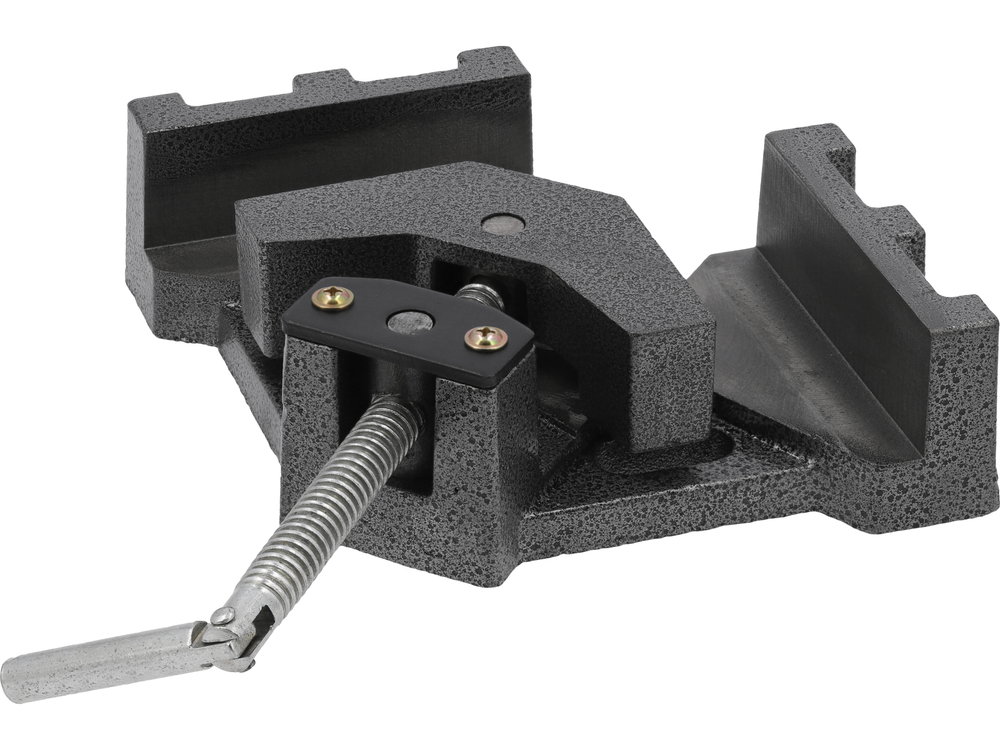

Corner clamp for securing materials at a 90° angle. The clamping screw mounted on a movable shaft allows for asymmetrical positioning of the clamping jaw, thus holding elements of different thicknesses. Used in welding, carpentry, or mechanical workshops, among others, for making connections with slats or boards.

• jaw width: 100 mm
• max. jaw opening: 60 mm
• clamping force: 35 kg
• material: iron, surface finished with hammer paint
• trapezoidal screw with a diameter of 12 mm ensures smooth movement and high load capacity
• replaceable jaws
• permanent mounting on the workbench
• dimensions of the mounting hole on the bench: 10 x 32 mm
• body dimensions: 150 x 150 x 55 mm
• wall thickness: 13 mm
• weight: 3.5 kg

The clamp is compatible with interchangeable magnetic jaw overlays of different hardness, e.g. YT-65001, YT-65006.
