YT-07693
TORQUE WRENCH WINDOW TYPE 3/8" 20-120NM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type
with scope preview window
Holder size
3/8" (9.5 mm)
Torque
20-120 Nm
Tolerance
CW ±3, CCW ±5 %
Certificate of calibration
yes
Length
425 mm
Head material
CrMo SCM-440
Handle material
40Cr
Number of teeth
72
Rotation switch
yes
Application
precise tightening of threaded connections
Symbol
YT-07693

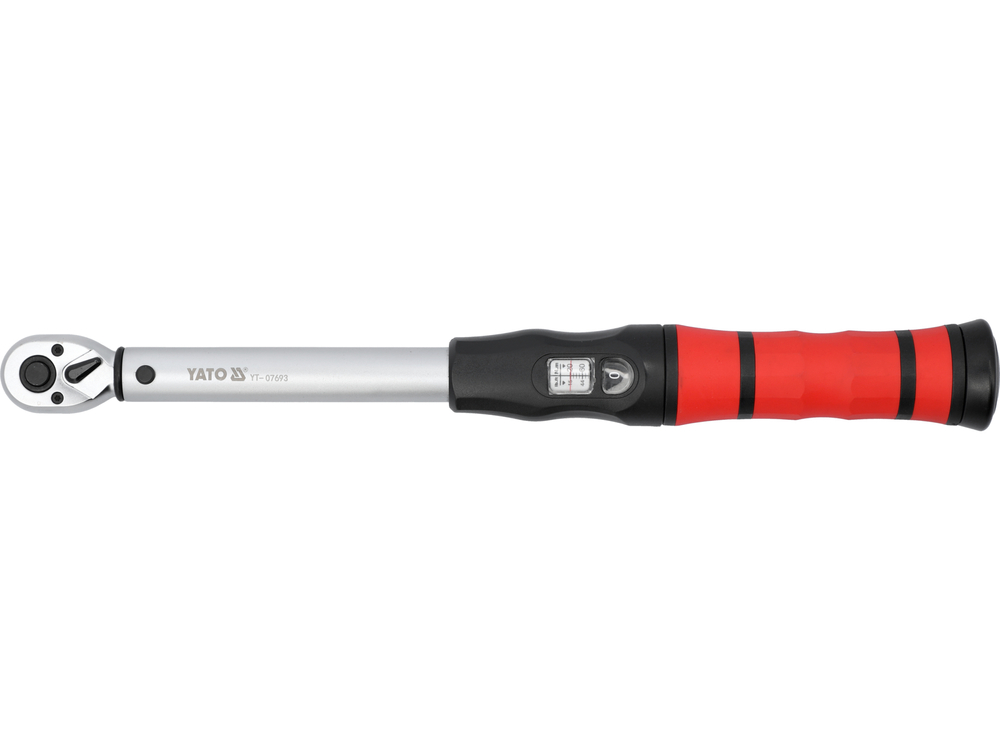

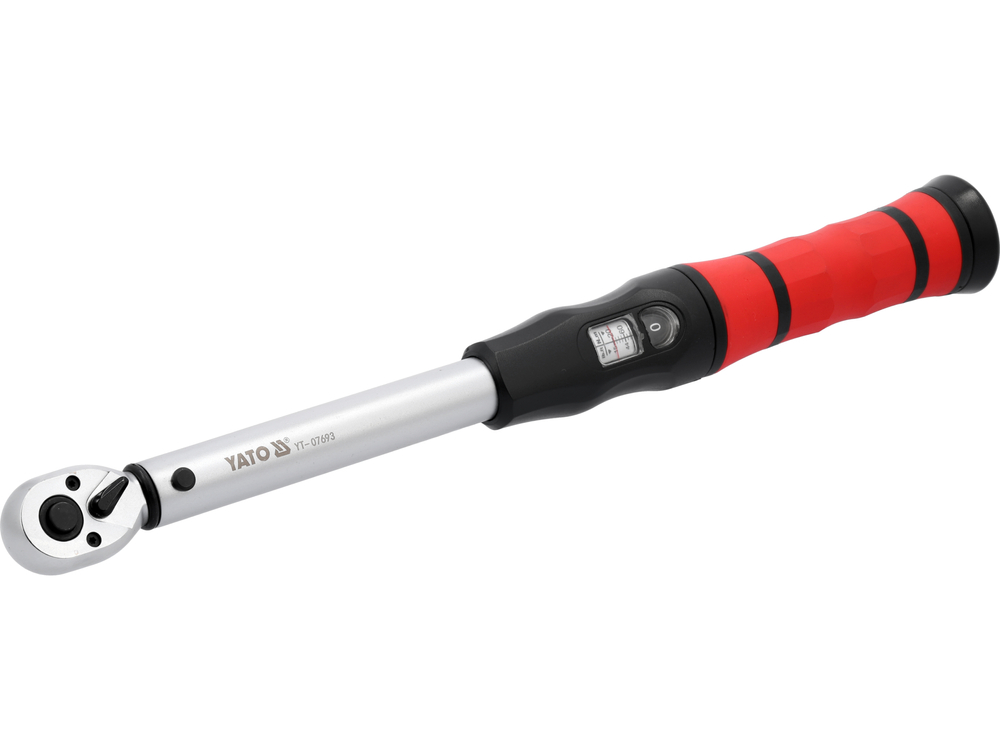

Torque wrench for precise tightening of threaded connections with a specified torque. Equipped with a double range display window.

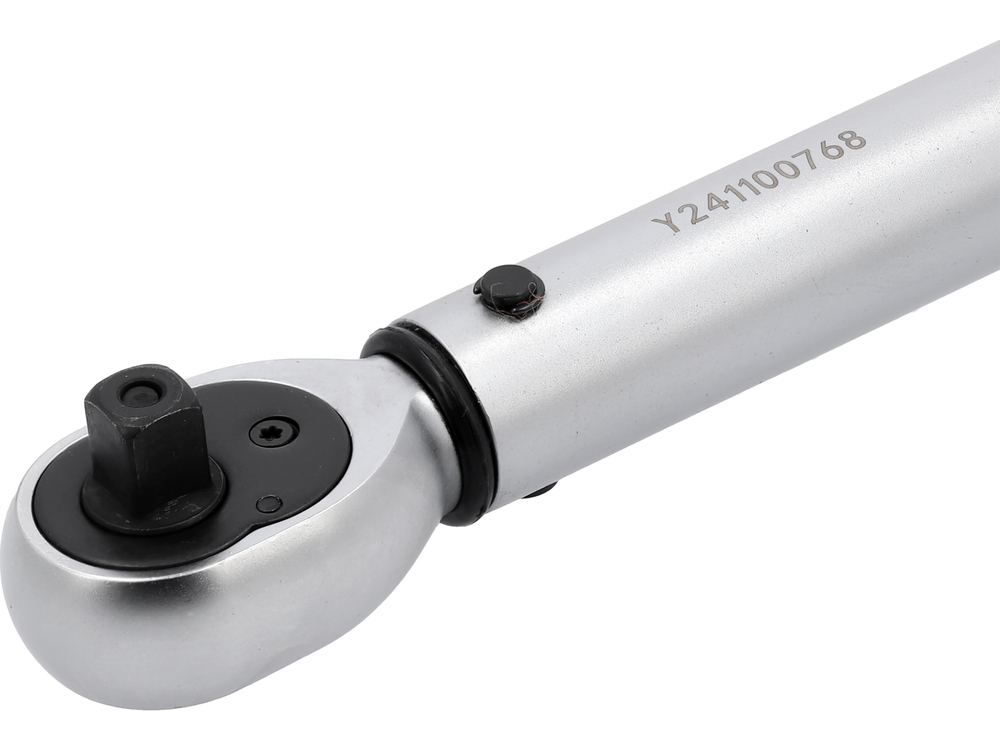

- ratchet head made of high-strength CrMo SCM-440 steel

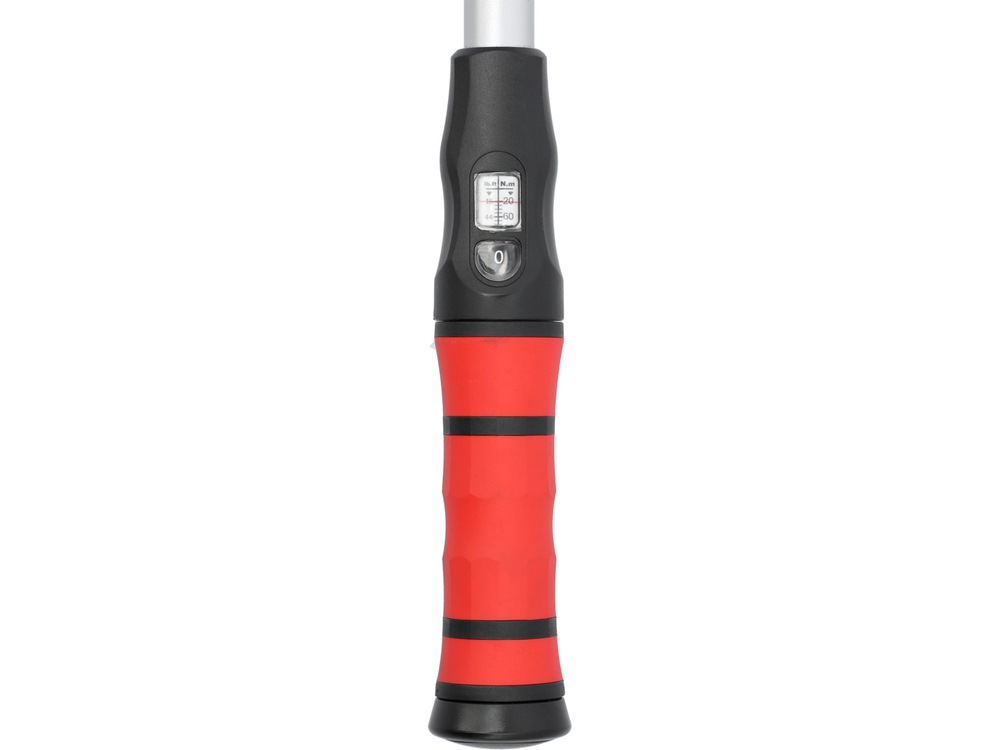

- ergonomic handle made of 40 Cr steel ensures comfort during prolonged work
- tool holder: 3/8" (9.5 mm)
- torque: 20-120 Nm
- length: 425 mm
- accuracy: ±3% (CW -/+3%, CCW -/+5%)
- main metric and inch scale
- 72 teeth
- push-pull mechanism at the end of the handle locks the required torque
- special double window design with a clear display
- direction switch
*Each key has a unique serial number, making it easier to track original data
