YT-07697
TORQUE WRENCH WINDOW TYPE 1/2" 50-330NM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Torque
50-330 Nm
Type
with scope preview window
Holder size
1/2" (12.7 mm)
Tolerance
CW ±3, CCW ±5 %
Certificate of calibration
yes
Length
550 mm
Head material
CrMo SCM-440
Handle material
40Cr
Number of teeth
72
Rotation switch
yes
Application
precise tightening of threaded connections
Symbol
YT-07697

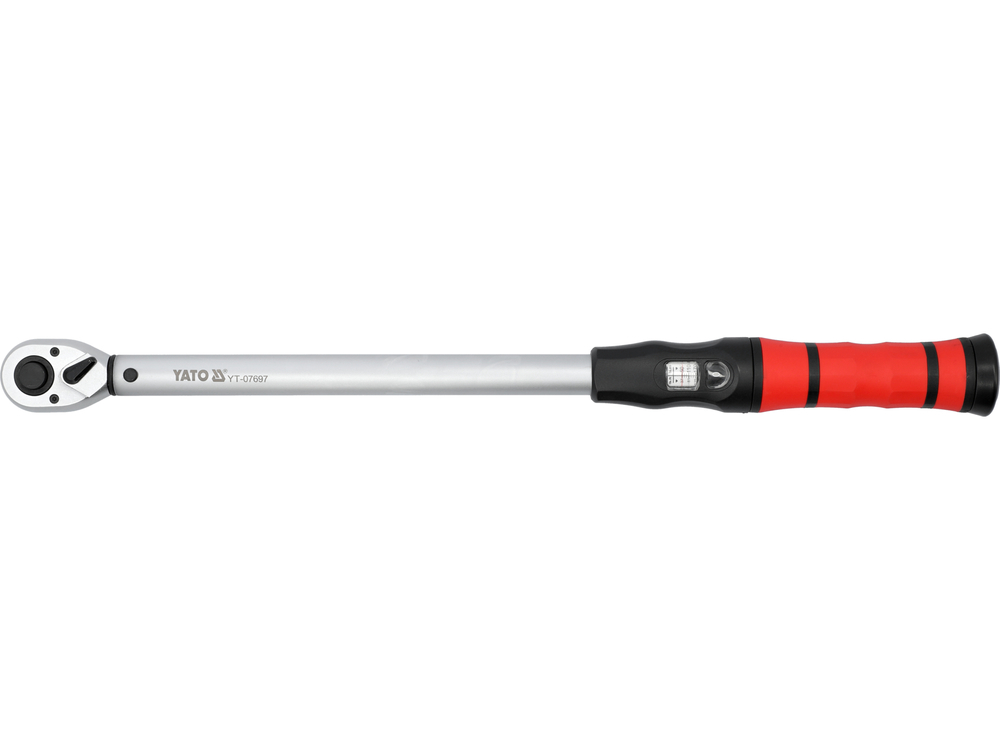

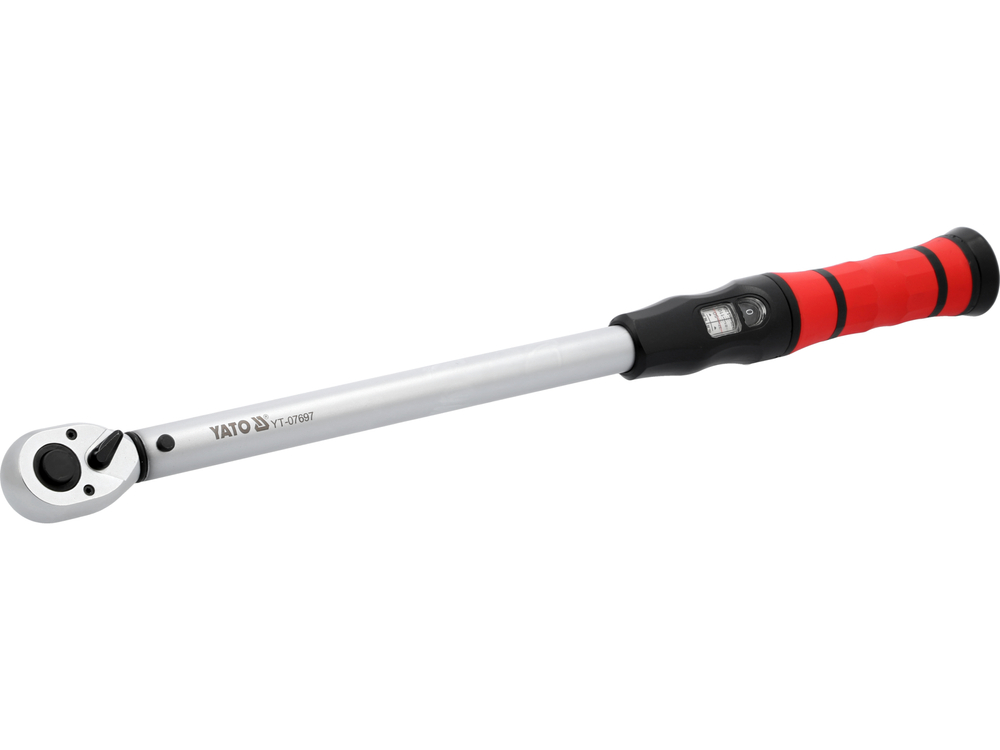

Torque wrench for precise tightening of threaded connections with a specific torque. Equipped with a double window for viewing the range.

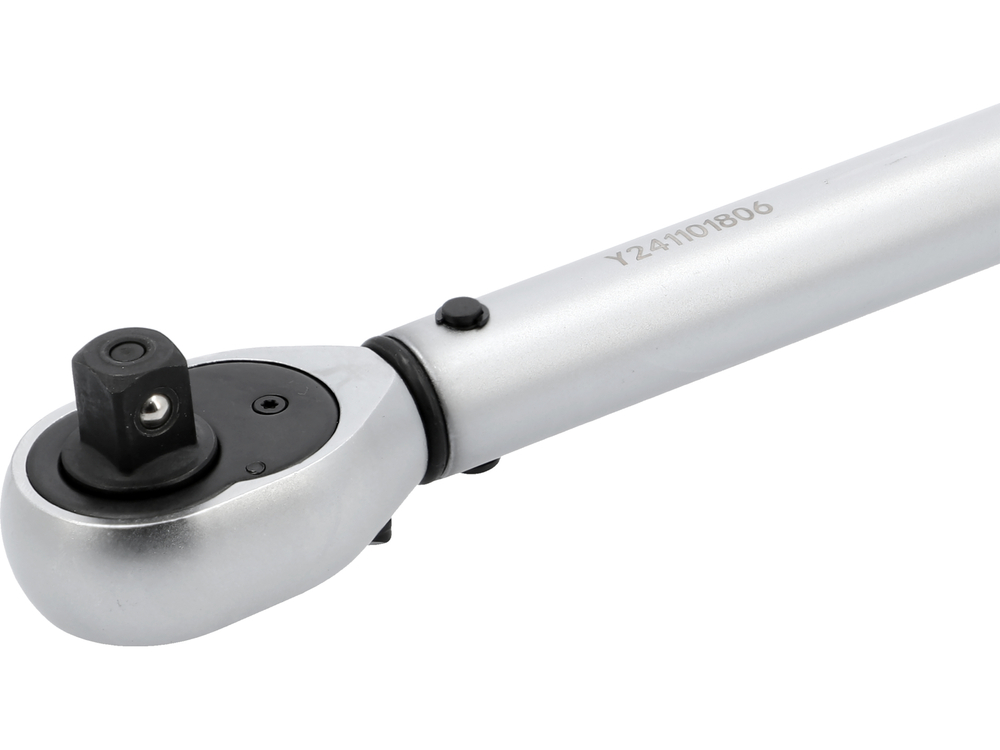

- ratchet head made of high-strength CrMo SCM-440 steel
- ergonomic handle made of 40 Cr steel ensures comfort during prolonged work
- tool holder: 1/2" (12.7 mm)
- torque range: 50-330 Nm
- length: 550 mm
- accuracy: ±3% (CW -/+3%, CCW -/+5%)
- main metric and inch scale
- 72 teeth
- push-pull mechanism at the end of the handle locks the required torque

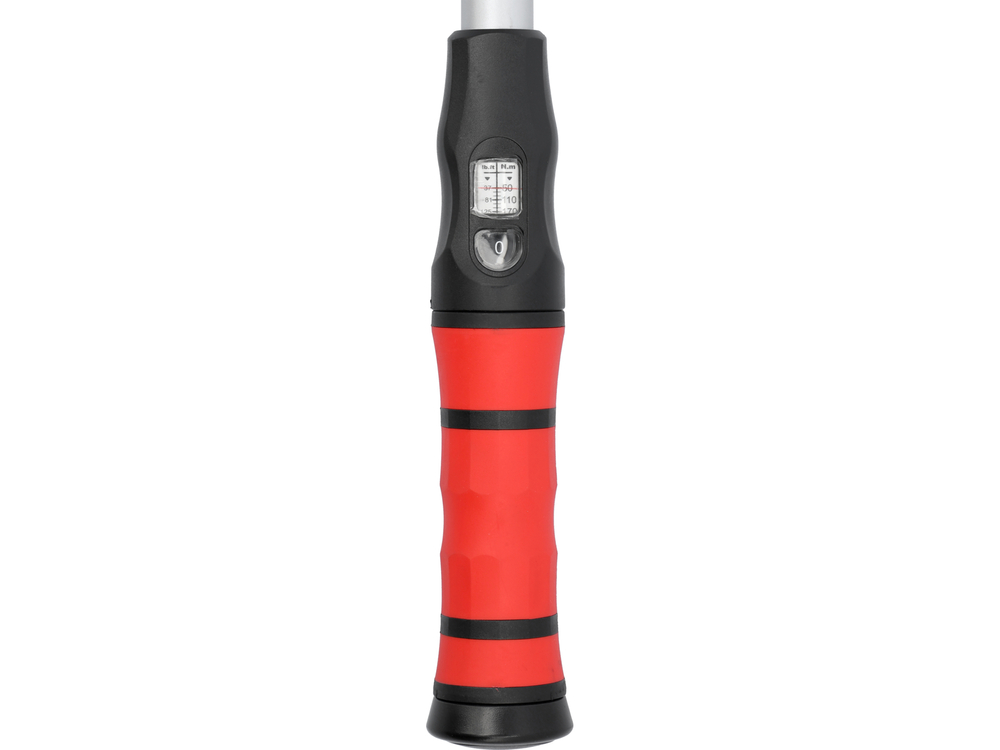

- special double window design with a clear display
- direction switch
*Each wrench has a unique serial number, which makes it easier to track the original data.
