YT-90201
IRRIGATION CONTROLLER
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Working time
1-360 min
Working mode
self-operating, handbook
Functions
delayed start time
Time setting (timer)
yes
Water outlet diameter
inlet: 3/4" (19.0 mm), 1" (25.0 mm), outlet: 3/4" (19.0 mm) x2
Working max.
6 bar
Material
ABS, P.C, POM
Display type
LCD
Control type
manual
Power supply
battery
cell type
2x1.5V; AA
Low battery indicator
yes
Max. water temperature
50 ˚C
Working temperature range
5~40 ˚C
Electric insulation class
III
Weight
0.47 kg
Symbol
YT-90201

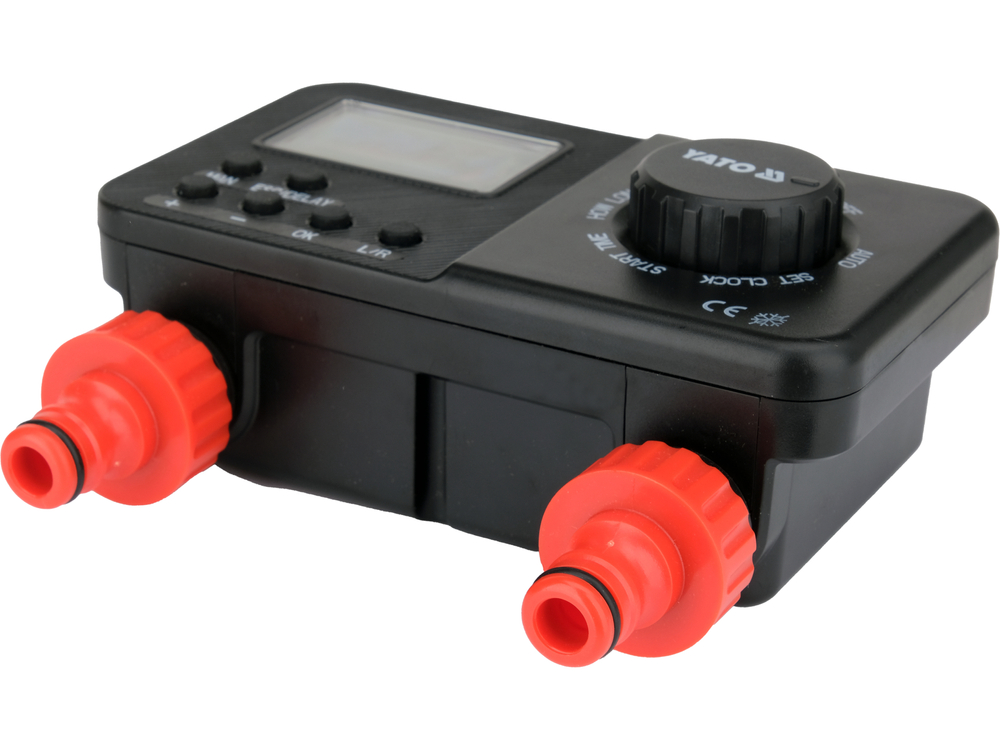

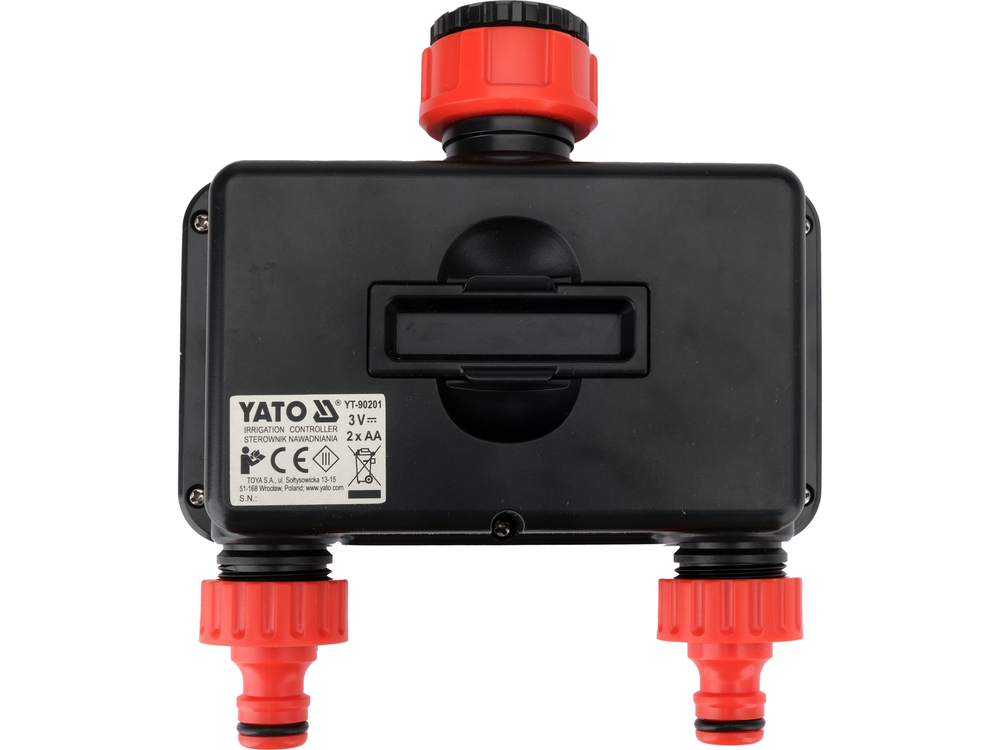

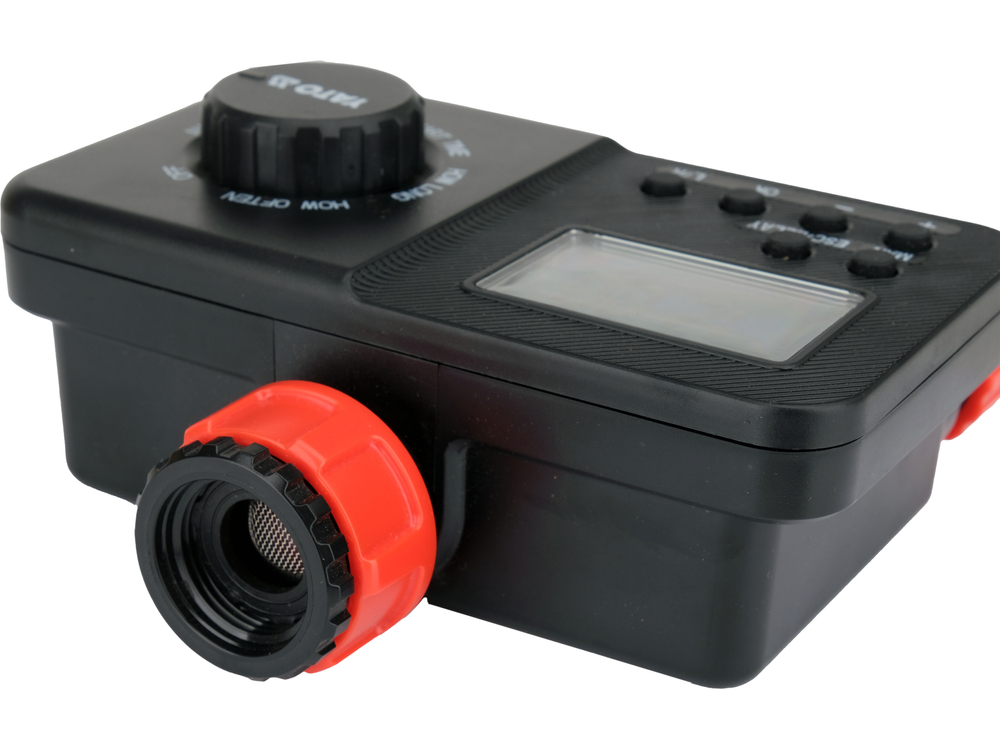

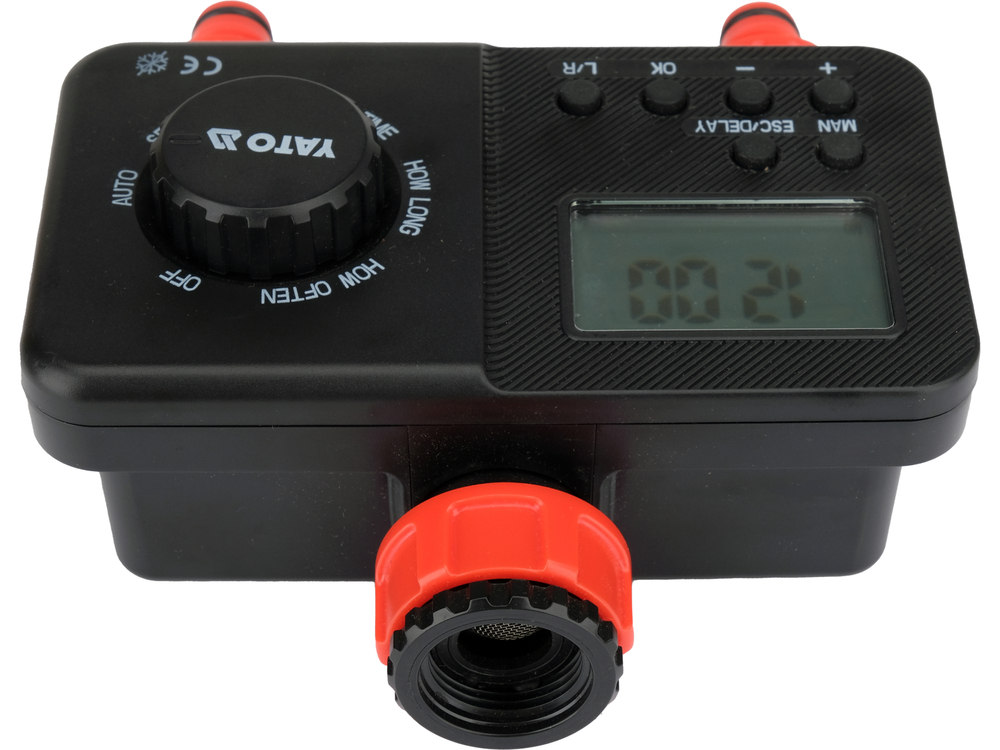

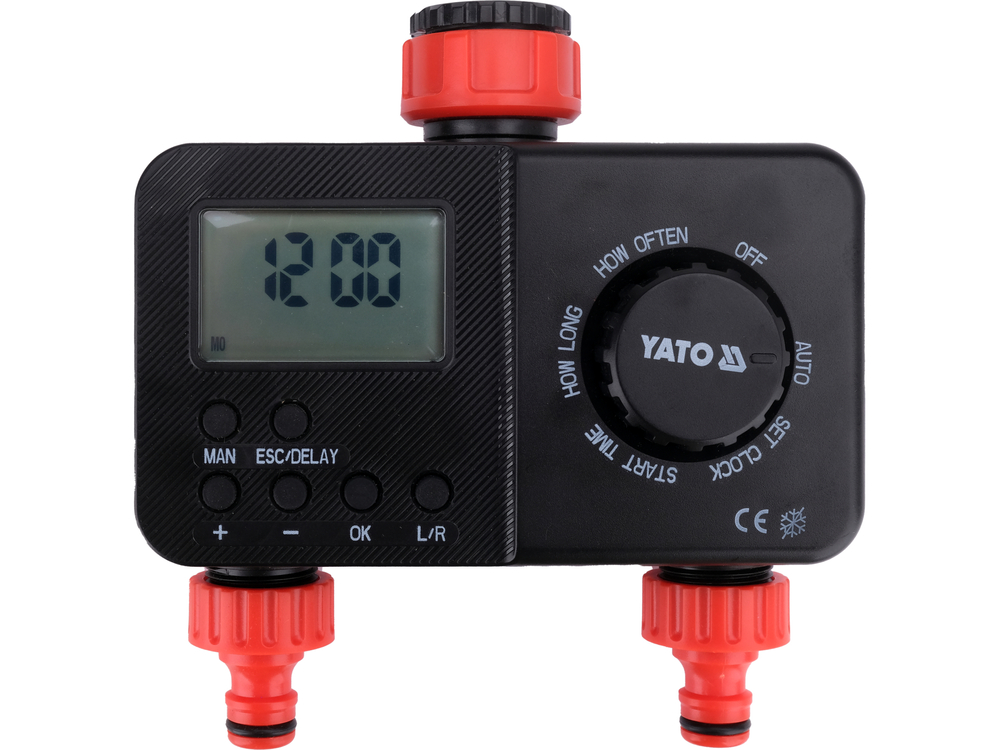

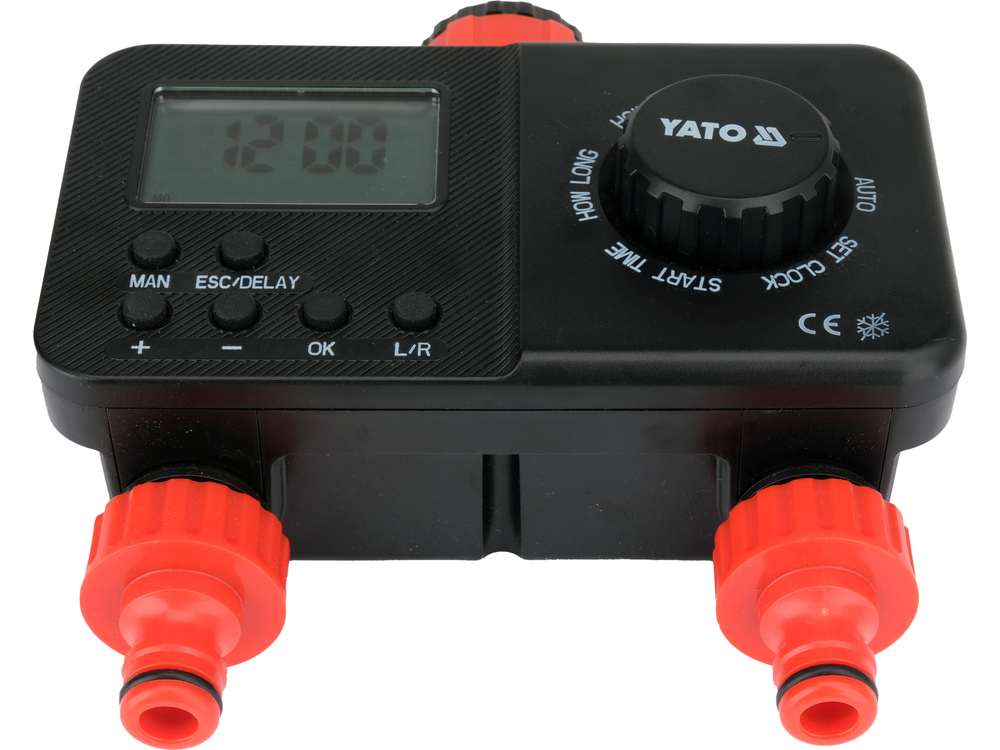

An advanced, two-way automatic irrigation controller with a large LCD screen and an easy-to-use adjustable knob. Independent control of two watering zones makes it an ideal solution for larger gardens or crops. Programming the frequency and duration of watering cycles allows for efficient and economical water management, facilitating daily plant care.
Product features:
- two-way, digital irrigation controller
- clear LCD screen and convenient adjustment knob make the controller easy and quick to operate
- ability to program up to 6 watering cycles per day for each zone allows for an effective watering schedule for all plants
- working time from 1 minute to 6 hours enables flexible adjustment of watering intensity for specific types of crops, their growth phases, surface area, and weather conditions
- independent operation of two valves saves time and water
- delay start function increases water management efficiency, saving water e.g. during rainfall
- manual control provides full control over the irrigation process
- battery level monitoring reduces the risk of unexpected shutdown
- power supply: 2 AA 1.5 V batteries (not included)
- faucet adapter with 3/4” and 1” reduction
- durable materials, resistant to external and weather factors: ABS, POM, PC
- max. working pressure: 6 bar
- max. water temperature: 50˚C
- operating temperature: 5-40˚C
- weight: 0.47 kg
Application:
- ideal for watering two independent garden zones
- facilitates irrigation management on large plots, saving water and time
- suitable for backyard gardens and greenhouses for watering flower beds, lawns, and vegetable crops
- provides convenient operation and efficient work
- facilitates garden care even in the absence of household members
