YT-09224

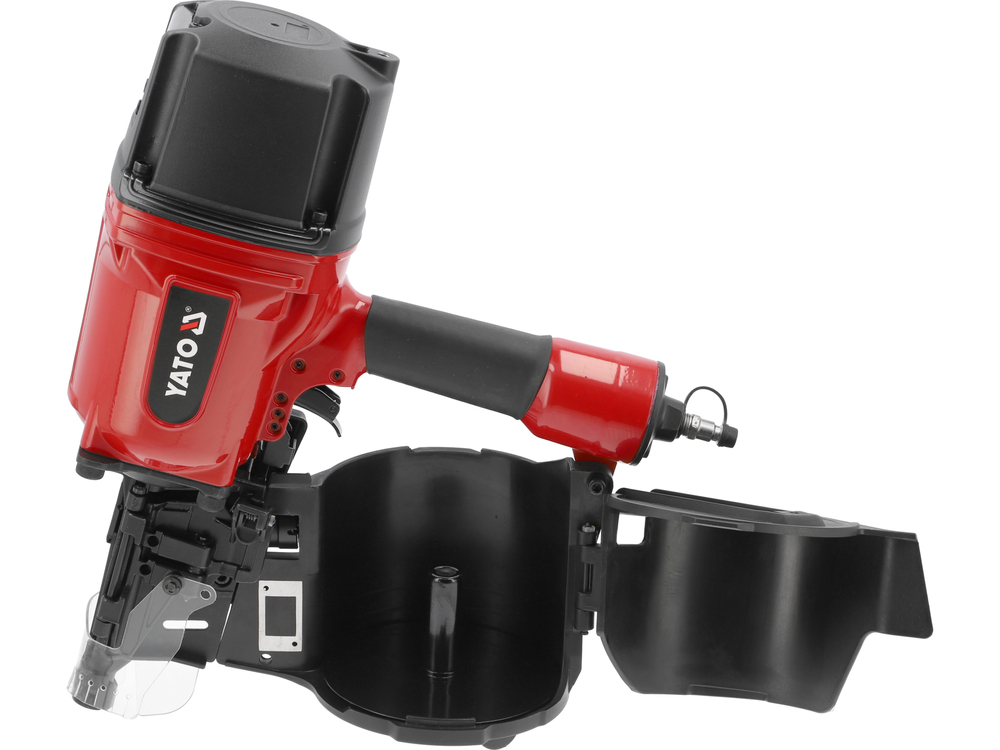

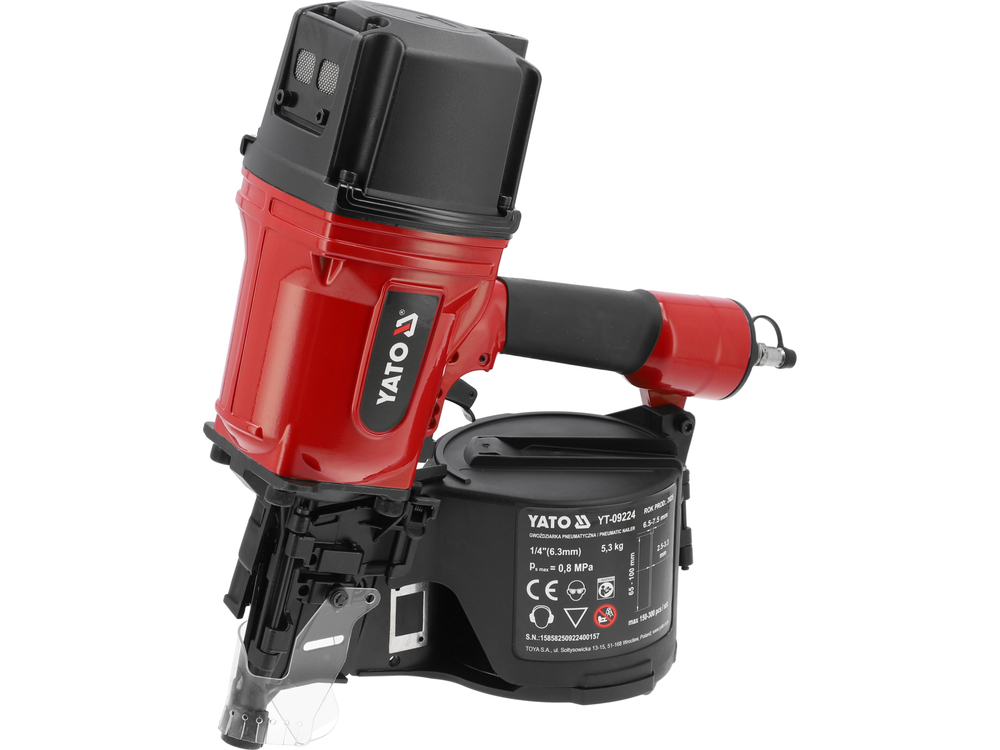

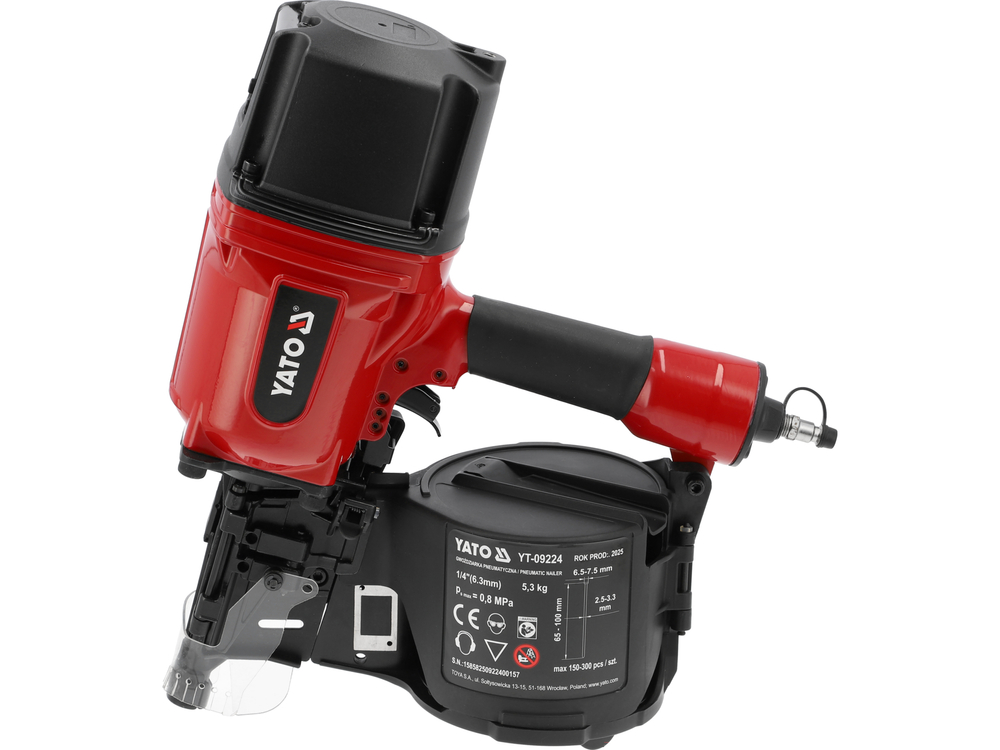

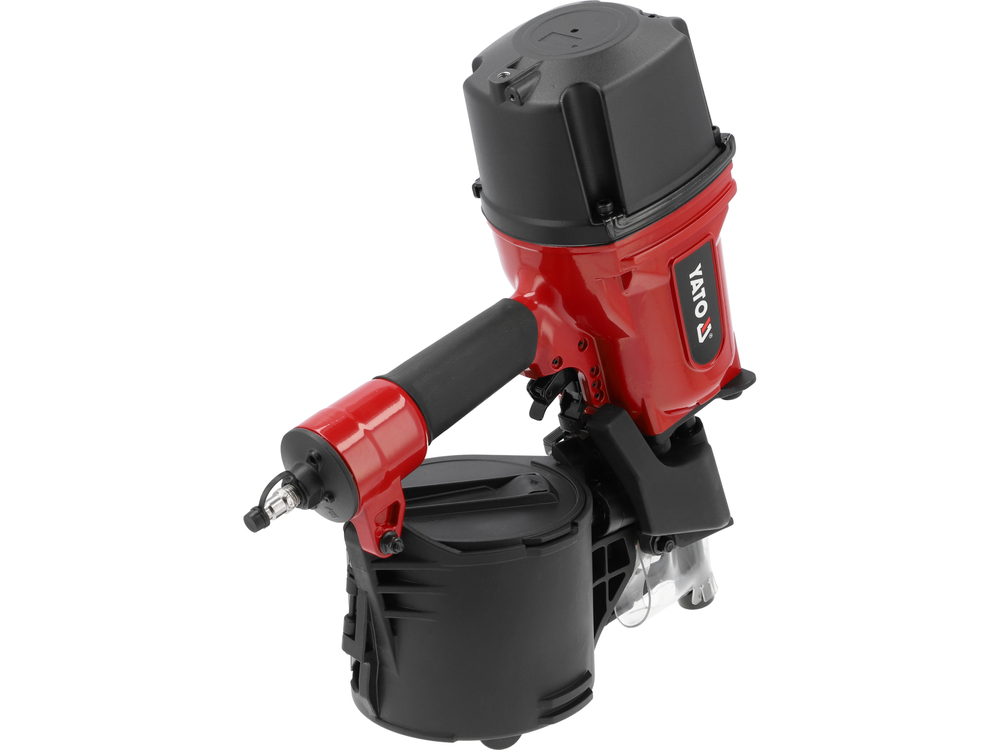

ROOFING NAILER FOR NAILS 65-100MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of fasteners
nails
Connecting elements length
65-100 mm
Connecting elements dimensions
65-100x2.5-3.3x6.5-7.5 mm
Max. working pressure
0.8 MPa
Recommended working pressure
0.4-0.8 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
150-300 szt.
Dimensions
417x156x336 mm
Body material
aluminum
Handle material
rubber
Wire collated nail angle
15 ˚
Functions
sequential operating mode, side loading system
Dust cover
yes
Fuse
yes
Acoustic pressure
97.6 ± 2.5 dB(A)
Acoustic power
110.6 ± 2.5 dB(A)
Vibrations
7.99 ± 1.5 m/s²
Weight
5.3 kg
Application
upholstery, joinery, finishing works
Symbol
YT-09224



A professional drum nailer ensures precise, fast, and durable fastening of materials using nails. Designed for demanding and intensive carpentry, assembly, and upholstery work, it also works well for light finishing tasks.
It has protection against accidental firing, a side loading system, and a dust cover. The sequential mode improves work efficiency, increasing assembly productivity.
- length of connecting elements: 65-100 mm
- nail wire joining angle: 15°
- dimensions of connecting elements: 65-100 x 2.5-3.3 x 6.5-7.5 mm
- max. working pressure: 0.8 MPa

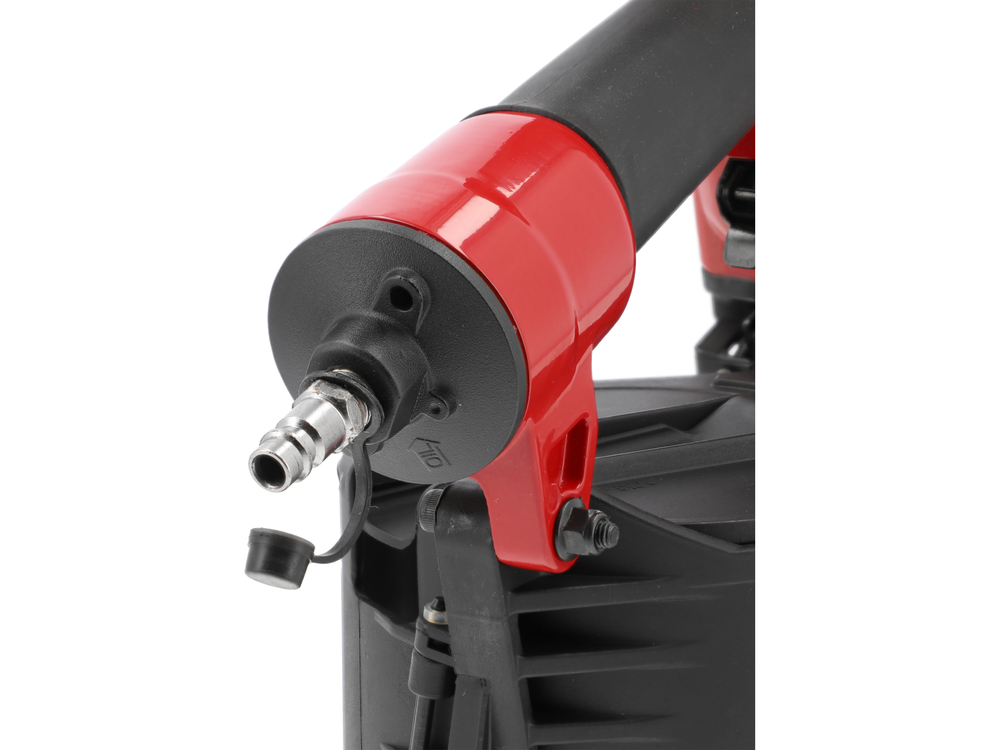

- air inlet diameter: standard
- inner diameter of the air supply hose: 3/8" (9.5 mm)
- 150-300 nail capacity magazine enables longer continuous work
- sequential mode function allows controlled, rhythmic driving of connecting elements, improving accuracy and increasing user safety

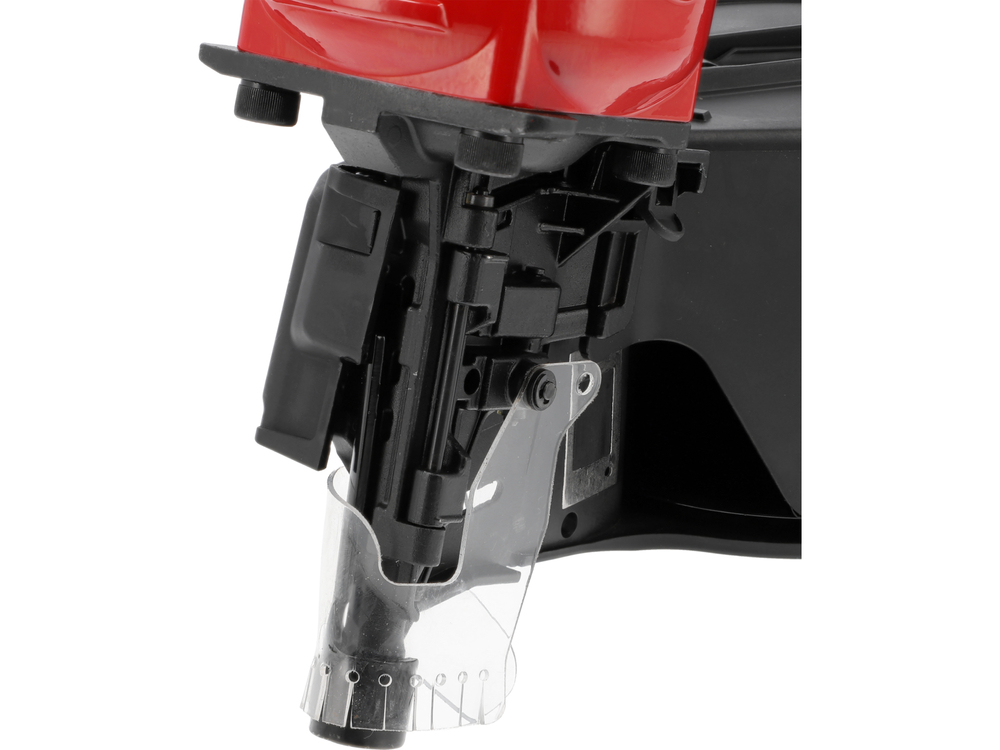

- fuse minimizes the risk of accidental tool activation
- dust cover increases the tool's lifespan and protects the mechanism inside under intensive use conditions
- side loading system facilitates and speeds up magazine refilling, which is particularly important for serial work
- aluminum body ensures high resistance to mechanical damage while maintaining a low device weight, especially appreciated during long hours of work
- anti-slip rubber handle provides a secure grip and reduces vibration transfer to the hand
- dimensions: 417 x 156 x 336 mm
- weight: 5.3 kg
