YT-09240
ROOFING NAILER FOR NAILS 50-100MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Connecting elements type
nails
Connecting elements length
50-100 mm
Connecting elements dimensions
50-100x2.9-3.3x7 mm
Max. working pressure
0.8 MPa
Recommended working pressure
0.4-0.8 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
40 x2 szt.
Dimensions
475x366x163 mm
Body material
aluminum
Handle material
rubber
Functions
sequential operating mode, side loading system, adjustable penetration depth
Dust cover
yes
Fuse
yes
Acoustic pressure
95.9 ± 2.5 dB(A)
Acoustic power
108.9 ± 2.5 dB(A)
Vibrations
5.17 ± 0.59 m/s²
Weight
4.25 kg
Symbol
YT-09240

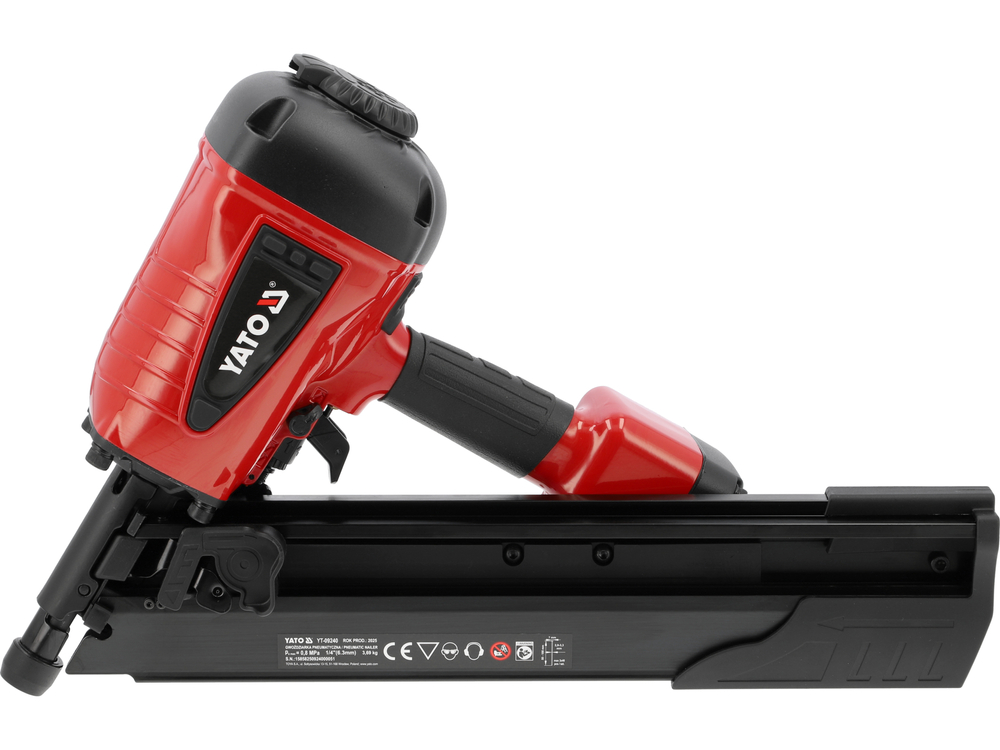

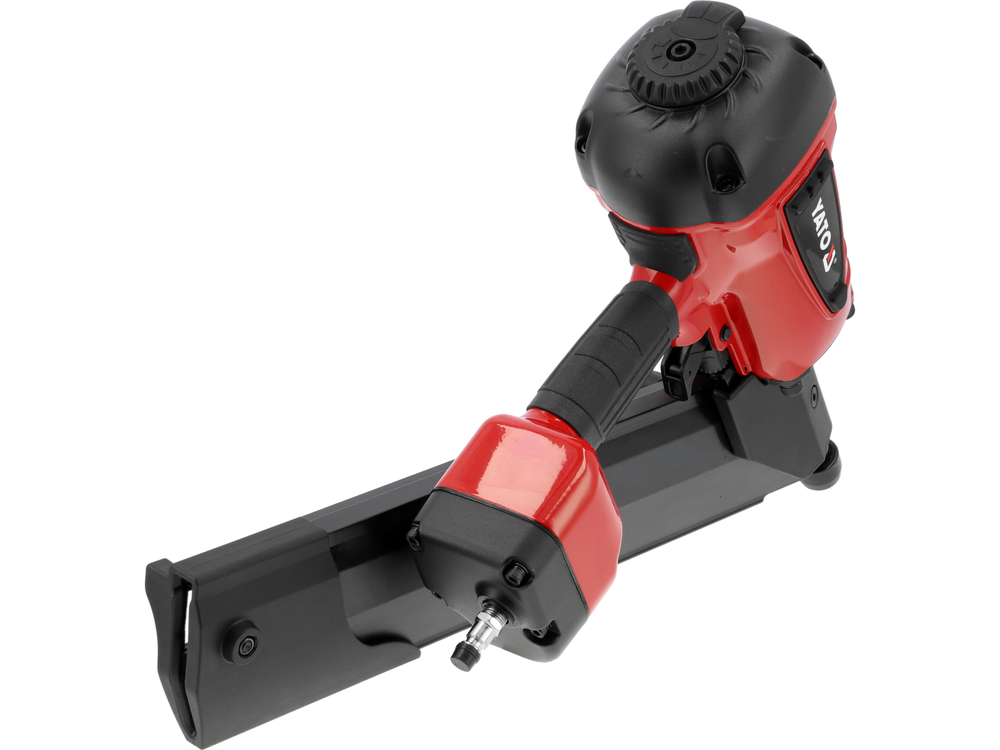

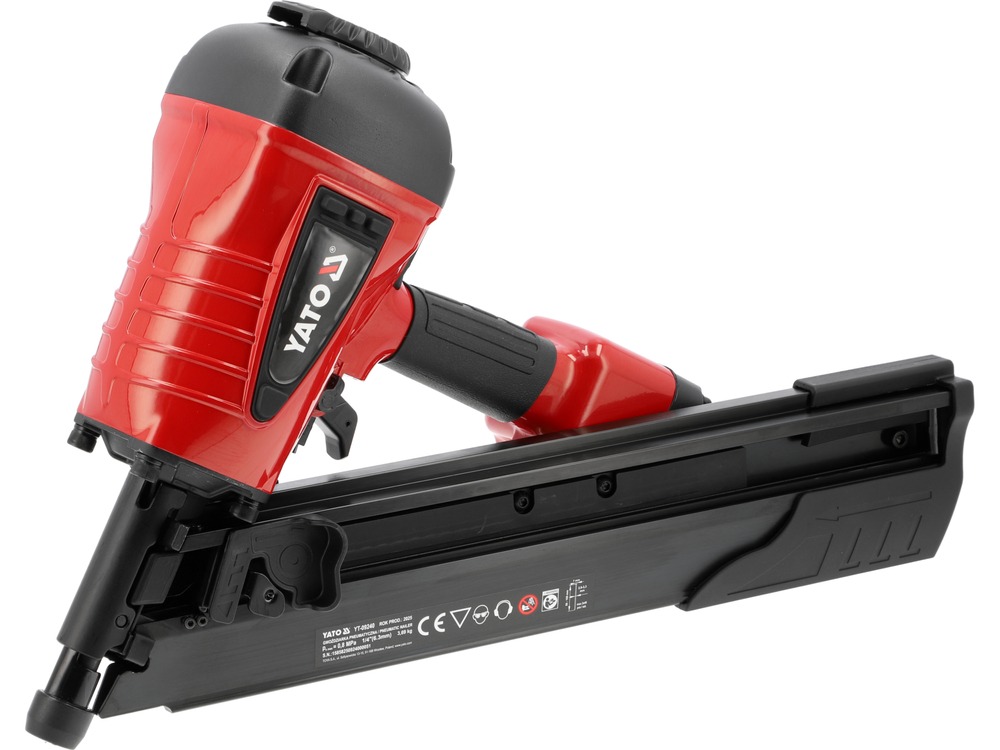

A professional pneumatic nailer ensures precise, fast, and durable fastening of materials using glued nails. Created for demanding and intensive carpentry, assembly, and upholstery work, it also works well for light finishing tasks.
It has protection against accidental application, a side loading system, and a dust cover. The sequential mode streamlines work, increasing assembly efficiency.
- fastener length: 50-100 mm
- nail joining angle on paper tape: 34°
- fastener dimensions: 50-100 x 2.9-3.3 x 7 mm
- max. operating pressure: 0.8 MPa

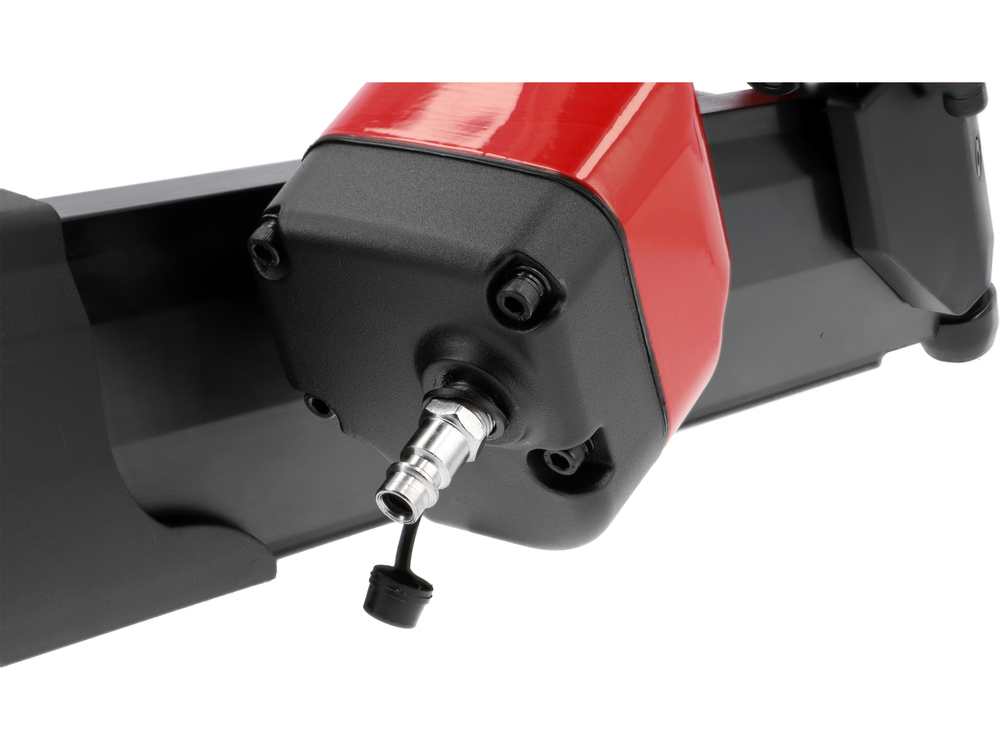

- air inlet diameter: standard
- inner diameter of the air supply hose: 3/8" (9.5 mm)
- a magazine with a capacity of 40 x 2 nails allows for longer uninterrupted work
- the sequential mode function allows for controlled, rhythmic driving of fasteners, improving accuracy and user safety

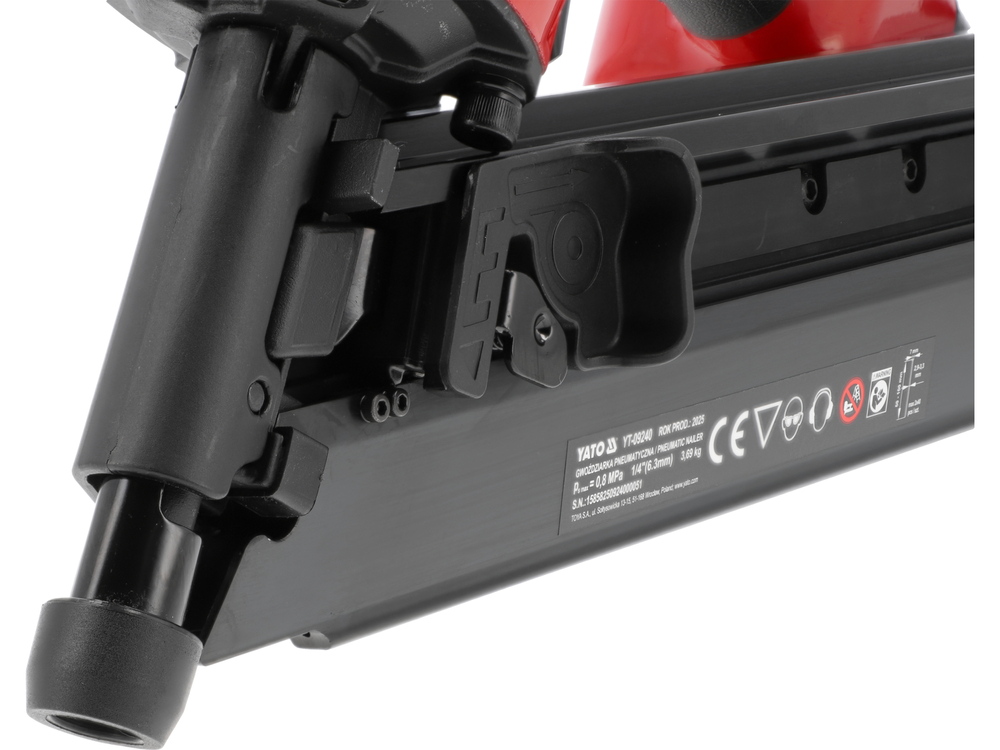

- a safety lock minimizes the risk of accidental tool activation
- a dust cover increases the tool's lifespan and protects the interior mechanism under intensive use
- a side loading system facilitates and speeds up magazine refilling, which is particularly important for serial work
- depth adjustment allows for precise adaptation to the material being processed
- an aluminum body ensures high resistance to mechanical damage while maintaining a low device weight, especially appreciated during long hours of work
- a non-slip rubber handle provides a secure grip and limits vibration transfer to the hand
- dimensions: 475 x 366 x 163 mm
- weight: 4.25 kg
Compatible nails: VOREL 72010, 72011, 72012, 72013.
