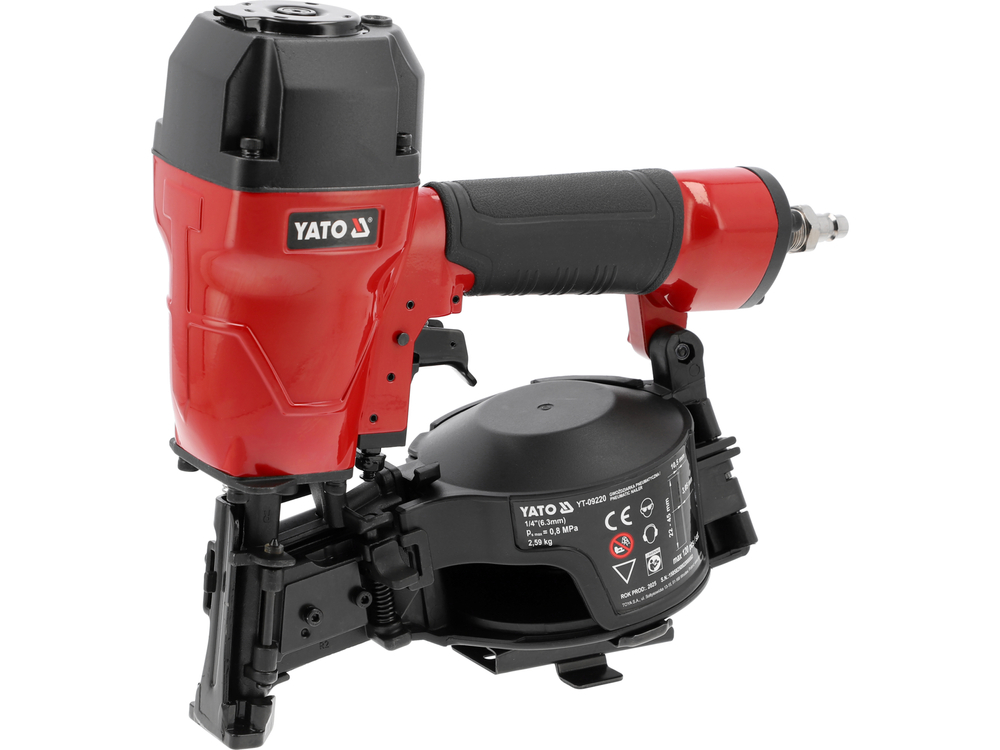

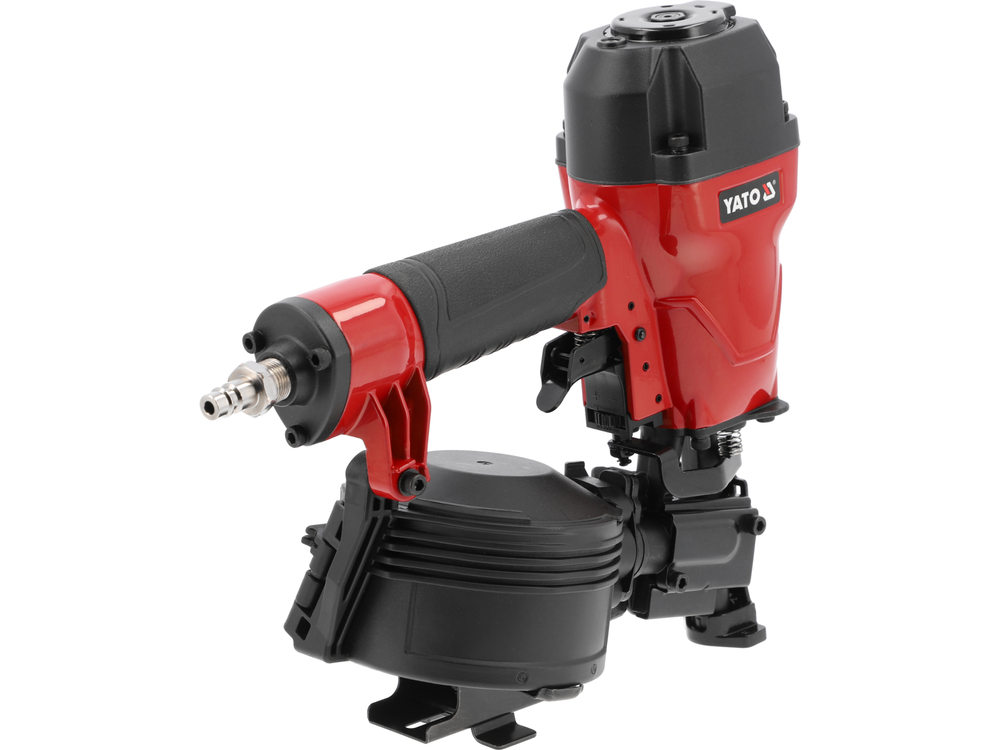

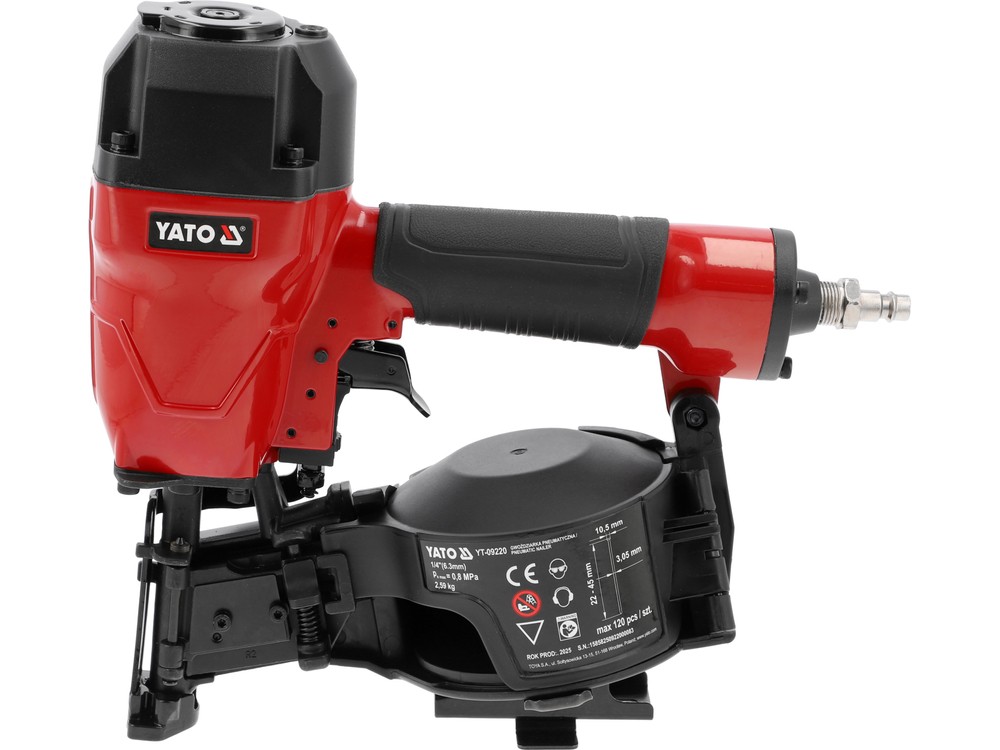

YT-09220
ROOFING NAILER FOR NAILS 22-45MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of fasteners
nails
Connecting elements length
22-45 mm
Connecting elements dimensions
22-45x3.05x10.5 mm
Max. working pressure
0.8 MPa
Recommended working pressure
0.4-0.8 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
120 szt.
Dimensions
295x279x58 mm
Body material
aluminum
Handle material
rubber
Wire collated nail angle
15 ˚
Functions
sequential operating mode, side loading system
Dust cover
yes
Fuse
yes
Acoustic pressure
94.2 ± 2.5 dB(A)
Acoustic power
107.2 ± 2.5 dB(A)
Vibrations
2.69 ± 0.1 m/s²
Weight
2.59 kg
Application
upholstery, joinery, finishing works
Symbol
YT-09220



A professional drum nailer provides precise, fast, and durable fastening of materials using nails. Created for demanding and intensive carpentry, assembly, and upholstery work, it also works well for light finishing tasks.
It has protection against accidental firing, a side loading system, and a dust cover. The sequential mode improves work efficiency, increasing installation productivity.
- fastener length: 22-45 mm
- nail wire joining angle: 15°
- fastener dimensions: 22-45 x 3.05 x 10.5 mm
- max. operating pressure: 0.8 MPa
- air inlet diameter: standard
- internal diameter of air supply hose: 3/8" (9.5 mm)
- 120-nail capacity magazine allows for longer uninterrupted work
- sequential mode function allows for controlled, rhythmic driving of fasteners, improving accuracy and increasing user safety
- safety fuse minimizes the risk of accidental tool activation
- dust cover increases tool lifespan and protects the mechanism inside under intensive use conditions

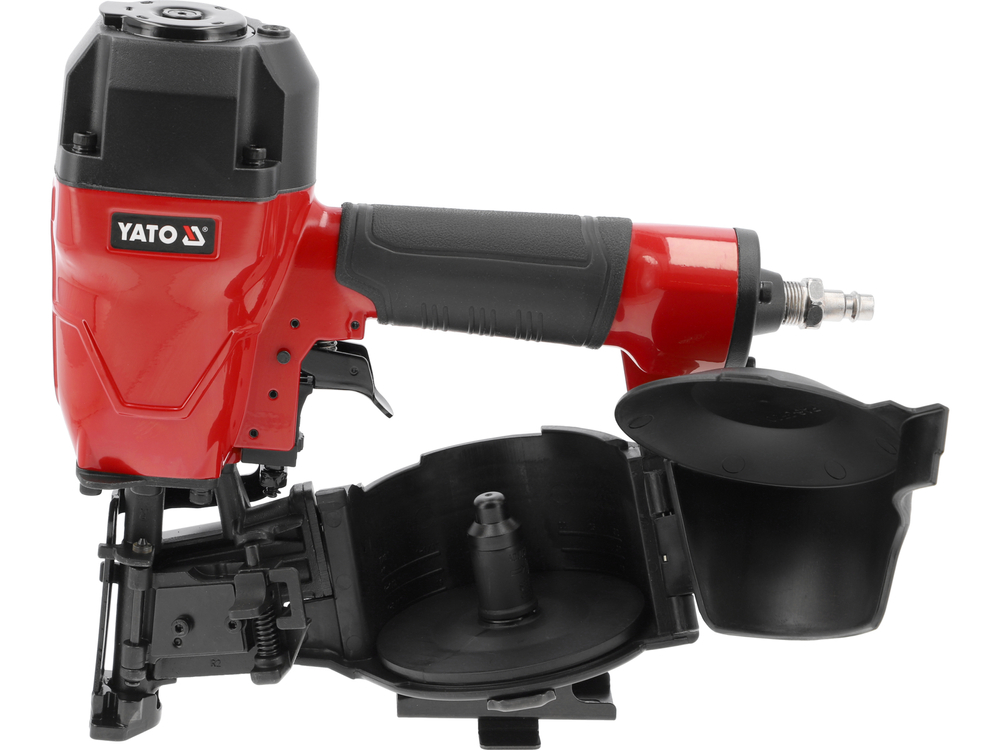

- side loading system facilitates and speeds up magazine refilling, which is particularly important for serial work
- aluminum body ensures high resistance to mechanical damage, while maintaining the device's low weight, especially appreciated during long hours of work
- anti-slip rubber handle provides a secure grip and reduces vibration transfer to the hand
- compact dimensions: 295 x 279 x 58 mm allow for easy maneuvering, even in hard-to-reach places
- weight: 2.59 kg
