YT-09221
ROOFING NAILER FOR NAILS 32-57MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of fasteners
nails
Connecting elements length
32-57 mm
Connecting elements dimensions
32-57x2.1-2.3x5.5-5.7 mm
Max. working pressure
0.8 MPa
Recommended working pressure
0.4-0.8 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
300-350 szt.
Dimensions
283x131x270 mm
Body material
aluminum
Handle material
rubber
Wire collated nail angle
15 ˚
Functions
sequential operating mode, side loading system
Dust cover
yes
Fuse
yes
Acoustic pressure
89.1 ± 2.5 dB(A)
Acoustic power
102.1 ± 2.5 dB(A)
Vibrations
2.95 ± 0.56 m/s²
Weight
2.7 kg
Application
upholstery, joinery, finishing works
Symbol
YT-09221

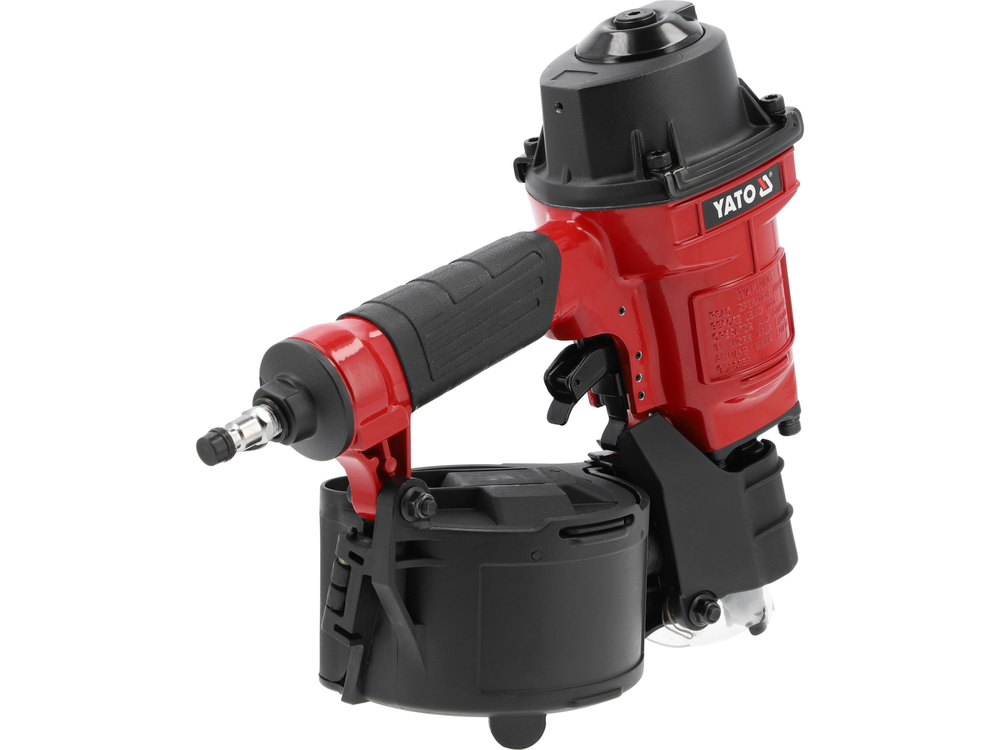

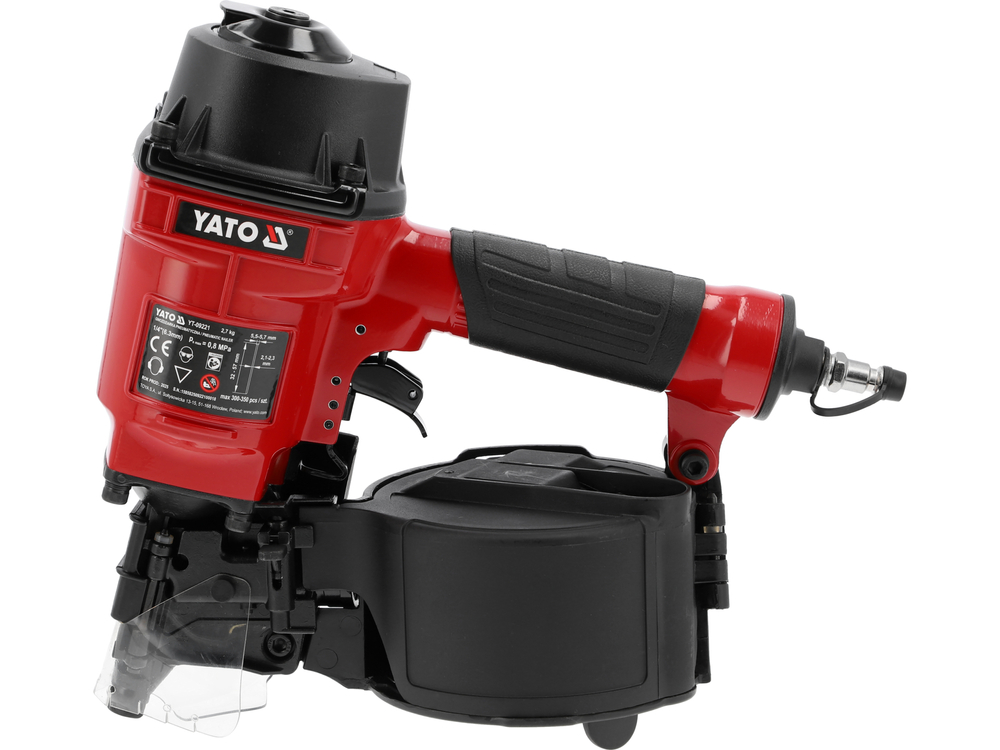

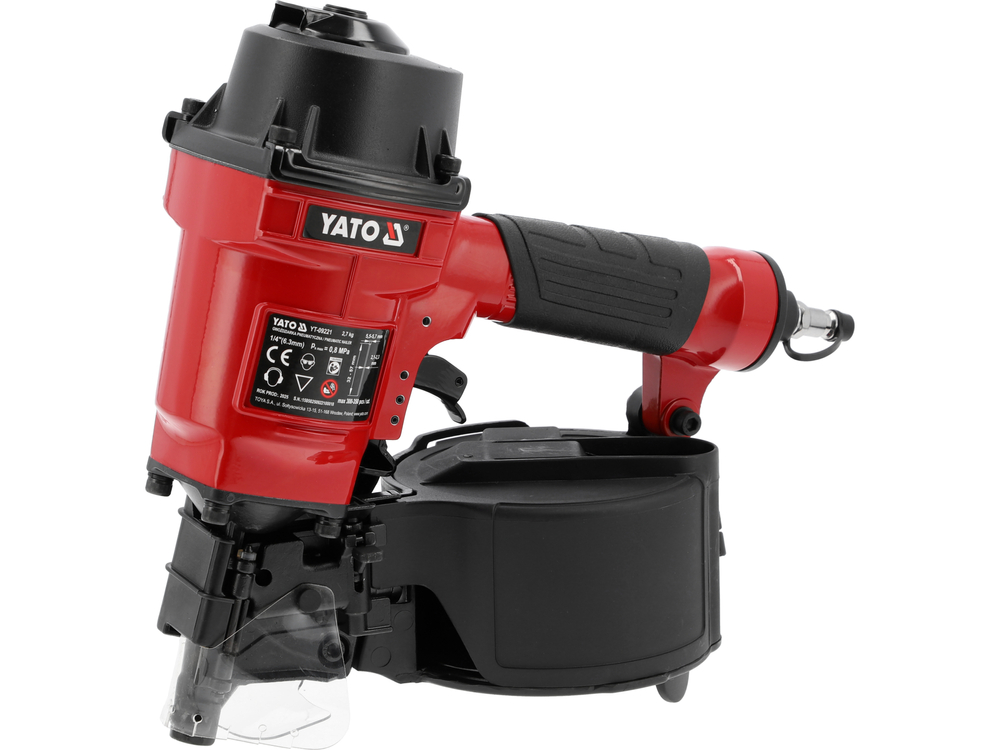

A professional drum nailer ensures precise, fast, and durable fastening of materials using nails. Designed for demanding and intensive carpentry, assembly, and upholstery work, it also performs well in light finishing tasks.
It features protection against accidental firing, a side loading system, and a dust cover. The sequential mode streamlines work, increasing assembly efficiency.
- fastener length: 32-57 mm
- nail wire joining angle: 15°
- fastener dimensions: 32-57 x 2.1-2.3 x 5.5-5.7 mm
- max. operating pressure: 0.8 MPa

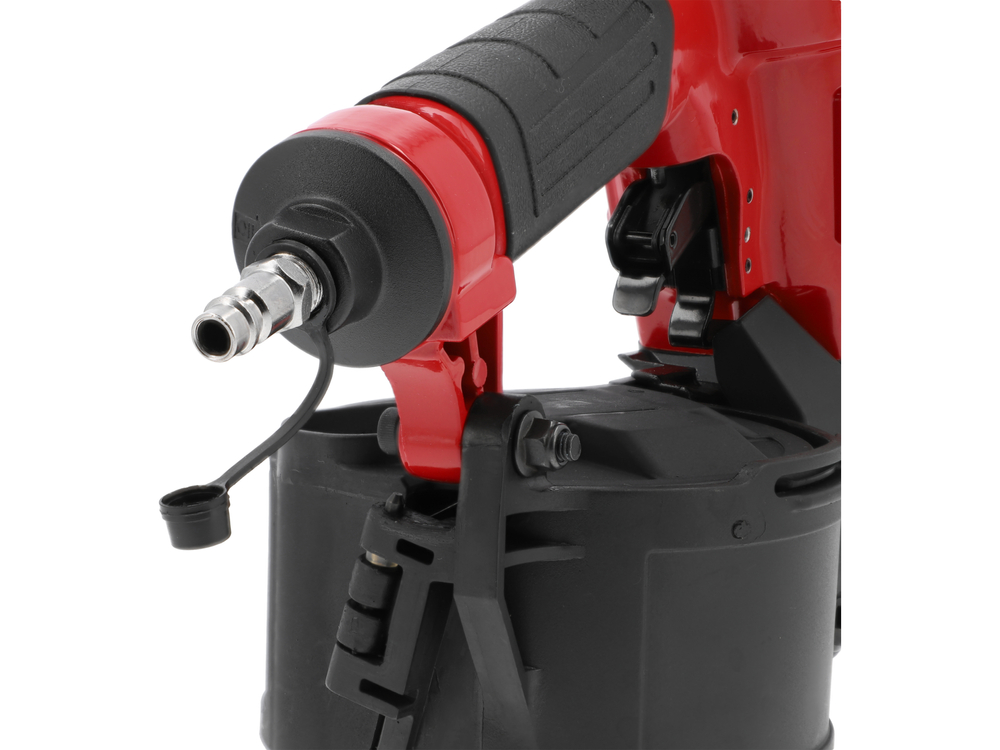

- air inlet diameter: standard
- inner diameter of air supply hose: 3/8" (9.5 mm)
- 300-350 nail capacity magazine allows for longer uninterrupted work
- sequential mode function enables controlled, rhythmic insertion of fasteners, improving accuracy and user safety
- safety fuse minimizes the risk of accidental tool activation

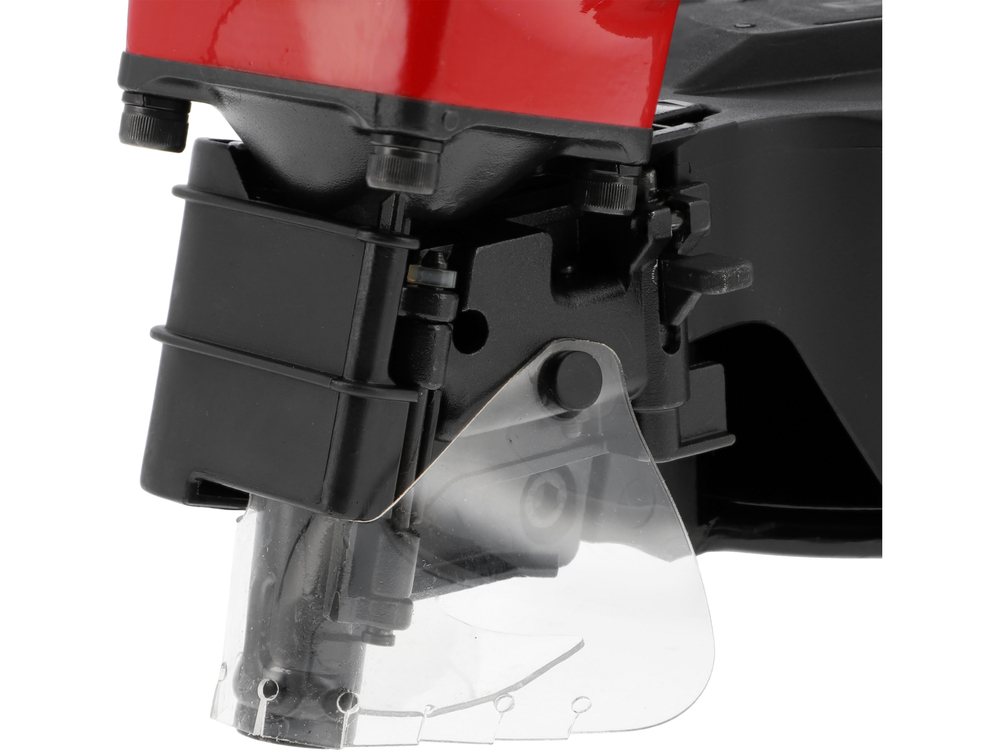

- dust cover increases tool lifespan and protects the mechanism in intense operating conditions

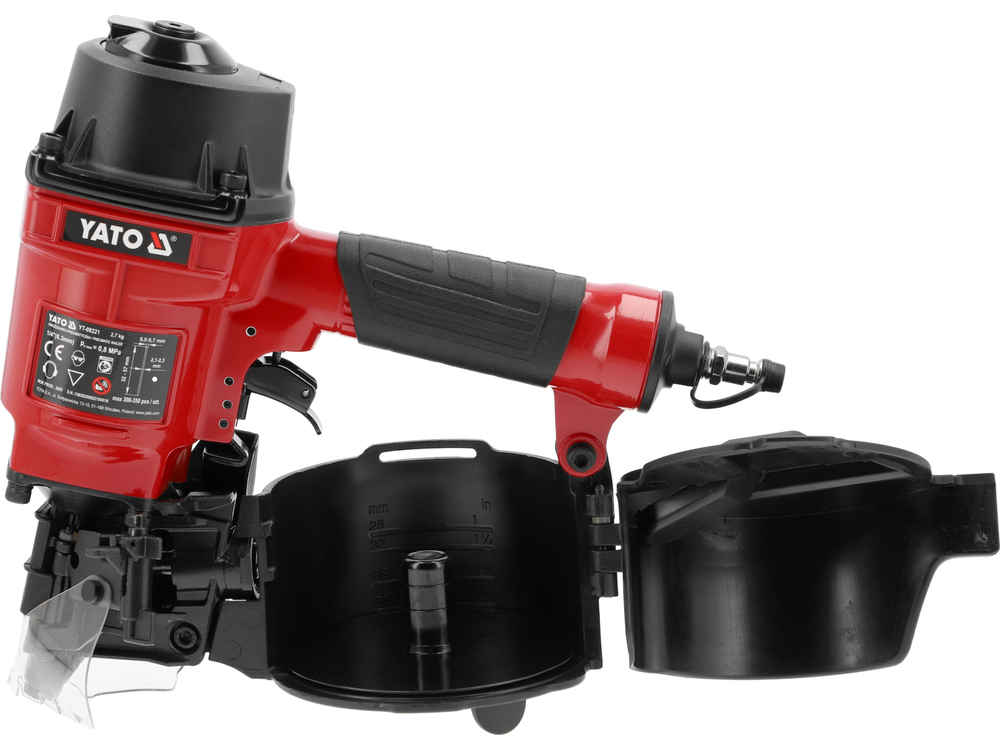

- side loading system facilitates and speeds up magazine replenishment, particularly important for serial work
- aluminum body ensures high resistance to mechanical damage while maintaining a low device weight, especially appreciated during long hours of work
- anti-slip rubber handle provides a secure grip and reduces vibration transfer to the hand
- compact dimensions: 283 x 131 x 270 mm allow for easy maneuverability, even in hard-to-reach places
- weight: 2.7 kg
