Novelty
YT-09617
PNEUMATIC IMPACT WRENCH 1" 4000NM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Holder size
1" (25.0 mm)
Toolholder type
Driver
Stroke mechanism type
PINLESS HAMMER
Max. working pressure
0.63 MPa
Required air flow
450 l/min
Rotations
4000 min⁻¹
Max. torque
4000 Nm
Quick coupler size
1/2" (12.7 mm)
Air connection diameter (PT)
1/2" (12.7 mm)
Air supply hose inside diameter
1/2" (12.7 mm)
Length
510 mm
Rotation switch
yes
Acoustic pressure
97.3 ± 3.0 dB(A)
Acoustic power
108.3 ± 3.0 dB(A)
Vibrations
11.64 ± 1.01 m/s²
Weight
11.7 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mobile and stationary car services, tire and truck services
Symbol
YT-09617
![](https://pim.toya.pl/piktogramy/CALE_inch-mm_inch-cm/image-thumb__59493__Sklep_pikto/1_inch_25_mm.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__61153__Sklep_pikto/PINLESS_HAMMER_TYPE.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52595__Sklep_pikto/0%2C63_MPa.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52694__Sklep_pikto/450_l-min.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__69323__Sklep_pikto/ULTRA_LIGHT_ENG.png")
![](https://pim.toya.pl/piktogramy/Nm_nm/image-thumb__460457__Sklep_pikto/4000_Nm.png")
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__60208__Sklep_pikto/4000_min-1.png")
![](https://pim.toya.pl/piktogramy/PICTURE_PARAMETER/image-thumb__70397__Sklep_pikto/COUPLE_03_G_1-2.png")

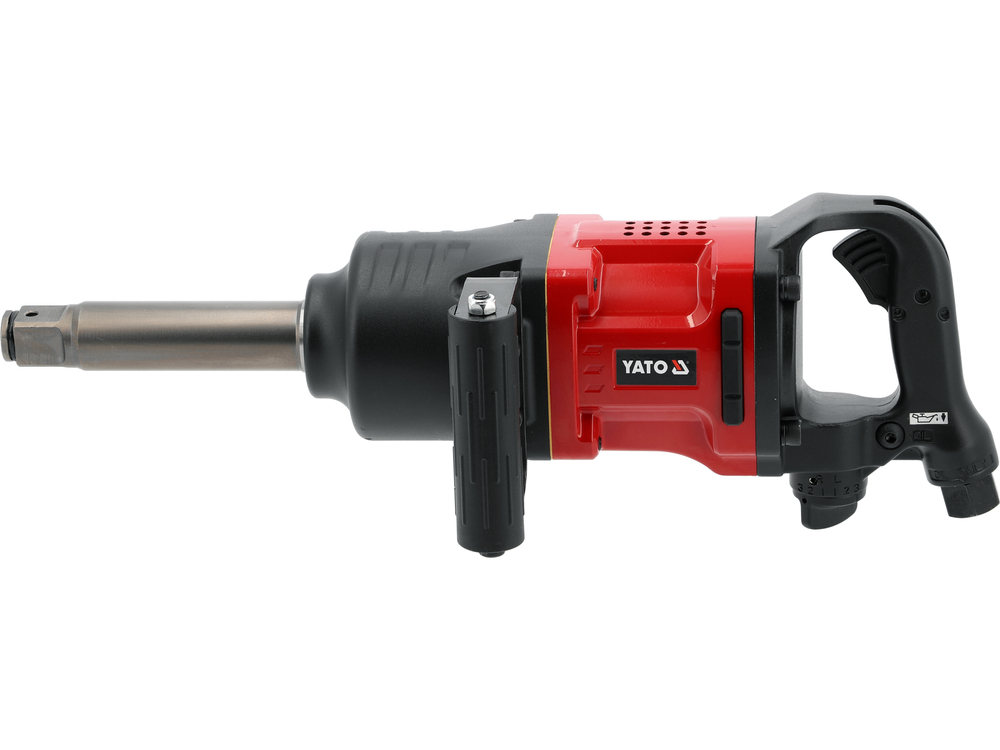

Special Task Impact Wrench
The professional pneumatic wrench YT-09617 is your support in intensive workshop and industrial work, offering unparalleled power and durability. Designed to meet the most demanding challenges.
Efficiency you can rely on in industry and service

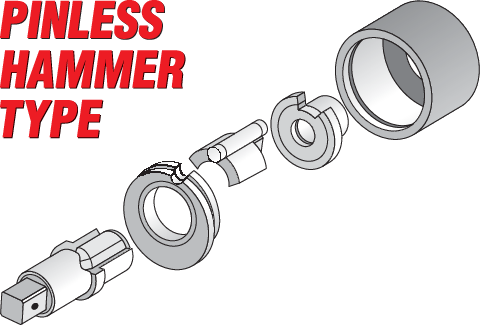

- Pinless Hammer mechanism ensuring durability and efficiency in intensive work

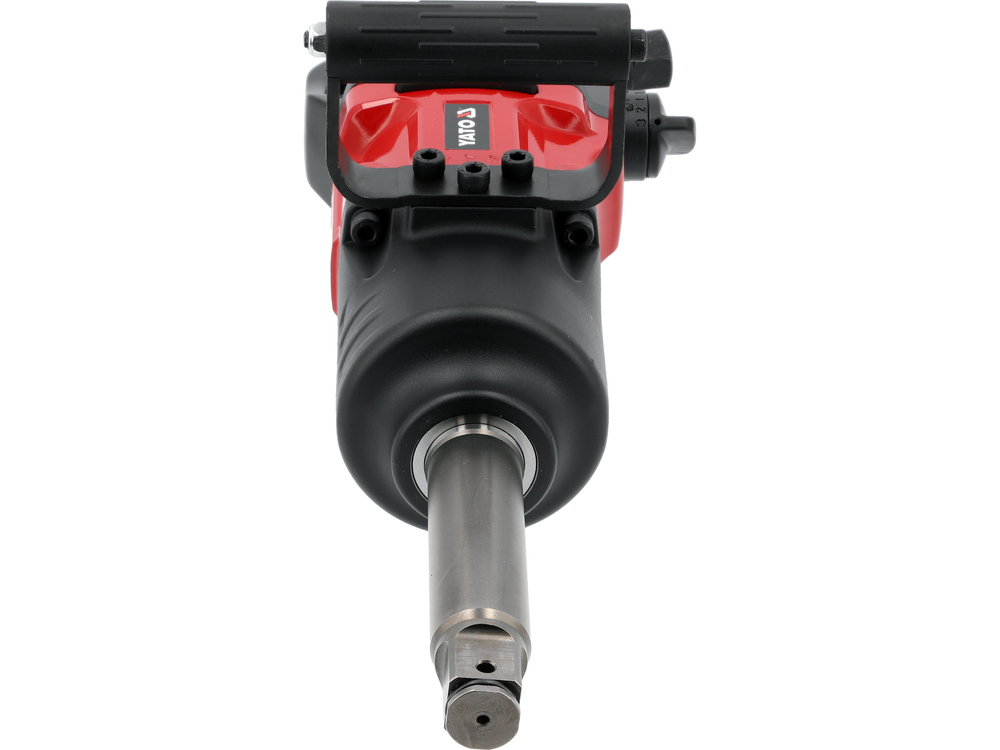

- Extended spindle for easy access to deeply seated screws and nuts
- Ideal for handling wheels of trucks and agricultural machinery
- Impressive loosening torque of 4000 Nm, dealing with the most stubborn connections
- Rotational speed of 4000 rpm for fast and efficient work
- Solid construction ensuring reliability in the most demanding conditions

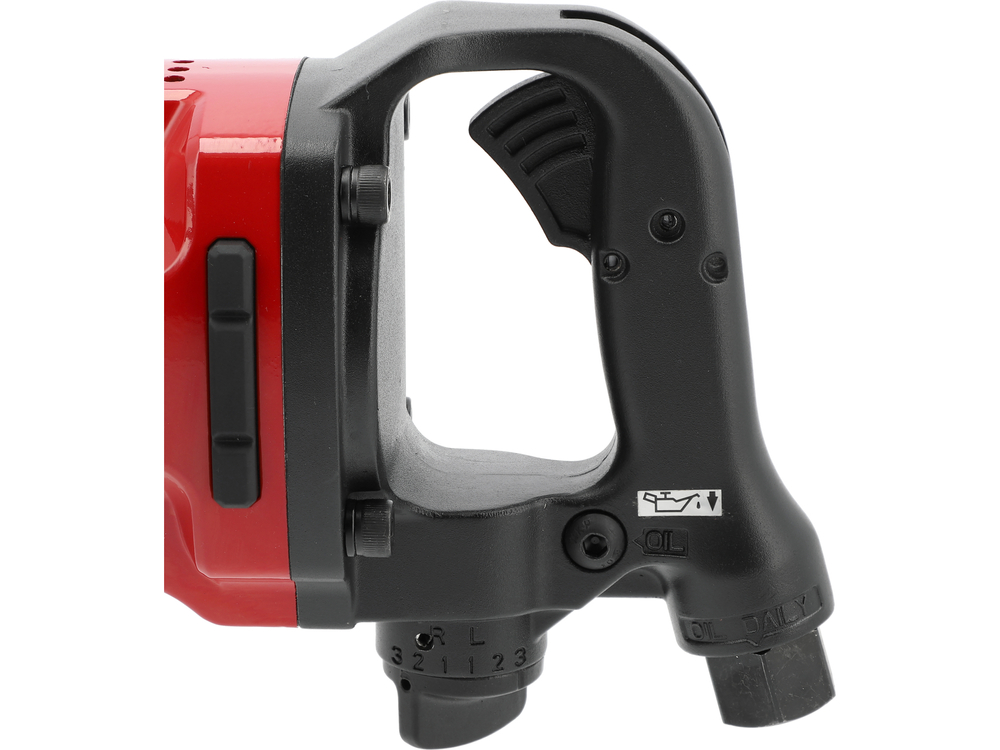

- Convenient trigger integrated in the handle for comfortable operation
- Lightweight at 11.7 kg minimizing fatigue during prolonged work
- Direction switch increasing versatility of applications
- Designed for intensive industrial and service work
Power 4000 Nm
Durable construction
Extended spindle
Lightweight construction
Fast loosening
Technical Data
- Drive: 1" (25.0 mm)
- Max. loosening torque: 4000 Nm
- Rotational speed: 4000 rpm
- Type of impact mechanism: Pinless Hammer
- Max working pressure: 0.63 MPa (approx. 90 psi)
- Required airflow: 450 l/min
- Weight: 11.7 kg
- Total length: 510 mm
- Direction switch: Yes
- Recommended air inlet diameter: 1/2" (12.7 mm)
- Application: Industry, automotive services (mobile and stationary), tire and truck services
