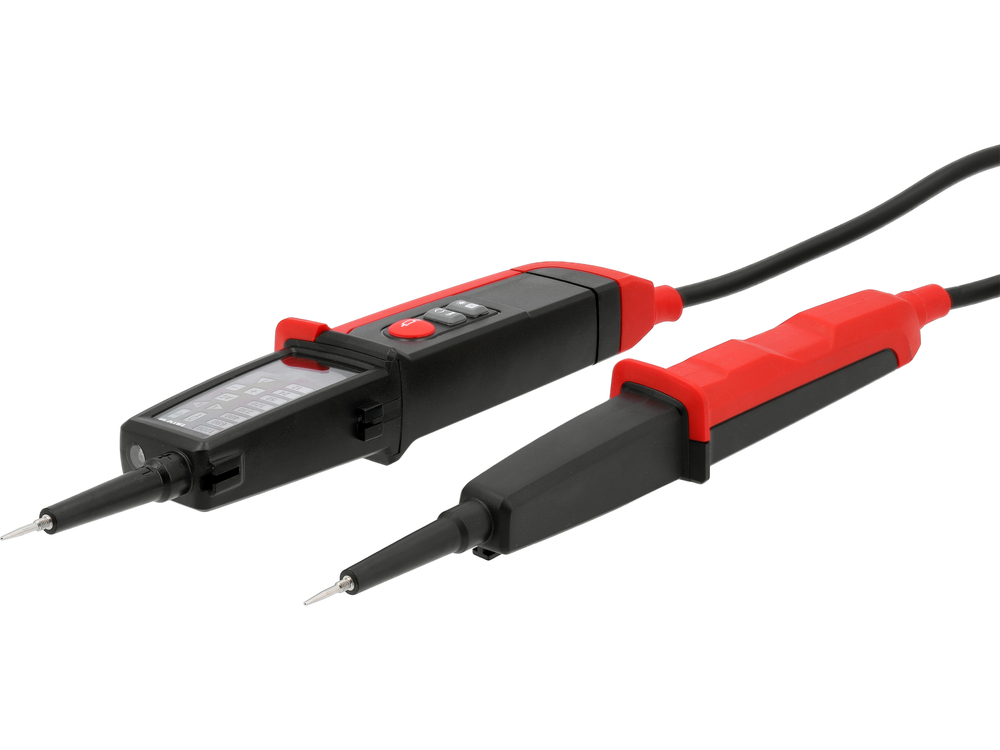

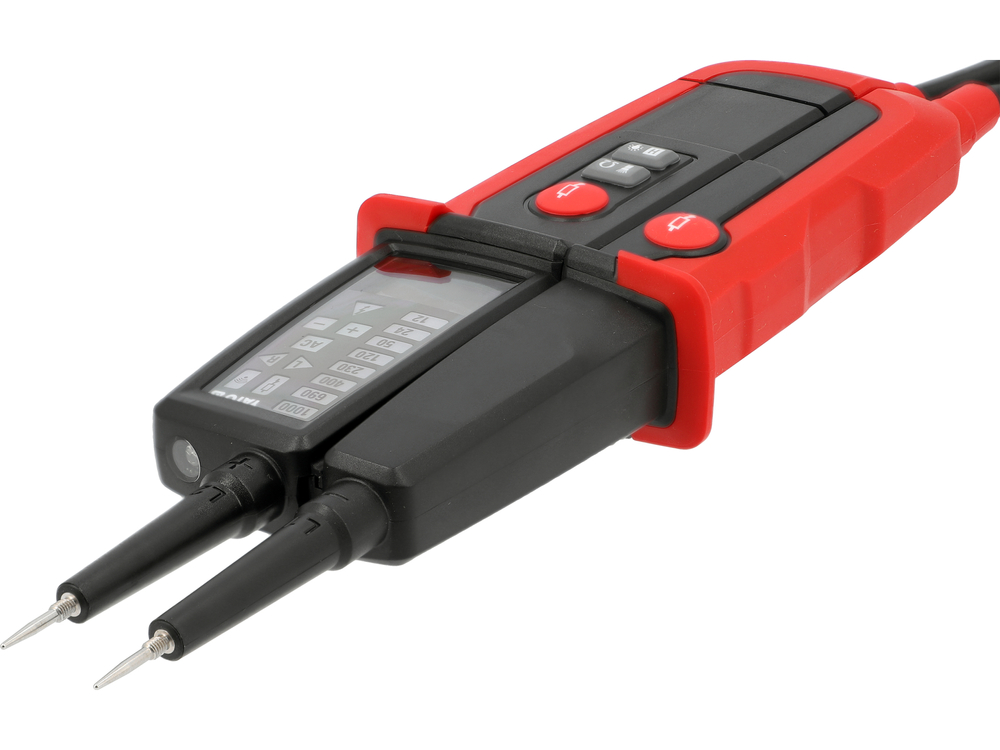

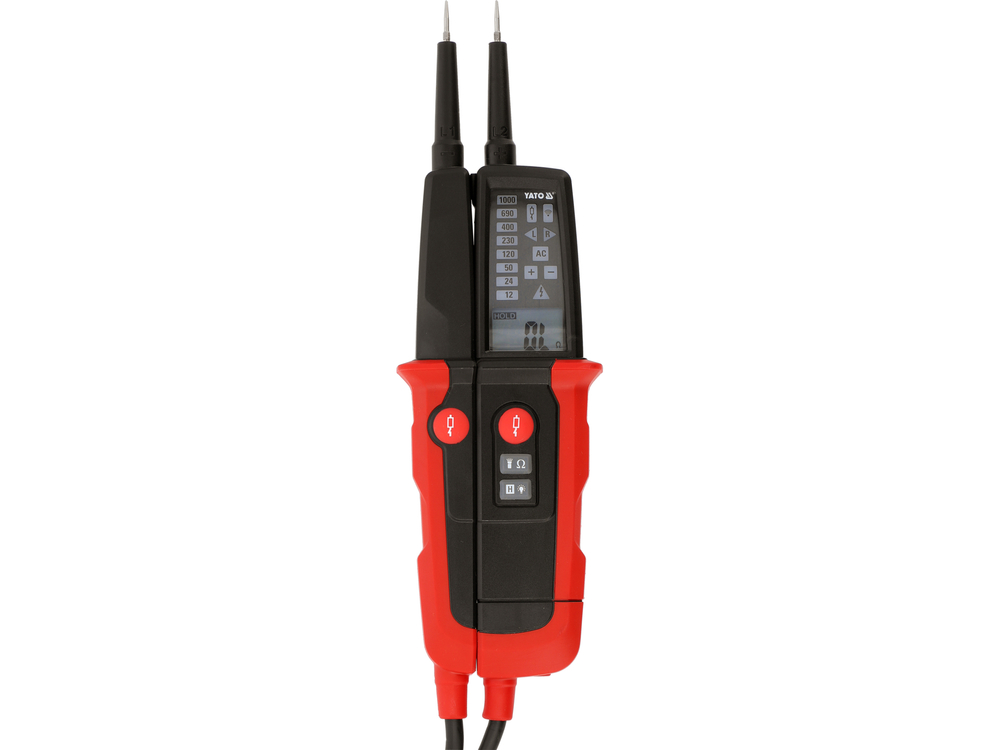

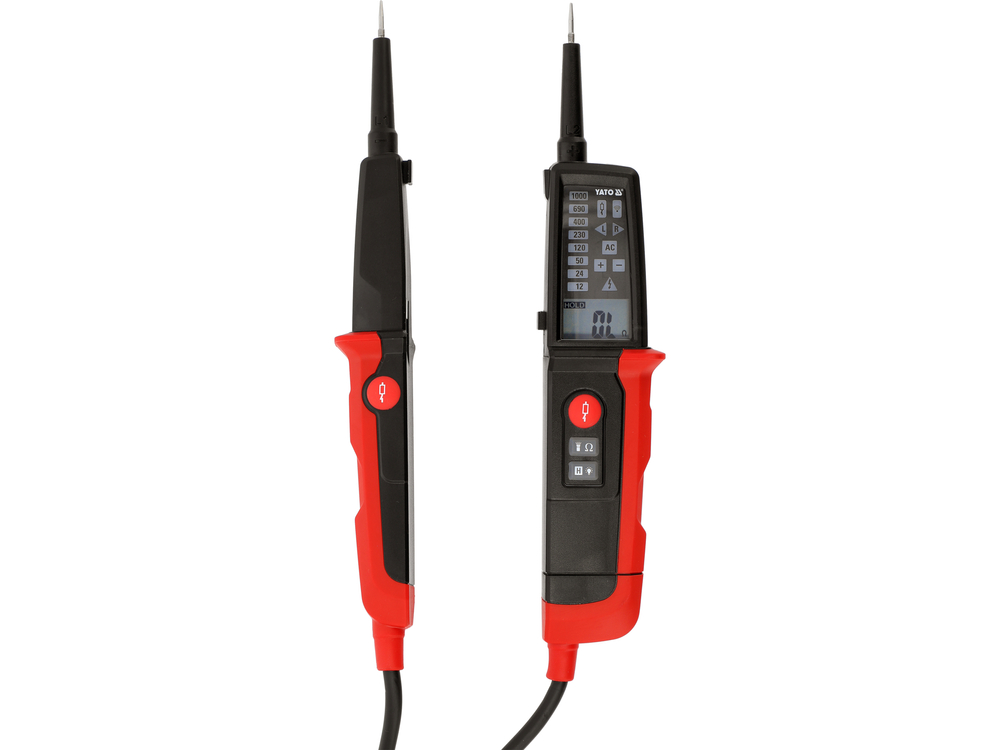

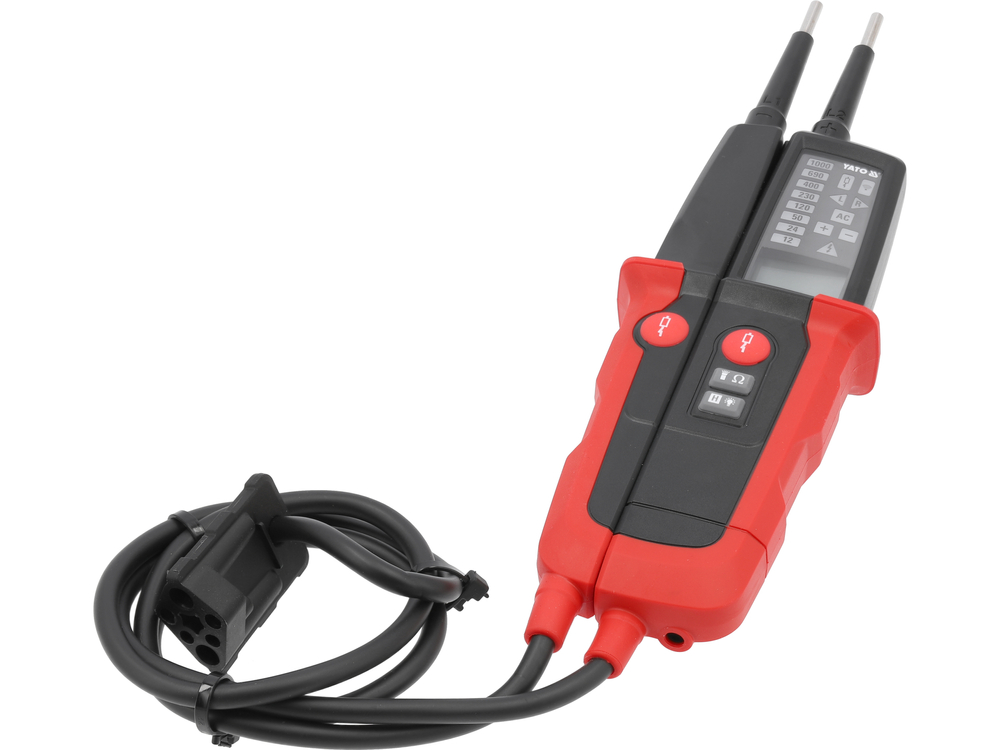

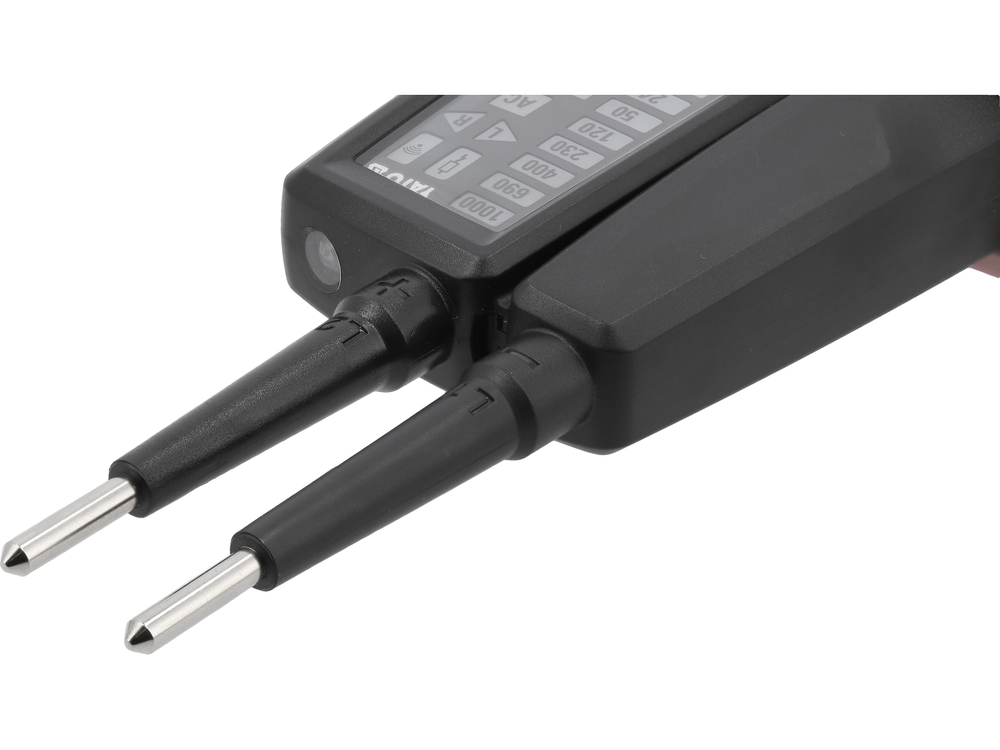

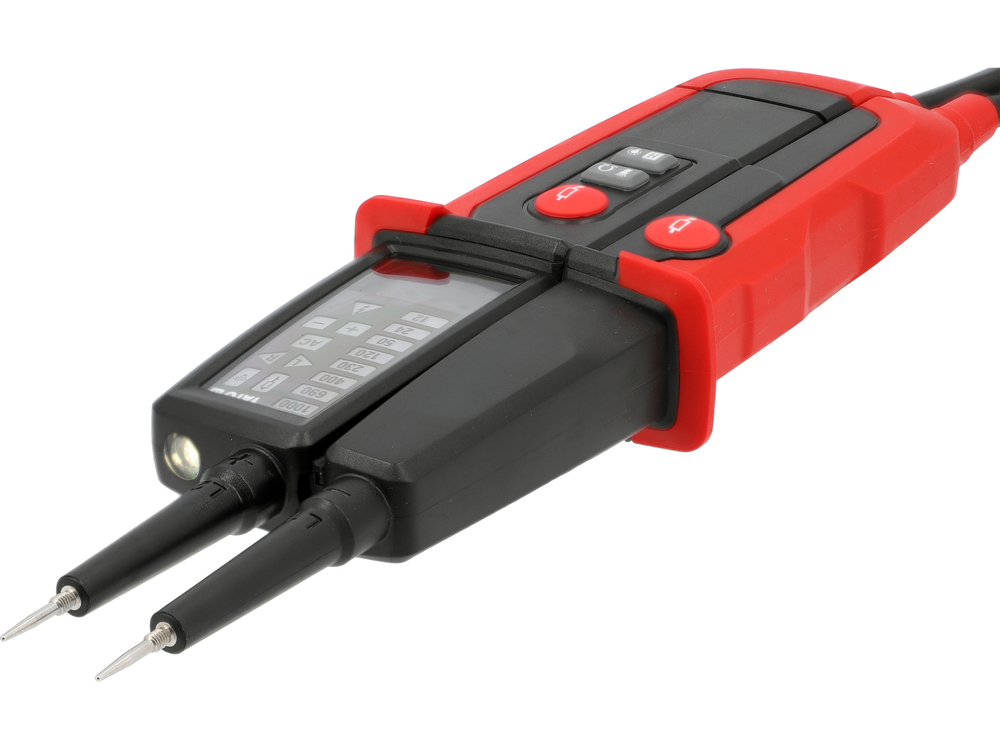

Bipolar voltage tester in a solid housing with flexible cables in silicone insulation. Detects and measures AC and DC voltages in the range of 6 to 1000 V. The result is indicated on the LCD display and via LED indicators. The tester also allows you to:

• check the phase rotation sequence in three-phase systems
• check the voltage in low impedance mode (to eliminate noise)
• test the operation of RCD switches with a rated current of 30 mA or less
• perform circuit continuity test and measure resistance up to 1999 ohms

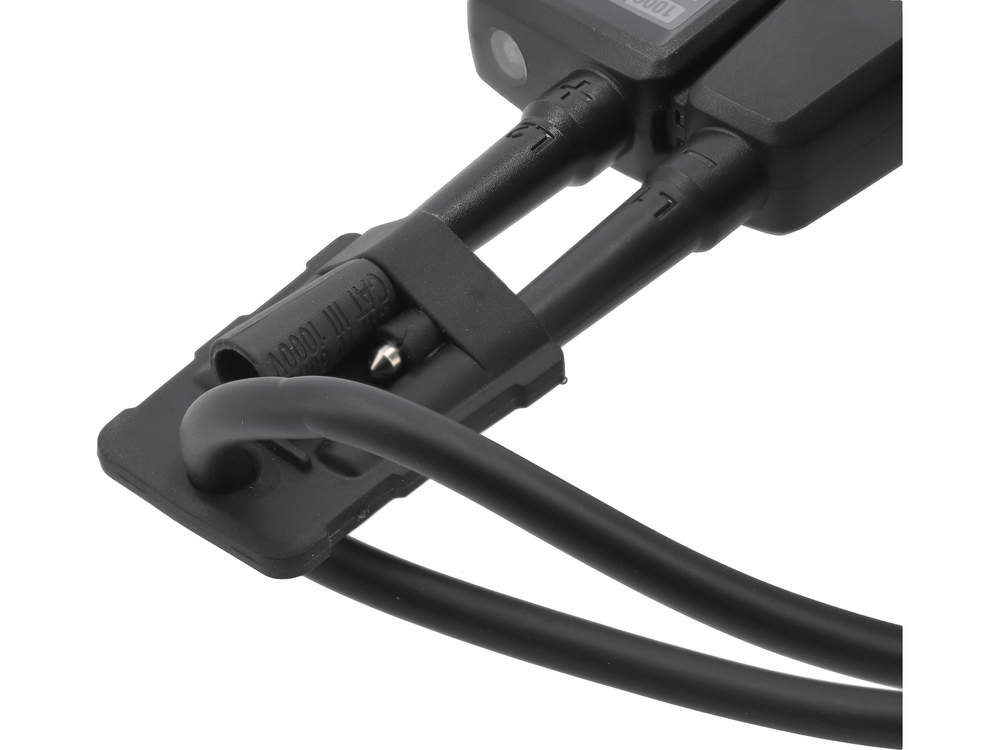

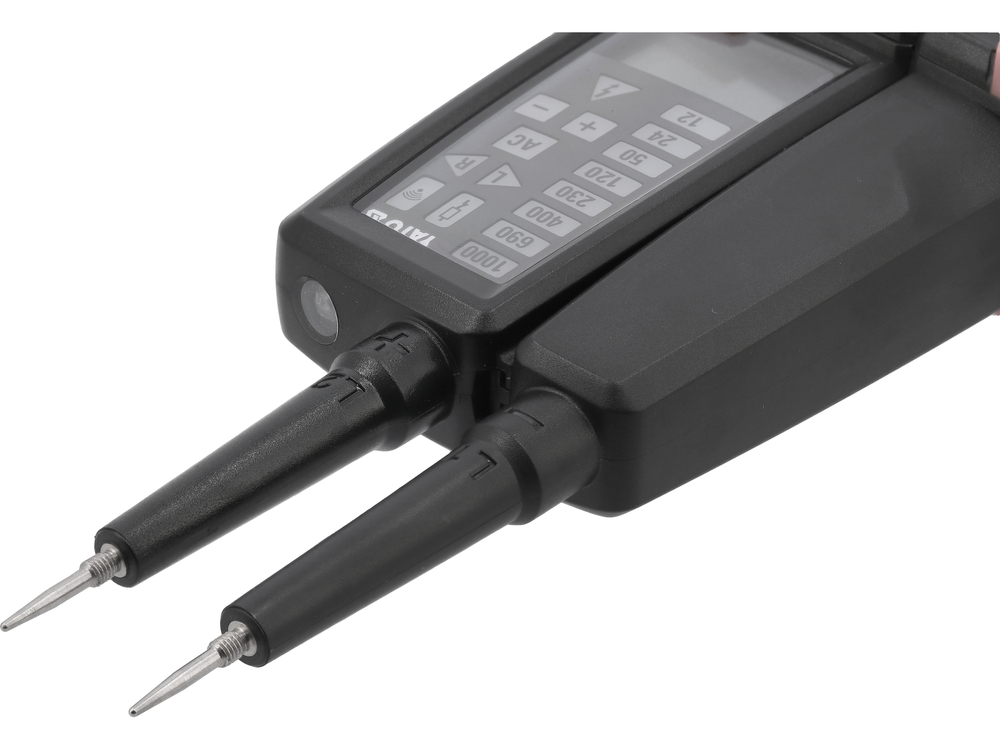

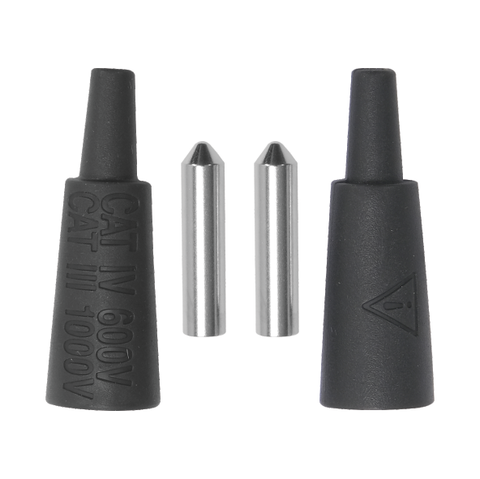

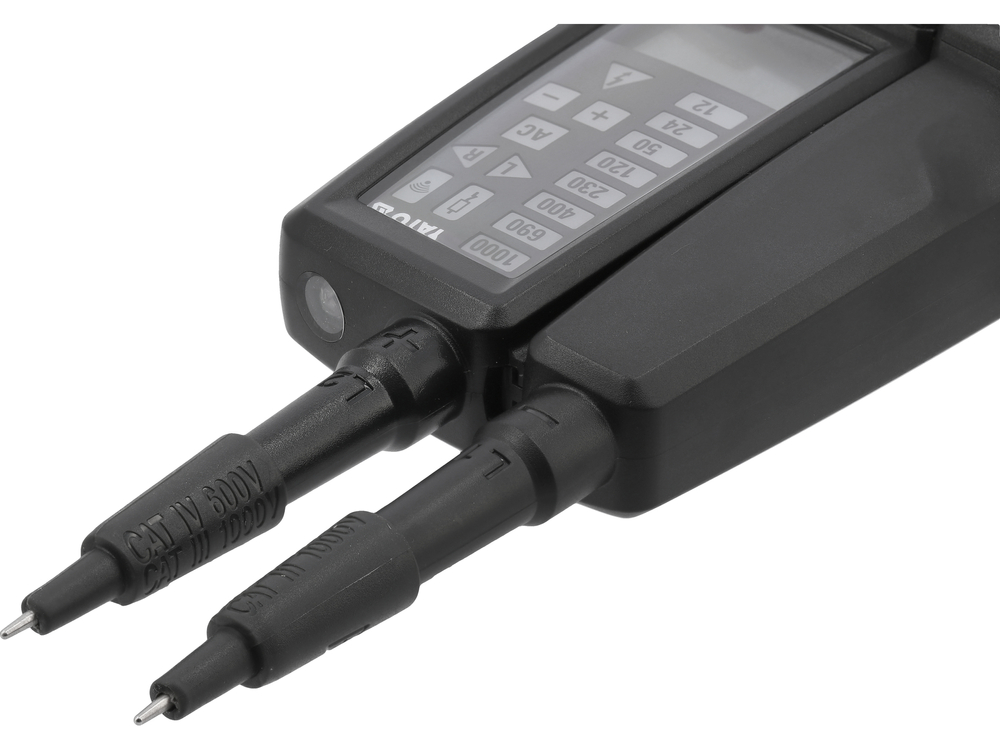

Measurements in low light conditions are facilitated by the built-in LED flashlight. Measurement safety is supported by a solid and sealed housing with IP64 standard. The set includes screw-on probe caps to facilitate measurements in sockets. The meter meets the requirements of CAT III 1000 V / CAT IV 600 V surge protection categories.

• DC voltage measurement: 6-1000 V d.c.
• AC voltage measurement: 6-1000 V a.c.
• Resistance measurement: 0-1999 Ω
• Frequency measurement: 50-400 Hz
• Circuit continuity test: 0-400 MΩ
• Measurement accuracy: ± (3% + 5)
• Impedance (peak current): 350 kΩ / Is <3.5 mA (does not trigger RCD)
• Response time: <1 s (LED indicators), ≤1 s (LCD display)
• Automatic activation: ≥12 V a.c./V d.c. (LED indicators), ≥6 V a.c./V d.c. (LCD display)
• Dimensions: 280 x 74 x 34 mm
• Display: LCD
• Screen resolution: 1 V a.c./V d.c.
• LED display thresholds: 12, 24, 50, 120, 230, 400, 690, 1000 V a.c./V d.c.
• RCD triggering: ~30 mA / 230 V
• Max. measurement duration: 30 s
• Regeneration time (for next RCD test): 240 s
• Power supply: 2 AAA 1.5 V batteries
• Operating and storage temperature: -10 ~ +50˚C
• Relative humidity: <85%
• Weight: 285 g
• Protection class: IP64
