YT-82132
ROTARY HAMMER SDS MAX 1600W 2FUNCTIONS
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
shoeing, drilling with impact
Toolholder type
SDS-Max
Power
1600 W
Rotations
0-650 min⁻¹
Hammering energy
15 J
Impact frequency
0-3900 min⁻¹
Voltage
220-240 V a.c.
Frequency
50-60 Hz
Max. hole diameter in concrete
40 mm
Stroke
yes
Rotation switch
no
Work mode switch
yes
Electronic rotation adjustment
no
Tool positioning in chuck
yes
Wire length
3 m
Electric insulation class
II
Protection grade
IPX0
Acoustic pressure
97.0 ± 3.0 dB(A)
Acoustic power
105.0 ± 3.0 dB(A)
Vibrations
20.6 ± 1.5 / 23.8 ± 1.5 m/s²
Weight
6.6 kg
Set includes
rotary hammer, extra grip
Application
concrete, natural and artificial stone, marble
Symbol
YT-82132

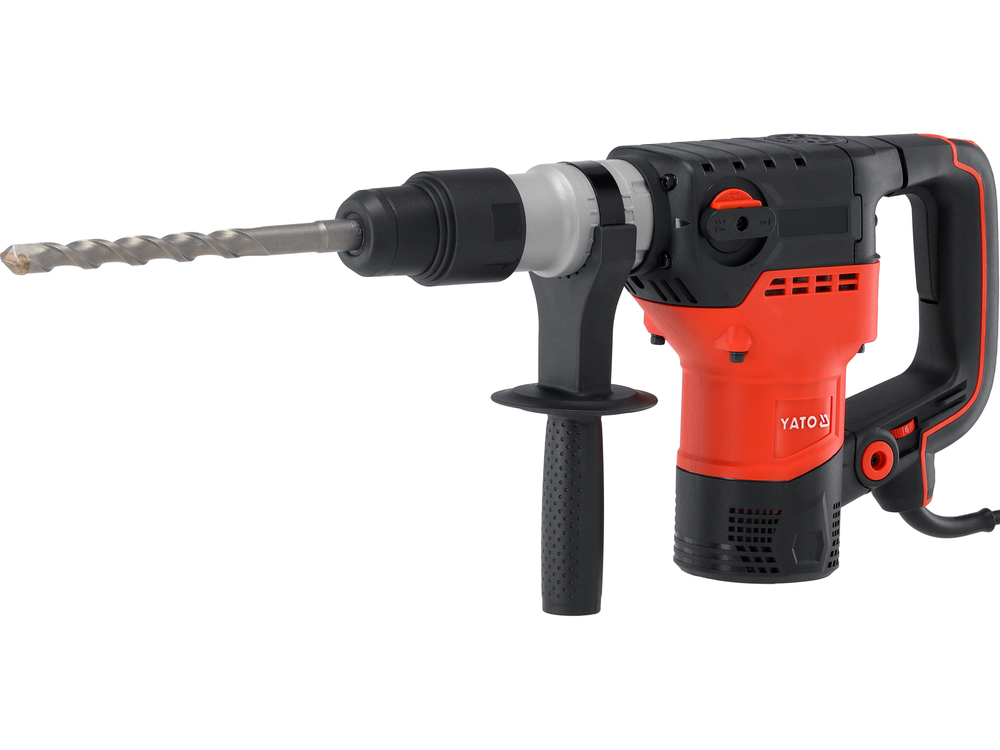

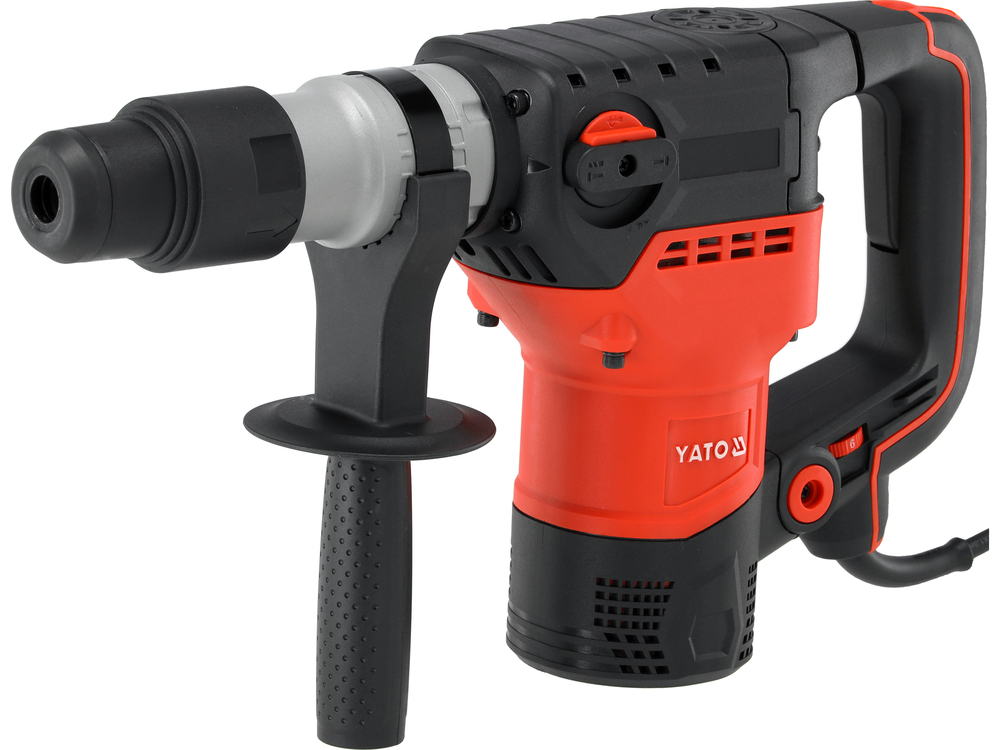

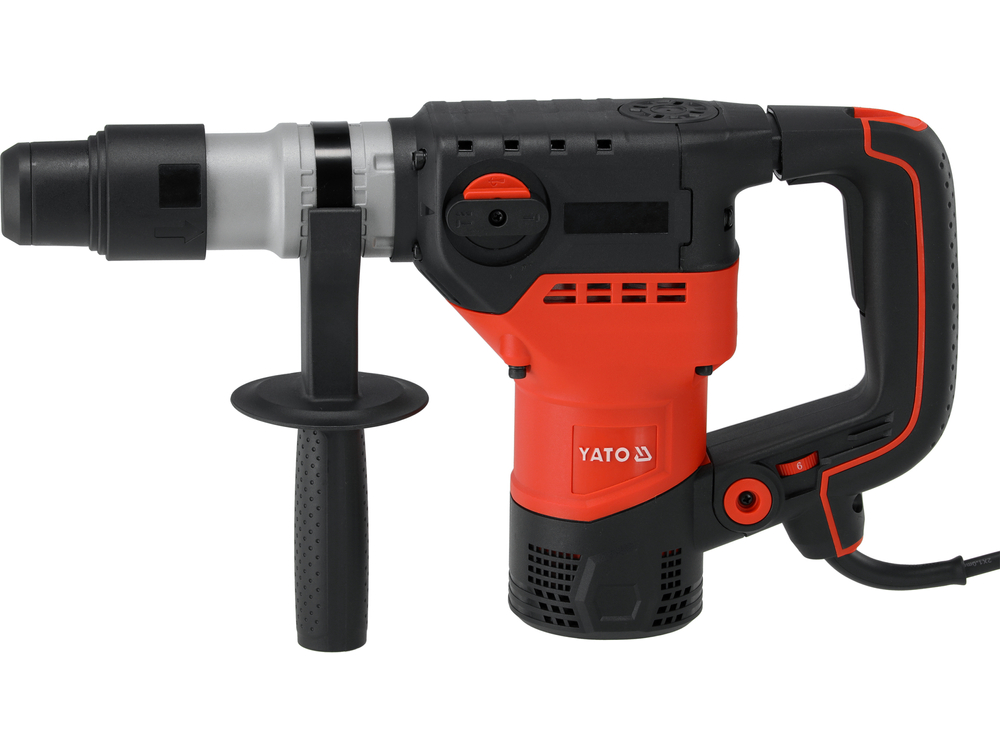

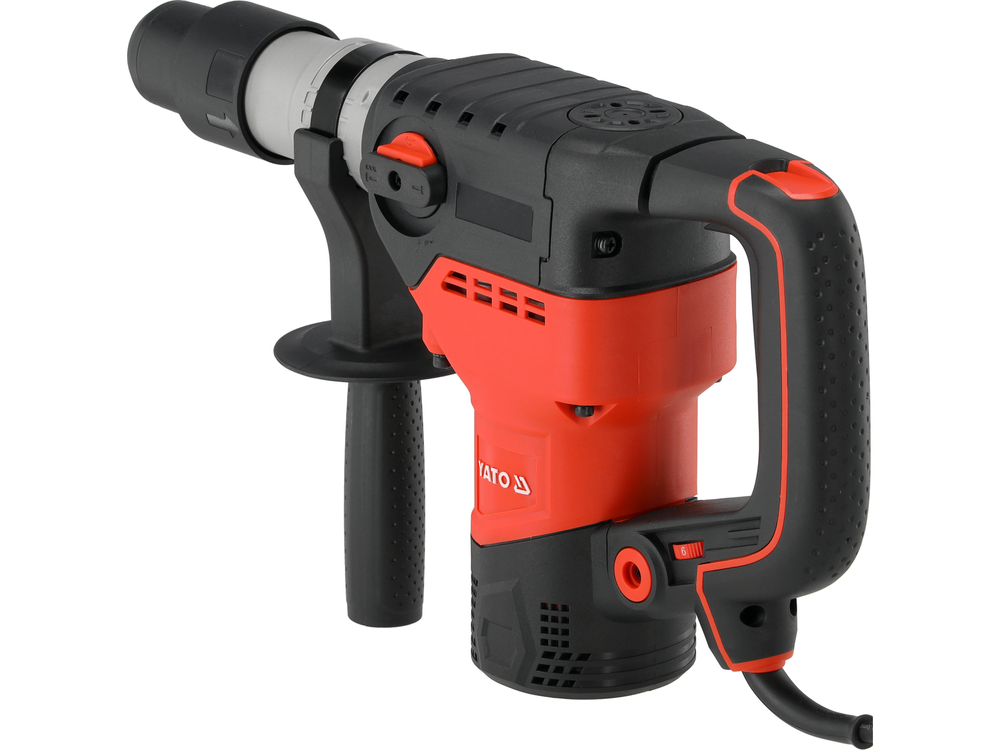

The SDS-max rotary hammer is designed for construction and renovation work. It is used for chiseling and drilling in concrete, including reinforced concrete, e.g. for creating holes and drilling walls and ceilings for pipes.
The low weight, properly balanced center of gravity, and side handle minimize operator discomfort during prolonged work. The hammer has a well-graduated clutch that protects the operator in case the drill gets stuck.
- chiseling and drilling function with impact
- excellent for drilling with long drills

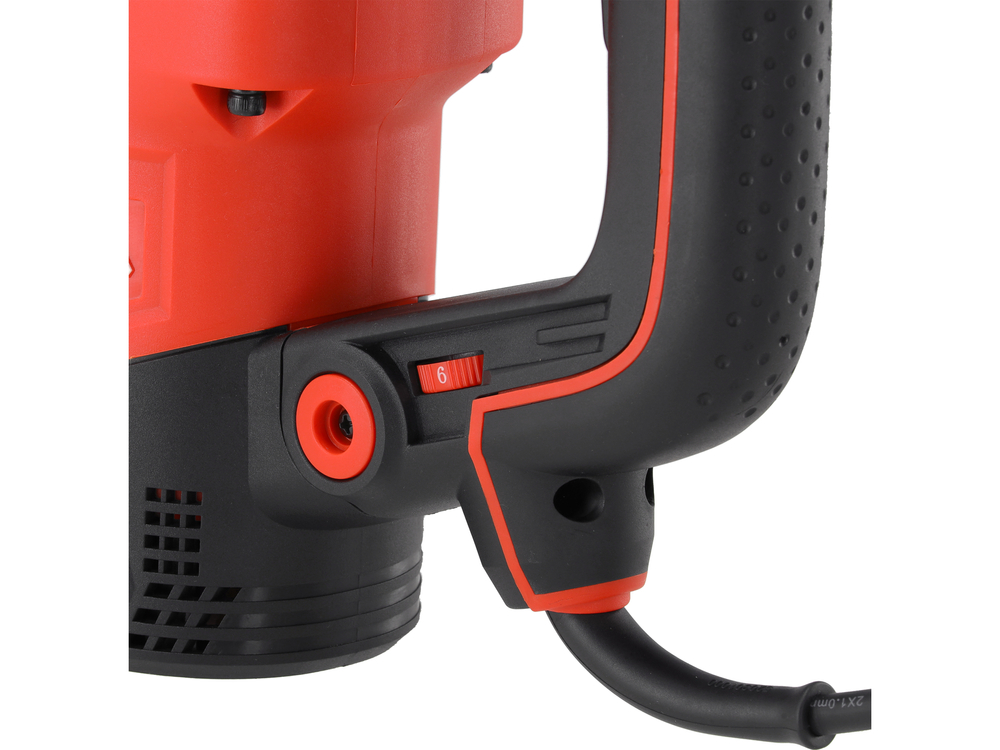

- adjustable impact frequency in the range of 0-3900 min⁻¹ allows for adjusting power to different materials
- impact energy: 15 J
- rotation adjustment 0-650 min⁻¹
- power: 1600 W
- vertically placed motor is more resistant to vibrations generated by the electro-pneumatic mechanism, acting along the tool axis

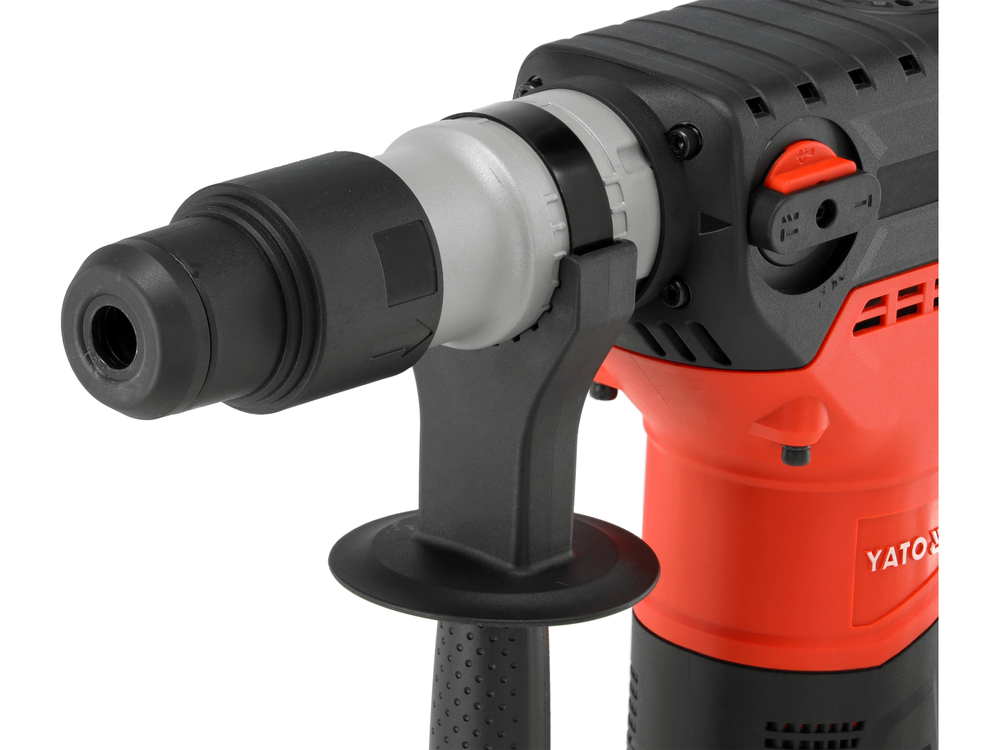

- SDS-max tool holder allows for using a range of YATO drills and tips

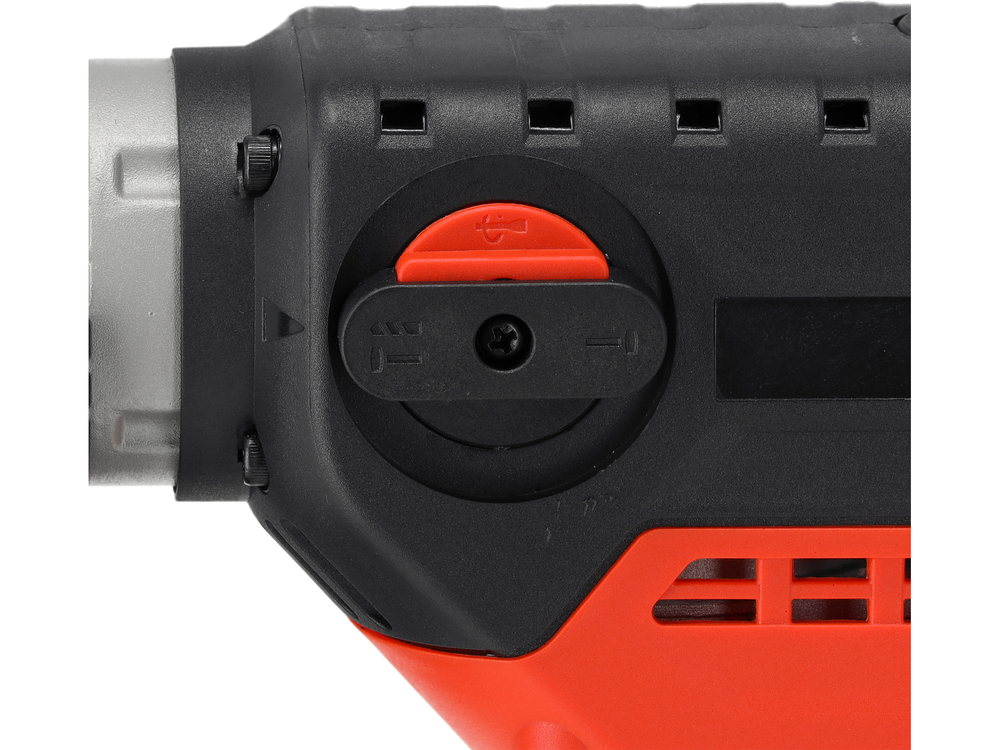

- working mode switch

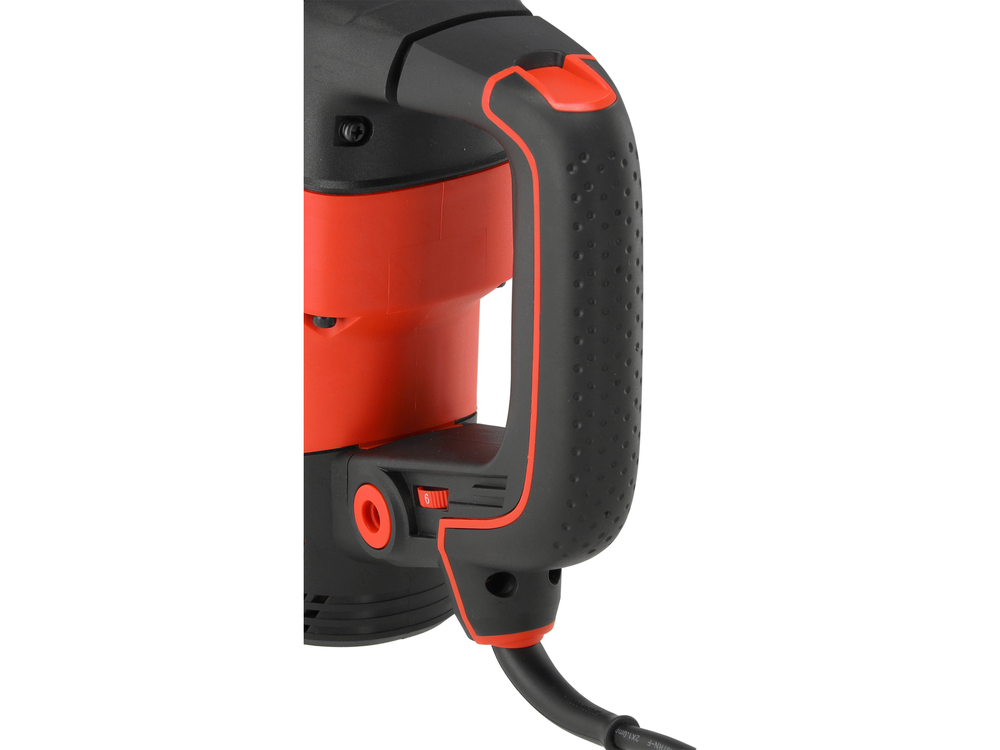

- dust-protected switch with lock
- adjustable side handle depending on the working position
- max. drilling diameter in concrete: 40 mm (with a spiral drill)
- 3 m power cord

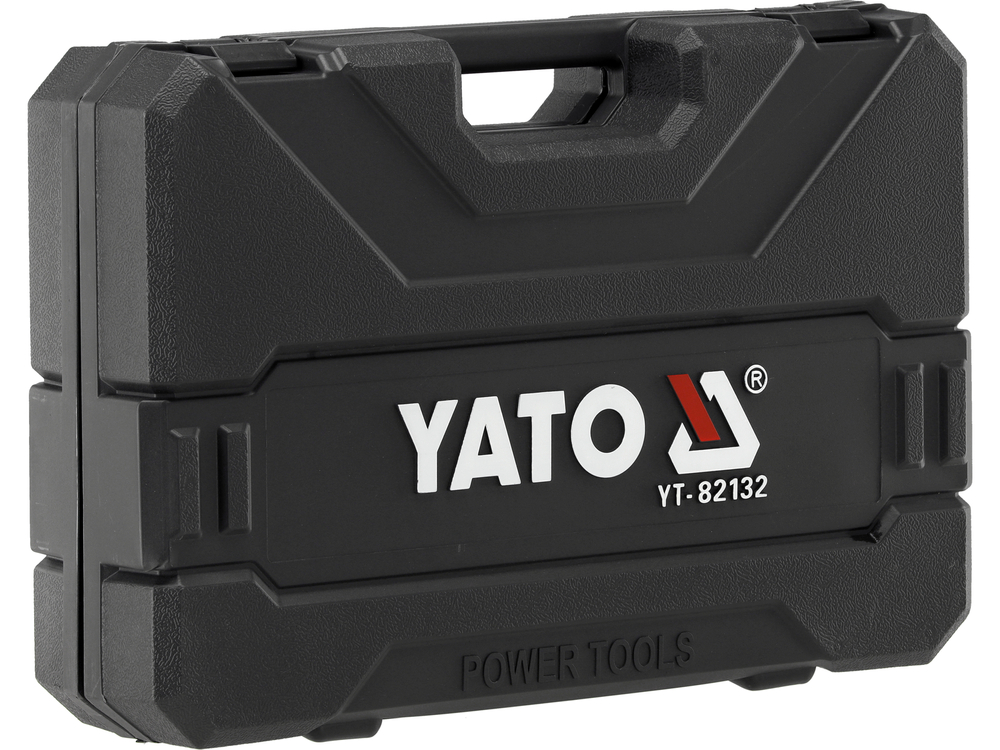

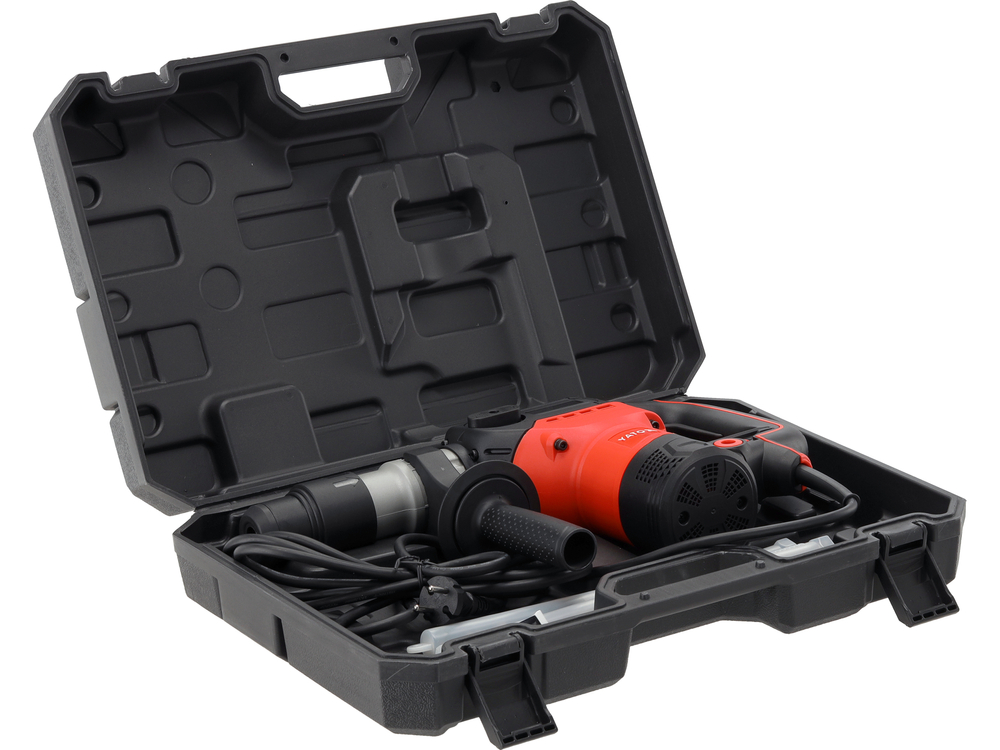

- packed in a case with snaps
- weight: 6.6 kg
