YT-82385

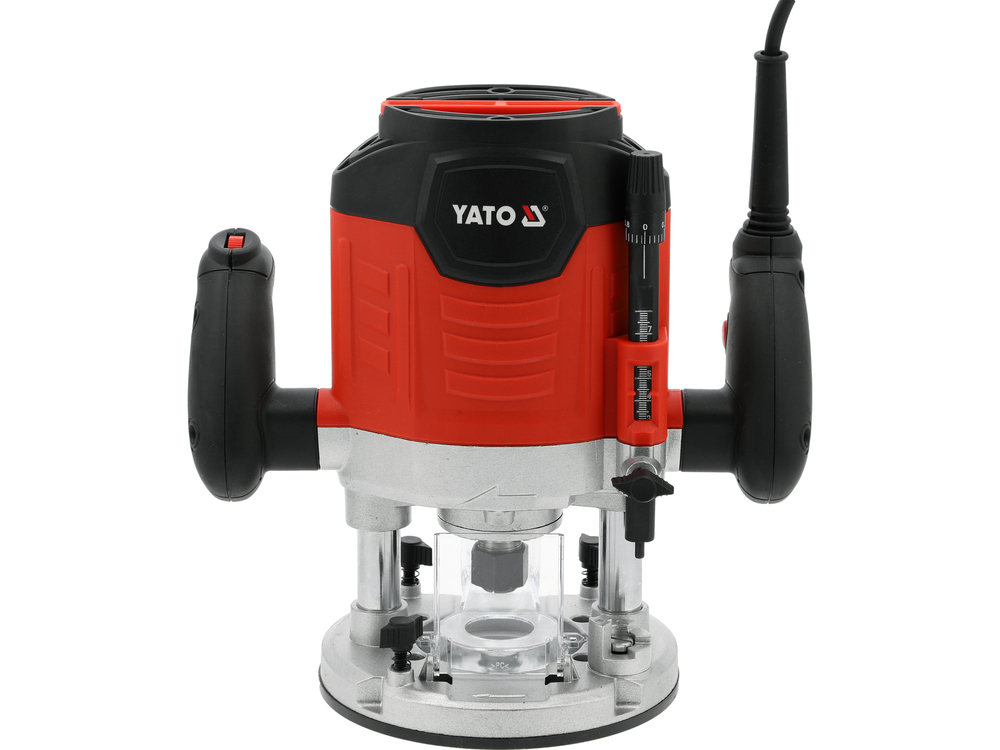

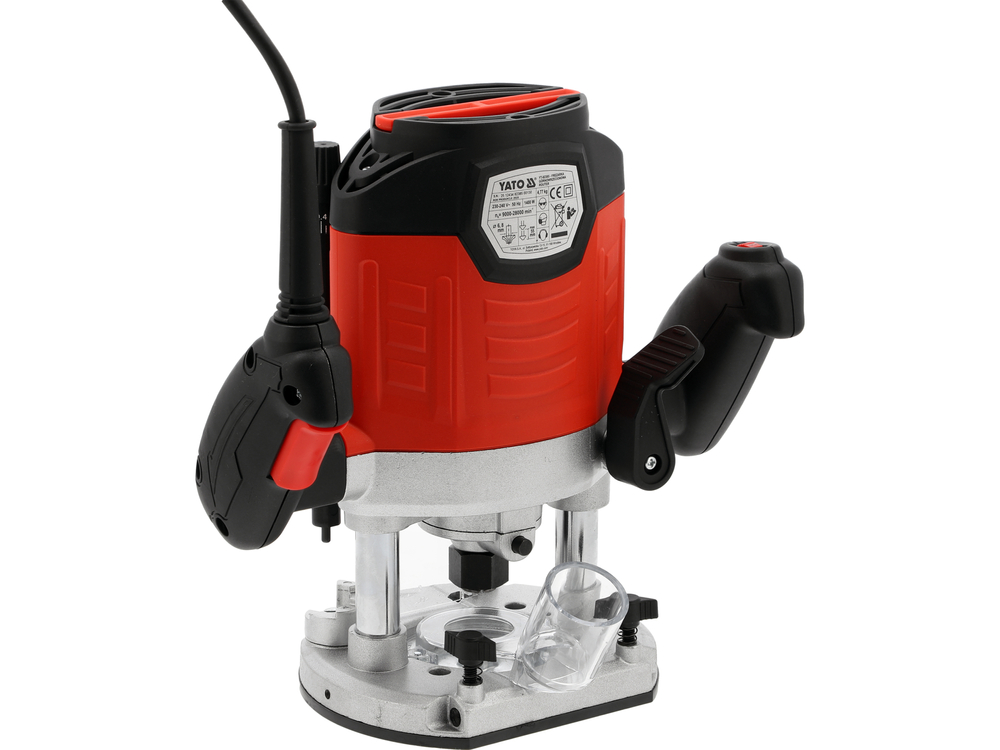

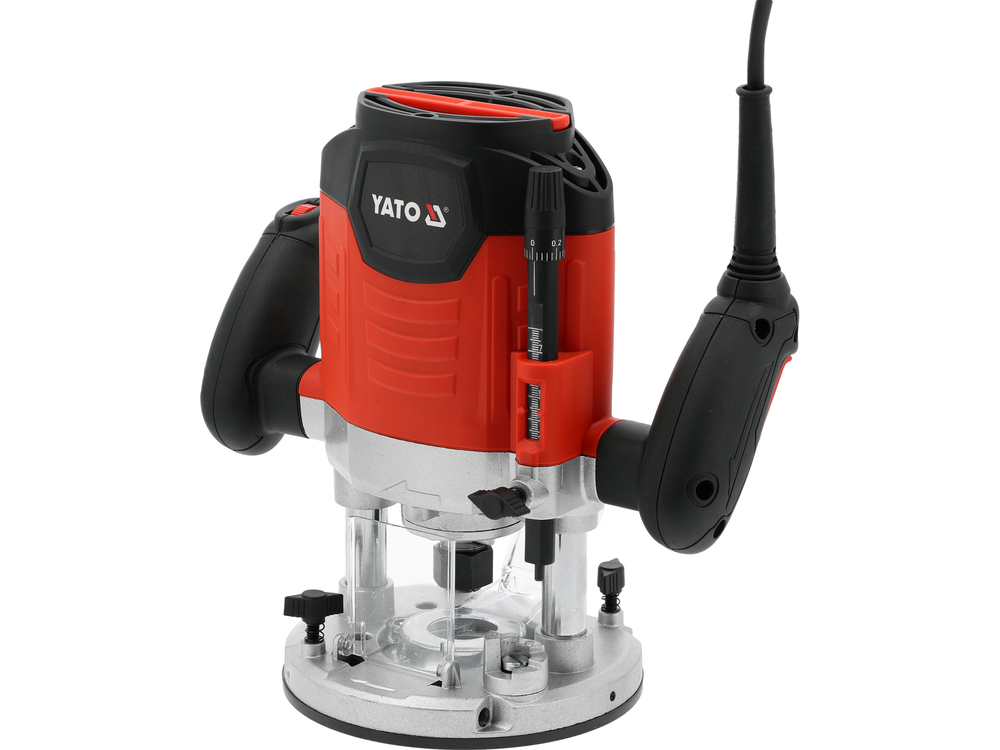

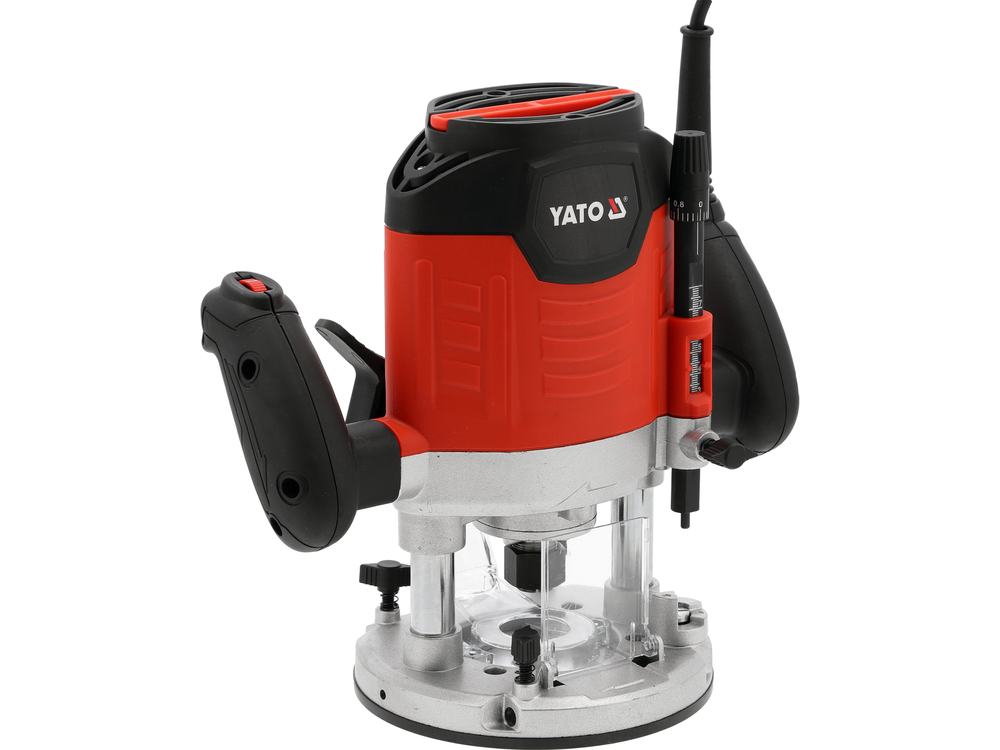

ROUTER 1400W (CHUCK: 6MM, 8MM)
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
1400 W
Rotations
9000-28000 min⁻¹
Voltage
230-240 V a.c.
Frequency
50 Hz
Holder size
6 or 8 mm
Cutting unit stroke
55 mm
Speed adjustment
yes
Electronic rotation adjustment
yes
Soft start
yes
Wire length
3 m
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
91.0 ± 3.0 dB(A)
Acoustic power
99.0 ± 3.0 dB(A)
Vibrations
4.23 ± 1.5 m/s²
Weight
4.77 kg
Set includes
milling machine, guide x2, dust extraction connection, reducing sleeve
Symbol
YT-82385

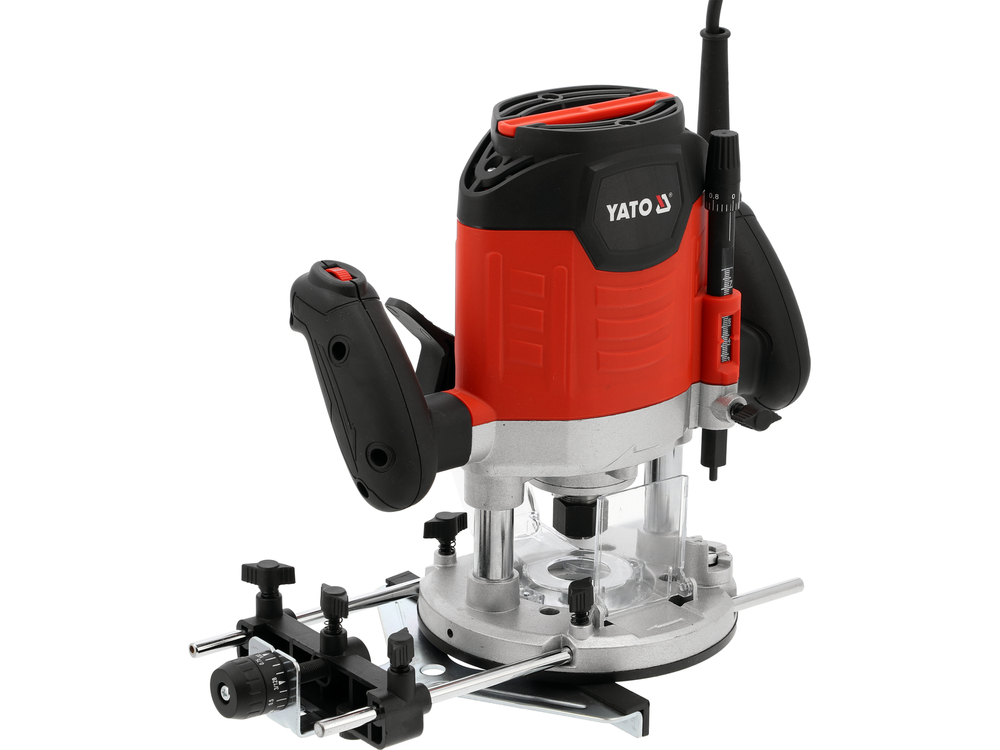

Strong milling machine with durable construction designed for work in a carpentry and roofing workshop - shaping edges, milling grooves, and woodworking joints. It is used for processing wood and wood-derived materials. Soft start and speed stabilization make the operation of the milling machine comfortable and safe, providing constant control over the tool and precise progress of work.
- electronic regulation of rotational speed depending on the type of material being processed and the diameter of the cutter

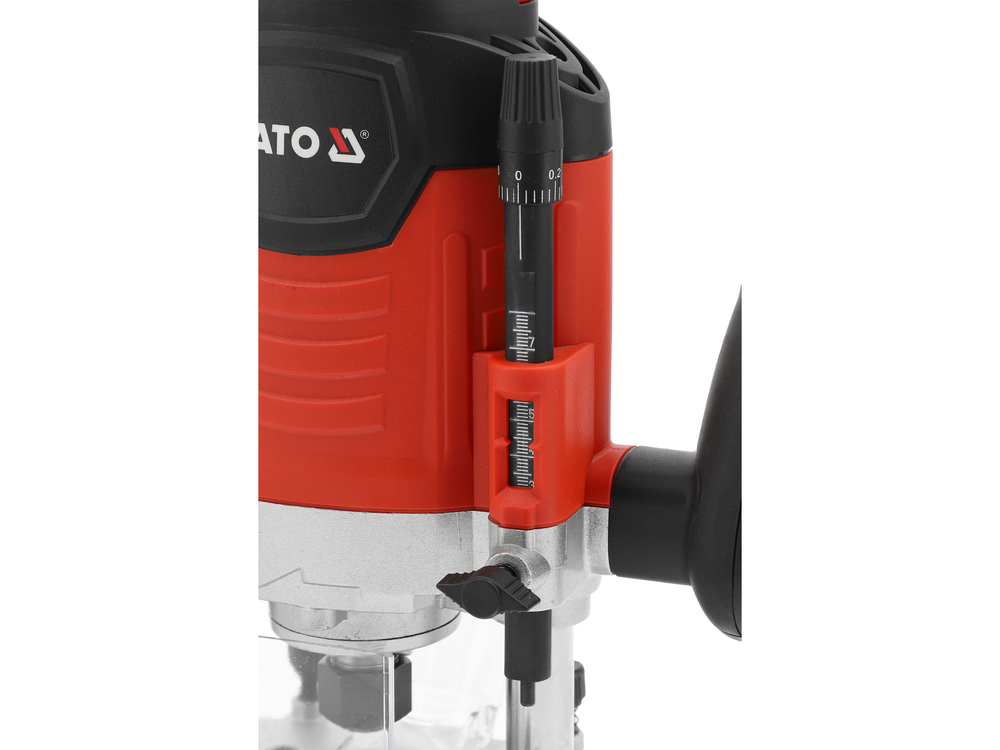

- depth gauge with micrometric knob allows precise setting of milling depth, indicating the value in the housing window

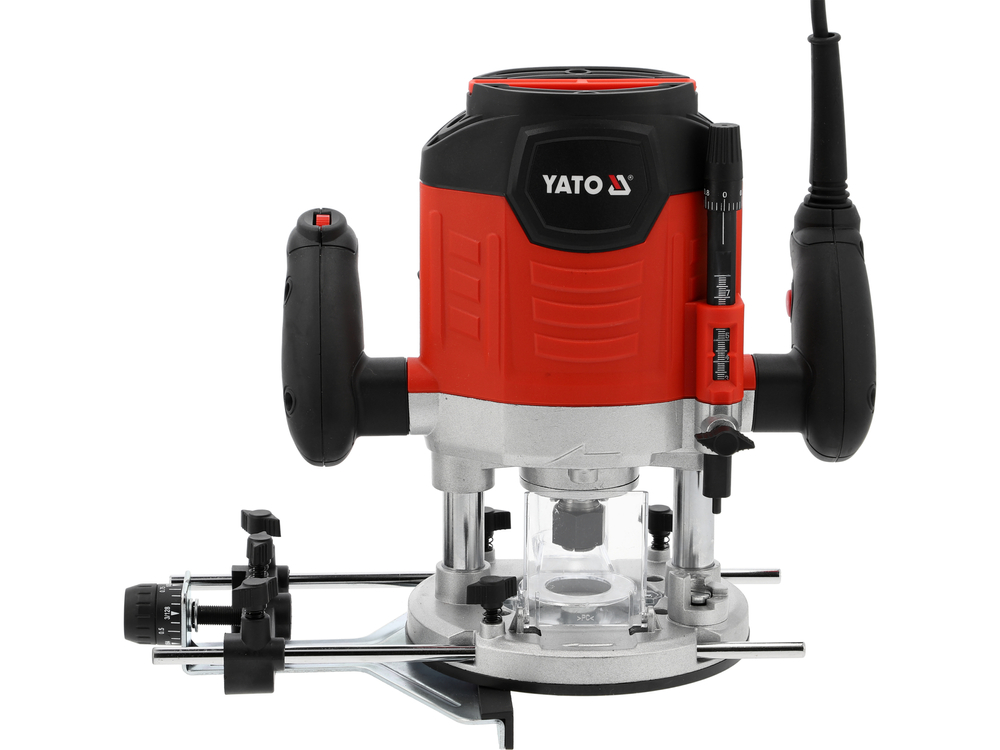

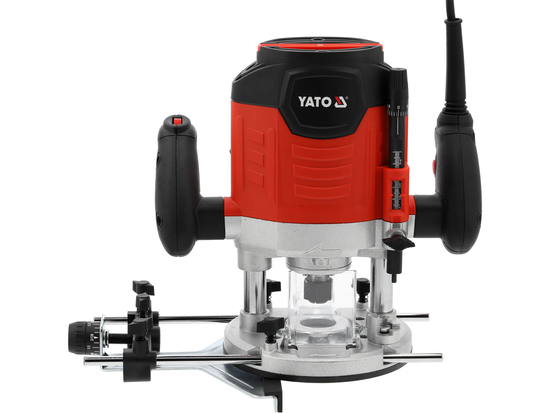

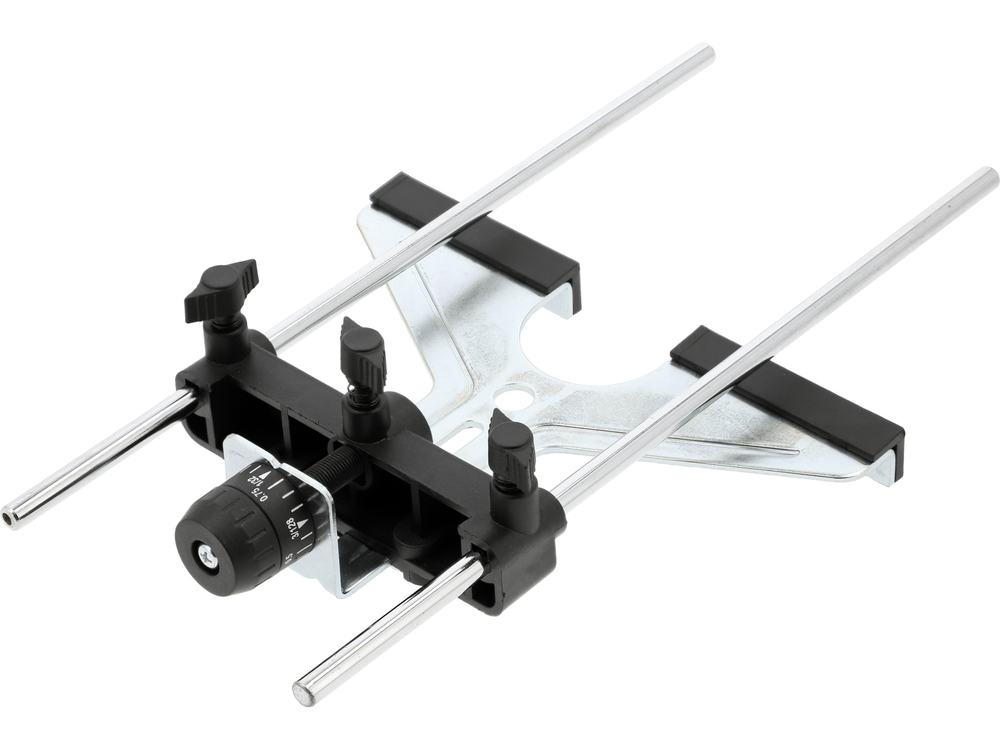

- parallel milling guide stabilizes the tool movement and maintains an ideal cutting line even on longer sections
- circular milling guide facilitates transitions, allowing for even and repeatable edges of arcs and rounds
- dust extraction connection allows to maintain cleanliness in the workplace by connecting an industrial vacuum cleaner
Parameters:
- electronic regulation of rotational speed: 9000-28000 min⁻¹
- power: 1400 W
- tool handle size: 6 and 8 mm
- milling unit stroke: 55 mm
- soft start function
- speed stabilization function
- 3-meter power cord
- protection class: IP20
- weight: 4.8 kg
- included: 2 guides, dust extraction connection, and reducing sleeve
