YT-19692

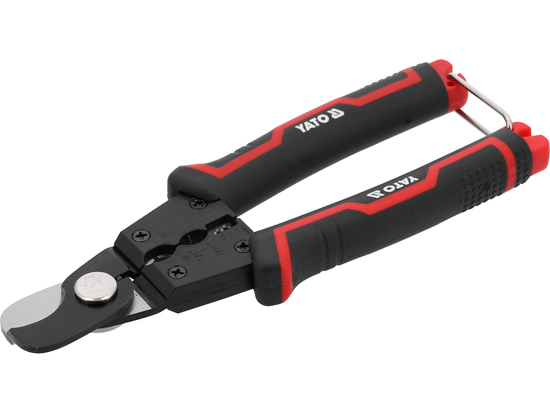

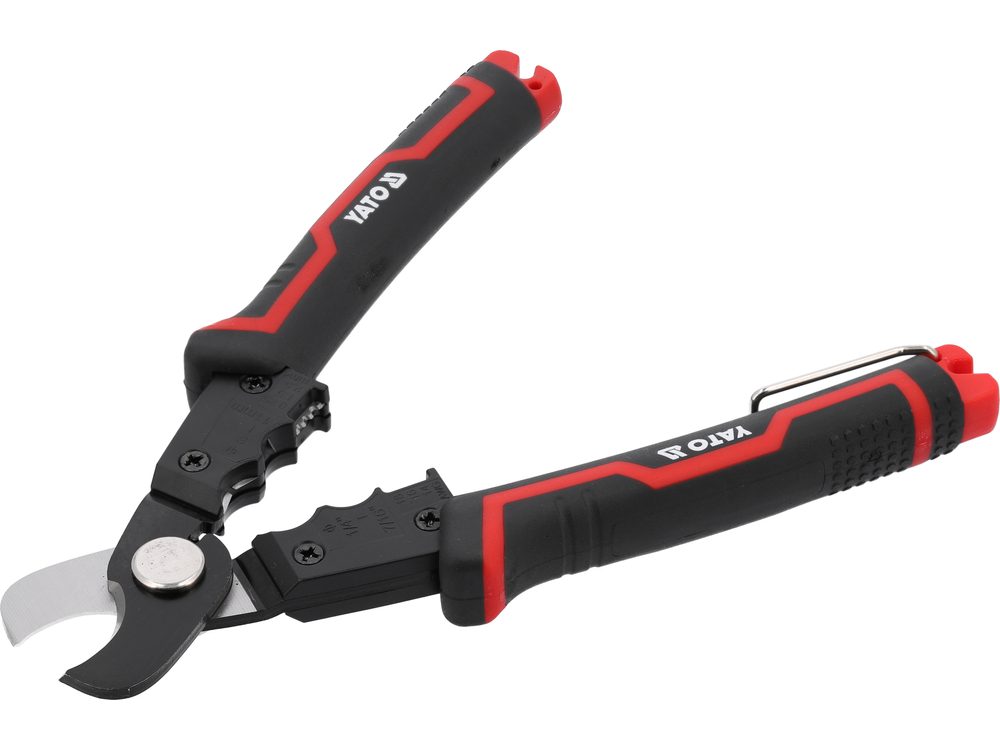

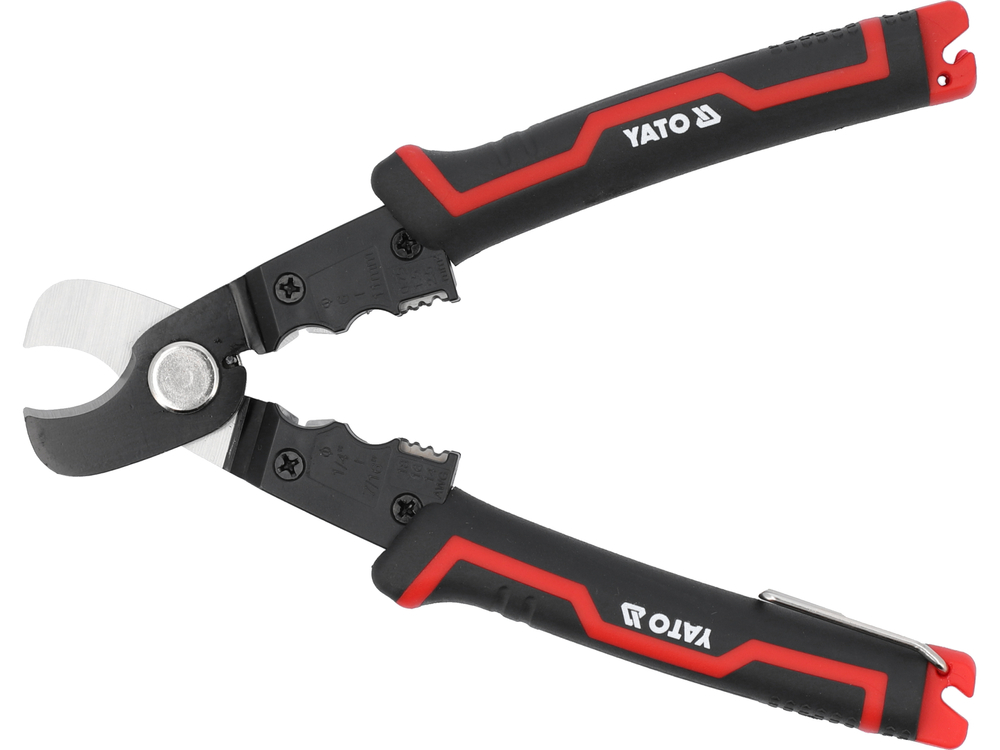

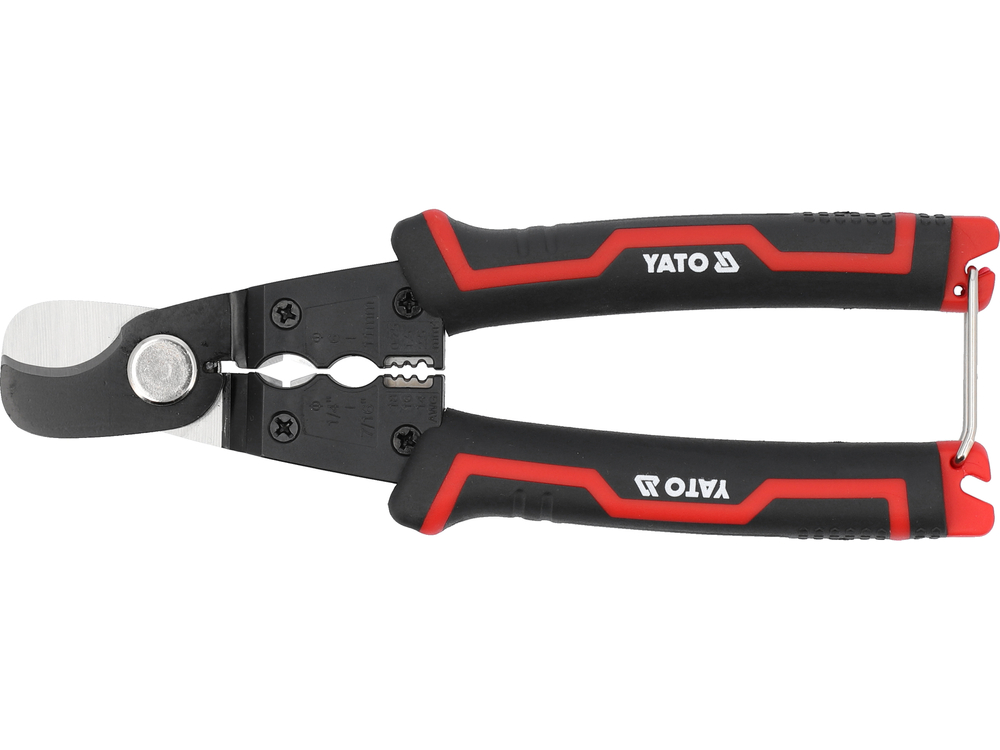

WIRE STRIPPER AND CUTTER PLIERS 175MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
cutting wires, insulation stripper
Max. cutting diameter
10.5 mm
Cross section F mm2
0.75-2.5
Cross section F AWG
18~14
Length
175 mm
Body material
steel 65Mn
Handle material
PP, TPR
Spring
yes
Lock
yes
Symbol
YT-19692






Wire cutting and insulation stripping pliers are a versatile tool that works well both in an electrical workshop and during home installation work.
- The body made of 65 Mn steel guarantees durability and resistance to wear
- The cutting blade with a thickness of 3 mm ensures precise and clean cutting
- The ergonomic handle made of TPR and PP improves work comfort and reduces hand fatigue
- The massive rivet with a built-in rebound spring automatically allows the pliers to work smoothly within a certain range of motion, maintaining cutting repeatability and precision
- The opening lock allows safe storage and controlled use of the tool
The pliers allow for convenient removal of insulation in various ways:
- Longitudinal insulation stripping from a round wire with a diameter of 6-11 mm (middle hole in the body)
- Cross insulation stripping from a round wire with a diameter of 6-11 mm (upper hole)
- Insulation stripping from individual wires with cross-sections of 0.75/1.5/2.5 mm² (18/16/14 AWG) (lower hole)
Technical data:
- Length: 175 mm
- Blade thickness: 3 mm
- Maximum cutting diameter: 10.5 mm
- Single wire sections: 0.75/1.5/2.5 mm2 (18/16/14 AWG)
- Insulation stripping wire range: 6–11 mm
- Body material: 65 Mn steel
- Handle: TPR+PP
- Spring mechanism hidden under the rivet
- Weight: 170 g




Usage warnings:
Warning! Always use personal safety equipment at work.Ask a question
