YT-731240
POCKET SIZE DISTANCE METER 30M
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Measuring range
0.05-30 m
Measurement unit
meters, feet, inches, feet + inches
Measurement basis
3
Surface measurement
yes
Volume measurement
yes
Measurement accuracy
±5 mm
Calibration range
-9 ~ +9 mm
Laser
yes
Laser class
2
Laser power
˂1 mW
Laser wave length
630-670 nm
Laser range
30 m
Laser pointer colour
red
Functions
calibration
Continuous measurement mode
yes
Single measurement mode
yes
Min. and max. measured distance mode
yes
Adding and subtracting distances mode
yes
Indirect measurement using hypotenuse
yes
Indirect measurement using two hypotenuses
yes
Indirect measurement using divided right-angled triangle mode
yes
Indirect measurement using double right-angled triangle mode
yes
Indirect measurement using right-angled triangle mode
yes
Operating relative humidity Rh
85 %
Power supply
rechargeable
Battery type
Li-Ion
Battery voltage
3.7 V d.c.
Battery capacity
220 mAh
Battery energy
0.81 Wh
Charger type
USB Type-C
Dimensions
85x23x11.5 mm
Material
aluminum
Display type
backlit LCD
Auto power off
20 (laser), 150 (rangefinder) s
Low battery indicator
yes
Working temperature range
0~40 ˚C
Storage temperature
-10 ~ +50 ˚C
Weight
29 g
Symbol
YT-731240

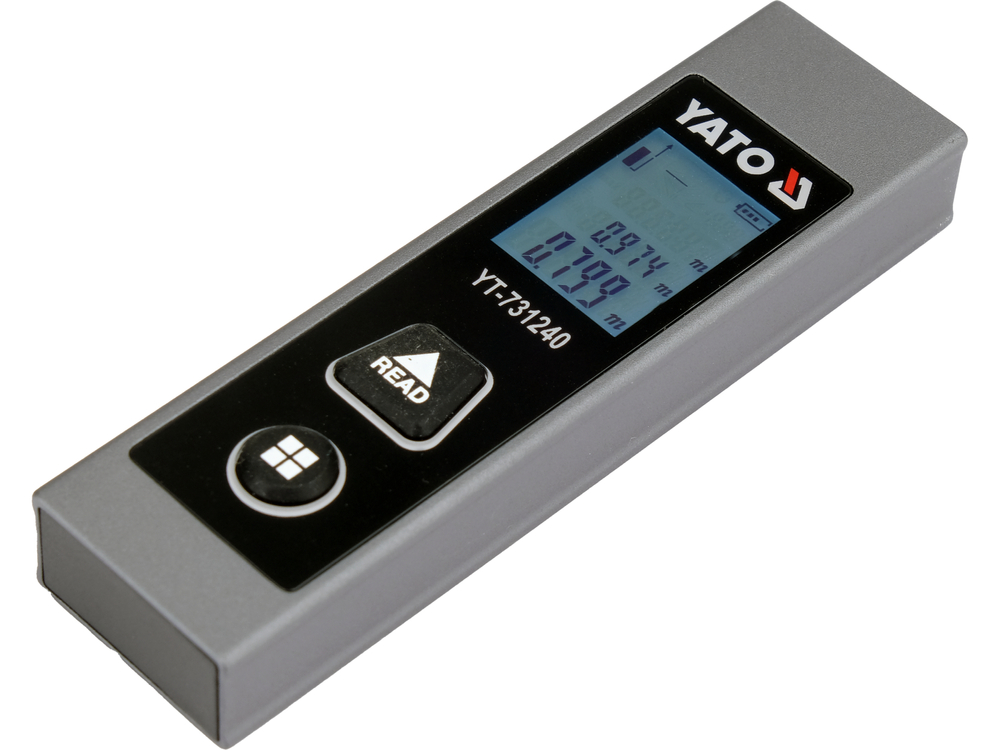

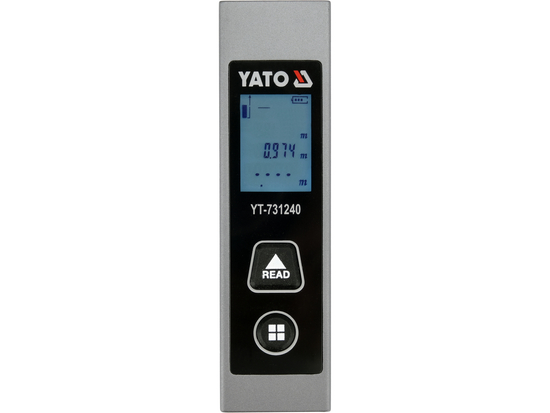

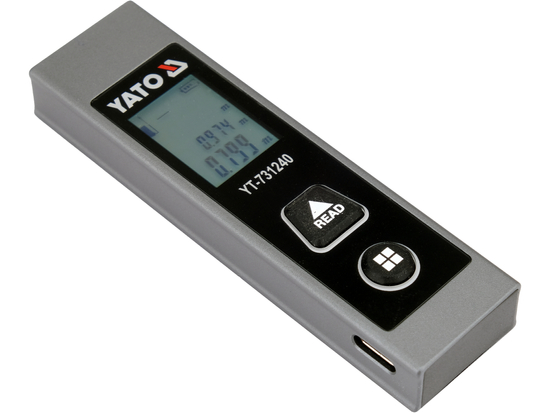

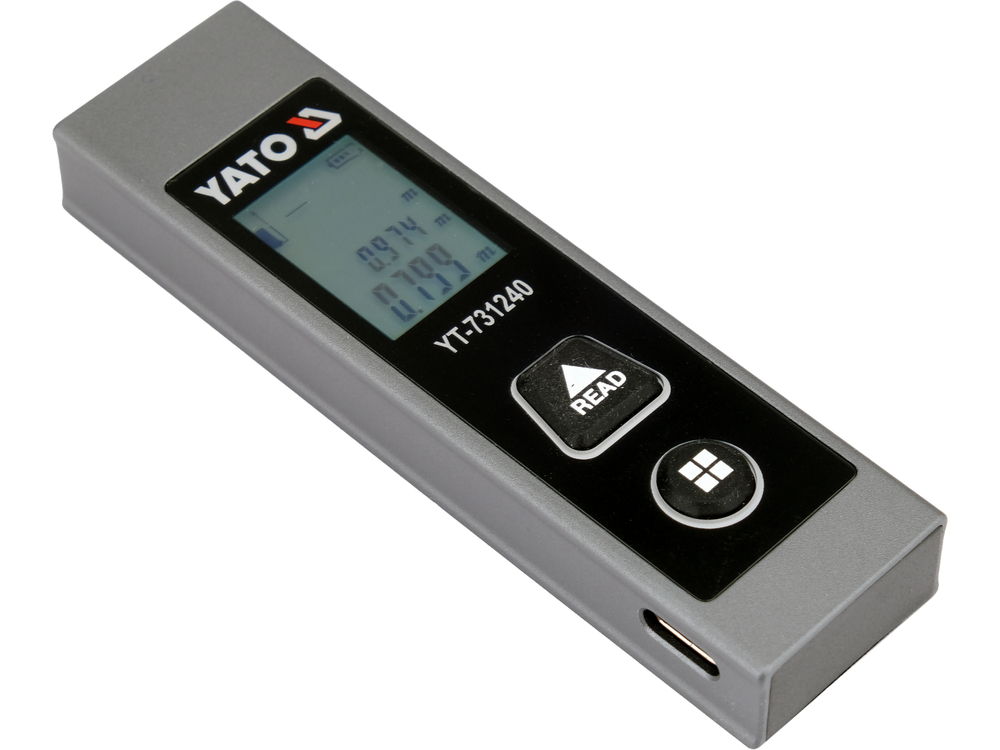

A pocket laser rangefinder is perfect for quick and precise distance measurements ranging from 0.05 to 30 meters and interior volume calculations. The compact dimensions of 86 mm x 23 mm x 12 mm, equivalent to the size of a man's index finger, make the tool extremely handy and pocket-sized. The laser is equipped with a calibration function, ensuring the accuracy of measurements even with frequent use.
Features:
- point and continuous measurement
- calculation of area and volume
- measurements based on the Pythagorean theorem
- variable starting point for measurements
- changing measurement units allows you to adjust the operating mode to current needs
- automatic laser shutdown after 20 seconds and rangefinder shutdown after 150 seconds extends working time on a single charge
- calibration ensures the highest measurement accuracy even with intensive use
Additional information:
- compact dimensions allow for one-handed operation and convenient carrying
- measurement range of 0.05–30 m enables efficient measurements in typical construction and installation conditions
- clear LCD display
- battery status indicator
- durable and damage-resistant aluminum housing
- power supply: Li-ion 3.7 V, 220 mAh

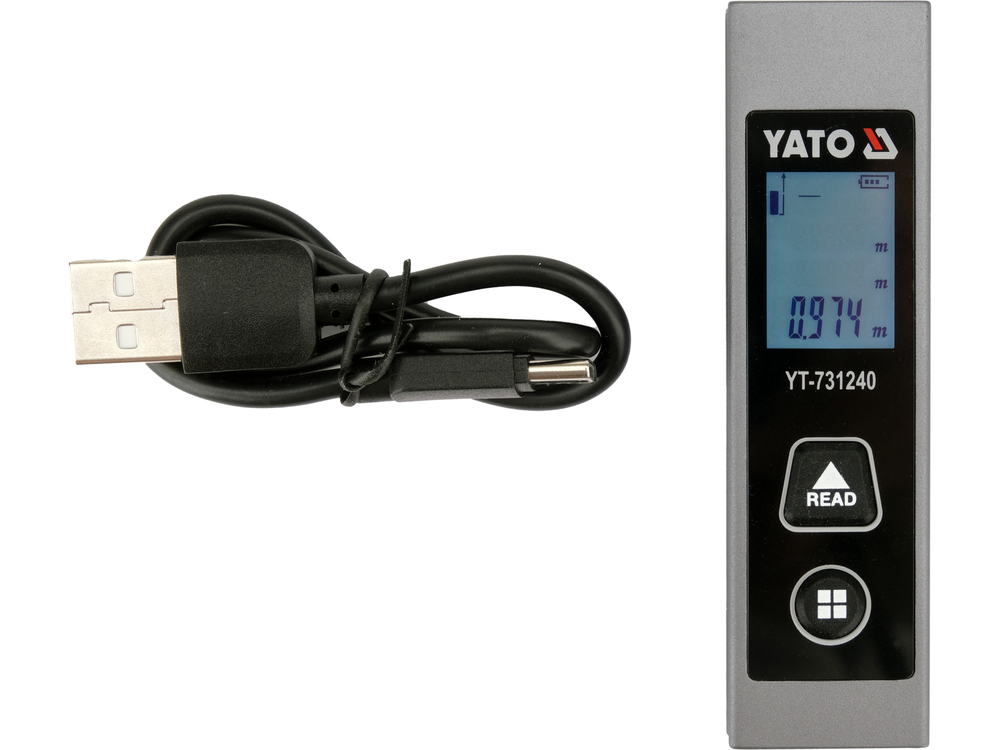

- convenient charging via USB-C port
*The optics of the YT-731240 rangefinder may not be able to detect the laser beam outside in full sunlight. Measurements outside are possible after dusk or at night
Usage warnings:

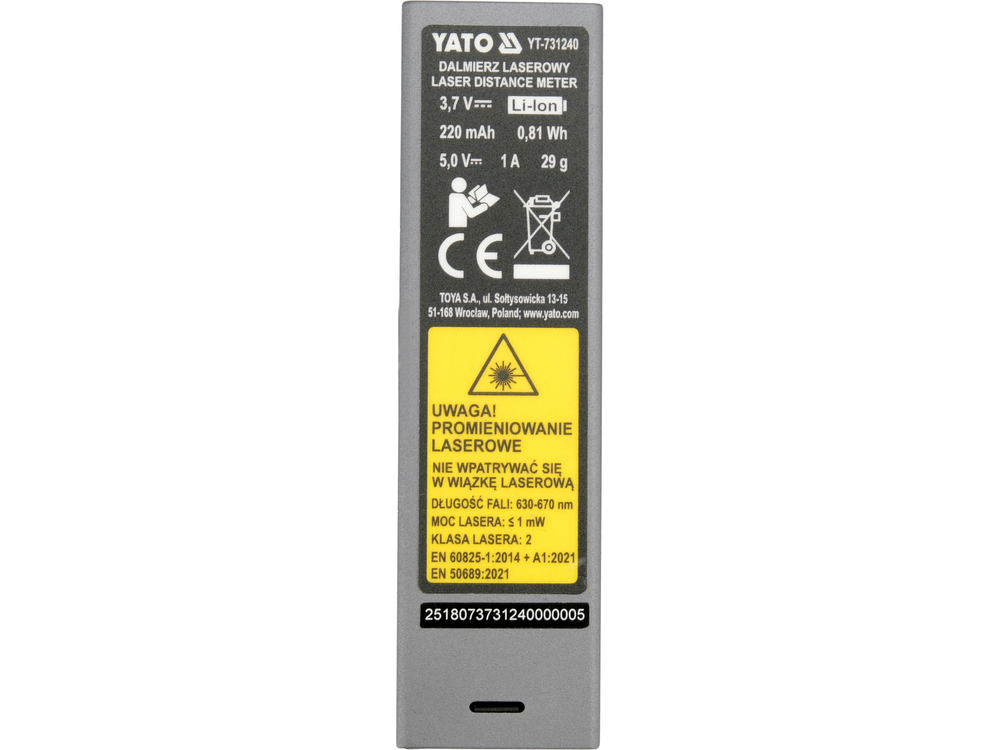

Caution: laser radiation. Do not stare into the laser beam.Class 2 laser device.
