YT-98201
FOLDABLE SOLAR PANEL 200W 4IN1
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Short-circuit current
12.3 A
Max. system voltage
500 V d.c.
Voltage for max. power
17.1 V d.c.
Open circuit voltage
20.4 V d.c.
Solar cell lamination
ETFE
Solar cell efficiency
23 %
Solar cable length
2 m
Moc maksymalna
200 W
Max. current
11.7 A
Unfolded dimensions
2233x588x35 mm
Folded dimensions
600x588x85 mm
Transportation holder
yes
Fold
yes
Working temperature
-20 ~ +60 ˚C
Protection grade
IP67
Weight
6 kg
Set includes
solar panel, MC4 adapter (DC7909, DC8020, XT60, Anderson)
Compatible with
YT-83090, YT-83091, YT-83092
Symbol
YT-98201

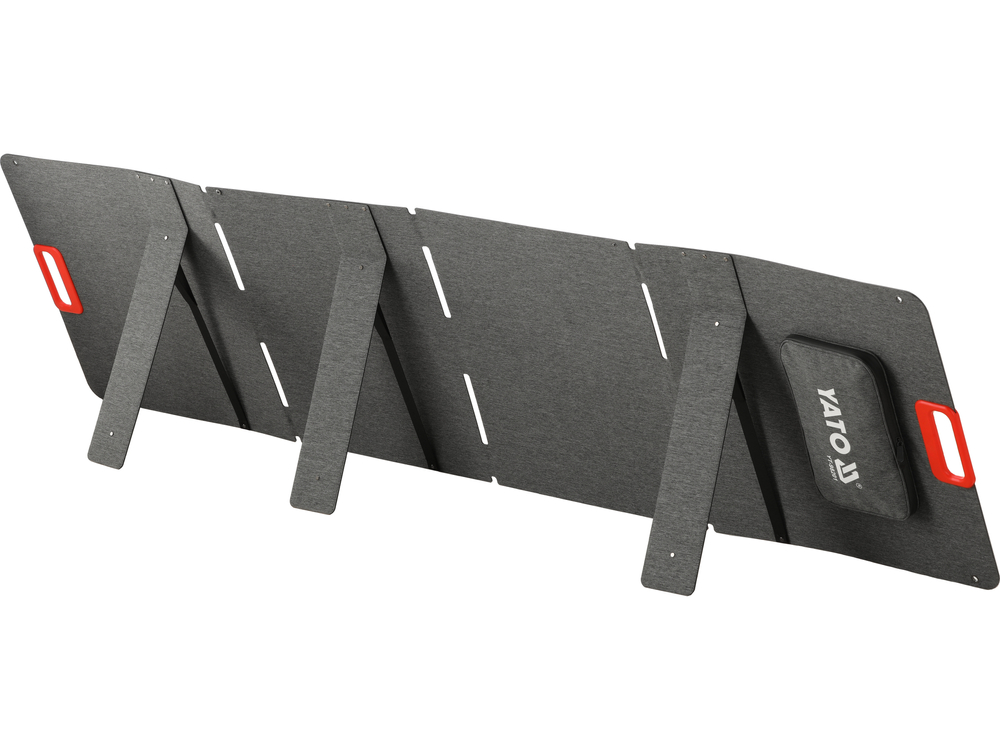

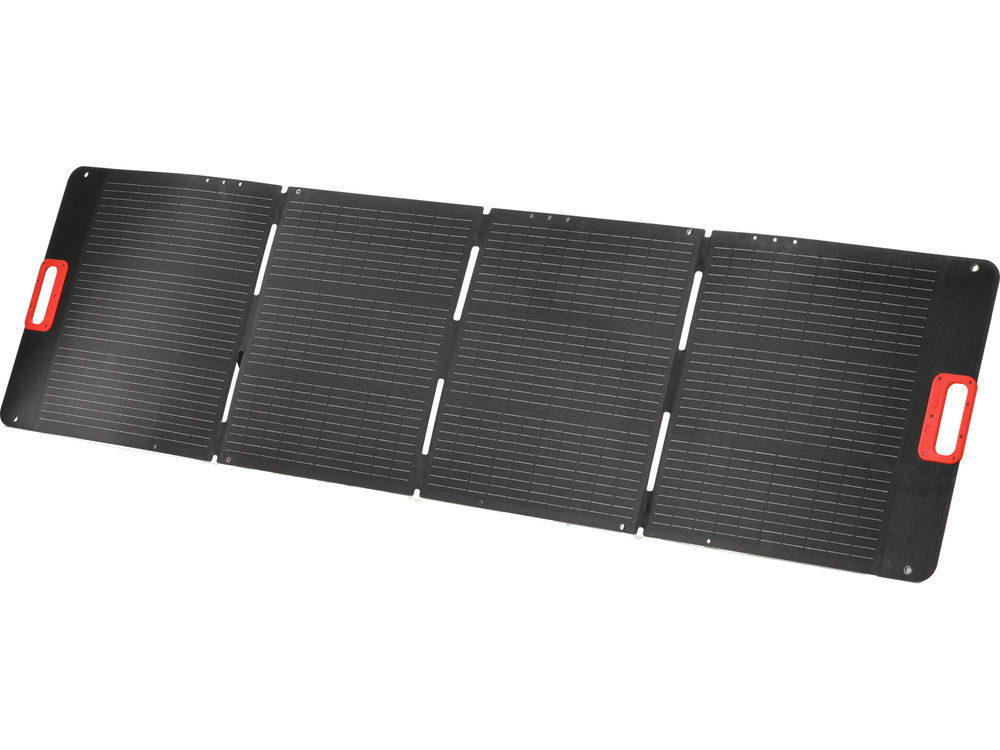

A foldable solar panel with an output power of 200 watts is a portable source of energy. The ETFE solar cell lamination guarantees resistance to weather conditions. Adjustment of the brackets allows you to position the panel conveniently in relation to the sunlight or hang it in a chosen location using mounting holes. When folded, the panel has compact dimensions, which combined with built-in handles make it easy to carry.

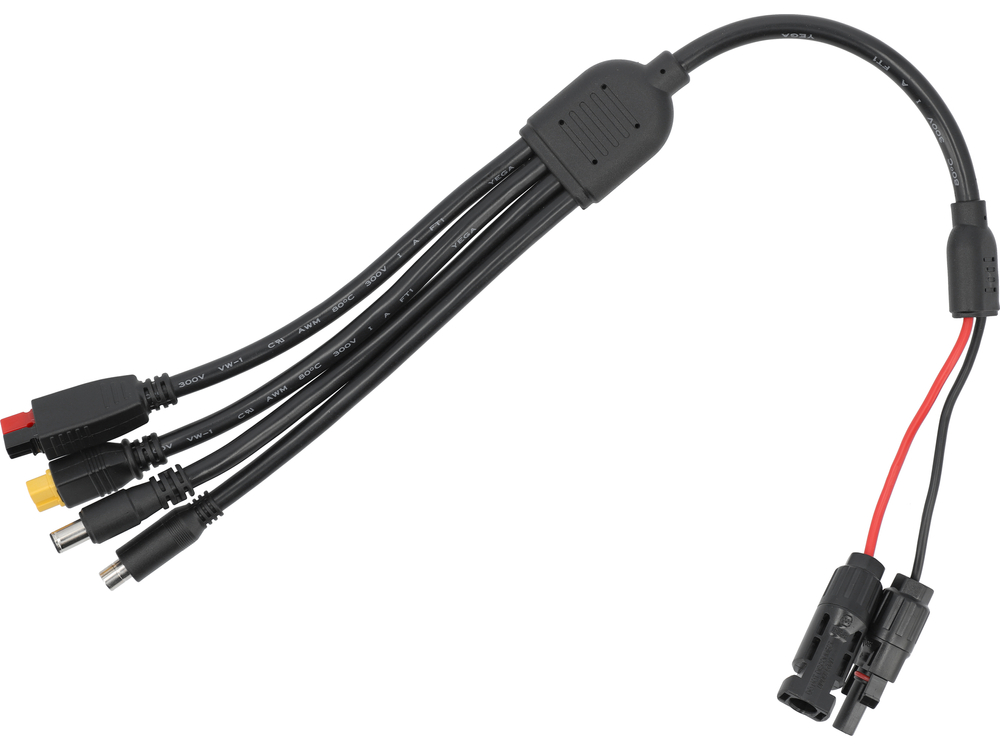

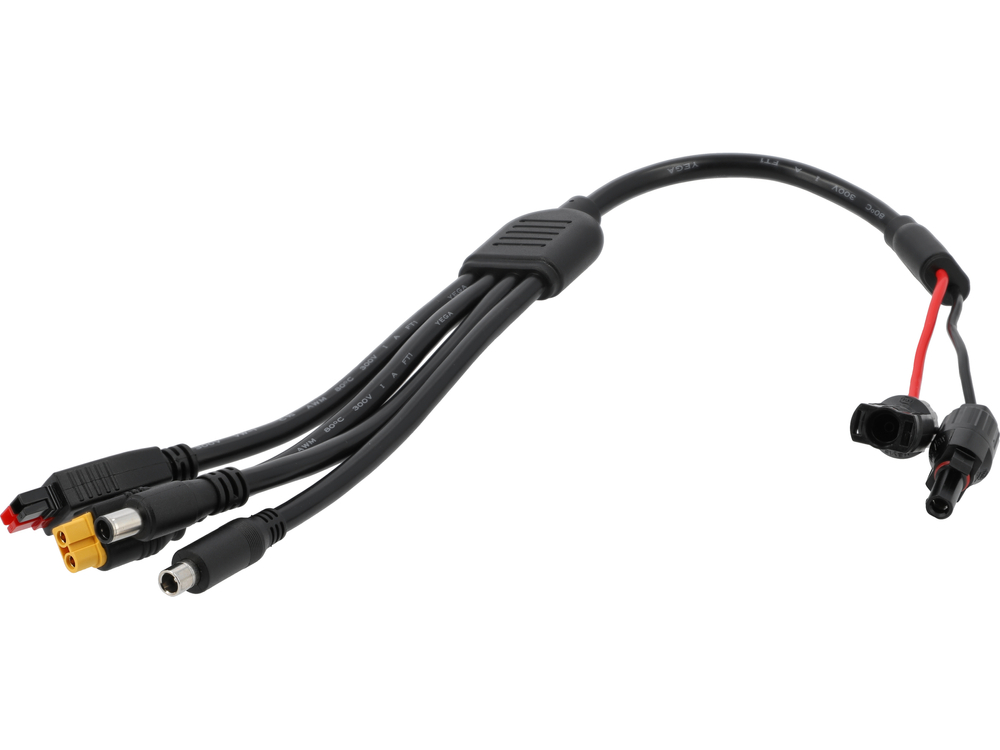

The set includes a 4-in-1 adapter, which allows you to connect devices with DC7909, DC8020, XT60, and Anderson connectors. Compatible with portable power stations: YT-83090, YT-83091, YT-83092.
- power: 200 W
- cell efficiency: 23%
- cell lamination: ETFE
- power voltage and current: 17.1 V/11.7 A
- protection class: IP67
- dimension when folded: 600 x 588 x 85 mm
- dimension when unfolded: 2233 x 588 x 35 mm
- operating temperature: -20 ~ +60˚C
- hanging loops
- solar cable length: 2 m
- weight: 6 kg
Usage warnings:
Warning! Electrical hazard. This unit produces direct current when exposed to the light. Connect panel to the load before exposing to the sun.To download
