YT-23705
AIR INFLATING GUN
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Max. air pressure
1.2 MPa
Air connection diameter (PT)
standard
Pressure gauge size
80x78 mm
Digital control panel
yes
Display type
LCD
Hose length
400 mm
Acoustic pressure
86.1 ± 2.5 dB(A)
Acoustic power
97.1 ± 2.5 dB(A)
Vibrations
<2.5 m/s²
Weight
0.5 kg
Symbol
YT-23705

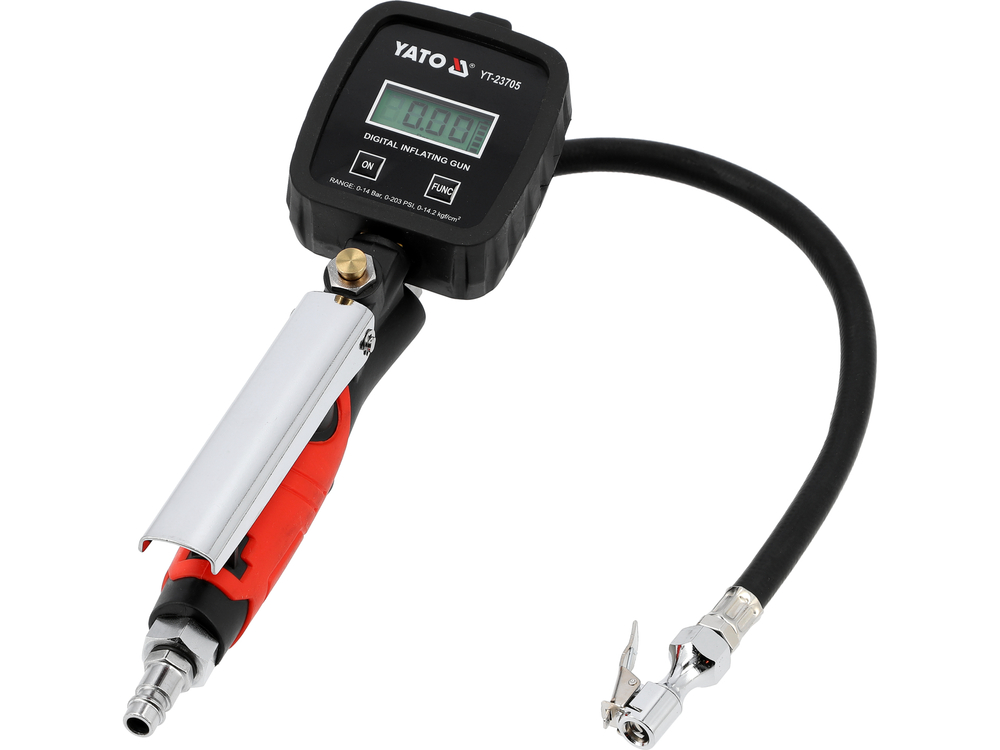

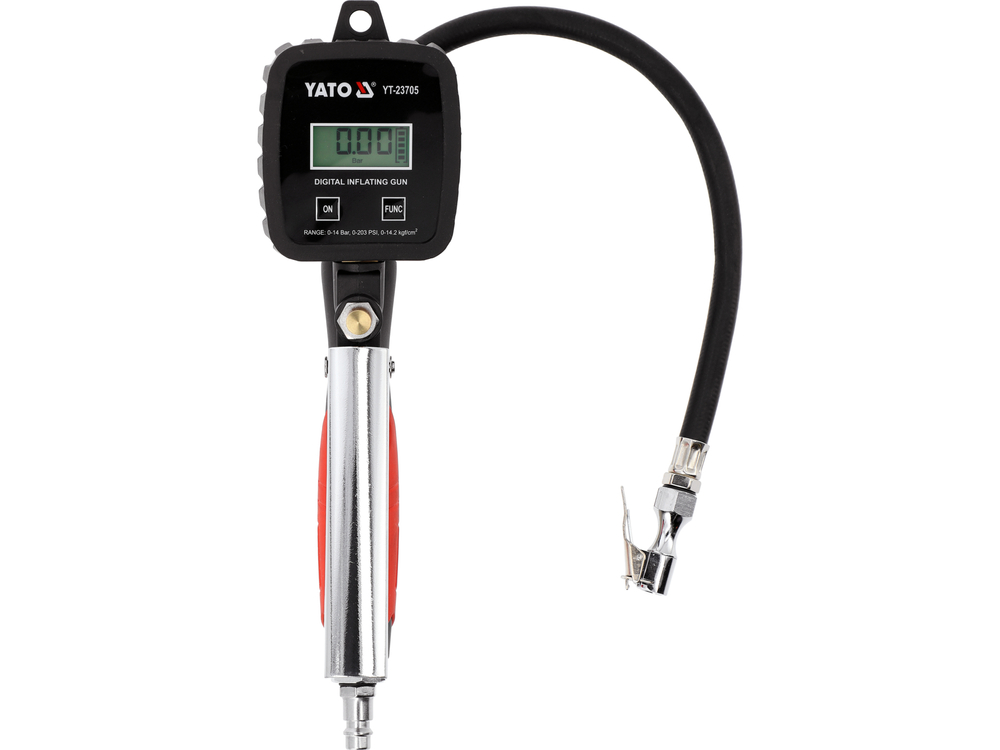

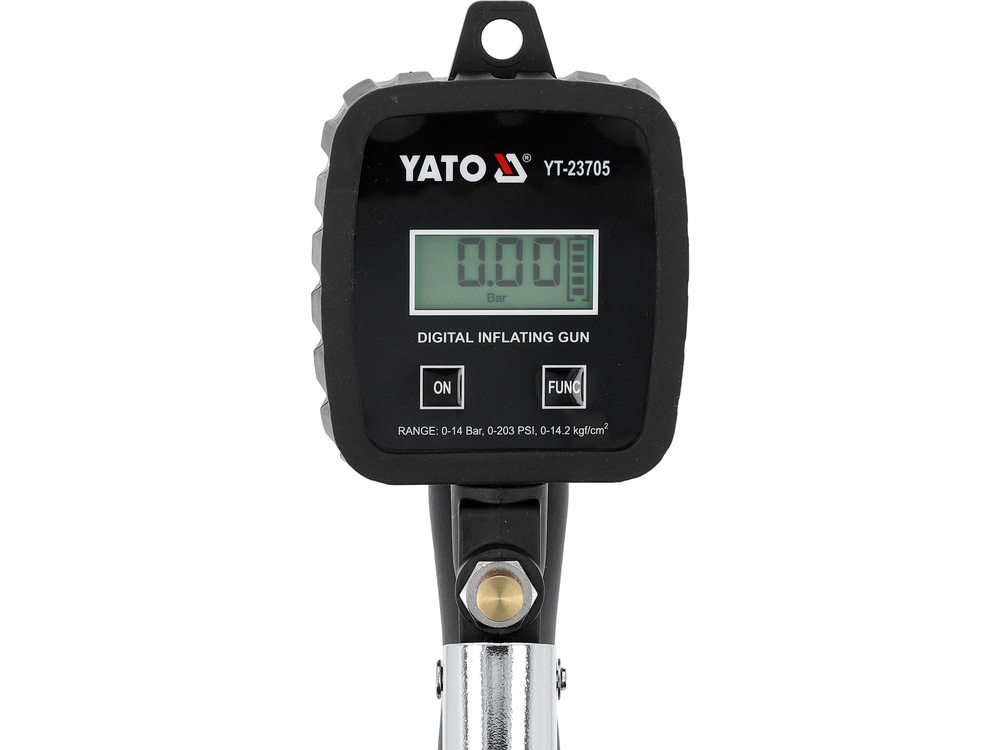

Tire inflator with a digital control panel and LCD display combines precise measurement system with ergonomic design. The device is controlled by an electronic panel with a clear LCD display, which allows for setting and reading the desired pressure value and monitoring the inflation process in real time.
The design and user-friendly features have been designed with reliability and work safety in mind. The inflator is equipped with a standard air connector and a 40 cm long hose providing sufficient reach. The compact dimensions of the pressure gauge, 80 x 78 mm, make installation and reading easy even in tight spaces.
Parameters:
- digital control panel with LCD display
- air connector: standard
- measurement range: 0-14 bar
- max. working pressure: 1.2 MPa (~ 12 bar)
- measurement tolerance ±0.14 bar indicates repeatability of reading in working conditions
- low vibrations < 2.5 m/s² affect reading stability and user comfort
- 40 cm long hose ensures optimal reach and portability
- pressure gauge dimensions: 80 x 78 mm
- weight: 0.5 kg
Usage warnings:
The device is not intended for motor vehicle tiresTo download
