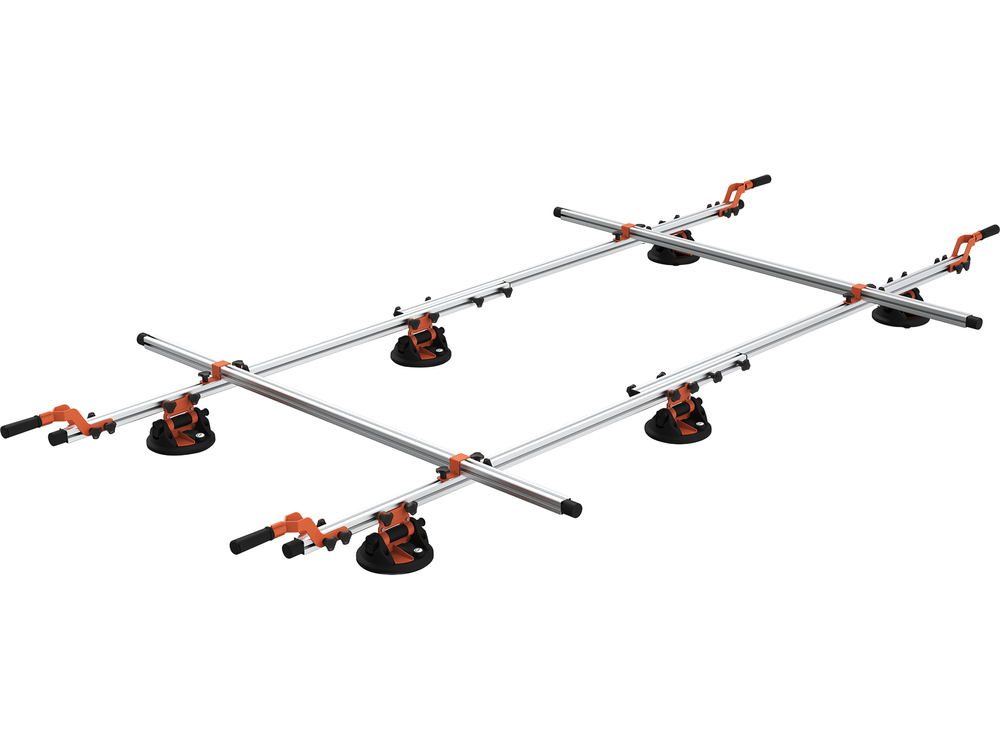

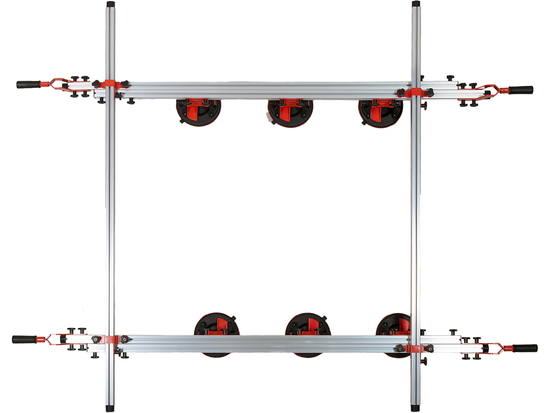

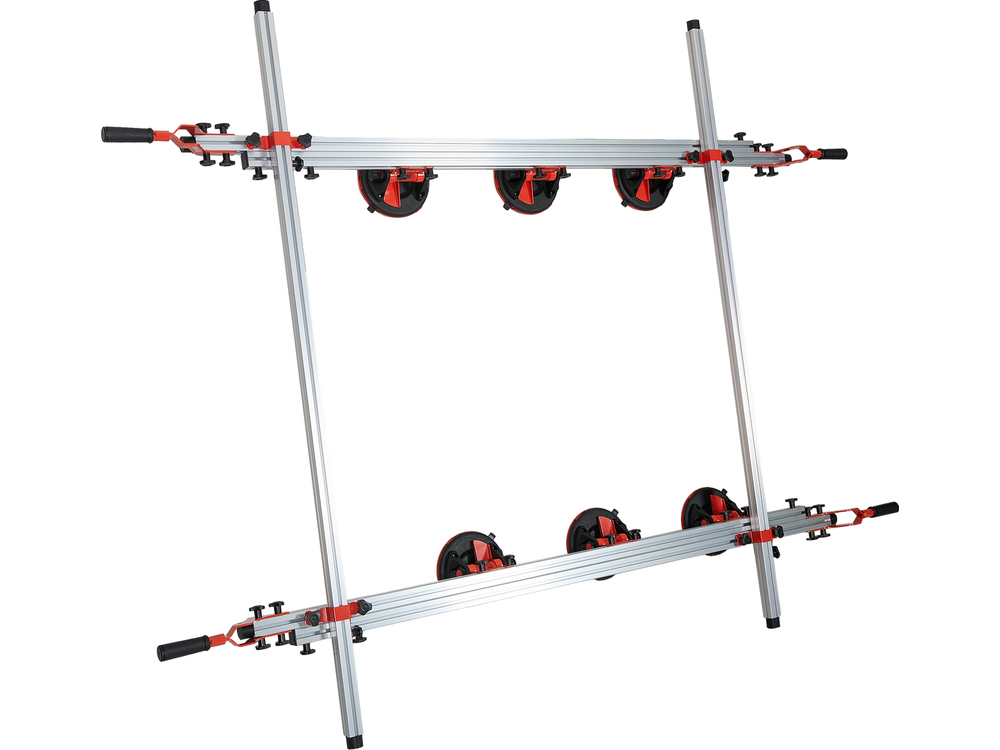

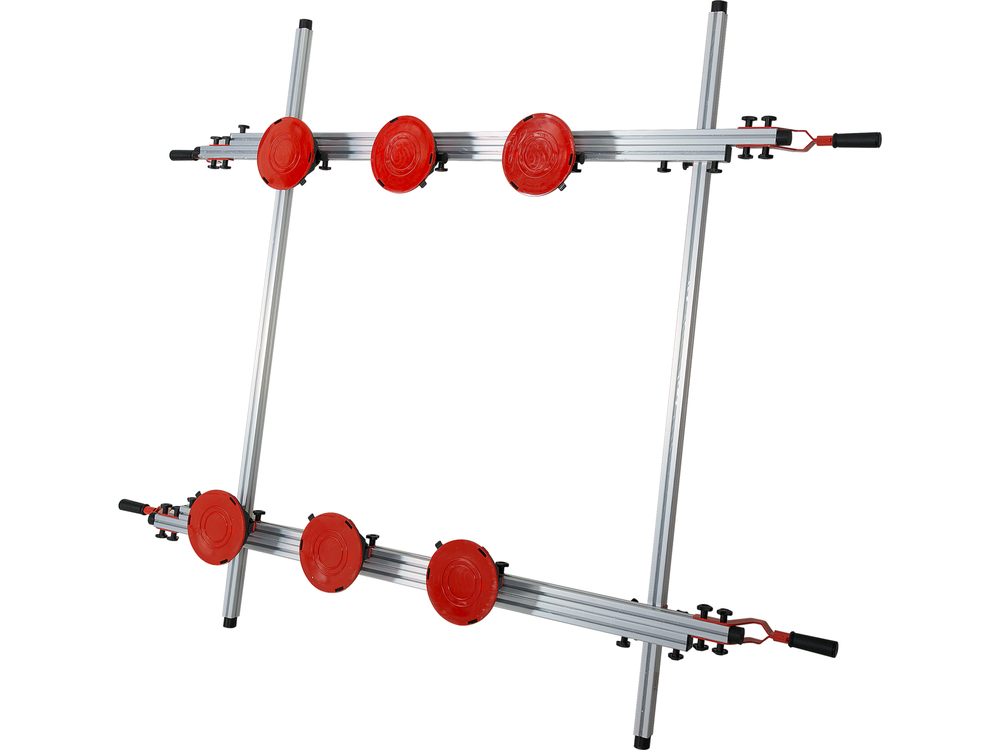

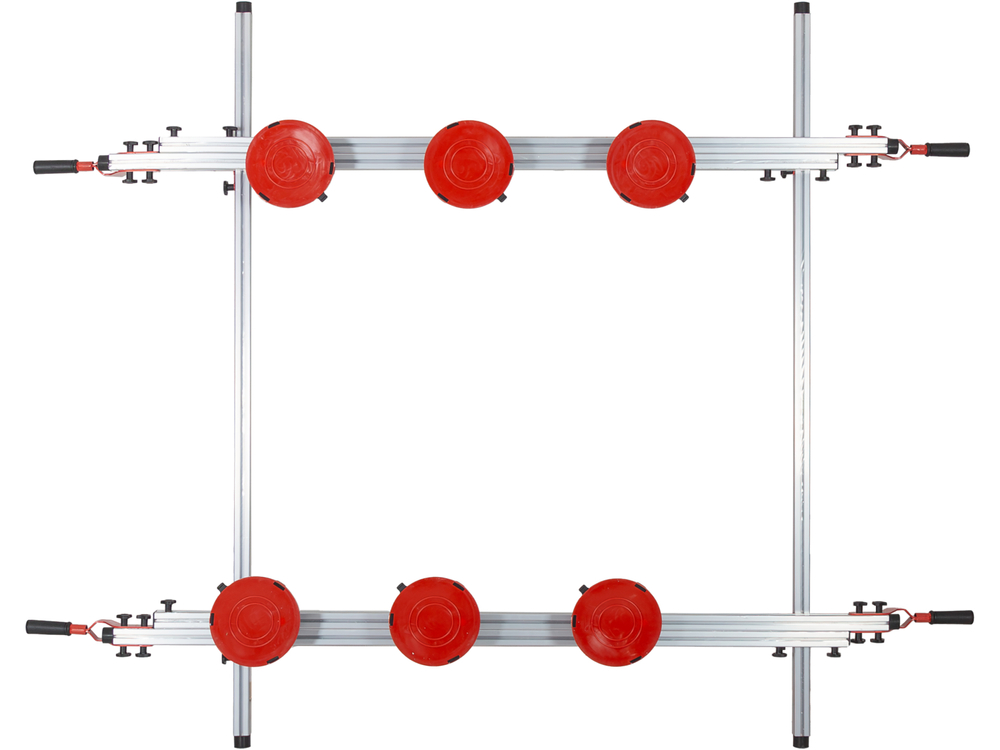

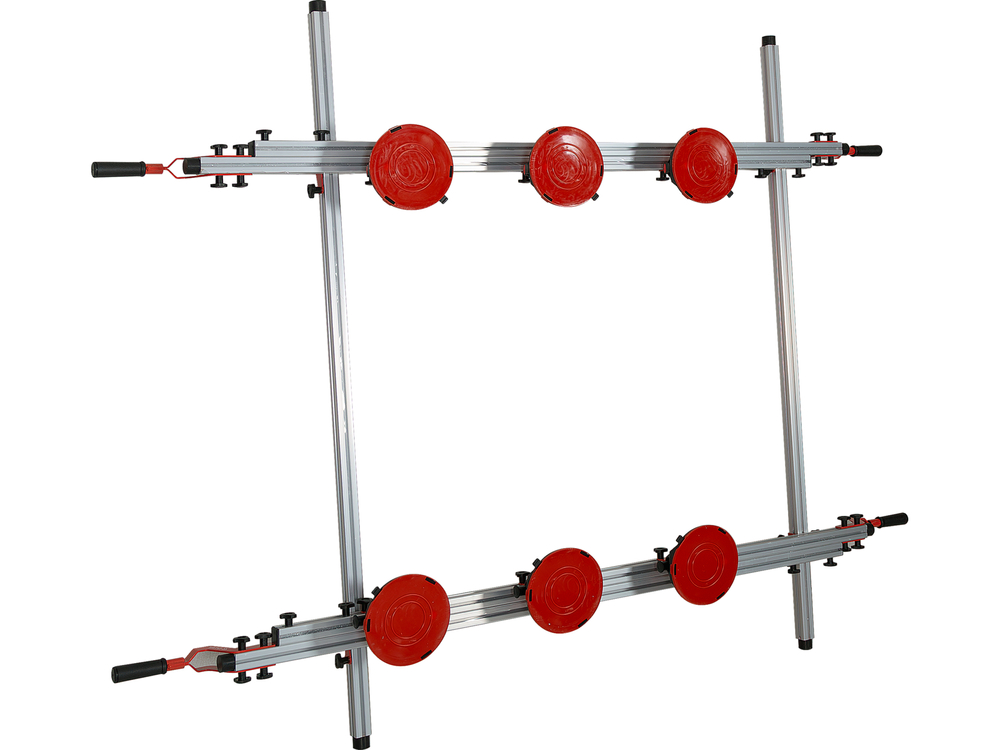

A reliable and versatile transport handle made of durable aluminum alloy is a reliable solution for safely carrying and securing large format sheets, large sheets, or panels. The design combines low weight with high load capacity of up to 150 kg, allowing for comfortable and stable work in the workshop, warehouse, or during finishing.

The system is equipped with 6 vacuum suction cups with a diameter of 20 cm, which can be individually adjusted, adapting them to different shapes and sizes of material. 2 extendable guides made of extruded aluminum have an adjustment range of 160-320 cm, allowing to adjust the length of the system to the material. The crossbars can be easily released for transporting long narrow sheets or large format sheets.

Reinforced aluminum profile increases rigidity and resistance to deformation, ensuring long life and certainty when carrying heavy elements.

Key features:

• 2 adjustable guides made of extruded aluminum in the range of 160-320 cm allow for adjustment to different sheet formats, ensuring stability and secure material guidance, even with large dimensions

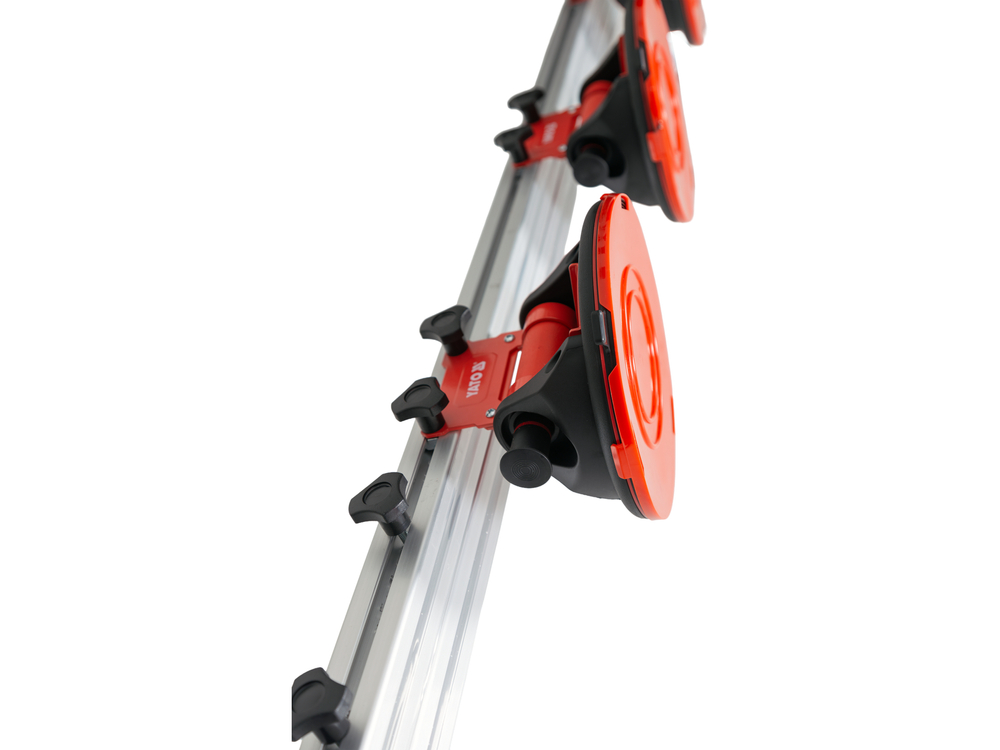

• 6 durable vacuum suction cups with a diameter of 20 cm create a system of solid mounting points, holding the sheet in one position during lifting and transport
• adjusting the placement of suction cups allows to adjust the support points according to needs and optimally distribute pressure, facilitating work with materials of different shapes and sizes
• maximum declared load of 150 kg allows handling heavy sheets, such as glass, composite panels, or steel elements
• own weight of 29 kg ensures proper stability of the entire structure, while allowing users to operate comfortably
