YT-72273
HEIGHT VERNIER CALIPER 500MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Measuring range
0-500 mm
Measurement accuracy
±0.02 mm, ±0.001"
Metric scale
yes
Inch scale
yes
Material
stainless steel
Reading type
traditional
Reading resolution
0.01mm, 0.0005"
Working temperature range
5~40 ˚C
Application
performing height measurements of various objects and elements, for scribing and marking [eng]
Symbol
YT-72273

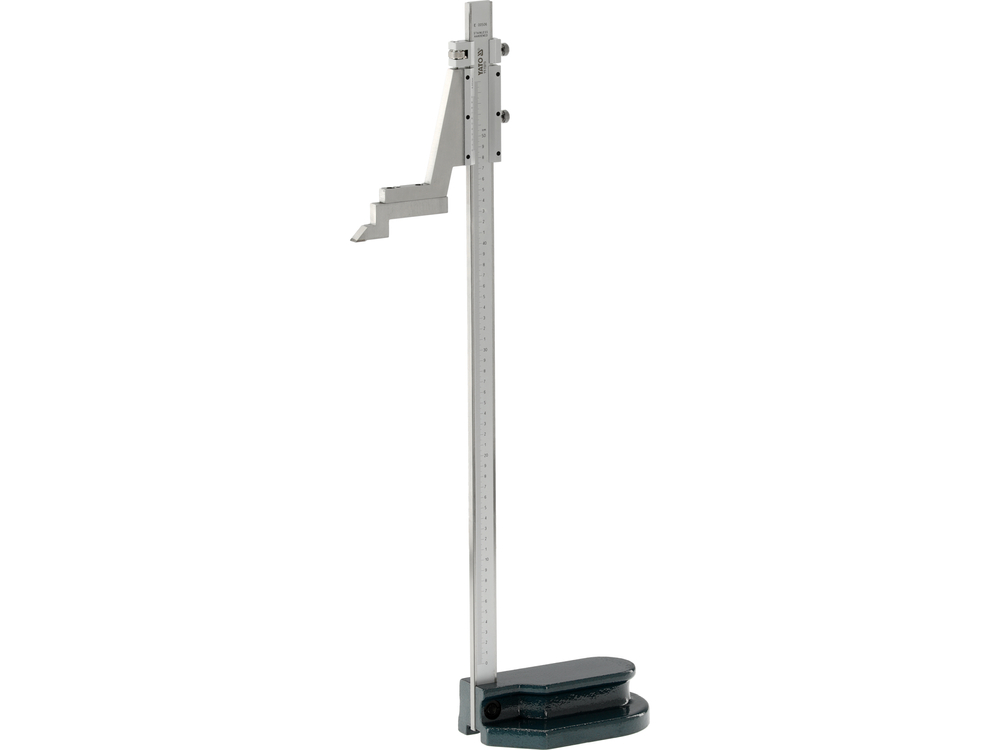

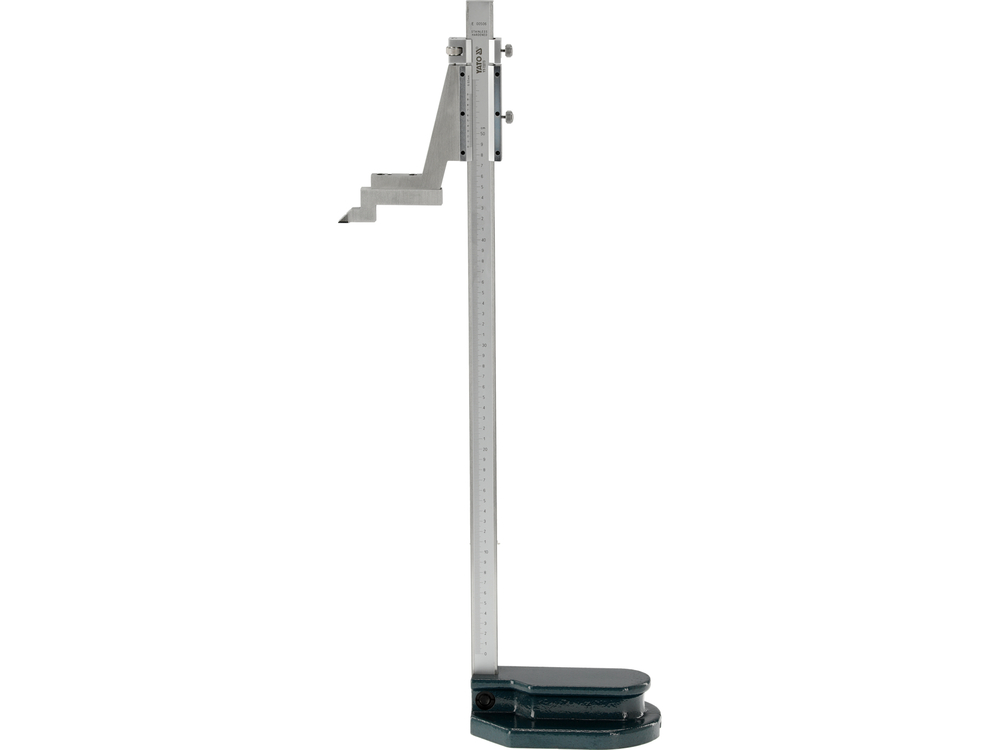

An altimeter is a precise tool designed for measuring the height of various objects and elements, tracing, and marking on work surfaces. It is used in mechanical workshops, measurement laboratories, and assembly work where high accuracy and repeatability of results are required.
- measuring range - depending on the model - from 0-200 mm up to 0-500 mm allows to choose the appropriate variant for the type of work being performed
- measurement accuracy ±0.02 mm|±0.001" and reading resolution 0.01 mm|0.0005" guarantee reliable results even for measurements requiring high precision

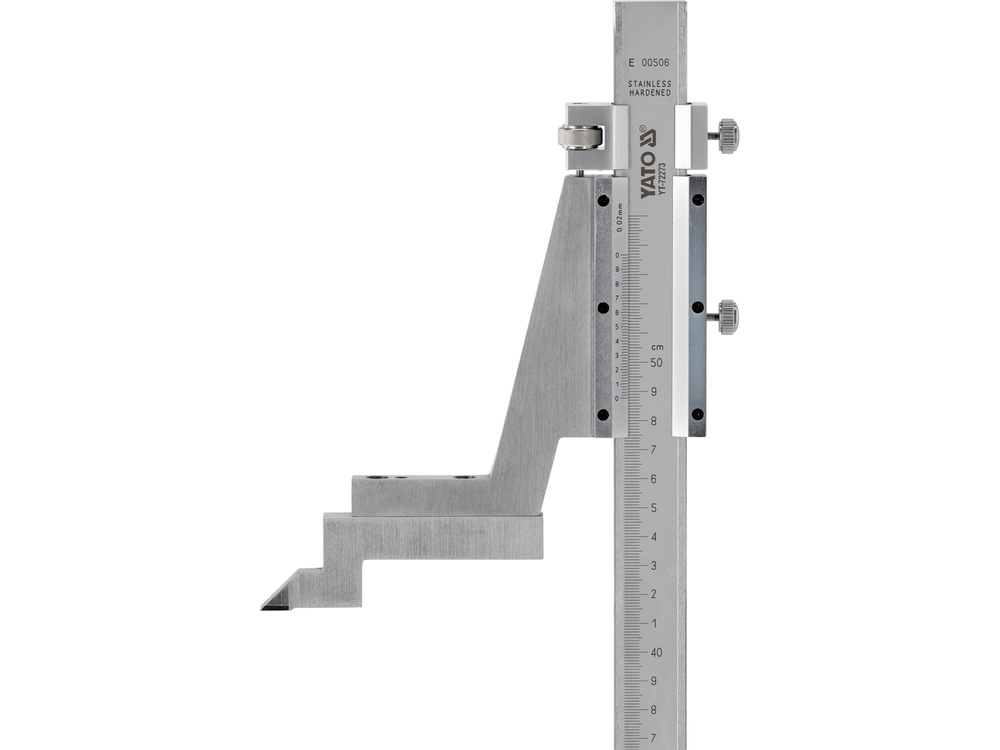

- reading done in a traditional way, using metric and inch scales
- solid body made of high-quality stainless steel with high resistance to deformation and wear ensures durability, stability, and repeatability of measurements
- operating temperature range of 5-40°C allows for use in standard workshop and production conditions
