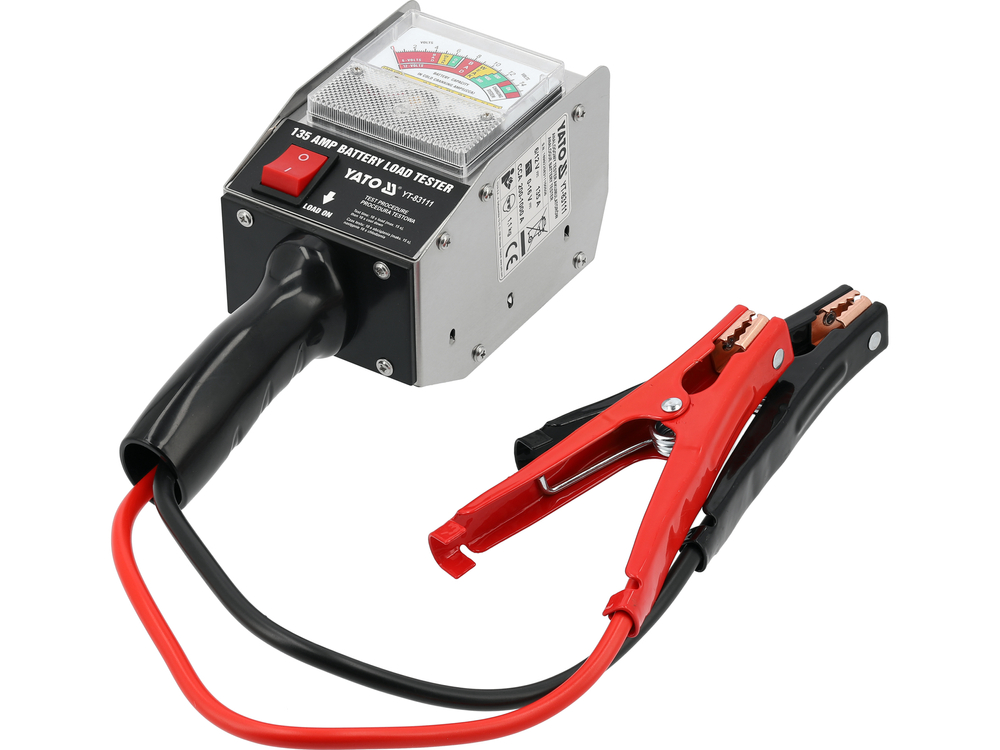

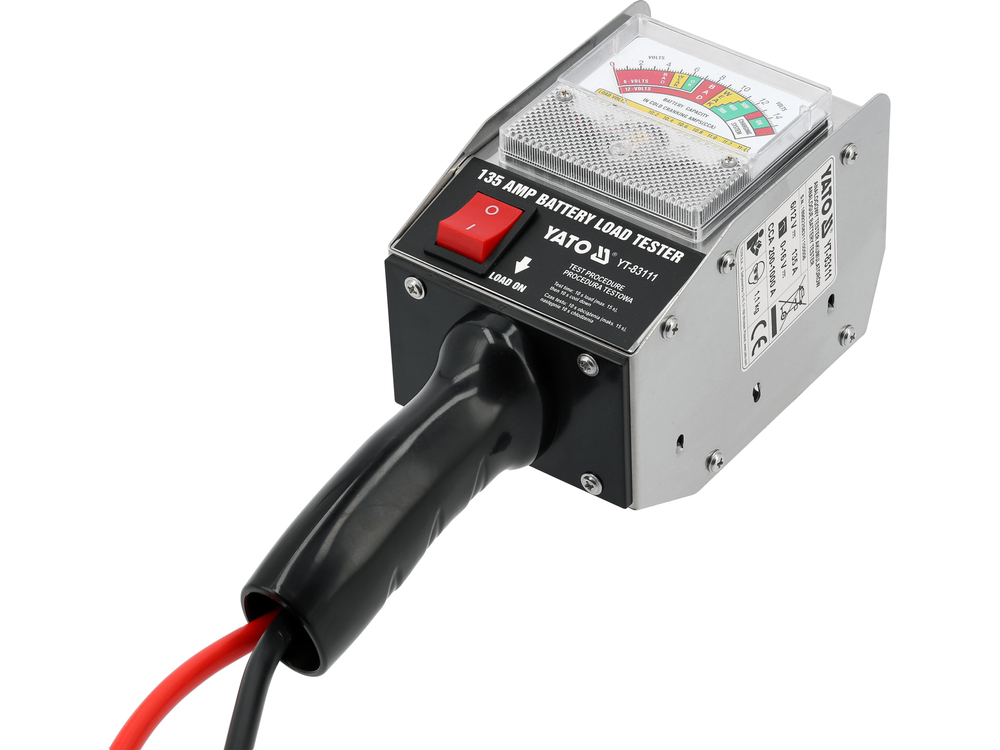

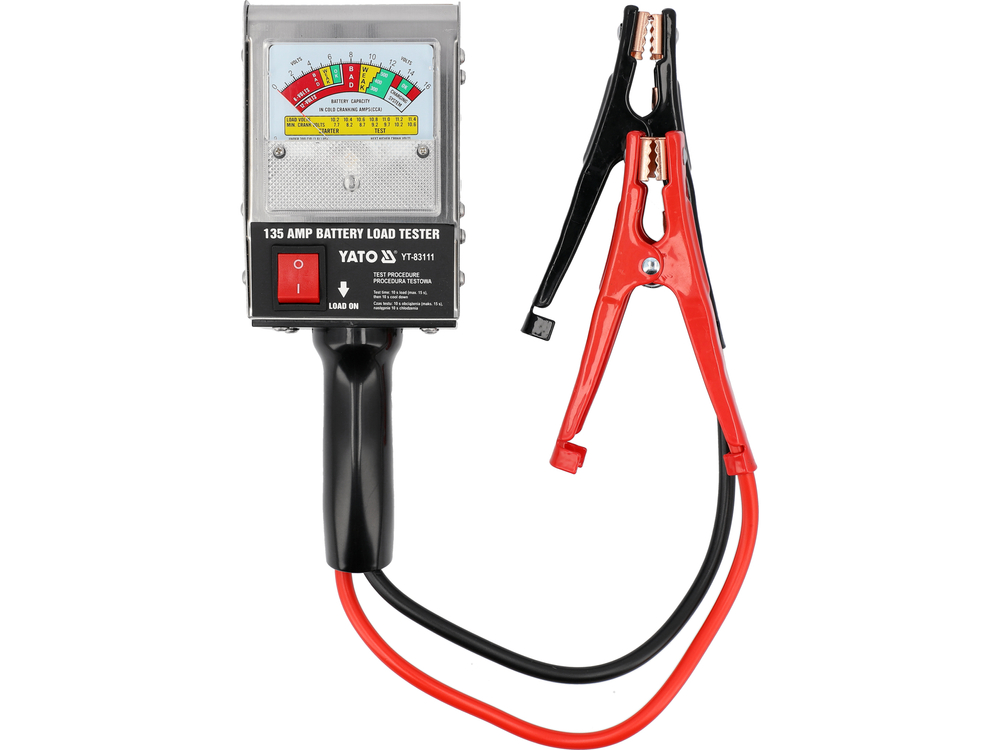

Analog battery tester designed for quick and reliable diagnosis of the state of charge and level of battery exploitation. Allows for evaluation of their actual performance through a test under real load, especially useful in workshops and technical services.

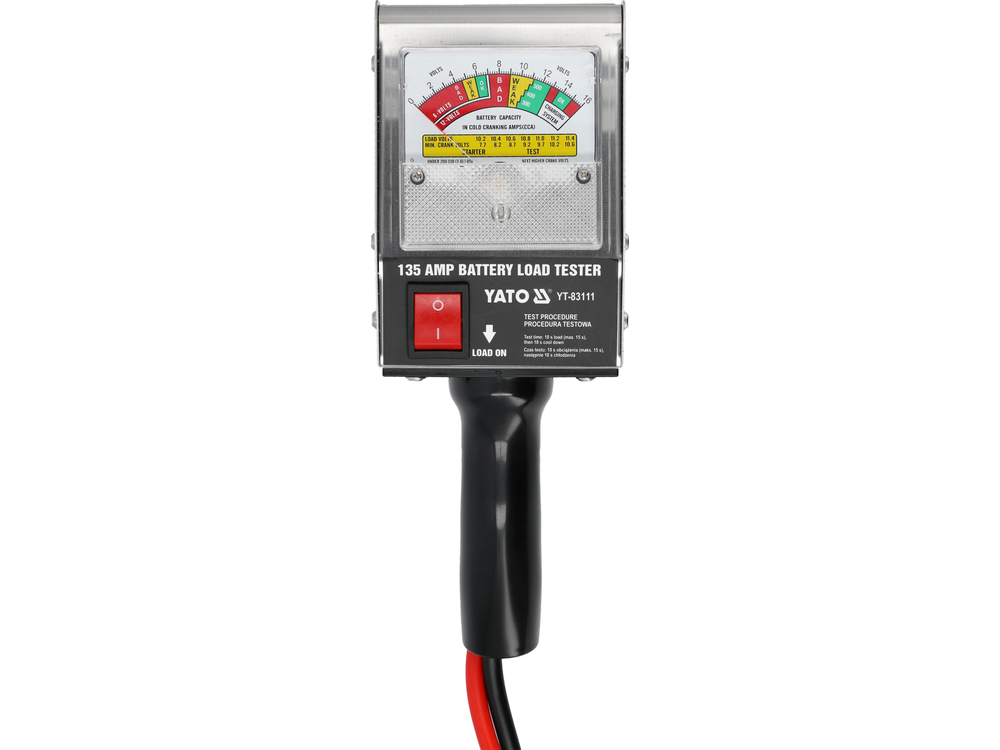

It supports 6 V and 12 V DC installations, enabling control of lead-acid batteries with a capacity of 30-135 Ah, as well as 12-volt lithium batteries. The applied analog voltage indicator ensures an immediate reading without delays.

Features and functions:

• enables diagnostics of 6 V and 12 V lead-acid batteries with a capacity of 30-135 Ah and 12 V lithium batteries
• load current at 135 A ensures a reliable test of cell condition
• the applied temperature compensation mechanism corrects voltage by ±0.1 V for each ±10°C relative to the base temperature of 70°C, increasing measurement reliability in variable working conditions
• test under real load allows for evaluating the battery's ability to deliver starting current
• the device offers two time modes for load testing:
  • 10 seconds - quick diagnosis of current state
  • 5 minutes - in-depth test, useful for evaluating used or problematic batteries
• the stainless steel metal housing increases mechanical resistance and device durability
• high-temperature resistant microporous plate insulation improves safety during load tests
• ventilation hole in the lower part of the housing effectively dissipates heat

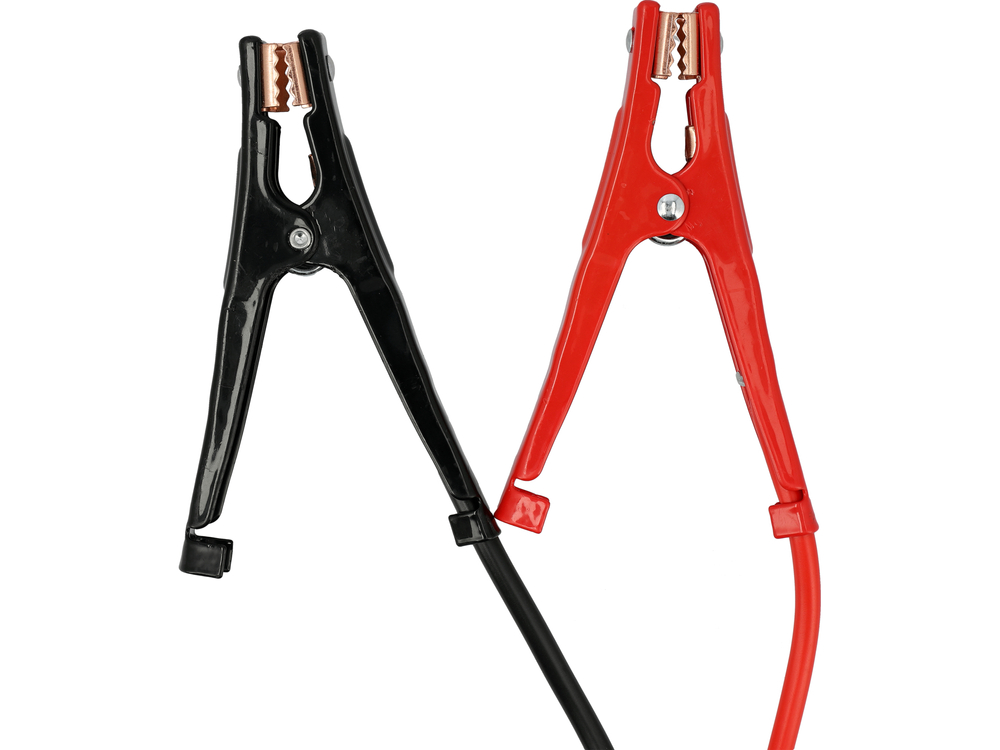

• measurement cables with an effective length of 330 mm and a cross-section of 8 mm² limit voltage drops and stabilize measurements
• CCA measurement range from 200 to 1000 A allows evaluation of both standard and high-power sources

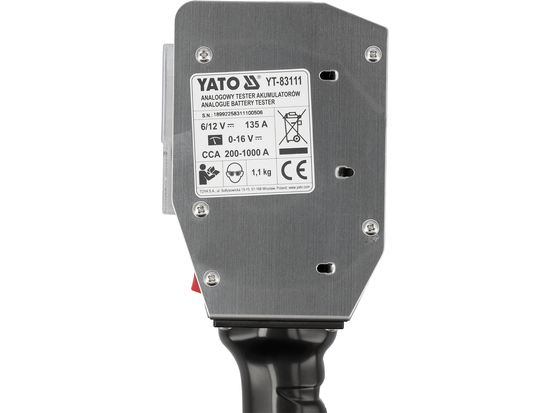

Technical data:

• operating voltage: 6 / 12 V DC
• voltage range: 0-16 V DC
• CCA measurement range: 200-1000 A
• load measurement current: 135 A
• load test time mode: 10 s / 5 min
• type of tested batteries: lead-acid
• voltage indicator: analog
• operating temperature: 0-40˚C
• storage temperature: 0-55˚C
• weight: 1.1 kg
