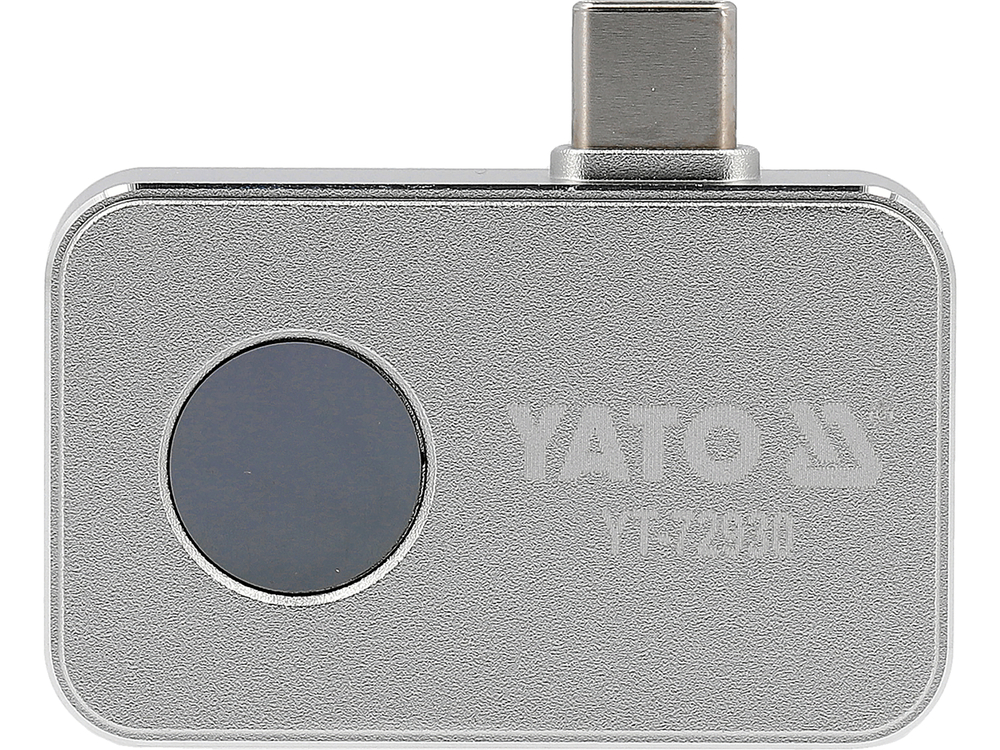

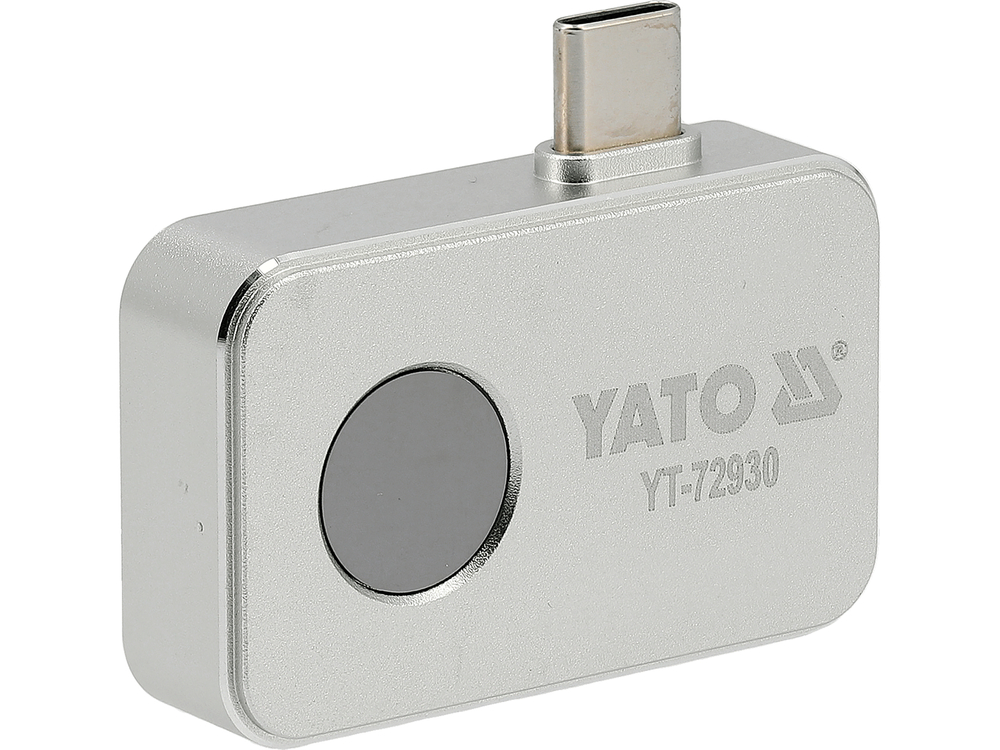

Miniature thermal camera for Android devices - high resolution thanks to Super Resolution.

Turn your smartphone into a professional thermal camera. This compact device connected via USB-C allows for advanced temperature measurements and thermal imaging without the need for large, separate equipment. An ideal tool for technicians, service technicians, DIY enthusiasts, and professionals in the construction, electrical, and electronics industries.

A new quality of mobile thermography

The camera is equipped with a microbolometer with a native resolution of 256 x 192 px, which, thanks to Super Resolution technology, generates an image with an effective resolution of up to 512 x 384 px. This is over 4 times more detail than in the base mode. Combined with a high refresh rate of 25 Hz, you will be able to see the smallest temperature changes in a smooth and visually pleasing way.

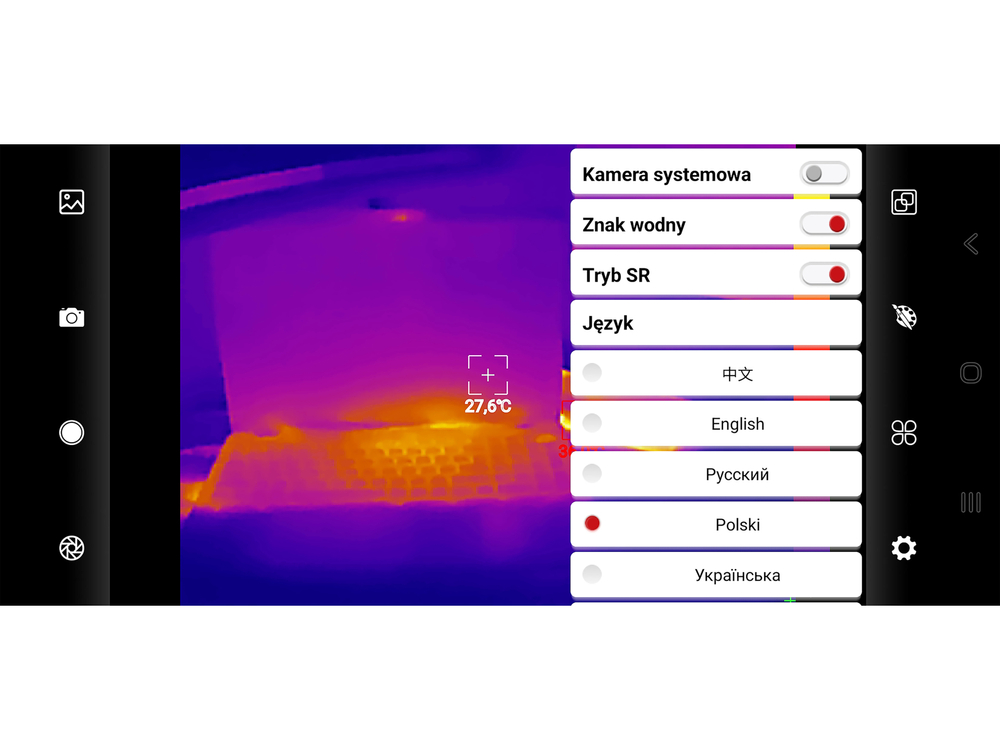

Controlled by a dedicated Android application

Simply connect the camera to the USB-C port and launch the free app (available for download from the Play Store). With it, you can:

• view thermal images in real-time
• measure temperature pointwise, linearly, or in a selected area (region measurement)
• capture photos and videos (JPG/MP4 format)
• use 10 color modes, including: White Hot, Iron Red, Rainbow, Black Hot

Technical specification:

• sensor: VOx microbolometer (vanadium oxide)
• sensor resolution: 256 x 192 px
• effective resolution with Super Resolution: 512 x 384 px
• pixel size: 12 µm
• NETD: ≤50 mK @ 25°C - high thermal sensitivity
• spectral range: 8-14 µm
• focal length: 3.2 mm (fixed focus)
• field of view (FOV): 56° (H) x 42° (V)
• IFOV: 3.75 mrad
• image refresh rate: up to 25 Hz

Temperature measurement:

• range:
  • -15°C ~ 150°C
  • 150°C ~ 550°C
• accuracy:
  • -15°C ~ -10°C: ±3°C
  • -10°C ~ 550°C: ±2°C or ±2%
• measurement distance: from 0.25 m to 5 m
• measurement modes: point, linear, regional
• emissivity: adjustable (0.01-1.00)

Functionality and interface:

• power supply: via USB-C, DC 5 V
• power consumption: ≤0.35 W
• storage format: JPG (photos), MP4 (videos)
• language menu: Polish, English, Ukrainian, Russian
• weight: only 15 g
• dimensions: 45 x 36.7 x 11.5 mm

Operating conditions and resistance:

• operating temperature: -10°C ~ +75°C
• storage temperature: -45°C ~ +85°C
• humidity: 10%-85% RH

Where it will be useful?

• electrical inspections and detection of overheated connections
• detection of thermal bridges and heat loss in buildings
• HVAC equipment servicing
• industrial and preventive inspections
• automotive diagnostics and thermal testing of electronics
